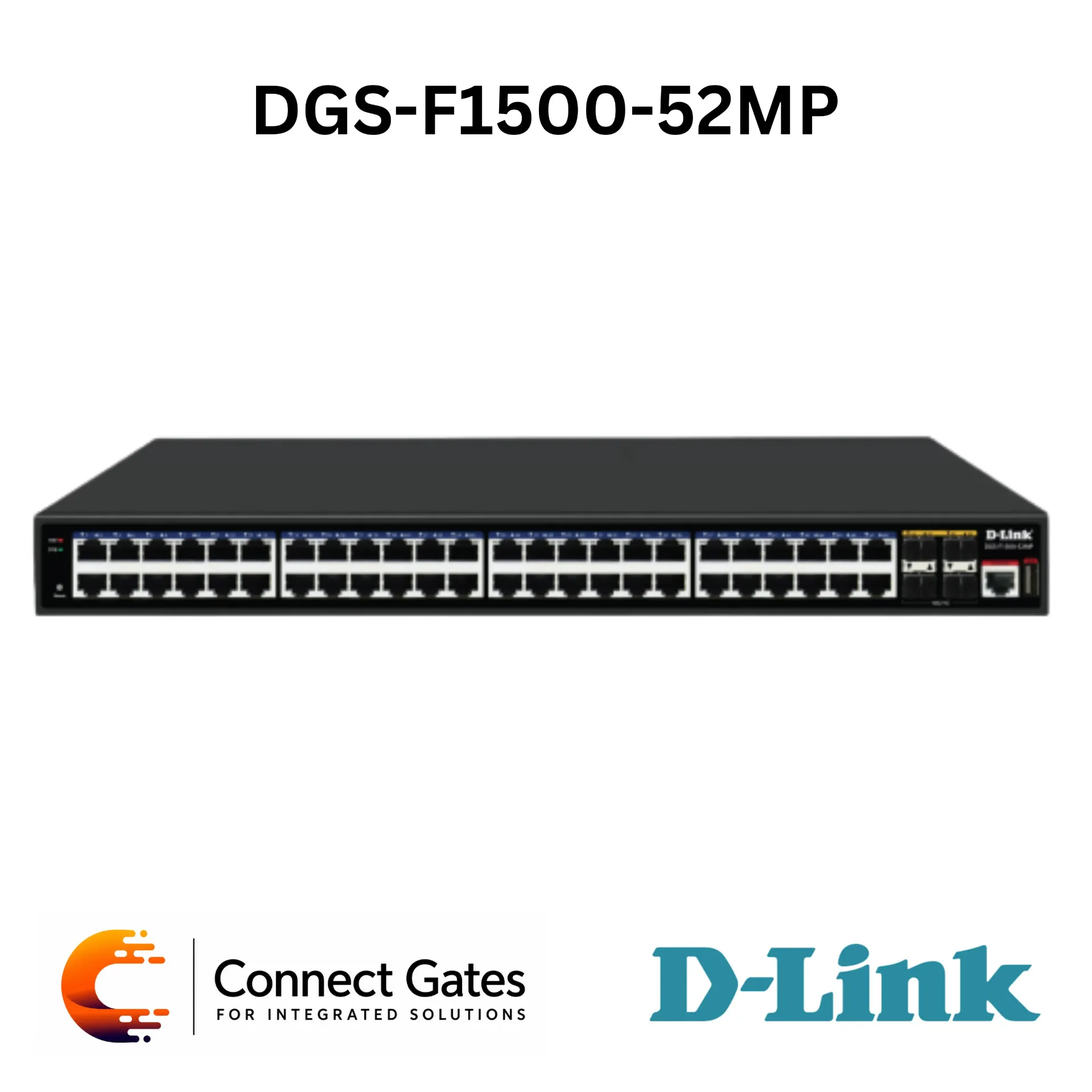

D-Link DGS-F1500-52MP – 48-Port Gigabit PoE Managed Switch with 4 × 1G/10G SFP+ Uplink Ports
Overview:
• The D-Link DGS-F1500-52MP is a 48-Port Gigabit PoE Managed Switch designed for business networks, CCTV systems, wireless access point deployments, VoIP systems, and professional network cabinets.
• It provides 48 × 10/100/1000BASE-T PoE ports and 4 × 1G/10G SFP+ uplink ports, giving high-density PoE connectivity with strong 10G fiber uplink flexibility.
• The switch supports IEEE 802.3af/at/bt PoE, with ports 1–4 supporting 802.3bt up to 90W, making it suitable for high-power PoE devices as well as standard IP cameras, access points, and IP phones.
• It includes a 600W PoE power budget, 176Gbps switching capacity, 131Mpps forwarding rate, 32K MAC address table, 16Mbits packet buffer, 512MB CPU memory, and 32MB flash memory.
• The DGS-F1500-52MP supports advanced Layer 2+ features including IGMP Snooping, STP/RSTP/MSTP, Link Aggregation, VLAN, Auto Voice VLAN, QoS, ACL, Static Routing, RIP v1/v2, OSPF, Loopback Detection, Cable Diagnostics, and IPv4/IPv6 Dual Stack.
Key Features:
• 48-Port Gigabit PoE Managed Switch
• 48 × 10/100/1000BASE-T PoE Ports
• 4 × 1G/10G SFP+ Uplink Ports
• IEEE 802.3af/at/bt PoE Support
• Ports 1–4 Support 802.3bt up to 90W
• 600W PoE Power Budget
• 176Gbps Switching Capacity
• 131Mpps Packet Forwarding Rate
• 32K MAC Address Table
• 16Mbits Packet Buffer Memory
• 512MB CPU Memory
• 32MB Flash Memory
• 4 × Fans
• Web UI, CLI, SNMP, and D-View 8.0 Management
• Auto Voice VLAN Support
• Static Routing, RIP v1/v2, and OSPF Support
• STP, RSTP, MSTP, LACP, LLDP, and LLDP-MED
• QoS with 8 Queues per Port
• ACL, 802.1X, Port Security, DHCP Snooping, Dynamic ARP Inspection, and DoS Prevention
• Cable Diagnostics and Loopback Detection
• Time-Based PoE and Cable Length Detection
• IPv6 Ready and IPv4/IPv6 Dual Stack
• Surge Protection: General 4kV, Differential 2kV, ESD 8kV Air, 6kV Contact
Technical Specifications:
• Product Type: Gigabit PoE Managed Switch
• Brand: D-Link
• Model: DGS-F1500-52MP
• Hardware Version: A1
• Port Configuration: 48 × 10/100/1000BASE-T PoE + 4 × 1G/10G SFP+ Ports
• PoE Ports: Ports 1 to 48
• High-Power PoE Ports: Ports 1–4 support 802.3bt up to 90W
• PoE Standards: IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt
• PoE Power Budget: 600W
• Console Port: 10/100/1000BASE-T RJ45 Port for Out-of-Band CLI Management
• Port Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3u 100BASE-FX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X, IEEE 802.3az EEE, IEEE 802.3x Flow Control, IEEE 802.3af/at PoE
• Network Cables: UTP Cat.5, Cat.5e, Cat.6 up to 100m
• Duplex Mode: Full/Half Duplex for 10/100Mbps, Full Duplex for 1000Mbps
• Media Interface Exchange: Auto MDI/MDIX for all twisted-pair ports
• Switching Capacity: 176Gbps
• Transmission Method: Store-and-Forward
• Maximum 64-Byte Packet Forwarding Rate: 131Mpps
• MAC Address Table: 32K Entries
• Static MAC Addresses: 256 Entries
• Packet Buffer Memory: 16Mbits
• CPU Memory: 512MB
• Flash Memory: 32MB
• Power Input: 100 to 240V AC, 50/60Hz, Internal Universal Power Supply
• Maximum Power Consumption with PoE Enabled: 652W at 100V / 651W at 240V
• Maximum Power Consumption with PoE Disabled: 52W at 100V / 51W at 240V
• Standby Power Consumption: 5W at 100V / 5W at 240V
• Acoustics: 58–60dB(A)
• Heat Dissipation: 2225.25BTU/hr at 100V / 2221.84BTU/hr at 240V
• Fans: 4
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Relative Humidity
• Storage Humidity: 0% to 95% Relative Humidity
• Dimensions: 440 × 360 × 44.5mm
• Weight: Gross Weight 6.6kg / Net Weight 5.3kg
• MTBF: 760,000 Hours
• L2 Features: 32K MAC Address Table, IGMP Snooping v1/v2/v3, IGMP v3 Awareness, 256 IGMP Groups, 64 Static Multicast Addresses, IGMP per VLAN, IGMP Snooping Querier, Loopback Detection, 802.3ad Link Aggregation, LLDP, LLDP-MED, Jumbo Frame up to 10,000 Bytes, STP, RSTP, MSTP, Flow Control, Port Mirroring, Multicast Filtering, Configurable MDI/MDIX, MLD Snooping v1/v2 with 256 Groups
• Link Aggregation: Maximum 8 Groups / 8 Ports per Group
• VLAN Features: 802.1Q, Max. 4K Static VLAN Groups, Configurable VID from 1 to 4094, Auto Voice VLAN
• QoS Features: 802.1p QoS, 8 Queues per Port, Strict, WRR, Port-Based Bandwidth Control, DSCP, ToS, IP Preference
• Bandwidth Control: Port-Based Ingress/Egress, minimum granularity 16Kbps for 10/100/1000
• Layer 3 Features: IP Interface, 15 Interfaces, IPv6 Neighbor Discovery, Static Routing, 32 IPv4 Static Route Entries, 32 IPv6 Static Route Entries, RIP v1/v2, OSPF
• ACL Support: Max. 512 Access Lists, Max. 127 Rules Shared by IPv4, MAC, and IPv6
• ACL Criteria: MAC Address, 802.1p Priority Mask, VID Mask, Source/Destination MAC Address Mask, EtherType Mask, IP Address, Source/Destination IP Address Mask, DSCP Mask, Protocol Type Mask, TCP/UDP Port Number Mask, IPv6 Address
• Security Features: Broadcast/Multicast/Unicast Storm Control, SSH v2, TLS v1.0, DoS Attack Prevention, 802.1X Port-Based Access Control, Port Security, Dynamic ARP Inspection, DHCP Server Screening, IPv4 Inspection, IPv6 Inspection, DHCP Snooping
• Port Security: Up to 64 MAC Addresses per Port
• Dynamic ARP Inspection: Max. 127 Entries
• IPv4 Inspection: Max. 127 Entries
• IPv6 Inspection: Max. 63 Entries
• DHCP Snooping: Max. 512 Entries
• AAA Features: 802.1X Authentication, Local/RADIUS Database, Port-Based Access Control, EAP, PEAP, IPv6 RADIUS Server, MD5 Authentication, TACACS+ Authentication
• Local Database: Max. 128 Entries
• OAM Features: Cable Diagnostics, Factory Reset
• Management Features: Web-Based GUI, CLI, Telnet Server, TFTP Client, SNMP v1/v2c/v3, SNMP Trap, Firmware Upgrade, Upload/Download Configuration File, BootP/DHCP Client, System Log, SNTP, ICMPv6, IPv4/IPv6 Dual Stack, Time Setting, RMONv1, Trusted Host, Dual Image
• System Log: Max. 500 Log Entries
• Green V3.0 Technology: Power Saving by Link Status, Time-Based PoE, Cable Length Detection
• Optional SFP Transceivers: DGS-712, DEM-302S-LX, DEM-302S-BXD/BXU, DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, DEM-330T/R, DEM-331T/R, DEM-210, DEM-211, DEM-220T/R
• Optional SFP+ Transceivers: DEM-431XT, DEM-431XT-DD, DEM-432XT, DEM-432XT-DD, DEM-433XT, DEM-433XT-DD, DEM-434XT, DEM-436XT-BXD, DEM-436XT-BXU
• Optional 10G SFP+ DAC Cables: DEM-CB100S, DEM-CB300S, DEM-CB700S
Applications:
• IP surveillance and CCTV PoE networks
• High-density IP camera deployments
• Wireless access point deployment
• High-power PoE devices using 802.3bt on ports 1–4
• VoIP and IP phone systems
• Enterprise access layer networks
• Office LAN and building network distribution
• Hotel, school, hospital, factory, and business building networks
• PoE-powered network infrastructure
• Network cabinets requiring 10G uplinks
• Managed networks requiring PoE, routing, QoS, ACL, and security features
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-F1500-52MP for projects that need high-density Gigabit PoE connectivity with strong 10G uplink capability.
• It is an ideal choice for CCTV, wireless APs, VoIP, and business network deployments where many PoE devices need stable power, VLAN control, security, and remote management from one switch.
• The 600W PoE budget, 48 PoE ports, 802.3bt support on ports 1–4, 4 × 10G SFP+ uplinks, static routing, RIP, OSPF, and advanced Layer 2+ features make it suitable for professional network cabinets in factories, hotels, campuses, schools, hospitals, and large office buildings.
• For best performance, Connect Gates recommends calculating the total PoE load before installation, especially when using 802.3bt high-power devices, and selecting suitable SFP+ transceivers or DAC cables according to uplink distance and core switch design.
