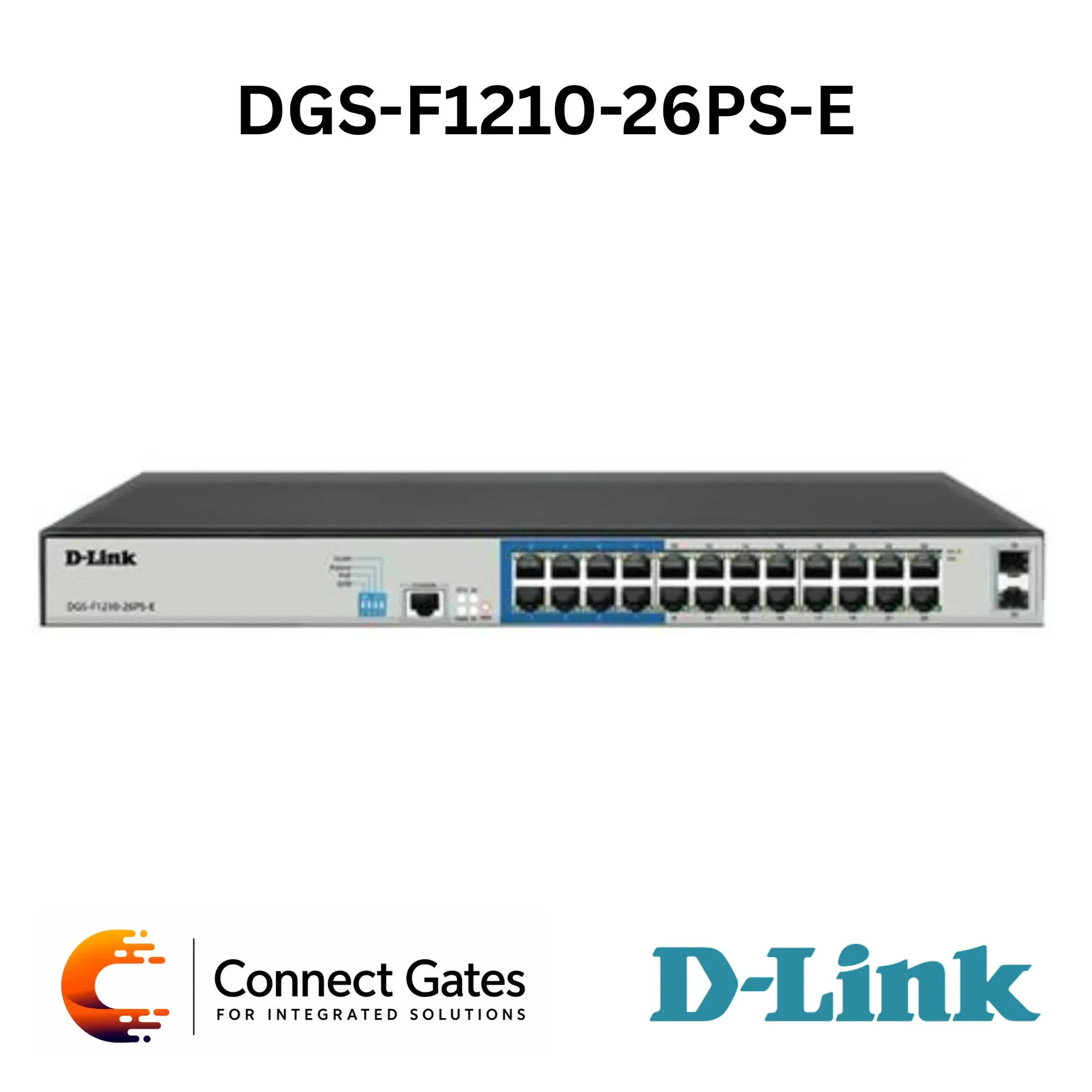

D-Link DGS-F1210-26PS-E – 24-Port Gigabit Managed Long Range PoE+ Switch with 2 SFP Uplink Ports
Overview:
• The D-Link DGS-F1210-26PS-E is a Layer 2 Gigabit Managed Long Range PoE+ Switch designed for CCTV, wireless access points, IP cameras, office networks, and professional PoE deployments.
• It provides 24 × 10/100/1000Mbps PoE RJ45 ports and 2 × Gigabit SFP uplink ports for flexible copper and fiber connectivity.
• The switch supports IEEE 802.3af/at PoE with a total PoE budget of 250W, allowing compatible PoE devices to receive both data and power through Ethernet cables.
• It supports long-range transmission up to 250 meters on ports 1–8 in Extend Mode, making it suitable for surveillance and access point installations where long cable distance is required.
• The DGS-F1210-26PS-E includes VLAN, QoS, PoE, and Extend DIP switch modes, plus web management, CLI, SNMP, LLDP, RMON, security features, DHCP Snooping, 802.1X, ACL, and PoE management.
Key Features:
• 26-Port Layer 2 Gigabit Managed Long Range PoE+ Switch
• 24 × 10/100/1000Mbps PoE RJ45 Ports
• 2 × Gigabit SFP Uplink Ports
• IEEE 802.3af/at PoE Support
• 250W PoE Power Budget
• Long Range Transmission up to 250m
• Extend Mode for Ports 1–8
• VLAN Mode for Port Isolation
• QoS Mode for Traffic Priority
• PoE Mode for Auto Detection and Device Restart
• 52Gbps Switching Capacity
• 38.688Mpps Packet Forwarding Rate
• 8K MAC Address Table
• 6kV Lightning Protection
• DIP Switches: VLAN, Extend, PoE, QoS
• Web Management, CLI, SNMP v1/v2/v3
• LLDP and RMON Support
• DHCP Snooping and DHCP Attack Protection
• IP-MAC-Port Binding
• 802.1X and AAA Support
• ACL, QoS, STP, RSTP, MSTP, IGMP Snooping, and Link Aggregation
• Suitable for CCTV, IP Cameras, Wireless APs, VoIP, and Long-Distance PoE Installations
Technical Specifications:
• Product Type: Layer 2 Gigabit Managed Long Range PoE+ Switch
• Brand: D-Link
• Model: DGS-F1210-26PS-E
• Port Configuration: 24 × 10/100/1000Mbps PoE RJ45 Ports + 2 × Gigabit SFP Ports
• PoE Ports: Ports 1 to 24
• SFP Ports: 2 Gigabit SFP Ports
• Console Port: RJ45
• PoE Standards: IEEE 802.3af / IEEE 802.3at
• PoE Power Budget: 250W
• Long Range Mode: Up to 250m Transmission Distance
• Extend Mode: Ports 1–8 Support 250m Long Distance Power Supply using Cat5e or Cat6 Cable
• DIP Switches: VLAN, Extend, PoE, QoS
• Transmission Rate: 10/100/1000Mbps
• Auto MDI/MDIX: Supported
• Auto-Negotiation: Supported
• Network Interface: 10BASE-T / 100BASE-TX / 1000BASE-T Ethernet RJ45
• Switching Capacity: 52Gbps
• Packet Forwarding Rate: 38.688Mpps
• MAC Address Table: 8K Entries
• LED Indicators: Power, SYS, LINK/ACT, PoE
• Power Input: 100–240VAC, 50–60Hz
• Lightning Protection: 6kV
• Dimensions: 440 × 180 × 44mm
• Weight: 3.2kg
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% Non-Condensing
• Protocol Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
• VLAN Features: 4K VLAN, 802.1Q VLAN, MAC VLAN, IP VLAN, Voice VLAN
• MAC Address Features: IEEE 802.1d Compliant, Automatic MAC Address Learning and Aging, Static and Dynamic MAC
• DHCP Features: DHCP Snooping, DHCP Attack Protection
• Security Features: Password Protection, Port/IP/MAC-Based User Access Restrictions, HTTPS, SSL v3, TLS v1, SSH v1/v2, IP-MAC-Port Binding, IP Source Protection, DoS Protection, 802.1X, AAA, Port Isolation, CPU Protection
• PoE Management: PoE Power Limit, PoE Chip Status View, PoE Port Priority, PoE Power Supply Time Period
• ACL Features: Layer 2 to Layer 4 Packet Filtering, Port Mirroring, Port Redirection, Flow Rate Limiting, QoS Re-Marking
• QoS Features: 8 Port Queues, Port Priority, 802.1p Priority, DSCP Priority, SP, WRR, WFQ Priority Scheduling
• Spanning Tree: STP, RSTP, MSTP, Root Bridge Protection, TC Protection, BPDU Protection
• Multicast Features: IGMP v1/v2 Snooping, Fast Leave, Packet Statistics, Unknown Multicast Discard
• Storm Suppression: Multicast Suppression, Broadcast Suppression, Unknown Unicast Suppression
• Link Aggregation: Static Aggregation, Dynamic Aggregation, IP/MAC/Hybrid Load Balancing, Up to 32 Aggregation Groups
• IPv6 Features: IPv6 Ping, IPv6 Tracert, IPv6 Telnet, IPv6 SSH, IPv6 SSL
• Management Features: Web Network Management, HTTP, HTTPS, SSL v3, CLI via Telnet/SSH/Local Serial Port, SNMP v1/v2/v3, LLDP, RMON, CPU Monitoring, Memory Monitoring, System Log, Grading Warning, Ping, Tracert Detection, Cable Detection
• Order Description: 26-Port Layer 2 Gigabit Managed Long Range PoE+ Switch with 2 SFP Ports
Applications:
• IP surveillance and CCTV networks
• Long-distance PoE camera installations
• Wireless access point deployment
• VoIP and IP phone systems
• Office LAN and business networks
• School, hotel, factory, hospital, and building networks
• Network cabinets requiring PoE and SFP uplinks
• Remote camera or AP points up to 250m using Extend Mode
• Managed PoE networks requiring VLAN, QoS, ACL, and basic security features
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-F1210-26PS-E for CCTV and wireless projects that need a reliable 24-port Gigabit PoE switch with SFP uplinks and long-distance support.
• It is a strong choice for IP cameras, access points, and VoIP devices, especially when some cable runs are longer than standard network distances.
• The 250W PoE budget, 24 PoE ports, 2 SFP uplinks, 250m Extend Mode, VLAN isolation, QoS mode, and PoE auto-restart features make it suitable for practical surveillance and business installations.
• For best performance, Connect Gates recommends calculating the total PoE load before installation and using Cat5e or Cat6 cable for long-range PoE runs.
