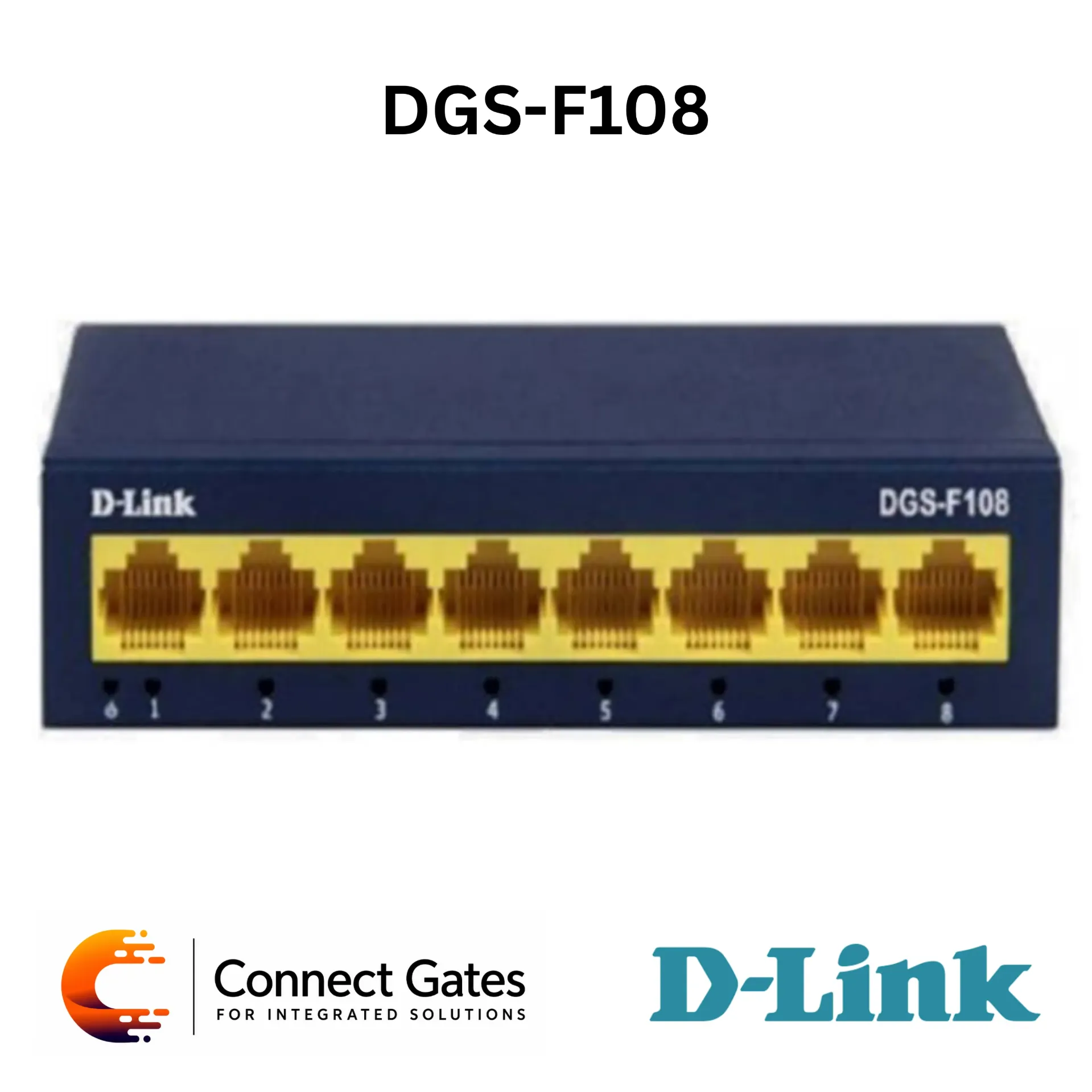

D-Link DGS-F108 – 8-Port Gigabit Unmanaged Switch with 10/100/1000 Mbps RJ45 Ports, 16Gbps Switching Bandwidth, QoS & IGMP Snooping

• The D-Link DGS-F108 is an 8-Port Gigabit Unmanaged Switch designed for small offices, homes, companies, schools, cybercafes, and basic video monitoring network applications.

• It provides 8 × 10/100/1000Mbps RJ45 ports, allowing users to connect computers, routers, IP cameras, NVRs, printers, and other network devices with Gigabit connectivity.

• The switch supports full-speed forwarding up to 1000Mbps per port, providing reliable performance for data, HD video monitoring, VoIP, gaming, and IPTV applications.

• It supports QoS to improve performance for time-sensitive applications such as VoIP and gaming, and supports IGMP Snooping to optimize multicast traffic for bandwidth-intensive applications like IPTV.

• With a compact size, simple operation, and energy-saving design, the DGS-F108 is suitable for economical plug-and-play network expansion.

• 8 Gigabit RJ45 ports

• 10/100/1000Mbps support

• Unmanaged network switch

• Plug-and-play operation

• Full-speed forwarding up to 1000Mbps per port

• 16Gbps non-blocking bandwidth

• QoS support

• IGMP Snooping support

• 4K MAC address capacity

• Power and Link/ACT LED indicators

• Compact desktop design

• Suitable for HD video monitoring

• Suitable for IPTV, VoIP and gaming

• Energy-saving design

• Brand: D-Link

• Model: DGS-F108

• Product Type: 8-Port Gigabit Unmanaged Switch

• Management: Unmanaged

• Installation: Plug and Play

• Application: Home Networks, Small Offices, Schools, Companies, Cybercafes, Video Monitoring Networks

• RJ45 Ports: 8 × 10/100/1000Mbps RJ45 Ports

• Network Interface: 100BASE-T / 1000BASE-TX Ethernet RJ45 Port

• 10Mbps: Half-Duplex

• 100Mbps: Half-Duplex / Full-Duplex

• 1000Mbps: Full-Duplex

• Bandwidth: 16Gbps Non-Blocking

• MAC Address Capacity: 4K

• Frame Filtering / Transfer Rate - 10M Port: Maximum 14,880pps

• Frame Filtering / Transfer Rate - 100M Port: Maximum 148,809pps

• Frame Filtering / Transfer Rate - 1000M Port: Maximum 1,488,009pps

• Ethernet Standard: IEEE 802.3

• Fast Ethernet Standard: IEEE 802.3u

• Gigabit Ethernet Standard: IEEE 802.3ab

• Flow Control: IEEE 802.3x Full-Duplex Ethernet Data Link Layers

• Device LED: Power

• Port LED: Link / ACT for Each Port

• Input Power: 100–240VAC, 50/60Hz

• Output Power: 12VDC, 1A

• Dimensions: 125 × 75 × 27mm

• Weight: 0.45kg

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% Non-Condensing

• Storage Humidity: 5% to 90% Non-Condensing

• Home network expansion

• Small office LAN switching

• School and company networks

• Cybercafe network connectivity

• HD video monitoring networks

• IP camera and NVR connection

• IPTV multicast applications

• VoIP and gaming traffic support

• Simple plug-and-play wired network expansion

• Connect Gates recommends the D-Link DGS-F108 for small networks that need a simple 8-port Gigabit unmanaged switch with reliable performance and easy installation.

• It is suitable for home users, small offices, schools, shops, and basic CCTV/data networks.

• The 16Gbps bandwidth, QoS support, and IGMP Snooping make it useful for video monitoring, IPTV, VoIP, and everyday network applications.

• For proper installation, Connect Gates recommends checking the required port count, device locations, cable quality, power source, and whether the project requires unmanaged or smart managed features before deployment.
