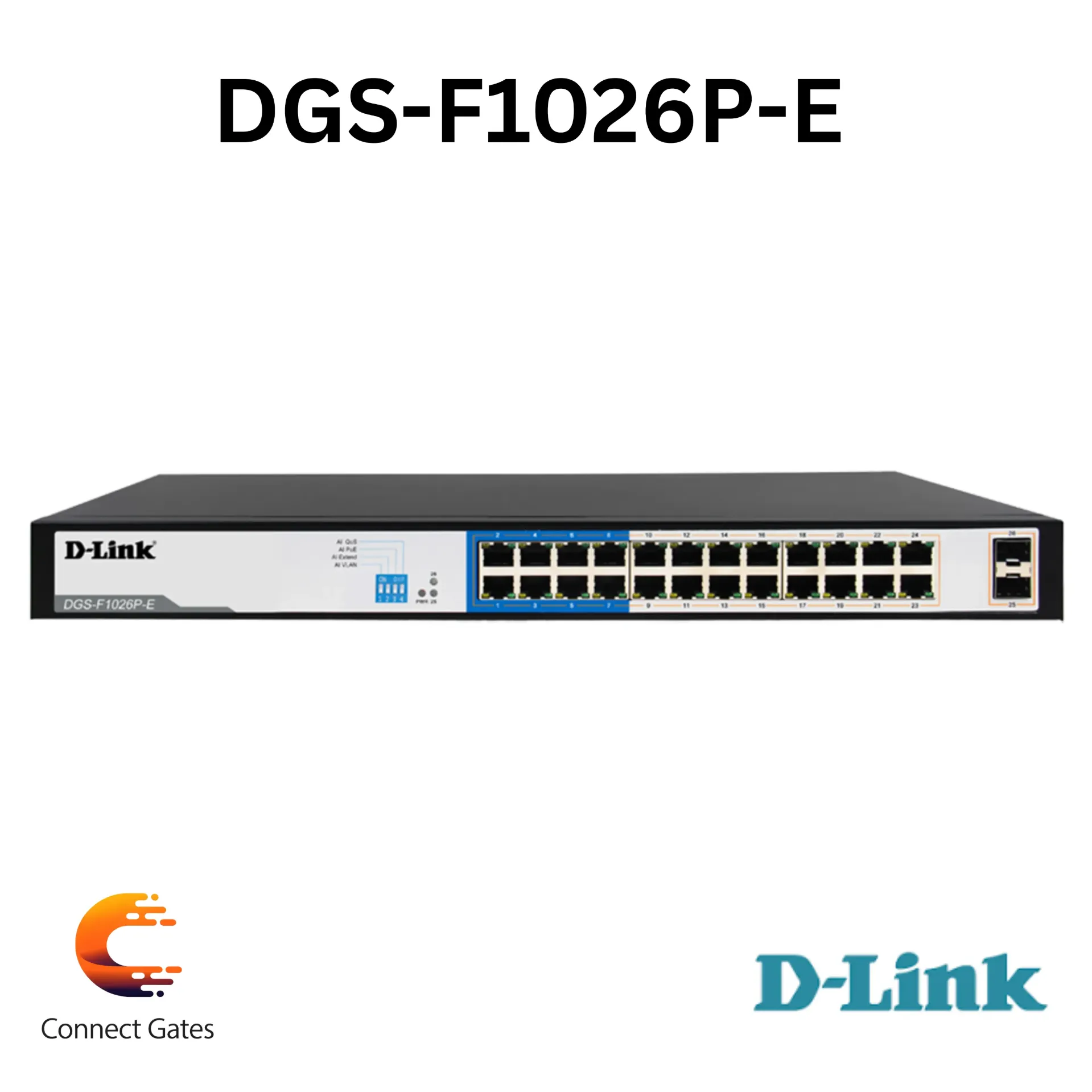

D-Link DGS-F1026P-E – 24-Port Gigabit PoE Switch with 2 SFP Uplink Ports, 250W PoE Budget
• The D-Link DGS-F1026P-E is a high-performance unmanaged 24-port Gigabit PoE switch designed for SMB, surveillance systems, IP cameras, wireless access points, VoIP phones, and enterprise networking applications.
• Features 24 × 10/100/1000 Mbps PoE ports with 2 dedicated SFP uplink ports for high-speed fiber expansion.
• Delivers a total PoE power budget of 250W with up to 30W per port, supporting IEEE 802.3af/at devices.
• Ports 1–8 support Extend mode for PoE transmission up to 250 meters at 10Mbps, making it ideal for long-distance CCTV deployments.
• Built for plug-and-play deployment with VLAN, QoS, Extend, and intelligent PoE DIP switch modes for optimized security and performance.
Technical Specifications:
• Brand: D-Link
• Model: DGS-F1026P-E
• Type: Unmanaged Gigabit PoE Switch
• Ports: 24 × 10/100/1000 Mbps RJ45 PoE Ports
• Uplink Ports: 2 × SFP Ports
• PoE Standards: IEEE 802.3af / IEEE 802.3at
• PoE Ports: Ports 1–24
• PoE Extend Distance: Ports 1–8 up to 250m @ 10Mbps
• PoE Power Budget: 250W Total
• Max PoE Output Per Port: 30W
• Switching Fabric: 52Gbps
• Packet Forwarding Rate:
• 10Mbps: 14,800pps
• 100Mbps: 148,800pps
• 1000Mbps: 1,488,000pps
• Transmission Method: Store-and-Forward
• Standards Supported:
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.3az
• Media Interface: Auto MDI/MDI-X on all ports
• Lightning Protection: 6KV
• Dimensions: 440 × 180 × 44 mm
• Weight: 3.0kg
• Operating Temperature: 0°C to 40°C
• Humidity: 0%–95% RH non-condensing
• Certification: CE
Key Features:
• 24 Gigabit PoE ports for large-scale IP device deployment
• 2 SFP uplinks for fiber backbone connectivity
• 250W total PoE budget for powering multiple devices simultaneously
• Extend Mode for long-range CCTV installations up to 250m
• VLAN Mode isolates ports to reduce network storms and enhance security
• QoS prioritizes surveillance video traffic for smoother transmission
• Intelligent PoE watchdog automatically detects, restarts, and protects powered devices
• Plug-and-play unmanaged deployment with no configuration required
• 6KV lightning protection for enhanced reliability
• Desktop or rack-mountable design
Applications:
• CCTV & IP Surveillance Systems
• Wireless Access Point Deployments
• Office & Enterprise Networks
• VoIP Telephone Systems
• SMB Infrastructure
• Warehouses & Industrial Networking
• Hotels, Schools & Commercial Buildings
Connect Gates Recommendation:
• The DGS-F1026P-E is a powerful and cost-effective networking solution for surveillance-heavy projects requiring reliable PoE, extended camera distances, and simplified deployment.
• Highly recommended for medium to large security installations where IP cameras, access points, and future fiber expansion are essential.
