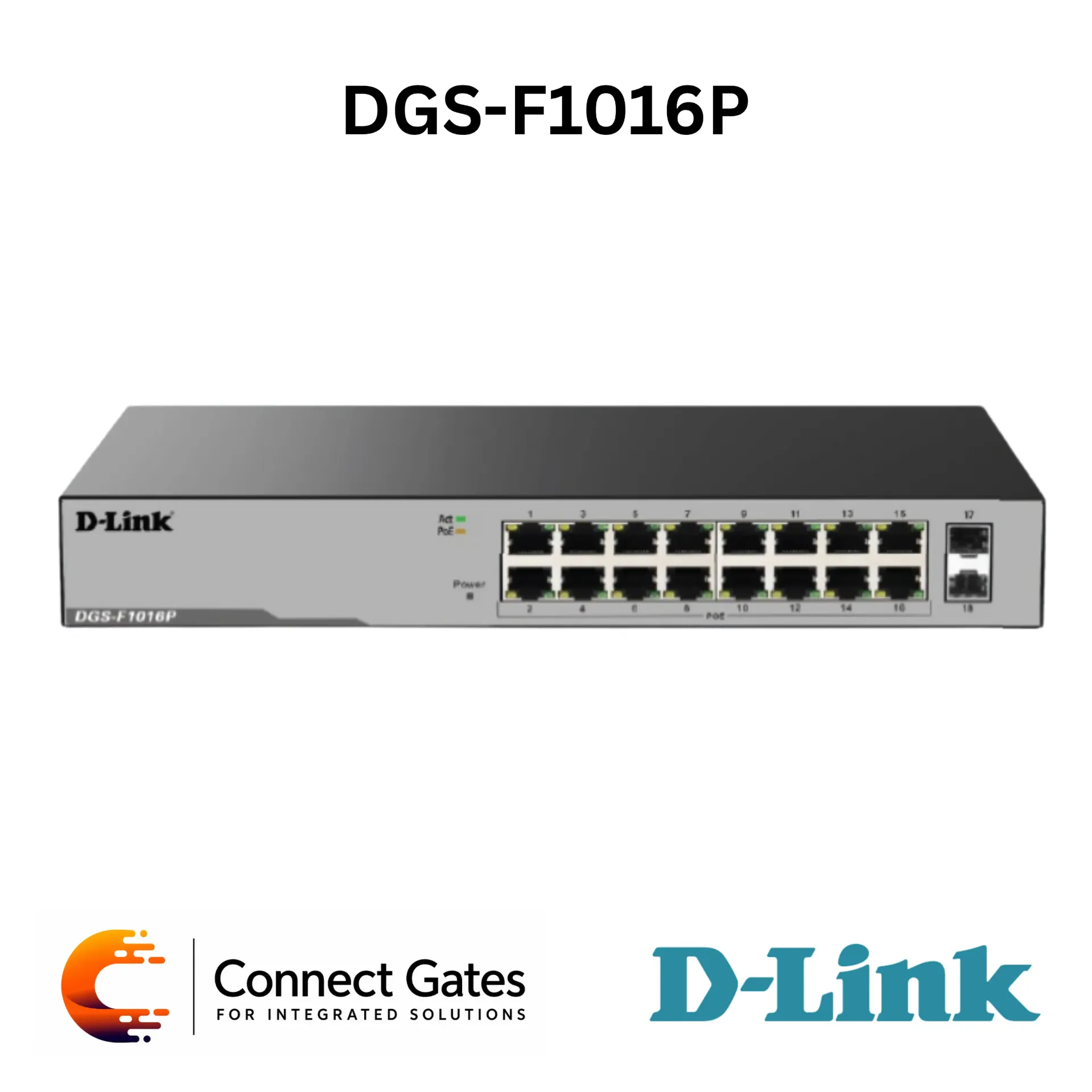

D-Link DGS-F1016P – 16-Port Gigabit Unmanaged PoE Switch with 2 × Gigabit SFP Ports, 250W PoE Budget & Rackmount Design
Overview:
• The D-Link DGS-F1016P is a 16-Port Gigabit Unmanaged PoE Switch designed for IP cameras, wireless access points, VoIP phones, and small to medium business network deployments.
• It provides 16 × 10/100/1000 Mbps PoE RJ45 ports and 2 × Gigabit SFP uplink ports, allowing flexible network expansion with copper and fiber uplink connectivity.
• The switch supports IEEE 802.3af and IEEE 802.3at PoE, with a total 250W PoE budget, making it suitable for powering PoE-capable devices without separate power adapters.
• It supports plug-and-play installation, Auto MDI/MDIX, auto-negotiation, and flow control to simplify deployment and protect against data loss.
• The rackmount metal housing and included rackmount brackets make it suitable for network cabinets and professional installations.
Key Features:
• 16 Gigabit PoE RJ45 ports
• 2 Gigabit SFP uplink ports
• Unmanaged PoE switch
• 250W PoE power budget
• IEEE 802.3af PoE support
• IEEE 802.3at PoE+ support
• 52Gbps switching capacity
• 38.688Mpps packet forwarding rate
• Plug-and-play installation
• Auto MDI/MDIX support
• Auto-negotiation support
• Flow control protection against data loss
• Rackmount metal housing
• Rackmount brackets included
• Suitable for IP cameras, wireless APs and PoE devices
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-F1016P
• Product Type: 16-Port Gigabit Unmanaged PoE Switch
• Management: Unmanaged
• Installation: Plug and Play
• Network Interface: 16 × 10/100/1000 Mbps PoE RJ45 Ports + 2 × Gigabit SFP Ports
• Application: CCTV Networks, IP Cameras, Wireless Access Points, VoIP Phones, SMB Networks
Port and Transmission:
• RJ45 Ports: 16 × 10/100/1000 Mbps PoE Ports
• SFP Ports: 2 × Gigabit SFP Ports
• Transmission Rate: 10/100/1000 Mbps
• Auto MDI/MDIX: Supported
• Auto-Negotiation: Supported
• Network Interface: 10BASE-T / 100BASE-TX / 1000BASE-T Ethernet RJ45 Port
Standards and Protocols:
• Ethernet Standard: IEEE 802.3 10BASE-T
• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX
• Gigabit Ethernet Standard: IEEE 802.3ab 1000BASE-T
• Fiber Standard: IEEE 802.3z 1000BASE-X
• Flow Control: IEEE 802.3x Flow Control
• PoE Standard: IEEE 802.3af
• PoE+ Standard: IEEE 802.3at
• Auto-Negotiation: ANSI / IEEE 802.3 NWay
Performance:
• Switching Capacity: 52Gbps
• Packet Forwarding Rate: 38.688Mpps
• PoE LED Indicators: Power, Link/Act, PoE
PoE Specifications:
• PoE Capable Ports: Ports 1 to 16
• PoE Budget: 250W
• PoE Use Cases: IP Cameras, Wireless Access Points, VoIP Phones, PoE Network Devices
Power Specifications:
• Power Input: 100–240VAC, 50–60Hz
• Power Budget: 250W
Physical Specifications:
• Housing: Rackmount Metal Housing
• Rackmount Brackets: Included
• Dimensions: 320 × 180 × 44mm
• Weight: 2.314kg
Environmental Specifications:
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% Non-Condensing
Applications:
• IP CCTV camera networks
• Wireless access point deployment
• VoIP phone networks
• Small and medium business LAN
• Network cabinet installations
• Fiber uplink connections
• PoE device power and data delivery
• Plug-and-play network expansion
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-F1016P for CCTV and small business projects that need a simple 16-port Gigabit PoE switch with fiber uplink support.
• It is suitable for powering IP cameras, wireless access points, and VoIP phones through Ethernet cables.
• The 250W PoE budget and 2 Gigabit SFP uplink ports make it practical for medium PoE installations that need stable uplink connectivity.
• For proper installation, Connect Gates recommends checking the total PoE load, camera power requirements, SFP module compatibility, uplink design, rack location, and cable quality before deployment.
