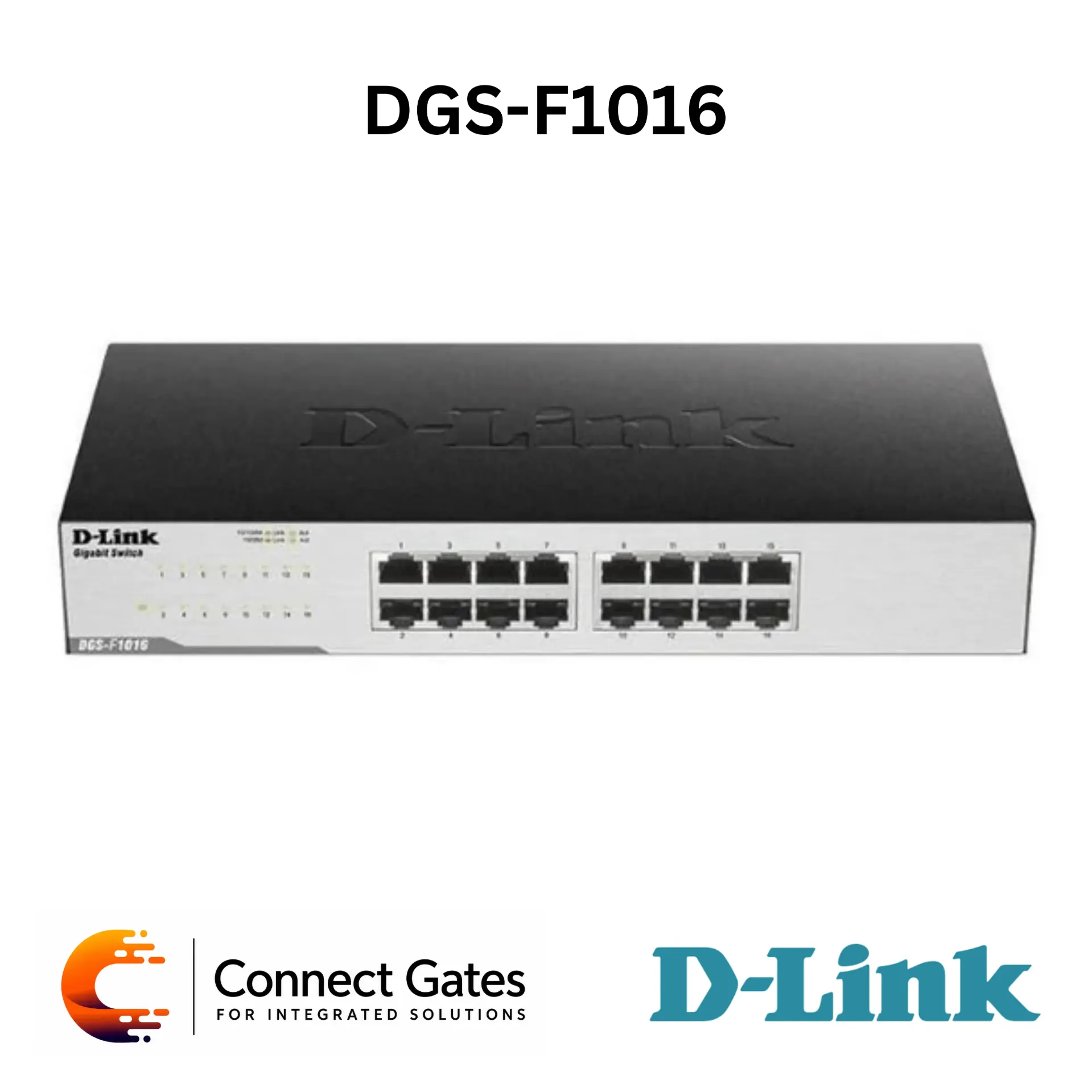

D-Link DGS-F1016 – 16-Port Gigabit Unmanaged Switch with 10/100/1000 Mbps LAN Ports, 32Gbps Switching Capacity, QoS & Energy-Efficient Ethernet
Overview:
• The D-Link DGS-F1016 is a 16-Port Gigabit Unmanaged Switch designed for SOHO networks, small offices, SMB networks, and simple wired network expansion.
• It provides 16 × 10/100/1000 Mbps LAN ports, allowing users to connect computers, servers, IP cameras, VoIP phones, routers, and other network devices with Gigabit speed.
• The switch supports plug-and-play installation, requiring no configuration, making it easy to deploy in offices, small network cabinets, and business environments.
• It delivers 32Gbps switching capacity, supports store-and-forward switching, Auto MDI/MDIX, auto-negotiation, IEEE 802.1p QoS, and jumbo frames up to 9,216 bytes.
• It also supports IEEE 802.3az Energy-Efficient Ethernet, helping reduce power usage automatically when there is no traffic or when the connected cable length requires less power.
Key Features:
• 16 Gigabit LAN ports
• 10/100/1000 Mbps Ethernet support
• Unmanaged switch
• Plug-and-play installation
• 32Gbps switching capacity
• Auto MDI/MDIX on all ports
• Auto-negotiation for each port
• Store-and-forward switching
• IEEE 802.1p QoS support
• 8 QoS queues, strict mode
• Jumbo frame up to 9,216 bytes
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet
• Wire-speed reception and transmission
• LED indicators per port
• Desktop or rackmount metal housing
• Rackmount brackets included
• Suitable for SOHO and SMB networks
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-F1016
• Product Type: 16-Port Gigabit Unmanaged Switch
• Series: DGS-F1016 / DGS-F1024 Series
• Device Interfaces: 16 × 10/100/1000 Mbps LAN Ports
• Management: Unmanaged
• Installation: Plug and Play
• Application: SOHO Networks, Small Offices, SMB Networks, Wired Network Expansion
Standards:
• Ethernet Standard: IEEE 802.3 10BASE-T
• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX
• Gigabit Ethernet Standard: IEEE 802.3ab 1000BASE-T
• Flow Control: IEEE 802.3x Flow Control
• QoS Standard: IEEE 802.1p QoS
• Energy Efficient Ethernet: IEEE 802.3az EEE
Performance:
• Switching Capacity: 32Gbps
• Transmission Method: Store-and-Forward
• MAC Address Table Size: 8,000 Entries
• RAM Buffer: 512KB per Device
• Jumbo Frame: Up to 9,216 Bytes
• Packet Filtering / Forwarding Rate - Ethernet: 14,880pps per Port
• Packet Filtering / Forwarding Rate - Fast Ethernet: 148,800pps per Port
• Packet Filtering / Forwarding Rate - Gigabit Ethernet: 1,488,000pps per Port
Advanced Features:
• Auto MDI/MDIX: Supported on All Ports
• Auto-Negotiation: Supported for Each Port
• Switching Scheme: Secure Store-and-Forward
• Duplex Mode: Full / Half-Duplex for Ethernet and Fast Ethernet Speeds
• Back Pressure: Supported at Half-Duplex Operation
• Wire-Speed Transmission: Supported
• Quality of Service: 8 Queues, Strict Mode
Data Transfer Rates:
• Ethernet: 10Mbps Half-Duplex / 20Mbps Full-Duplex
• Fast Ethernet: 100Mbps Half-Duplex / 200Mbps Full-Duplex
• Gigabit Ethernet: 2000Mbps Full-Duplex
Physical Specifications:
• LED Indicators Per Port: Link / Activity / Speed
• LED Indicator Per Device: Power
• Media Interface Exchange: Auto-MDI/MDIX Adjustment for All Ports
• Dimensions: 280 × 126 × 44mm
• Weight: 0.87kg
• Power Input: 12V / 1A
• Standby Power Consumption: 3.7W
• Maximum Power Consumption: 9.5W
Environmental Specifications:
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
Certifications:
• Emissions: CE Class A, FCC Class A, VCCI Class A, BSMI, CCC
• Safety: UL, CB, LVD, BSMI, CCC
Applications:
• Small office network expansion
• SOHO wired network setup
• SMB LAN switching
• Computer and printer connectivity
• Router and server connection
• IP camera network connection
• VoIP phone connectivity
• Fast file transfers
• Smooth media streaming
• Simple plug-and-play network deployment
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-F1016 for small and medium networks that need a simple 16-port Gigabit unmanaged switch without configuration.
• It is suitable for offices, shops, small companies, and basic CCTV/data networks where devices need stable Gigabit connectivity.
• The 32Gbps switching capacity, QoS support, and Energy-Efficient Ethernet make it practical for daily business use, file sharing, VoIP, and smooth network performance.
• For proper installation, Connect Gates recommends checking the required port count, desktop or rackmount location, cable quality, power source, and whether the project needs unmanaged or smart managed features before deployment.
