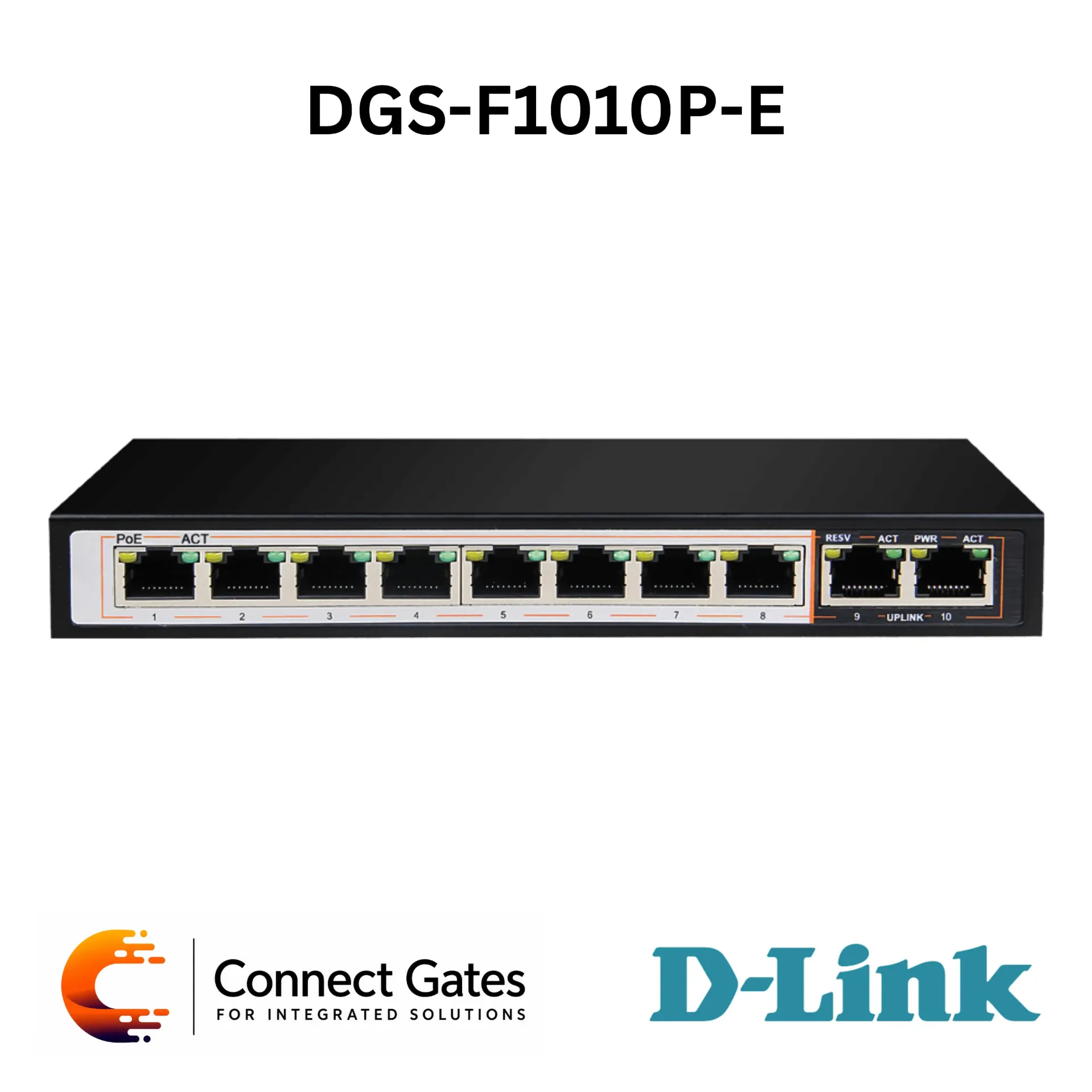

D-Link DGS-F1010P-E – 10-Port Gigabit Long Range PoE+ Surveillance Switch with 8 PoE Ports, 2 Uplink Ports, 96W PoE Budget, 250m Extend Mode & 6kV Lightning Protection
Overview:
• The D-Link DGS-F1010P-E is a 10-Port Gigabit Long Range PoE+ Surveillance Switch designed for IP cameras, wireless access points, surveillance networks, and small business PoE deployments.
• It provides 8 × Gigabit PoE RJ45 ports and 2 × Gigabit uplink RJ45 ports, allowing easy connection and power delivery for PoE-capable devices.
• The switch supports IEEE 802.3af/at PoE, with a total 96W PoE budget, helping reduce the need for separate power adapters.
• It supports long range transmission up to 250 meters on ports 1 to 8 using Extend Mode, making it suitable for surveillance installations where cameras are installed far from the switch.
• The switch also includes DIP switch working modes, including Extend Mode, VLAN Mode, QoS Mode, and PoE Mode, in addition to 6kV lightning protection, plug-and-play installation, Auto MDI/MDIX, flow control, and fanless operation.
Key Features:
• 10-port Gigabit PoE+ surveillance switch
• 8 Gigabit PoE RJ45 ports
• 2 Gigabit uplink RJ45 ports
• 96W PoE power budget
• IEEE 802.3af PoE support
• IEEE 802.3at PoE+ support
• Long range transmission up to 250m
• Extend Mode for ports 1 to 8
• VLAN Mode for port isolation
• QoS Mode for video priority
• PoE Mode for dead device detection and restart
• 20Gbps switching capacity
• 6kV lightning protection
• Plug-and-play installation
• Auto MDI/MDIX support
• Auto-negotiation support
• IEEE 802.3x Flow Control
• Fanless device
• External power adapter
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-F1010P-E
• Product Type: 10-Port Gigabit Long Range PoE+ Surveillance Switch
• Management: Unmanaged
• Installation: Plug and Play
• Application: CCTV Networks, IP Cameras, Wireless Access Points, Surveillance Systems, Small Business PoE Networks
Network Interface:
• PoE Ports: 8 × Gigabit PoE RJ45 Ports, Ports 1 to 8
• Uplink Ports: 2 × Gigabit Uplink RJ45 Ports, Ports 9 to 10
• Interface Type: 10BASE-T / 100BASE-TX / 1000BASE-T Ethernet RJ45 Port
• Transmission Rate: 10/100/1000Mbps
• Auto MDI/MDIX: Supported
• Auto-Negotiation: Supported
Standards and Protocols:
• Ethernet Standard: IEEE 802.3 10BASE-T
• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX
• Gigabit Ethernet Standard: IEEE 802.3ab 1000BASE-T
• Flow Control: IEEE 802.3x Flow Control
• PoE Standard: IEEE 802.3af
• PoE+ Standard: IEEE 802.3at
• Auto-Negotiation: ANSI / IEEE 802.3 NWay
Performance:
• Switching Capacity: 20Gbps
• Forwarding Rate 10M: 14,800pps
• Forwarding Rate 100M: 148,800pps
• Forwarding Rate 1000M: 1,488,000pps
PoE Specifications:
• PoE Capable Ports: Ports 1 to 8
• PoE Budget: 96W
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE Use Cases: IP Cameras, Wireless Access Points, PoE Network Devices
Switch Working Modes:
• Extend Mode: Ports 1 to 8 support long-distance power supply up to 250m using Cat5e or Cat6 cable
• VLAN Mode: Isolates ports 1 to 8 from each other to suppress network storms and improve network performance
• QoS Mode: Customizes application priority to improve network sensitivity, suitable for smoother video monitoring transmission
• PoE Mode: Automatically detects the powered device port, finds dead devices, powers off and restarts devices
Power and Protection:
• Power Adapter: External Power Adapter 100–240VAC, 50/60Hz, 52V / 1.85A
• Lightning Protection: 6kV
LED Indicators:
• Device LED: Power
• Port LEDs: Link / ACT, PoE
Physical Specifications:
• Dimensions: 184 × 94 × 27mm
• Weight: 0.95kg
• Design: Fanless Device
Environmental Specifications:
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% Non-Condensing
Applications:
• IP CCTV camera systems
• Long-distance surveillance networks
• Wireless access point deployment
• Small business PoE networks
• Remote camera installation up to 250m
• Plug-and-play PoE network expansion
• Network camera power and data delivery
• Basic surveillance projects with VLAN and QoS modes
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-F1010P-E for small CCTV and surveillance projects that require 8 PoE ports, long-distance camera connection, and simple plug-and-play installation.
• It is suitable for powering IP cameras and wireless access points, especially where cable runs need to reach up to 250 meters using Extend Mode.
• The 96W PoE budget, 2 Gigabit uplink ports, VLAN/QoS/PoE DIP modes, and 6kV lightning protection make it a practical choice for small and medium surveillance installations.
• For proper installation, Connect Gates recommends checking the camera power requirements, total PoE load, cable type, distance requirement, uplink design, and whether Extend Mode is needed before deployment.
