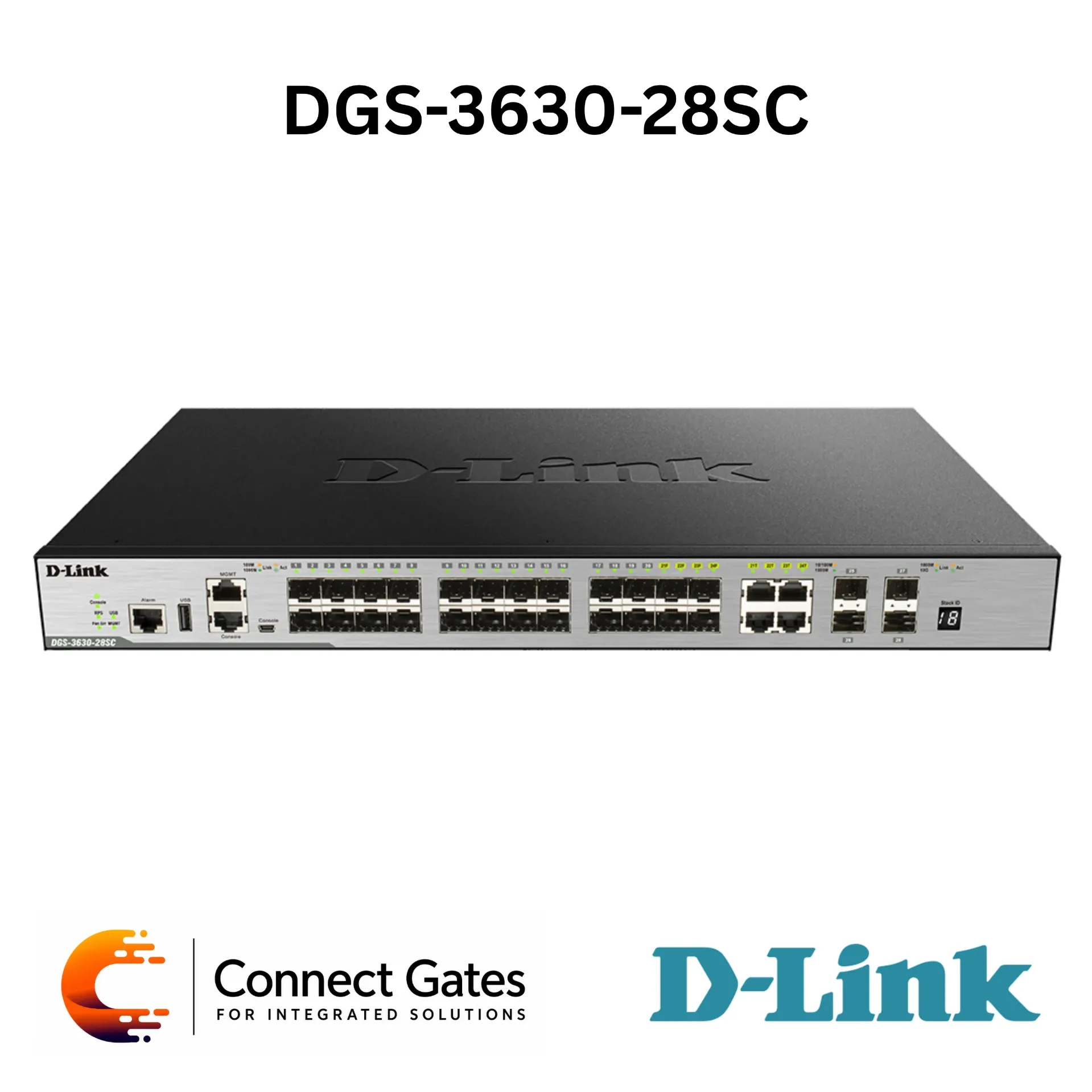

D-Link DGS-3630-28SC – 24-Port Gigabit SFP Layer 3 Stackable Managed Switch with 4 × 10G SFP+ Uplink Ports
Overview:
• The D-Link DGS-3630-28SC is a Layer 3 Stackable Managed Fiber Switch designed for SMBs, SMEs, enterprises, ISPs, campus networks, distribution layers, core networks, and professional fiber aggregation deployments.
• It provides 20 × Gigabit SFP ports, 4 × combo 10/100/1000BASE-T/SFP ports, and 4 × 10GbE SFP+ uplink ports for high-density fiber access with flexible copper/fiber combo connectivity.
• The switch supports Standard Image, Enhanced Image, and MPLS Image options, allowing flexible deployment for Layer 2 switching, Layer 3 routing, enterprise integration, ISP VPN services, MPLS L2/L3 VPN, and advanced multicast applications.
• It supports physical stacking up to 9 units with up to 80Gbps stacking bandwidth, plus virtual stacking/clustering up to 32 units using D-Link Single IP Management.
• The DGS-3630-28SC delivers 128Gbps switching capacity, 95.24Mpps packet forwarding rate, 4MB packet buffer, 68K MAC address table, 16K IPv4 routing table, 7K IPv6 routing table, and 12KB jumbo frame support.
• The switch includes RJ-45 and Mini-USB console ports, dedicated management port, alarm port, USB 2.0 Type-A port, 2 smart fans, OAM, DDM, advanced ACL, QoS, security, and Switch Resource Management SRM.
Key Features:
• Layer 3 Stackable Managed Fiber Switch
• 20 × Gigabit SFP Ports
• 4 × Combo 10/100/1000BASE-T/SFP Ports
• 4 × 10GbE SFP+ Uplink Ports
• 128Gbps Switching Capacity
• 95.24Mpps Packet Forwarding Rate
• 4MB Packet Buffer
• 68K MAC Address Table
• 16K IPv4 Routing Table
• 7K IPv6 Routing Table
• 32K IPv4 Forwarding Table
• 16K IPv6 Forwarding Table
• Jumbo Frame up to 12KB
• Physical Stacking up to 9 Switches
• Up to 80Gbps Physical Stacking Bandwidth
• Virtual Stacking/Clustering up to 32 Units
• D-Link Single IP Management
• Switch Resource Management SRM
• RJ-45 and Mini-USB Console Ports
• 10/100/1000BASE-T Out-of-Band Management Port
• RJ-45 Alarm Port
• USB 2.0 Type-A Port for Firmware, Configuration, and Logs
• Standard Image, Enhanced Image, and MPLS Image Support
• ERPS Version 2, STP, RSTP, MSTP, Root Guard, and Loop Guard
• VLAN, Q-in-Q, Private VLAN, Voice VLAN, Auto Surveillance VLAN, ISM VLAN, and GVRP
• Advanced QoS with 8 Queues per Port
• ACL with up to 4K Ingress Entries and 1K Egress Entries
• 802.1X, WAC, MAC-Based Access Control, RADIUS, TACACS+, and Microsoft NAP
• D-Link Safeguard Engine, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, IPv6 Security, SSL, SSH, and DoS Prevention
• OAM with Cable Diagnostics, Ethernet Link OAM, DULD, Dying Gasp, CFM, Y.1731, and DDM
• Enhanced Image Support for OSPF, BGP, VRF-Lite, L3 Multicast, and BFD
• MPLS Image Support for IS-IS, LDP, VPWS, VPLS, BGP/MPLS VPN, VRF, MPLS Ping, and MPLS Traceroute
• D-Link Green Technology and Energy Efficient Ethernet
• 19-Inch Rack-Mount, 1U Design
Technical Specifications:
• Product Type: Layer 3 Stackable Managed Fiber Switch with 10G SFP+ Uplinks
• Brand: D-Link
• Model: DGS-3630-28SC
• Series: DGS-3630 Series
• Port Configuration: 20 × SFP + 4 × Combo 10/100/1000BASE-T/SFP + 4 × 10GbE SFP+
• Gigabit SFP Ports: 20 Ports
• Combo RJ45/SFP Ports: 4 Ports
• 10G SFP+ Ports: 4 Ports
• PoE Support: Not Supported
• Console Port: RJ-45 and Mini-USB Console Ports
• Management Port: 10/100/1000BASE-T RJ-45 Ethernet Out-of-Band Management Port
• Alarm Port: 1 × RJ-45 Port
• USB Port: 1 × USB 2.0 Type-A Port
• Switching Capacity: 128Gbps
• Packet Forwarding Rate: 95.24Mpps
• Packet Buffer: 4MB
• MAC Address Table: 68K Entries
• IPv4 Routing Table: 16K Entries
• IPv6 Routing Table: 7K Entries
• IPv4 Forwarding Table: 32K Entries
• IPv6 Forwarding Table: 16K Entries
• Jumbo Frame Size: 12KB
• MTBF: 280,612.09 Hours
• Acoustic Level: 56dB(A)
• Heat Dissipation: 216.81BTU/hr
• Power Input: 100 to 240V AC, 50/60Hz
• Maximum Power Consumption: 63.58W
• Standby Power Consumption: 30.1W
• Dimensions: 441 × 259.8 × 44mm
• Weight: 3.79kg
• Ventilation: 2 × Smart Fans
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 95% RH
• Storage Humidity: 5% to 95% RH
• Safety Certifications: cUL, CB, CE, CCC, BSMI
• EMI/EMC: CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
• Optional Redundant Power Supply: DPS-500A / DPS-500DC
• Stackability: Physical Stacking up to 9 Switches, Ring/Chain Topology Support, Virtual Stacking/Clustering up to 32 Units, D-Link Single IP Management
• Physical Stacking Bandwidth: Up to 80Gbps
• Virtual Stacking Bandwidth: Up to 20Gbps
• Layer 2 Features: 68K MAC Address Table, 802.3x Flow Control, HOL Blocking Prevention, STP, RSTP, MSTP, Root Guard, Loop Guard, Jumbo Frame up to 12KB, 802.1AX Link Aggregation, ERPS Version 2, Port Mirroring, Flow Mirroring, VLAN Mirroring, RSPAN, and L2 Protocol Tunneling
• Link Aggregation: Up to 32 Groups per Device, 8 Ports per Group
• VLAN Features: 802.1Q, 802.1v Protocol VLAN, Double VLAN Q-in-Q, Port-Based Q-in-Q, Selective Q-in-Q, Port-Based VLAN, MAC-Based VLAN, Subnet-Based VLAN, Private VLAN, 4K VLAN Groups, 4094 VIDs, ISM VLAN for IPv4/IPv6, Voice VLAN, Auto Surveillance VLAN, VLAN Trunking, GVRP up to 4K Dynamic VLANs, and Asymmetric VLAN
• L2 Multicast: MLD Snooping v1/v2, up to 4K MLD Groups, 64 Static MLD Groups, MLD Snooping Querier, Per VLAN MLD Snooping, MLD Proxy Reporting, IGMP Snooping v1/v2/v3, up to 8K IGMP Groups, 64 Static IGMP Groups, Per VLAN IGMP Snooping, IGMP Snooping Querier, Host-Based IGMP Fast Leave, and PIM Snooping
• Layer 3 Features: IPv4 ARP/IPv6 ND up to 32K/16K, 512 Static ARP, Gratuitous ARP, 256 IP Interfaces, Loopback Interface, Proxy ARP, Local ARP Proxy, IPv6 Tunneling, Static, ISATAP, GRE, 6to4, VRRP v2/v3, and IP Helper
• Layer 3 Routing: 16K Hardware Routing Entries shared by IPv4/IPv6, 32K Hardware L3 Forwarding Entries, Static Route, 512 IPv4 Static Route Entries, 256 IPv6 Static Route Entries, IPv4/IPv6 Default Route, Policy-Based Routing, Null Route, Route Preference, Route Redistribution, Graceful Restart Helper, BFD, RIP, VRRP, and RIPv1/v2/ng
• QoS Features: 802.1p, 8 Queues per Port, Strict Priority, WRR, Strict + WRR, WDRR, WRED, 802.1Qbb Priority-Based Flow Control for 10GbE Ports, Port-Based Bandwidth Control, Flow-Based Bandwidth Control, Per Queue Bandwidth Control, Policy Map, Remark 802.1p Priority, Remark IP Precedence/DSCP, Time-Based QoS, Three Color Marker, trTCM, and srTCM
• ACL Features: ACL Based on 802.1p Priority, VID, MAC Address, EtherType, LLC, VLAN, IP Address, IP Preference/ToS, DSCP Mask, Protocol Type, TCP/UDP Port Number, IPv6 Traffic Class, IPv6 Flow Label, up to 4K Ingress Hardware Entries, up to 1K Egress Hardware Entries, 3K VLAN Access Map Numbers, and Time-Based ACL
• Security Features: Port Security up to 12K MAC Addresses per Port/VLAN/System, Storm Control, D-Link Safeguard Engine, DHCP Server Screening, Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, IPv6 Snooping, DHCPv6 Guard, IPv6 RA Guard, IPv6 ND Inspection, Duplicate Address Detection, ARP Spoofing Prevention, L3 Control Packet Filtering, URPF, Traffic Segmentation, SSL, SSH, BPDU Attack Prevention, DoS Attack Prevention, and NetBIOS/NetBEUI Filtering
• AAA Features: 802.1X Authentication, Port/Host-Based Access Control, Identity-Driven Policy Assignment, Dynamic VLAN Assignment, Bandwidth Control Assignment, ACL Assignment, Web-Based Access Control, HTTPS Support, Compound Authentication, MAC-Based Access Control, Guest VLAN, Microsoft NAP, Privilege Level for Management Access, RADIUS and TACACS+ Authentication, Authentication Database Failover, and RADIUS/TACACS+ Accounting
• OAM Features: Cable Diagnostics, 802.3ah Ethernet Link OAM, D-Link Unidirectional Link Detection, Dying Gasp, 802.1ag Connectivity Fault Management, Y.1731 OAM, and Optical Transceiver Digital Diagnostic Monitoring
• Management Features: NTPv3/v4, Precision Time Protocol, Web GUI IPv4/IPv6 with HTTPS, CLI, Telnet Server/Client IPv4/IPv6, SNMP v1/v2c/v3 IPv4/IPv6, SNMP Trap, TFTP Client, FTP Client, IPv4 SFTP Server, RCP, System Log, SMTP, RMON v1/v2, Command Logging, LLDP/LLDP-MED, D-Link Discover Protocol, DHCP Client Option 12, DHCP Auto-Configuration, DHCP Auto-Image, DHCP Relay Options 60/61/62/18/37/125, DHCP/DHCPv6 Local Relay, DHCP Server, DHCPv6 Prefix Delegation, Multiple Images, Multiple Configurations, DNS Relay, DNS Client, Debug Command, Password Recovery, Password Encryption, Ping, Traceroute, Microsoft NLB, Switch Resource Management, sFlow, and D-Link License Management System
• Enhanced Image Features: Super VLAN, BGP, BGPv4/v4+, 4-Byte AS, Text/MD5 for BGPv4, VRF-Lite, IPv4 Static Route, RIPv1/v2, OSPFv2, OSPFv3, BFD for OSPF, OSPF Passive Interface, Stub/NSSA Area, OSPF Equal Cost Route, IGMPv1/v2/v3, MLDv1/v2, IGMP/MLD Proxy, DVMRPv3, PIM-DM/SM/SSM/SDM, SSM Mapping for IPv4/IPv6, and MSDP
• MPLS Image Features: IS-IS v4/v6, Label Distribution Protocol, Penultimate Hop Popping, VPWS, VPLS, BGP/MPLS VPN, Multiprotocol Extensions for BGP4, VRF, LSP, VCCV, MPLS Ping, and MPLS Traceroute
• Optional Management Software: D-View 7 Node and Probe Licenses
• Optional SFP+ Transceivers: DEM-431XT, DEM-431XT-DD, DEM-432XT, DEM-432XT-DD, DEM-433XT, DEM-433XT-DD, DEM-434XT, DEM-435XT, DEM-435XT-DD, DEM-436XT-BXD, DEM-436XT-BXU
• Optional SFP Transceivers: DGS-712, DEM-210, DEM-302S-LX, DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, DEM-220T, DEM-220R, DEM-302S-BXD, DEM-302S-BXU, DEM-330T, DEM-330R, DEM-331T, DEM-331R
• Optional DAC Cables: DEM-CB100S, DEM-CB300S, DEM-CB700S
• Ordering Options: DGS-3630-28SC/SI, DGS-3630-28SC/EI, DGS-3630-28SC/MI
Applications:
• Enterprise fiber aggregation networks
• Campus distribution and core networks
• ISP and service provider networks
• Metro Ethernet and FTTB deployments
• CCTV and IP surveillance fiber backbone
• Inter-building fiber connectivity
• Data center and server uplink networks
• Managed fiber access networks
• MPLS and VPN service provider networks
• Networks requiring Layer 3 routing, BGP, OSPF, VRF-Lite, MPLS, VLAN, QoS, ACL, OAM, and high availability
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-3630-28SC for projects that require a high-performance Layer 3 managed fiber switch with 10G uplinks, stacking, and advanced routing flexibility.
• It is an excellent choice for enterprise aggregation, campus networks, ISP cores, Metro Ethernet, FTTB, CCTV fiber backbone, and inter-building fiber connectivity.
• The 20 SFP ports, 4 combo ports, 4 × 10G SFP+ uplinks, 128Gbps switching capacity, 68K MAC table, 16K IPv4 routing table, 80Gbps stacking bandwidth, OAM, Enhanced Image, and MPLS Image support make it suitable for critical professional fiber networks.
• For best performance, Connect Gates recommends selecting the suitable SFP/SFP+ transceivers or DAC cables according to fiber distance, uplink design, and stacking topology, with DPS-500A or DPS-500DC RPS for higher uptime requirements.
