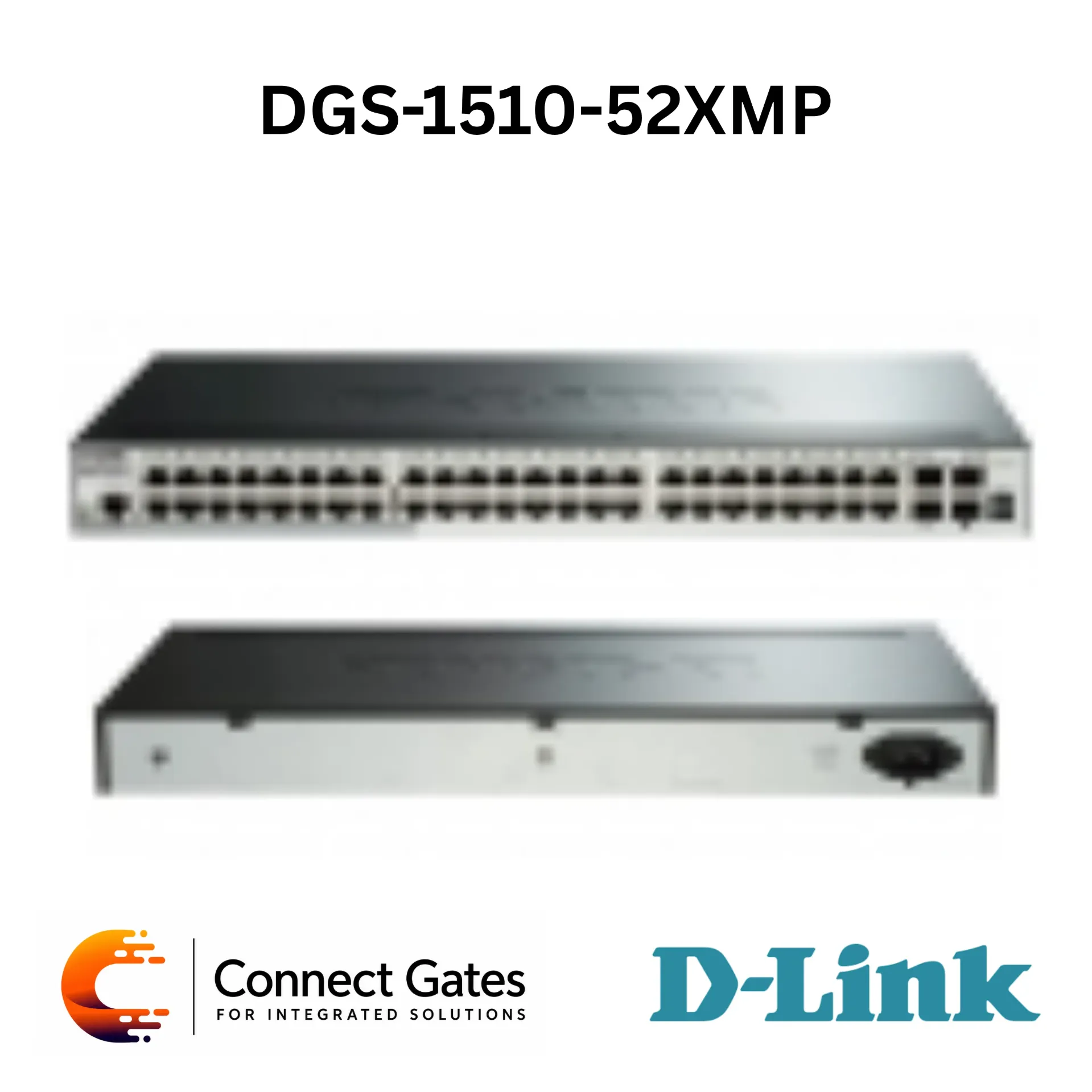

D-Link DGS-1510-52XMP – 48-Port Gigabit PoE Stackable Smart Managed Switch with 4 × 10G SFP+ Ports, 370W / 740W PoE Budget with RPS & Static Routing
Overview:
• The D-Link DGS-1510-52XMP is a Gigabit Stackable Smart Managed PoE Switch designed for SMB networks, enterprise networks, IP surveillance systems, wireless access point deployments, and VoIP networks.
• It provides 48 × 10/100/1000 Mbps PoE ports and 4 × 10G SFP+ ports, making it suitable for high-density PoE access networks with high-speed uplink or stacking capability.
• The switch supports physical stacking up to 6 units through 10G SFP+ ports, with up to 40G full-duplex stacking bandwidth, allowing scalable network expansion and centralized management.
• It supports IEEE 802.3af/at PoE with 370W PoE budget without RPS, and up to 740W PoE budget with DPS-700 redundant power supply, making it suitable for large IP camera and access point deployments.
• It includes advanced features such as Static Routing, Auto Surveillance VLAN, Auto Voice VLAN, ERPS, Loopback Detection, LLDP/LLDP-MED, ACL, D-Link Safeguard Engine, ARP Spoofing Prevention, IP-MAC-Port Binding, DoS Attack Prevention, PD-Alive, and D-Link Green 3.0 power saving.
Key Features:
• 48 Gigabit PoE ports
• 4 × 10G SFP+ ports
• Stackable smart managed switch
• Physical stacking up to 6 units
• Up to 40G full-duplex stacking bandwidth
• 10G uplink connectivity
• IEEE 802.3af/at PoE support
• Up to 30W per PoE port
• 370W PoE budget without RPS
• Up to 740W PoE budget with DPS-700 RPS
• Static routing support
• Auto Surveillance VLAN
• Auto Voice VLAN
• Ethernet Ring Protection Switching
• VLAN Wizard
• Loopback Detection
• Cable Diagnostics
• LLDP and LLDP-MED
• IGMP and MLD Snooping
• ACL security support
• D-Link Safeguard Engine
• ARP Spoofing Prevention
• IP-MAC-Port Binding
• DHCP Snooping
• BPDU Attack Protection
• DoS Attack Prevention
• Web GUI, CLI and SNMP management
• D-Link Network Assistant support
• PD-Alive for PoE devices
• Time-Based PoE
• Optional redundant power supply support
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-1510-52XMP
• Product Type: Gigabit Stackable Smart Managed PoE Switch
• Series: DGS-1510 Series
• Hardware Version: A1
• Size: 19-Inch Standard Rack Width, 1U Height
• Interfaces: 48 × 10/100/1000 Mbps PoE Ports + 4 × 10G SFP+ Ports
• Application: Enterprise LAN, SMB Networks, IP CCTV Networks, Access Points, VoIP Phones, 10G Uplink and Stacking Networks
Port Standards and Functions:
• Ethernet Standard: IEEE 802.3 10BASE-T Ethernet
• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX Fast Ethernet
• Gigabit Ethernet Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• 10G Ethernet Standard: IEEE 802.3ae 10 Gigabit Ethernet
• Flow Control: IEEE 802.3x Flow Control for Full-Duplex Mode
• Auto-Negotiation: Supported
• Network Cables: UTP Cat.5 / Cat.5e up to 100m, EIA/TIA-568 100-ohm STP up to 100m
• Duplex Mode: Full/Half-Duplex for 10/100 Mbps, Full-Duplex for 1000 Mbps
• MDI/MDIX: Auto or Configurable MDI/MDIX
Performance:
• Switching Capacity: 176Gbps
• Forwarding Rate: 130.95Mpps
• Transmission Method: Store-and-Forward
• MAC Address Table: Up to 16,384 Entries
• Static MAC Entries: Up to 512
• Packet Buffer Memory: 3MB
• Flash Memory: 32MB
• DRAM Size: 256MB
• MTBF: 303,027 Hours
PoE Specifications:
• PoE Standard: IEEE 802.3af/at
• PoE Capable Ports: Ports 1 to 48
• Maximum PoE Per Port: Up to 30W
• PoE Power Budget without RPS: Max. 370W
• PoE Power Budget with RPS: Max. 740W
• Supported RPS: DPS-700 Redundant Power Supply
• Time-Based PoE: Supported
• PD-Alive: Supported for PoE Models
Stacking:
• Virtual Stacking: Supported
• D-Link Single IP Management: Supported
• Virtual Stack Capacity: Up to 32 Devices
• Physical Stacking: Supported
• Physical Stack Capacity: Up to 6 Units
• Stacking Topology: Duplex Chain / Ring
• Stacking Bandwidth: Up to 40G Full-Duplex
Layer 2 Features:
• Flow Control: 802.3x Flow Control
• HOL Blocking Prevention: Supported
• Jumbo Frame: Up to 9,216 Bytes
• IGMP Snooping: IGMP v1/v2/v3
• IGMP Groups: Up to 512 Groups
• Static Multicast Addresses: Up to 128
• IGMP Snooping Querier: Supported
• Host-Based IGMP Snooping Fast Leave: Supported
• MLD Snooping: MLD v1/v2
• MLD Groups: Up to 512 Groups
• Spanning Tree: STP, RSTP, MSTP
• Loopback Detection: Supported
• Link Aggregation: 802.3ad, up to 32 Groups, 8 Ports per Group
• Port Mirroring: Up to 4 Mirroring Groups
• ERPS: Ethernet Ring Protection Switching
VLAN and QoS:
• VLAN: 802.1Q Tagged VLAN
• VLAN Groups: 4K VLAN Groups
• Configurable VID: 0 to 4094
• GVRP: Supported
• VLAN Wizard: Supported
• Asymmetric VLAN: Supported
• Auto Voice VLAN: Supported
• Auto Surveillance VLAN: Supported
• MAC-Based VLAN: Supported
• Protocol-Based VLAN: Supported
• QoS Queues: 8 Queues per Port
• Queue Handling: SPQ, WRR, DRR, SPQ + WRR
• Bandwidth Control: Port-Based Ingress / Egress
• QoS Classification: 802.1p, VLAN, MAC Address, EtherType, IP Address, DSCP, Protocol Type, TCP/UDP Port, IPv6 Traffic Class, IPv6 Flow Label
Layer 3 Features:
• ARP: Supported
• Static ARP: 256 Entries
• IPv6 Neighbor Discovery: Supported
• IP Interfaces: 16
• Default Routing: Supported
• Static Routing: Supported
• IPv4 Static Routes: 64 Entries
• IPv6 Static Routes: 32 Entries
• UDP Helper: Supported
Security Features:
• ACL: Up to 256 Access Lists, 768 Rules
• ACL Actions: Permit / Deny
• Time-Based ACL: Supported
• Port Security: Up to 128 MAC Addresses per Port
• Storm Control: Broadcast / Multicast / Unicast
• Dynamic ARP Inspection: Supported
• D-Link Safeguard Engine: Supported
• DHCP Server Screening: Supported
• ARP Spoofing Prevention: Supported
• SSH: v2, IPv4 / IPv6
• SSL: v1 / v2 / v3, IPv4 / IPv6
• TLS: 1.2
• BPDU Attack Protection: Supported
• DoS Attack Prevention: Supported
• Traffic Segmentation: Supported
• IP-MAC-Port Binding: Supported
• DHCP Snooping: Supported
• IP Source Guard: Supported
• IPv6 DHCP Guard: Supported
• IPv6 RA Guard: Supported
• IPv6 Snooping: Supported
• IPv6 Source Guard and ND Inspection: Supported
AAA and Access Control:
• 802.1X Authentication: Port and MAC-Based Authentication
• Authentication Database: RADIUS and Local Server
• Authentication Methods: EAP, OTP, TLS, TTLS, PEAP
• Web-Based Access Control: Supported
• MAC-Based Access Control: Supported
• Dynamic VLAN Assignment: Supported
• Guest VLAN: Supported
• RADIUS and TACACS+ Authentication: Supported
• RADIUS and TACACS+ Accounting: Supported
Management Features:
• Web-Based GUI: Supported
• Command Line Interface: Supported
• SNMP: v1 / v2c / v3
• SNMP Trap: Supported
• D-Link Network Assistant: Supported
• Telnet Server: Supported
• Telnet Client: CLI Only
• TFTP Client: Supported
• System Log: Up to 10,000 Entries
• Debug Command: Supported
• Multiple Images: Supported
• DHCP Server: Supported
• DHCP Client: Supported
• DHCP Relay: Supported
• DHCP Auto Configuration: Supported
• IPv4 / IPv6 Dual Stack: Supported
• RMON v1: Supported
• LLDP / LLDP-MED: Supported
• Cable Diagnostics: Supported
• sFlow: Supported
• Factory Reset: Supported
• NTP / SNTP: Supported
• Surveillance Mode: Supported
Physical and Environmental:
• AC Input: 100 to 240VAC, 50/60Hz Internal Universal Power Supply
• Maximum Power Consumption PoE On: 486.9W
• Maximum Power Consumption PoE Off: 58.8W
• Standby Power Consumption: 40.1W
• Fans: 4 × Smart Fans
• Acoustics: 55.4dB(A)
• Heat Dissipation: 1660.33BTU/hr
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• Dimensions: 440 × 308 × 44mm
• Weight: 5.41kg
• Certifications: CE, FCC, C-Tick, VCCI, BSMI, CCC
• Safety: cUL, CB
Optional Accessories:
• DEM-CB100S: 10G SFP+ 1m Direct Attach Cable
• DEM-CB300S: 10G SFP+ 3m Direct Attach Cable
• DPS-700: AC Redundant Power Supply for DGS-1510-52XMP
Applications:
• Large IP camera systems
• Enterprise PoE access networks
• Wireless access point deployment
• VoIP phone networks
• CCTV and surveillance networks
• 10G uplink aggregation
• Server and storage connectivity
• Stackable network expansion
• VLAN-based business networks
• Core / distribution / access layer switching
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1510-52XMP for large CCTV and enterprise projects that require 48 Gigabit PoE ports, 10G SFP+ uplinks, and stackable smart management.
• It is suitable for projects with many IP cameras, wireless access points, and VoIP phones, especially when the network requires VLAN, QoS, Static Routing, and advanced security control.
• The option to increase PoE budget from 370W to 740W using DPS-700 RPS makes it a strong choice for larger PoE deployments with higher power demand.
• For proper installation, Connect Gates recommends reviewing the PoE load calculation, RPS requirement, 10G uplink design, stacking plan, SFP+ module compatibility, VLAN structure, and rack cooling before deployment.
