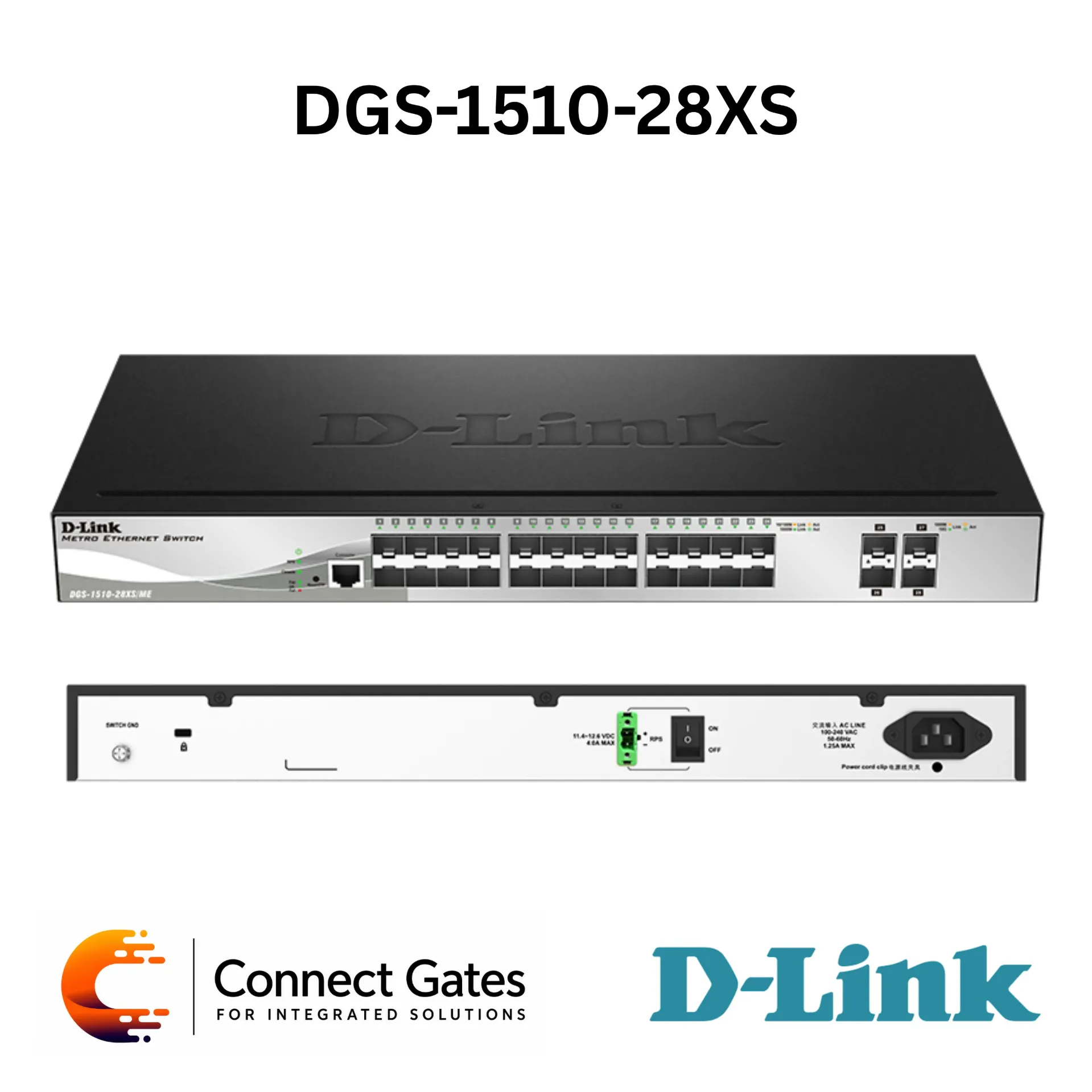

D-Link DGS-1510-28X – 24-Port Gigabit Stackable Smart Managed Switch with 4 × 10G SFP+ Uplink / Stacking Ports
Overview:
• The D-Link DGS-1510-28X is a Gigabit Stackable Smart Managed Switch designed for SMB networks, enterprise workgroups, CCTV networks, and high-speed network uplink applications.
• It provides 24 × 10/100/1000 Mbps Gigabit ports and 4 × 10G SFP+ ports, making it suitable for high-performance network aggregation and 10G uplink connectivity.
• The switch supports physical stacking through 10G ports, allowing up to 6 units per stack, with high stacking bandwidth for scalable network expansion.
• It includes advanced features such as Static Routing, Auto Surveillance VLAN, Auto Voice VLAN, ERPS, Loopback Detection, LLDP/LLDP-MED, and advanced Layer 2 switching features.
• It also supports Web GUI, CLI, SNMP, D-Link Network Assistant, IPv4/IPv6 management, Dual Image, and advanced security features including ACL, D-Link Safeguard Engine, ARP Spoofing Prevention, DoS Attack Prevention, and IP-MAC-Port Binding.
Key Features:
• 24 Gigabit RJ-45 ports
• 4 × 10G SFP+ ports
• Stackable smart managed switch
• Physical stacking up to 6 devices
• Up to 40G stacking bandwidth full-duplex
• 10G uplink connectivity
• Static routing support
• Auto Surveillance VLAN
• Auto Voice VLAN
• Ethernet Ring Protection Switching
• Loopback Detection
• LLDP and LLDP-MED
• VLAN and QoS support
• Jumbo frame up to 9,216 bytes
• IGMP and MLD Snooping
• ACL security support
• D-Link Safeguard Engine
• ARP Spoofing Prevention
• DoS Attack Prevention
• Web GUI, CLI and SNMP management
• D-Link Network Assistant support
• Dual image support
• Green technology power saving
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-1510-28X
• Product Type: Gigabit Stackable Smart Managed Switch
• Hardware Version: A1
• Size: 19-inch Standard Rack Width, 1U Height
• Interfaces: 24 × 10/100/1000 Mbps, 4 × 10G SFP+
• PoE Support: Not Supported
• Power Input: 100 to 240VAC, 50/60Hz Internal Universal Power Supply
Performance:
• Switching Capacity: 128Gbps
• Forwarding Rate: 95.24Mpps
• MAC Address Table: Up to 16,384 Entries
• Static MAC Entries: Up to 512
• Packet Buffer Memory: 1.5MB
• Transmission Method: Store-and-Forward
• MTBF: 516,593 Hours
Stacking:
• Virtual Stacking: Supported
• D-Link Single IP Management: Supported
• Virtual Stack Capacity: Up to 32 Devices
• Physical Stacking: Supported
• Physical Stack Capacity: Up to 6 Units
• Stacking Topology: Duplex Chain / Ring
• Stacking Bandwidth: Up to 40G Full-Duplex
Layer 2 Features:
• Flow Control: 802.3x Flow Control
• Jumbo Frame: Up to 9,216 Bytes
• IGMP Snooping: IGMP v1/v2, IGMP v3 Awareness
• IGMP Groups: Up to 512 Groups
• MLD Snooping: MLD v1/v2 Awareness
• Spanning Tree: STP, RSTP, MSTP
• Link Aggregation: 802.3ad, up to 32 Groups, 8 Ports per Group
• Port Mirroring: One-to-One, Many-to-One, Flow-Based Mirroring
• ERPS: Supported
VLAN and QoS:
• VLAN: 802.1Q Tagged VLAN
• VLAN Groups: 4K VLAN Groups
• Configurable VID: 0 to 4094
• Auto Voice VLAN: Supported
• Auto Surveillance VLAN: Supported
• MAC-Based VLAN: Supported
• Protocol-Based VLAN: Supported
• QoS Queues: 8 Queues per Port
• Queue Handling: SPQ, WRR, DRR, SPQ + WRR
• QoS Classification: 802.1p, VLAN, MAC Address, EtherType, IP Address, DSCP, Protocol Type, TCP/UDP Port, IPv6 Traffic Class
Layer 3 Features:
• Static Routing: Supported
• IP Interfaces: 16
• IPv4 Static Routes: 64 Entries
• IPv6 Static Routes: 32 Entries
• ARP: Supported
• IPv6 Neighbor Discovery: Supported
Security Features:
• ACL: Up to 256 Access Lists, 768 Rules
• Port Security: Up to 128 MAC Addresses per Port
• Storm Control: Broadcast / Multicast / Unicast
• D-Link Safeguard Engine: Supported
• ARP Spoofing Prevention: Supported
• DHCP Server Screening: Supported
• IP-MAC-Port Binding: Supported
• DoS Attack Prevention: Supported
• BPDU Attack Protection: Supported
• SSH: Supported
• SSL: Supported
• Traffic Segmentation: Supported
• 802.1X Authentication: Supported
• Web-Based Access Control: Supported
• MAC-Based Access Control: Supported
Management:
• Web-Based GUI: Supported
• Command Line Interface: Supported
• SNMP: v1, v2c, v3
• D-Link Network Assistant: Supported
• Telnet Server: Supported
• TFTP Client: Supported
• System Log: Up to 10,000 Entries
• Dual Images: Supported
• IPv4 / IPv6 Dual Stack: Supported
• DHCP Auto Configuration: Supported
• LLDP / LLDP-MED: Supported
• Cable Diagnostics: Supported
• Factory Reset: Supported
Physical Specifications:
• Maximum Power Consumption: 44.2W
• Standby Power Consumption: 28.9W
• Fans: 2 × Smart Fans
• Acoustics: 45.8dB(A)
• Heat Dissipation: 138.79BTU/hr
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• Dimensions: 440 × 210 × 44mm
• Weight: 2.40kg
• Certifications: CE, FCC, C-Tick, VCCI, BSMI, CCC, IPv6 Ready Logo Phase 2
• Safety: cUL, CB
Applications:
• SMB network infrastructure
• Enterprise workgroup switching
• CCTV and surveillance networks
• 10G uplink aggregation
• Server and storage connectivity
• VLAN-based network segmentation
• Voice, video, and data networks
• Access or distribution layer switching
• Stackable network expansion project
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1510-28X for business and CCTV networks that require 24 Gigabit ports with 4 × 10G SFP+ uplinks.
• It is suitable for projects that need 10G backbone connectivity, stacking capability, VLAN, QoS, Static Routing, and advanced security control.
• For larger networks, the physical stacking feature makes it suitable for scalable deployments where multiple switches need to be managed efficiently.
• For proper installation, Connect Gates recommends reviewing the uplink design, SFP+ module compatibility, stacking requirement, VLAN plan, rack space, and network management policy before deployment.
