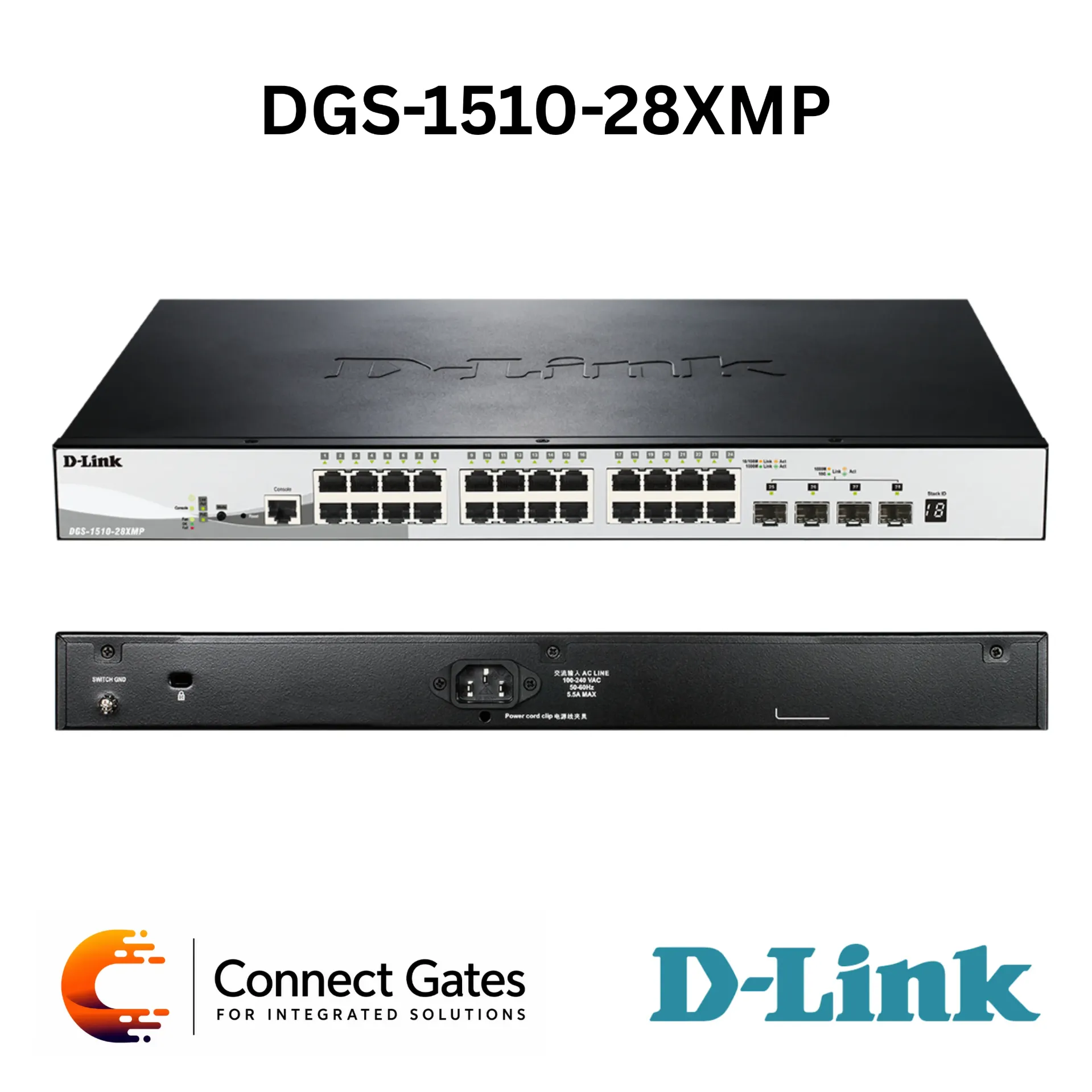

D-Link DGS-1510-28XMP/ME – 24-Port Gigabit PoE Metro Ethernet Switch with 4 × 10G SFP+ Uplink Ports
Overview:
• The D-Link DGS-1510-28XMP/ME is a Metro Ethernet PoE Switch designed for service provider, enterprise access, and high-reliability network deployments.
• It provides 24 × 10/100/1000Mbps PoE ports for connecting and powering IP cameras, wireless access points, VoIP phones, and other PoE network devices.
• The switch includes 4 × 10G SFP+ ports for high-speed fiber uplinks, aggregation, backbone, or server room connectivity.
• The DGS-1510/ME Series is designed for Metro Ethernet applications with advanced Layer 2 functions, security, management tools, and 6kV surge protection on Ethernet ports.
• It supports 802.3af/802.3at PoE with a maximum PoE budget of 370W, making it suitable for large PoE deployments.
• Metro and service provider features include ERPS, RPS support, Dying Gasp, RTC, OAM, CFM, ISM VLAN, Q-in-Q, VLAN Trunking, IGMP/MLD Snooping, ACL, IMPB, 802.1X, MAC-based access control, SNMP, RMON, LLDP, and CLI management.
Key Features:
• 24 Gigabit PoE Ports: Provides 24 × 10/100/1000Mbps PoE access ports.
• 4 × 10G SFP+ Uplink Ports: High-speed 10G fiber uplinks for backbone and aggregation networks.
• 370W PoE Budget: Supports high-power PoE deployments for cameras, access points, and VoIP phones.
• 802.3af/802.3at PoE: Ports 1 to 24 support both PoE and PoE+.
• Metro Ethernet Design: Built for access layer and service provider applications.
• 6kV Surge Protection: All Ethernet ports support IEC61000-4-5 6kV surge protection.
• ERPS Support: Ethernet Ring Protection Switching helps achieve fast failover and higher network availability.
• RPS Support: Supports redundant power supply for improved uptime.
• Advanced VLAN Features: Supports Q-in-Q, ISM VLAN, VLAN Translation, VLAN Trunking, GVRP, MAC-Based VLAN, and Protocol VLAN.
• Triple Play Ready: Supports IPTV, voice, video, and data services with multicast and QoS features.
• Advanced Security: Supports ACL, 802.1X, MAC-based access control, IMPB, ARP Spoofing Prevention, DHCP Snooping, BPDU Attack Protection, and DoS Attack Prevention.
• Professional Management: Supports Web GUI, CLI, SNMP, RMON, LLDP, OAM, CFM, Multiple Image, ZTP, and D-Link Network Assistant.
Technical Specifications:
• Product Type: Gigabit PoE Metro Ethernet Switch
• Model: DGS-1510-28XMP/ME
• Series: DGS-1510/ME Series
• Hardware Version: A1
• Form Factor: 19-inch Rackmount, 1U
• Ethernet Ports: 24 × 10/100/1000Mbps PoE Ports
• Uplink Ports: 4 × 10G SFP+ Ports
• Console Port: RJ-45 Console Port
• PoE Standards: IEEE 802.3af / IEEE 802.3at
• PoE Ports: Ports 1 to 24
• Maximum PoE Budget: 370W
• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
• Network Cables: UTP Cat.5 / Cat.5e up to 100m, EIA/TIA-568 100-ohm STP up to 100m
• Duplex Mode: Full / Half Duplex for 10/100Mbps and Gigabit Speed
• MDI/MDIX: Auto or Configurable
• Switching Capacity: 128Gbps
• Forwarding Rate: 95.24Mpps
• Forwarding Method: Store-and-Forward
• MAC Address Table: Up to 16K Entries
• Static MAC Entries: Up to 512
• Packet Buffer: 1.5MB
• Virtual Stacking: D-Link Single IP Management, up to 32 Units per Virtual Stack
• L2 Features: Flow Control, Jumbo Frames up to 9216 Bytes, STP, RSTP, MSTP, BPDU Filtering, Root Restriction, Loopback Detection, Link Aggregation, Port Mirroring, ERPS, L2 Protocol Tunneling
• L2 Multicasting: IGMP Snooping, IGMP v1/v2/v3 Awareness, MLD Snooping, IGMP Authentication, Limited IP Multicast, Report Suppression, Fast Leave
• VLAN: Up to 4094 VLANs, Port-Based VLAN, MAC-Based VLAN, GVRP, Protocol VLAN, 802.1Q Tagged VLAN, Double VLAN Q-in-Q, ISM VLAN, VLAN Translation, VLAN Trunking
• L3 Features: 1024 ARP Entries, 255 Static ARP Entries, Gratuitous ARP, IPv6 Neighbor Discovery, 16 IP Interfaces, Default Route, Static Route
• Static Routing: 64 IPv4 Static Routes, 32 IPv6 Static Routes
• QoS: 8 Queues per Port, SPQ, WRR, SPQ + WRR, Port-Based / Flow-Based Bandwidth Control, DSCP, ToS, VLAN ID, MAC Address, IPv4/IPv6 Address, TCP/UDP Port, IPv6 Traffic Class, IPv6 Flow Label
• ACL: Up to 1024 Ingress Access Rules, Time-Based ACL, ACL Statistics, CPU Interface Filtering
• AAA: 802.1X, MAC-Based Access Control, Guest VLAN, RADIUS, TACACS, TACACS+, XTACACS+, Trusted Host, RADIUS Accounting, Four-Level User Account
• Security: SSH v1/v2, SSL v1/v2/v3, Port Security, Storm Control, IP-MAC-Port Binding, ARP Inspection, IP Inspection, DHCP Snooping, DHCPv6 Snooping, DHCPv6 Guard, IPv6 RA Guard, IPv6 ND Snooping, IPv6 ND Inspection, Traffic Segmentation, Safeguard Engine, L3 Control Packet Filtering, NetBIOS / NetBEUI Filtering, DHCP Server Screening, DHCP Client Filtering, ARP Spoofing Prevention, BPDU Attack Protection, DoS Attack Prevention
• OAM: Cable Diagnostics, 802.3ah Ethernet Link OAM, Dying Gasp, 802.1ag Connectivity Fault Management
• Management: Web GUI, CLI, Telnet Server / Client, TFTP / FTP Client, ZModem, Command Logging, SNMP v1/v2c/v3, SNMP Traps, System Log, SMTP, RMON v1/v2, LLDP, LLDP-MED, BootP / DHCP Client, DHCP Auto-Configuration, DHCP Relay, PPPoE Circuit-ID Tag Insertion, Multiple Image, Flash File System, CPU Monitoring, Memory Monitoring, SNTP, Debug Command, Password Recovery, Password Encryption, Ping, Traceroute, Microsoft NLB Support, Zero Touch Provisioning, sFlow, D-Link Network Assistant
• RPS Support: Compatible with DPS-500A / DPS-500DC Redundant Power Supply
• Power Input: 100 to 240V AC, 50/60Hz
• Maximum Power Consumption: 445.2W PoE On, 31.8W PoE Off
• Standby Power Consumption: 24.5W at 100V, 28.2W at 240V
• Power Surge Protection: All Ethernet Ports Support IEC61000-4-5 6kV Surge Protection
• Fans: 2 × Smart Fans
• Acoustics: 54.1dB(A)
• Heat Dissipation: 1518.132 BTU/h
• Dimensions: 440 × 308 × 44 mm
• Weight: 4.25kg
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• EMI: CE, FCC, C-Tick, VCCI, BSMI
• Safety Certifications: cUL, CB
• Category: D-Link PoE Switches
Applications:
• Metro Ethernet access networks.
• Service provider and ISP access layer deployments.
• Large PoE CCTV and IP surveillance systems.
• Wireless access point and VoIP deployments using PoE+.
• Fiber backbone and 10G aggregation networks.
• IPTV and triple-play service delivery.
• Enterprise networks requiring high uptime, RPS support, ERPS, VLAN, QoS, OAM, and advanced security.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1510-28XMP/ME for customers who need a professional Metro Ethernet PoE switch with 10G uplink capacity.
• It is suitable for service providers, residential compounds, factories, schools, large CCTV networks, and enterprise access layers.
• The 24 PoE+ ports with 370W PoE budget make it strong for powering many IP cameras, access points, and VoIP phones.
• The 4 × 10G SFP+ ports make it suitable for fiber backbone, aggregation, and high-speed uplink design.
• This model is recommended when the project requires PoE, 10G uplinks, 6kV surge protection, ERPS, RPS support, OAM, advanced VLAN, multicast, and service-provider-grade management.
