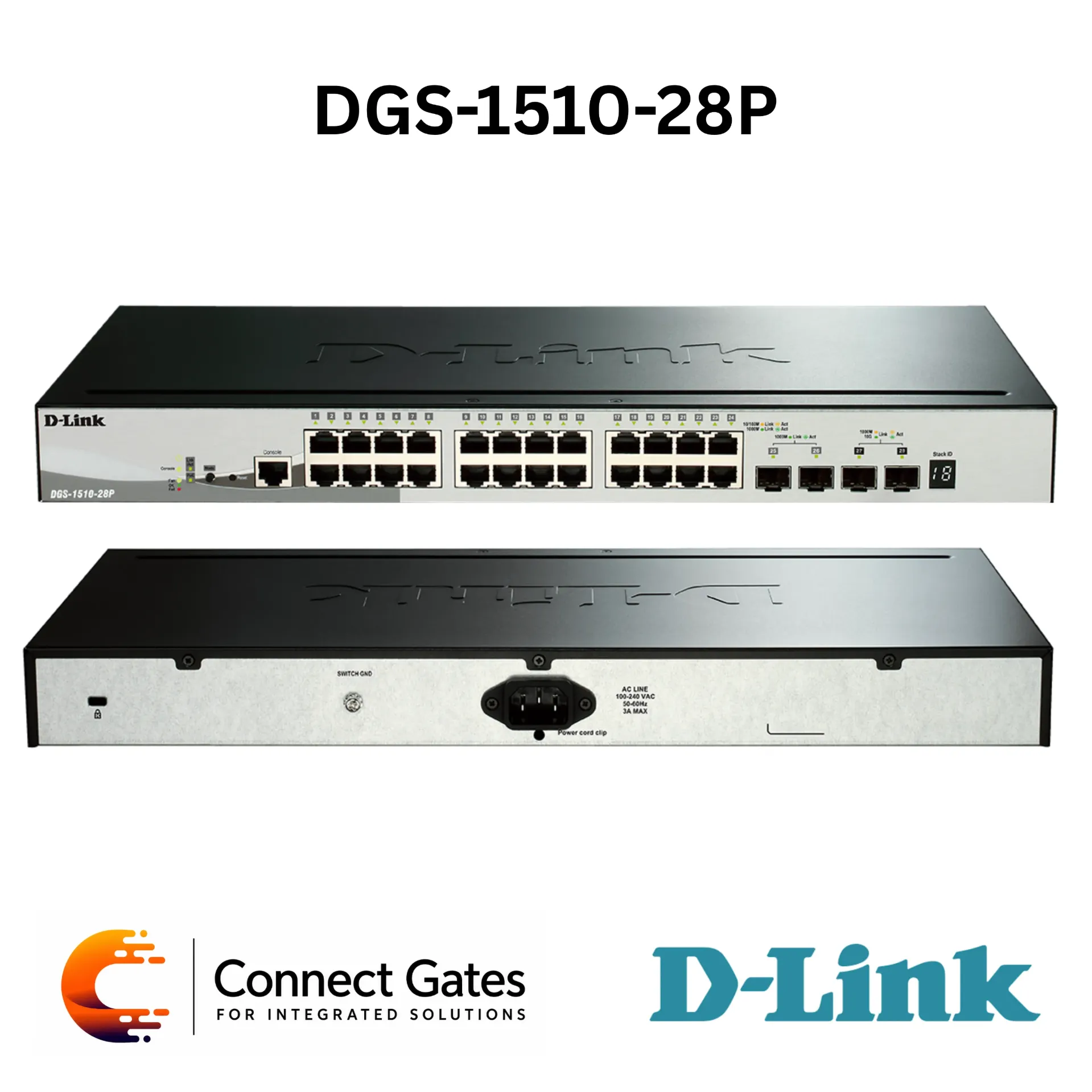

D-Link DGS-1510-28P – 24-Port Gigabit PoE Stackable Smart Managed Switch with 2 × SFP & 2 × 10G SFP+ Uplink Ports
Overview:
• The D-Link DGS-1510-28P is a Gigabit Stackable Smart Managed PoE Switch designed for SMB and SME networks requiring Gigabit connectivity, PoE power, and high-speed fiber uplinks.
• It provides 24 × 10/100/1000Mbps PoE-capable ports for connecting and powering IP cameras, wireless access points, VoIP phones, and network devices.
• The switch includes 2 × Gigabit SFP ports and 2 × 10G SFP+ ports for fiber uplinks, core switch connection, server connection, or physical stacking.
• The DGS-1510 Series supports physical stacking of up to 6 units through 10G ports, in addition to virtual stacking using D-Link Single IP Management.
• Layer 3 Static Routing helps improve inter-VLAN communication and reduce load on routers and core devices.
• Security and management features include ACL, D-Link Safeguard Engine, BPDU Attack Protection, ARP Spoofing Prevention, IP-MAC-Port Binding, DoS Attack Prevention, Web GUI, CLI, SNMP, DNA Utility, Dual Image, and IPv4/IPv6 management.
Key Features:
• 24 Gigabit PoE Ports: Provides 24 × 10/100/1000Mbps PoE-capable ports.
• PoE+ Support: Supports IEEE 802.3af/at with up to 30W per port.
• 193W PoE Budget: Suitable for powering multiple IP cameras, access points, and VoIP phones.
• 2 Gigabit SFP Ports: Supports fiber uplink connectivity.
• 2 × 10G SFP+ Ports: Provides high-speed 10G uplink or stacking connectivity.
• Physical Stacking: Supports up to 6 units per physical stack.
• Virtual Stacking: Supports up to 32 devices per virtual stack using Single IP Management.
• Static Routing: Supports Layer 3 routing for VLAN segmentation.
• Auto Surveillance VLAN: Prioritizes CCTV traffic for better video transmission.
• Auto Voice VLAN: Prioritizes VoIP traffic for better voice quality.
• Advanced Security: Supports ACL, Port Security, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, BPDU Attack Protection, and DoS Attack Prevention.
• Professional Management: Supports Web GUI, CLI, Telnet, SNMP, D-Link Network Assistant, RMON, LLDP, LLDP-MED, and Dual Images.
Technical Specifications:
• Product Type: Gigabit PoE Stackable Smart Managed Switch
• Model: DGS-1510-28P
• Series: DGS-1510 Series
• Hardware Version: A1
• Form Factor: 19” Rackmount, 1U
• Ethernet Ports: 24 × 10/100/1000Mbps PoE-Capable Ports
• SFP Ports: 2 × Gigabit SFP
• SFP+ Ports: 2 × 10G SFP+
• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3x
• PoE Standard: IEEE 802.3af/at
• PoE Capable Ports: Ports 1 to 24
• PoE Output: Up to 30W per Port
• PoE Power Budget: Max. 193W
• Network Cables: UTP Cat.5 / Cat.5e up to 100m, EIA/TIA-568 100-ohm STP up to 100m
• Duplex Mode: Full / Half Duplex for 10/100Mbps, Full Duplex for 1000Mbps
• MDI/MDIX: Auto or Configurable
• Switching Capacity: 92Gbps
• Forwarding Rate: 68.45Mpps
• MAC Address Table: Up to 16,384 Entries
• Static MAC Entries: Up to 512
• Packet Buffer: 1.5MB
• Transmission Method: Store-and-Forward
• MTBF: 275,428 Hours
• Stacking: Physical Stacking up to 6 Units, Virtual Stacking up to 32 Devices
• Stacking Bandwidth: Up to 40G Full-Duplex Physical Stacking, Up to 20G Virtual Stacking
• VLAN: 802.1Q Tagged VLAN, 4K VLAN Groups, GVRP, Asymmetric VLAN, Auto Voice VLAN, Auto Surveillance VLAN 2.0, MAC-Based VLAN, Protocol-Based VLAN
• L2 Features: IGMP Snooping, MLD Snooping, STP, RSTP, MSTP, ERPS, Loopback Detection, Link Aggregation, Port Mirroring, Jumbo Frame up to 9216 Bytes
• L3 Features: ARP, 256 Static ARP, Gratuitous ARP, IPv6 Neighbor Discovery, 16 IP Interfaces, Default Routing, Static Routing, 64 IPv4 Static Routes, 32 IPv6 Static Routes, UDP Helper
• QoS: 802.1p, 8 Queues per Port, SPQ, WRR, DRR, SPQ + WRR, DSCP, VLAN, MAC Address, EtherType, IP Address, TCP/UDP Port, IPv6 Traffic Class, IPv6 Flow Label
• ACL: Up to 256 Access Lists, Up to 768 Rules, Time-Based ACL, ACL Statistics
• Security: Port Security, Storm Control, Dynamic ARP Inspection, D-Link Safeguard Engine, DHCP Server Screening, ARP Spoofing Prevention, SSH, SSL, BPDU Attack Protection, DoS Attack Prevention, Traffic Segmentation, IP-MAC-Port Binding, DHCP Snooping, IP Source Guard, IPv6 DHCP Guard, IPv6 RA Guard, IPv6 Snooping, IPv6 Source Guard, IPv6 ND Inspection
• AAA: 802.1X Port and MAC-Based Authentication, RADIUS, TACACS+, Web-Based Access Control, MAC-Based Access Control, Guest VLAN, Dynamic VLAN Assignment
• OAM: Cable Diagnostics, sFlow, Factory Reset
• Management: Web GUI, CLI, Telnet Server, TFTP Client, SNMP v1/v2c/v3, SNMP Trap, System Log, Dual Images, D-Link Network Assistant, SNTP, ICMPv6, IPv4/IPv6 Dual Stack, DHCP Auto Configuration, RMON, LLDP, LLDP-MED, DHCP Relay, NTP
• D-Link Green 3.0: Link Status, LED / Port Shut-Off, System Hibernation, Time-Based PoE
• Power Input: 100 to 240V AC, 50/60Hz Internal Universal Power Supply
• Maximum Power Consumption: 238.7W PoE On, 29W PoE Off
• Standby Power Consumption: 21W
• Fans: 2 × Smart Fans
• Acoustics: 46.4dB(A)
• Heat Dissipation: 813.97 BTU/hr
• Dimensions: 440 × 210 × 44 mm
• Weight: 2.54kg
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Certifications: CE, FCC, C-Tick, VCCI, BSMI, CCC
• Safety: cUL, CB
• Category: D-Link PoE Switches
Applications:
• SMB and SME managed PoE network deployments.
• IP surveillance systems using PoE cameras and Auto Surveillance VLAN.
• Wireless access point deployment using PoE / PoE+.
• VoIP networks using Auto Voice VLAN.
• Fiber uplinks between cabinets, floors, server rooms, or core switches.
• Physical stacking using 10G SFP+ ports.
• Networks requiring VLAN, QoS, ACL, Static Routing, IPv6, and centralized management.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1510-28P for customers who need a professional managed PoE switch with 10G uplink and stacking capability.
• It is suitable for offices, schools, factories, clinics, warehouses, CCTV systems, VoIP systems, and wireless network deployments.
• The 24 PoE+ Gigabit ports and 193W PoE budget make it practical for medium PoE installations.
• The 2 SFP and 2 × 10G SFP+ ports provide strong flexibility for fiber uplinks, core connection, and stacking.
• This model is recommended when the customer needs managed PoE switching with advanced security, VLANs, Static Routing, and 10G uplinks.
