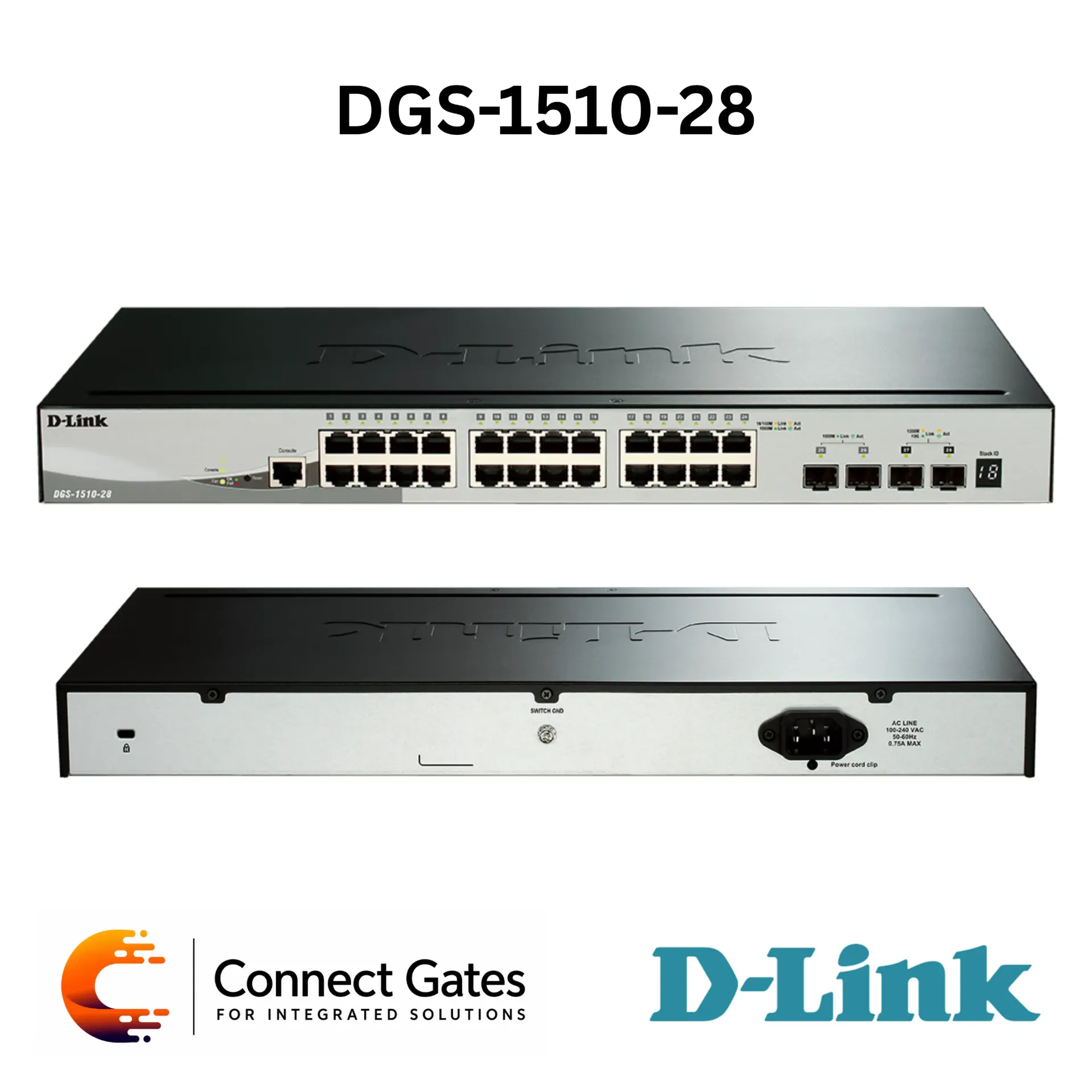

D-Link DGS-1510-28 – 24-Port Gigabit Stackable Smart Managed Switch with 2 × SFP & 2 × 10G SFP+ Uplink Ports
Overview:
• The D-Link DGS-1510-28 is a Gigabit Stackable Smart Managed Switch designed for SMB and SME networks that need advanced management, Gigabit access ports, and 10G uplink capability.
• It provides 24 × 10/100/1000Mbps Gigabit Ethernet ports for connecting computers, servers, IP cameras, access points, IP phones, printers, and network devices.
• The switch includes 2 × Gigabit SFP ports and 2 × 10G SFP+ ports for fiber uplinks, server room connections, backbone links, or physical stacking.
• The DGS-1510 Series supports physical stacking of up to 6 devices using two 10G ports, with up to 40G full-duplex stacking bandwidth.
• It supports Static Routing to improve inter-VLAN communication and reduce the load on routers and core network devices.
• Advanced features include Auto Surveillance VLAN, Auto Voice VLAN, ERPS, LLDP / LLDP-MED, VLAN, QoS, ACL, Safeguard Engine, ARP Spoofing Prevention, IP-MAC-Port Binding, DoS Attack Prevention, IPv4/IPv6 management, Web GUI, CLI, SNMP, and D-Link Network Assistant.
Key Features:
• 24 Gigabit Ethernet Ports: Provides 24 × 10/100/1000Mbps ports for high-speed wired network devices.
• 2 Gigabit SFP Ports: Supports fiber uplink connectivity for network expansion.
• 2 × 10G SFP+ Ports: Provides high-speed 10G uplinks or physical stacking connections.
• Physical Stacking: Supports up to 6 switches per stack using 10G ports.
• Virtual Stacking: Supports D-Link Single IP Management for up to 32 devices.
• Static Routing: Supports inter-VLAN routing to improve internal network performance.
• Auto Surveillance VLAN: Prioritizes CCTV traffic for better video transmission.
• Auto Voice VLAN: Prioritizes VoIP traffic for better voice quality.
• ERPS Support: Ethernet Ring Protection Switching improves network availability.
• Advanced Layer 2 Features: Includes IGMP Snooping, MLD Snooping, STP, RSTP, MSTP, Link Aggregation, Port Mirroring, Loopback Detection, and Jumbo Frame.
• Security Features: Supports ACL, Port Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, BPDU Attack Protection, DoS Attack Prevention, SSH, SSL, and IP-MAC-Port Binding.
• Professional Management: Supports Web GUI, CLI, Telnet, SNMP, RMON, LLDP, LLDP-MED, Dual Images, System Log, and D-Link Network Assistant.
• D-Link Green 3.0: Supports power-saving features including link status, LED / port shut-off, and system hibernation.
• Product Type: Gigabit Stackable Smart Managed Switch
• Model: DGS-1510-28
• Series: DGS-1510 Series
• Hardware Version: A1
• Form Factor: 19” Rackmount, 1U
• Ethernet Ports: 24 × 10/100/1000Mbps
• SFP Ports: 2 × Gigabit SFP
• SFP+ Ports: 2 × 10G SFP+
• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3x
• Network Cables: UTP Cat.5 / Cat.5e up to 100m, EIA/TIA-568 100-ohm STP up to 100m
• Duplex Mode: Full / Half Duplex for 10/100Mbps, Full Duplex for 1000Mbps
• MDI/MDIX: Auto or Configurable
• Switching Capacity: 92Gbps
• Forwarding Rate: 68.45Mpps
• Transmission Method: Store-and-Forward
• MAC Address Table: Up to 16,384 Entries
• Static MAC Entries: Up to 512
• Packet Buffer Memory: 1.5MB
• MTBF: 516,593 Hours
• Stacking: Physical Stacking up to 6 Units, Virtual Stacking up to 32 Devices
• Stacking Bandwidth: Up to 40G Full-Duplex Physical Stacking, Up to 20G Virtual Stacking
• VLAN: 802.1Q Tagged VLAN, 4K VLAN Groups, GVRP, Asymmetric VLAN, Auto Voice VLAN, Auto Surveillance VLAN, MAC-Based VLAN, Protocol-Based VLAN
• L2 Features: IGMP Snooping, MLD Snooping, STP, RSTP, MSTP, ERPS, Loopback Detection, Link Aggregation, Port Mirroring, Jumbo Frame up to 9216 Bytes
• L3 Features: ARP, 256 Static ARP, Gratuitous ARP, IPv6 Neighbor Discovery, 16 IP Interfaces, Default Routing, Static Routing, 64 IPv4 Static Routes, 32 IPv6 Static Routes
• QoS: 802.1p, 8 Queues per Port, SPQ, WRR, DRR, SPQ + WRR, DSCP, VLAN, MAC Address, EtherType, IP Address, TCP/UDP Port, IPv6 Traffic Class, IPv6 Flow Label
• ACL: Up to 256 Access Lists, up to 768 Rules, Time-Based ACL, ACL Statistics
• Security: Port Security, Storm Control, Dynamic ARP Inspection, D-Link Safeguard Engine, DHCP Server Screening, ARP Spoofing Prevention, SSH, SSL, BPDU Attack Protection, DoS Attack Prevention, IP-MAC-Port Binding, DHCP Snooping, IP Source Guard, IPv6 DHCP Guard, IPv6 RA Guard, IPv6 Snooping, IPv6 Source Guard, IPv6 ND Inspection
• AAA: 802.1X Port and MAC-Based Authentication, RADIUS, TACACS+, Web-Based Access Control, MAC-Based Access Control, Guest VLAN, Dynamic VLAN Assignment
• OAM: Cable Diagnostics, sFlow, Factory Reset
• Management: Web GUI, CLI, Telnet Server, Telnet Client, TFTP Client, SNMP v1/v2c/v3, SNMP Trap, System Log, D-Link Network Assistant, RMON v1/v2, LLDP, LLDP-MED, SNTP, NTP, DHCP Client, DHCP Auto Configuration, DHCP Relay, ICMPv6, IPv4/IPv6 Dual Stack, Dual Images
• D-Link Green 3.0: Link Status, LED / Port Shut-Off, System Hibernation
• Power Input: 100 to 240V AC, 50/60Hz Internal Universal Power Supply
• Maximum Power Consumption: 24W
• Standby Power Consumption: 15.2W
• Fan: 1 × Smart Fan
• Acoustics: 43.8dB(A)
• Heat Dissipation: 72.29 BTU/hr
• Dimensions: 440 × 210 × 44 mm
• Weight: 2.00kg
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• Certifications: CE, FCC, C-Tick, VCCI, BSMI, CCC
• Safety: cUL, CB
• Category: D-Link Managed Switches
Applications:
• SMB and SME managed network deployments.
• Office, school, clinic, warehouse, showroom, and business network cabinets.
• Access or aggregation switching with 24 Gigabit ports.
• 10G fiber uplinks to core switches, servers, or backbone networks.
• Physical stacking between multiple DGS-1510 switches.
• CCTV networks using Auto Surveillance VLAN.
• VoIP networks using Auto Voice VLAN.
• Networks requiring VLAN, QoS, ACL, Static Routing, IPv6, and centralized management.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1510-28 for customers who need a managed 24-Port Gigabit switch with 10G uplink and stacking support.
• It is suitable for business networks that need stronger management than basic smart switches, without requiring PoE ports.
• The combination of 24 Gigabit ports, 2 SFP ports, and 2 × 10G SFP+ ports makes it practical for network cabinets, uplink aggregation, and server room connections.
• Static Routing, VLAN, QoS, Auto Surveillance VLAN, Auto Voice VLAN, ACL, and advanced security make it suitable for professional low-current and IT network projects.
• This model is recommended when the project requires 24 Gigabit access ports with high-speed fiber uplinks and future expansion through stacking.
