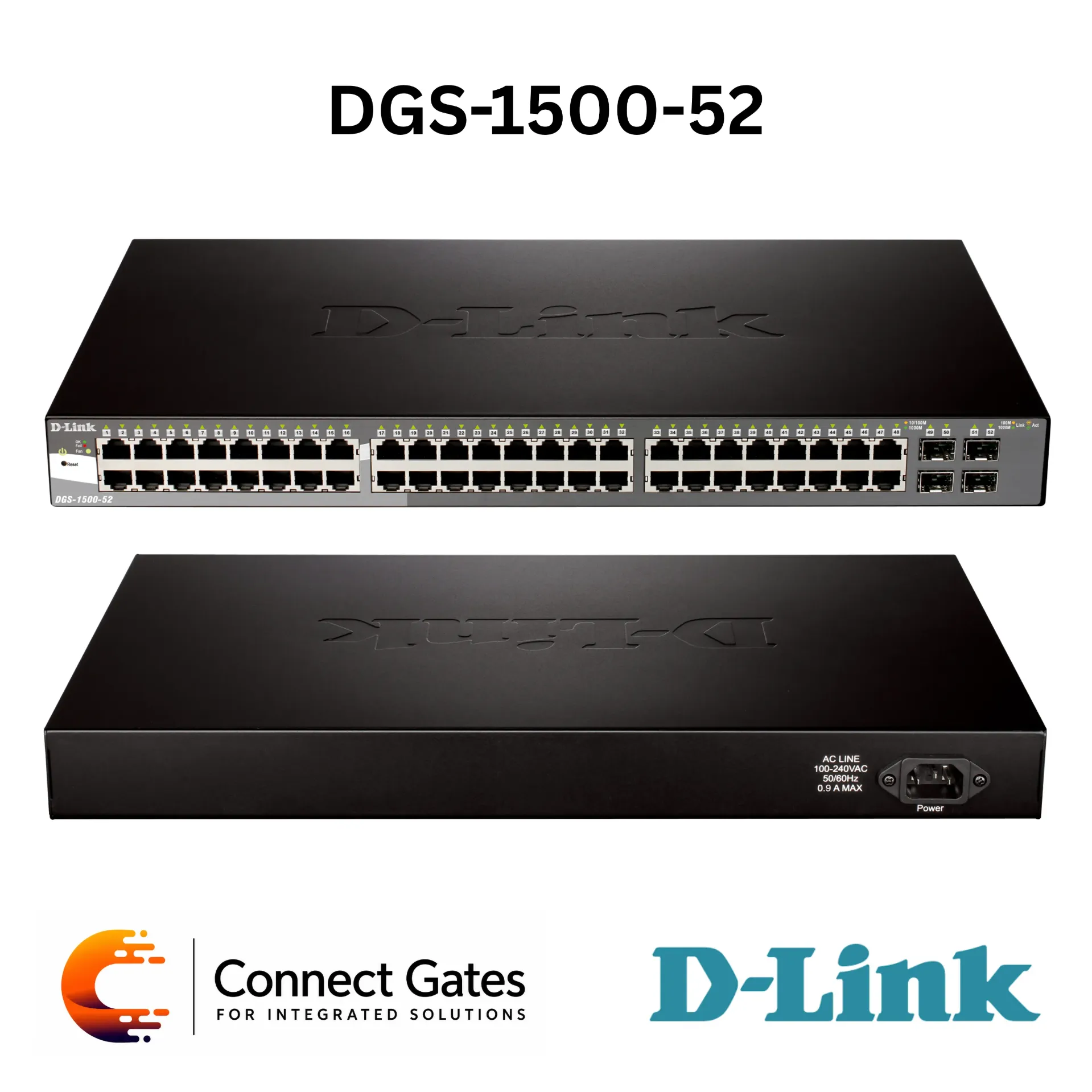

D-Link DGS-1500-52 – 48-Port Gigabit SmartPro Managed Switch with 4 × Dual-Speed SFP Ports
Overview:
• The D-Link DGS-1500-52 is a SmartPro Managed Gigabit Switch designed for SMBs, enterprise access networks, office networks, CCTV/IP surveillance networks, VoIP, VLAN segmentation, and professional distribution cabinets.
• It provides 48 × 10/100/1000Mbps Gigabit RJ45 ports and 4 × dual-speed SFP ports for flexible fiber uplink connectivity.
• The switch supports advanced SmartPro features including Virtual Stacking, Static Routing, Layer 2 switching, VLAN, Auto Surveillance VLAN, Auto Voice VLAN, QoS, ACL, security, and centralized management.
• It supports D-Link Single IP Management with virtual stacking/clustering of up to 32 units, helping administrators manage multiple switches using a single IP address.
• The DGS-1500-52 delivers 104Gbps switching capacity, 77.4Mpps forwarding rate, 16K MAC address table, 1MB packet buffer, and jumbo frame support up to 10,000 bytes.
• It includes D-Link Green V3.0 technology with link status power saving, cable length detection, LED shutoff, port standby, port shutoff, and system hibernation for efficient power usage.
Key Features:
• 48-Port Gigabit SmartPro Managed Switch
• 48 × 10/100/1000Mbps Gigabit RJ45 Ports
• 4 × Dual-Speed SFP Ports
• 104Gbps Switching Capacity
• 77.4Mpps Packet Forwarding Rate
• 16K MAC Address Table
• 1MB Packet Buffer Memory
• Virtual Stacking / Clustering up to 32 Units
• D-Link Single IP Management
• Static Routing Support
• IPv4 / IPv6 Dual Stack Support
• Auto Surveillance VLAN
• Auto Voice VLAN
• IGMP Snooping Support
• STP, RSTP, MSTP Support
• 802.3ad Link Aggregation
• Jumbo Frame up to 10,000 Bytes
• VLAN, GVRP, Asymmetric VLAN, and 802.1Q Support
• QoS with 4 Queues per Port
• ACL with up to 50 Profiles and 450 Rules
• D-Link Safeguard Engine
• Port Security up to 64 MAC Addresses per Port
• ARP Spoofing Prevention
• IP-MAC-Port Binding / Smart Binding
• DHCP Snooping and DHCP Server Screening
• 802.1X Authentication
• SSH v2 and SSL Security
• Web GUI, SmartConsole Utility, Compact CLI, Telnet, SNMP, and RMON
• Cable Diagnostics and Factory Reset
• D-Link Green V3.0 Technology
• 2 Smart Fans
• 19-Inch Rack-Mount, 1U Design
Technical Specifications:
• Product Type: SmartPro Managed Gigabit Switch with SFP Uplinks
• Brand: D-Link
• Model: DGS-1500-52
• Series: DGS-1500 Series
• Port Configuration: 48 × 10/100/1000Mbps RJ45 + 4 × Dual-Speed SFP
• Gigabit RJ45 Ports: 48 Ports
• SFP Ports: 4 Dual-Speed SFP Ports
• PoE Support: Not Supported
• Port Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, Auto-Negotiation, IEEE 802.3x Flow Control
• Network Cables: UTP Cat.5 / Cat.5e up to 100m, EIA/TIA-568 100-ohm STP up to 100m
• Duplex Mode: Full/Half Duplex for 10/100Mbps, Full Duplex for Gigabit Speed
• MDI/MDIX: Auto MDI/MDIX Adjustment
• Switching Capacity: 104Gbps
• Transmission Method: Store-and-Forward
• Packet Forwarding Rate: 77.4Mpps
• MAC Address Table: 16K Entries per Device
• Static MAC Entries: Up to 256 Static MAC Entries
• Packet Buffer Memory: 1MB per Device
• Power Input: 100 to 240V AC, 50/60Hz Internal Universal Power Supply
• Maximum Power Consumption: 43.5W
• Standby Power Consumption: 20.68W at 100V / 22.05W at 240V
• Fan Quantity: 2 Smart Fans
• Acoustics: 47.1dBA Max.
• Heat Dissipation: 148.42BTU/hr
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• Dimensions: 440 × 250 × 44mm
• Rack Mount Size: 19-Inch Standard Rack-Mount Width, 1U Height
• Weight: 4.1kg
• Diagnostic LEDs: Power, Fan, Link/Activity/Speed per 10/100/1000Mbps Port, Link/Activity/Speed per SFP Port
• MTBF: 201,517 Hours
• Certifications: FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI
• Safety Standards: cUL, LVD
• OAM Features: Factory Reset and Cable Diagnostics
• D-Link Single IP Management: Virtual Stacking / Clustering up to 32 Units over IPv6
• Layer 2 Features: 16K MAC Address Table, IGMP Snooping v1/v2, 256 IGMP Groups, 64 Static Multicast Addresses, IGMP per VLAN, IGMP Snooping Querier, Loopback Detection, 802.3ad Link Aggregation, LLDP, LLDP-MED, STP, RSTP, MSTP, Flow Control, HOL Blocking Prevention, Port Mirroring, Cable Diagnostics, Configurable MDI/MDIX, Multicast Filtering, and Jumbo Frame up to 10,000 Bytes
• Link Aggregation: Max. 26 Groups per Device, 8 Ports per Group
• Port Mirroring: One-to-One, Many-to-One, Tx/Rx/Both
• VLAN Features: 802.1Q, up to 4K Static VLAN Groups, up to 4094 VIDs, Asymmetric VLAN, Auto Voice VLAN, Auto Surveillance VLAN, GVRP, and up to 256 Dynamic VLANs
• QoS Features: 802.1p QoS, 4 Queues per Port, Strict, Weighted Round Robin WRR, Bandwidth Control, DSCP, ToS, IPv6 Traffic Class, IPv6 Flow Label, and TCP/UDP Port
• Bandwidth Control: Port-Based Ingress/Egress Bandwidth Control with 64Kb/s Minimum Granularity
• Layer 3 Features: IPv6 Neighbor Discovery, 4 IP Interfaces, ARP, 64 Static ARP, and Gratuitous ARP
• Layer 3 Routing: Default Routing, Static Routing, up to 32 IPv4 Static Route Entries, 128 IPv4 Host Routes, 16 IPv6 Static Route Entries, and 64 IPv6 Host Routes
• ACL Features: Up to 50 Profiles, up to 450 Rules Shared by Profiles, ACL Based on MAC Address, IPv6 Address, ICMP, IGMP, TCP, UDP, 802.1p, DSCP, and Ethernet Type
• Security Features: Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP-MAC-Port Binding Smart Binding, up to 512 Address Binding Entries, ARP Mode, ACL Mode, DHCP Snooping, ARP Spoofing Prevention up to 64 Entries, Traffic Segmentation, SSH v2, SSL v1/v2/v3, 802.1X Port-Based Access Control, and Port Security up to 64 MAC Addresses per Port
• AAA Features: 802.1X Authentication, Local/RADIUS Database, Port-Based Access Control, EAP, OTP, TLS, TTLS, PEAP, and IPv6 RADIUS Server
• Management Features: Web-Based GUI, Single IP Management, Compact CLI, Telnet Server, TFTP Client, Configurable MDI/MDIX, SNMP v1/v2c/v3, SNMP Trap, SmartConsole Utility Trap, Backup/Upgrade Firmware, Smart Wizard, Upload/Download Configuration File, System Log up to 500 Entries, BootP/DHCP Client, SNTP, ICMPv6, IPv4/IPv6 Dual Stack, DHCP Auto Configuration, Debug Command, Time Setting, RMONv1, Trusted Host, and User Account up to 4 Concurrent Sessions
• Green Features: Power Saving by Link Status, Cable Length Detection, LED Shutoff, Port Standby, System Hibernation, and Port Shutoff
• Optional Management Software: DV-600S D-View 6.0 Network Management Software Standard Edition, DV-600P D-View 6.0 Network Management Software Professional Edition
• Optional SFP Transceivers: DGS-712, DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, DEM-210, DEM-211
• Optional WDM SFP Transceivers: DEM-330T/R, DEM-331T/R, DEM-220T, DEM-220R
Applications:
• SMB and enterprise office networks
• CCTV and IP surveillance networks
• VoIP and Auto Voice VLAN deployments
• Surveillance networks using Auto Surveillance VLAN
• Access layer switching
• Fiber uplink connectivity using SFP ports
• VLAN segmentation and inter-VLAN static routing
• Distribution cabinets and network racks
• Business networks requiring SmartPro management
• Networks requiring 48 Gigabit access ports, QoS, ACL, security, and centralized administration
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1500-52 for SMB and professional network projects that require a high-density 48-port Gigabit SmartPro managed switch with fiber uplink support.
• It is suitable for offices, schools, factories, CCTV networks, VoIP systems, distribution racks, and managed access layer deployments.
• The 48 Gigabit RJ45 ports, 4 dual-speed SFP ports, 104Gbps switching capacity, Virtual Stacking, Static Routing, Auto Surveillance VLAN, Auto Voice VLAN, ACL, Smart Binding, and D-Link Green V3.0 features make it a strong option for organized business networks.
• For best performance, Connect Gates recommends reserving the SFP ports for fiber uplinks or inter-cabinet connections and using VLAN, QoS, and security features to separate CCTV, VoIP, and data traffic.
