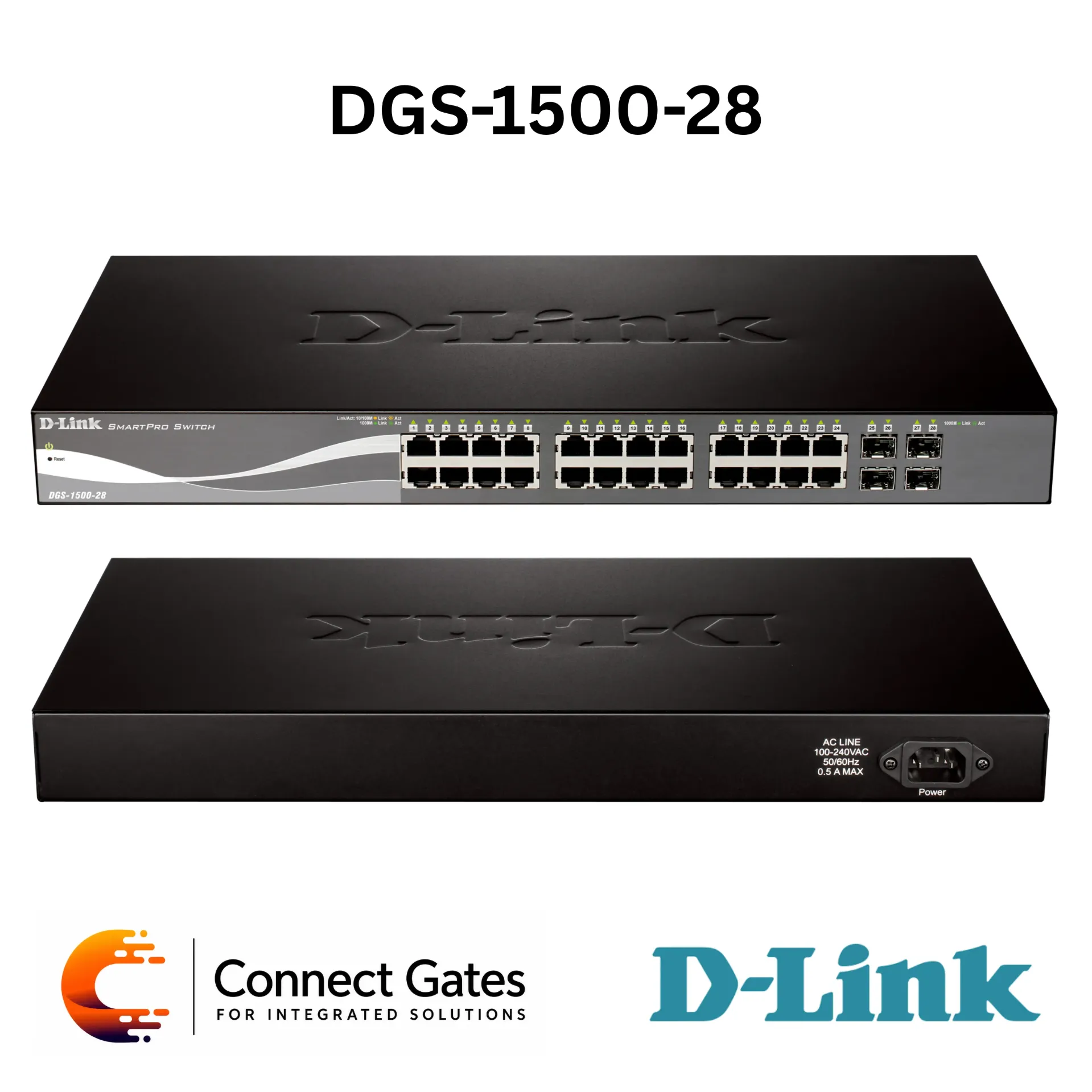

D-Link DGS-1500-28 – 24-Port Gigabit SmartPro Switch with 4 × SFP Uplink Ports
Overview:
• The D-Link DGS-1500-28 is a 24-Port 10/100/1000Mbps SmartPro Switch designed for business networks that need Gigabit connectivity with fiber uplink support.
• It provides 24 Gigabit Ethernet ports for connecting computers, access points, IP cameras, servers, printers, and network devices.
• The switch includes 4 SFP ports, allowing fiber uplink connections for longer-distance network expansion.
• The DGS-1500 Series supports advanced features such as Virtual Stacking and Static Routing, helping simplify management and improve routing between VLAN segments.
• D-Link Green 3.0 technology helps reduce power consumption using features such as port shutoff, standby, hibernation, cable length detection, and link status detection.
• Management and security features include Web GUI, SmartConsole utility, SNMP, D-Link Safeguard Engine, ARP spoofing prevention, SSL, and Access Control Lists.
Key Features:
• 24 Gigabit Ethernet Ports: Provides 24 × 10/100/1000Mbps ports for high-speed wired network devices.
• 4 SFP Uplink Ports: Supports fiber uplink connectivity for network expansion.
• SmartPro Switching: Suitable for SMB and business network environments requiring advanced management.
• Virtual Stacking: Allows up to 32 devices to appear as a single unit with one IP address.
• Static Routing: Supports routing between VLAN segments for more efficient internal network traffic.
• Voice VLAN: Helps optimize voice traffic in IP telephony deployments.
• Auto Surveillance VLAN: Useful for CCTV and IP surveillance network separation.
• LLDP / LLDP-MED: Supports device discovery and network management.
• D-Link Green 3.0: Helps reduce energy consumption with multiple power-saving technologies.
• Security Features: Supports ACL, SSL, ARP spoofing prevention, and D-Link Safeguard Engine.
• Remote Management: Supports SNMP MIB for remote network management.
• Web GUI / SmartConsole: Provides easy switch configuration and monitoring.
Technical Specifications:
• Product Type: SmartPro Managed Gigabit Switch
• Model: DGS-1500-28
• Ethernet Ports: 24 × 10/100/1000Mbps Gigabit Ethernet Ports
• Uplink Ports: 4 × SFP Ports
• Ethernet Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
• Flow Control: IEEE 802.3x Flow Control for Full-Duplex Mode
• Auto-Negotiation: Supported
• MAC Control: Up to 256 Static MAC Entries, Enable / Disable Auto-Learning of MAC Addresses
• Green Technology: IEEE 802.3az EEE, LED and Port Shutoff, Port Standby, System Hibernation, Cable Length Detection, Link Status Detection
• Security: D-Link Safeguard Engine, ARP Spoofing Prevention, SSL, Access Control List
• Management: Single IP Management / Virtual Stacking, SNMP MIB, D-View 6.0 Support, SmartConsole Utility, Web-Based GUI
• Advanced Features: Static Routing, Voice VLAN, Auto Surveillance VLAN, LLDP, LLDP-MED
• Product Status: Discontinued
• Category: D-Link Managed Switches
Applications:
• Business and SMB network switching.
• Connecting PCs, access points, IP phones, printers, servers, and network devices.
• CCTV and IP surveillance networks using Auto Surveillance VLAN.
• Voice network deployments using Voice VLAN.
• Fiber uplink connections between floors, cabinets, or network rooms.
• Managed network environments that need VLANs, static routing, security, and remote management.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1500-28 for customers who need a managed Gigabit switch with fiber uplink capability.
• It is suitable for offices, schools, clinics, showrooms, warehouses, and medium-sized business networks.
• The 24 Gigabit ports make it practical as a main access switch, while the 4 SFP uplinks provide flexibility for fiber backbone connections.
• Static Routing, Voice VLAN, Auto Surveillance VLAN, Virtual Stacking, ACL, and SNMP make it stronger than unmanaged or basic smart switches.
• This model is discontinued, so Connect Gates recommends confirming availability before offering it, or replacing it with a newer managed Gigabit switch model when required.
