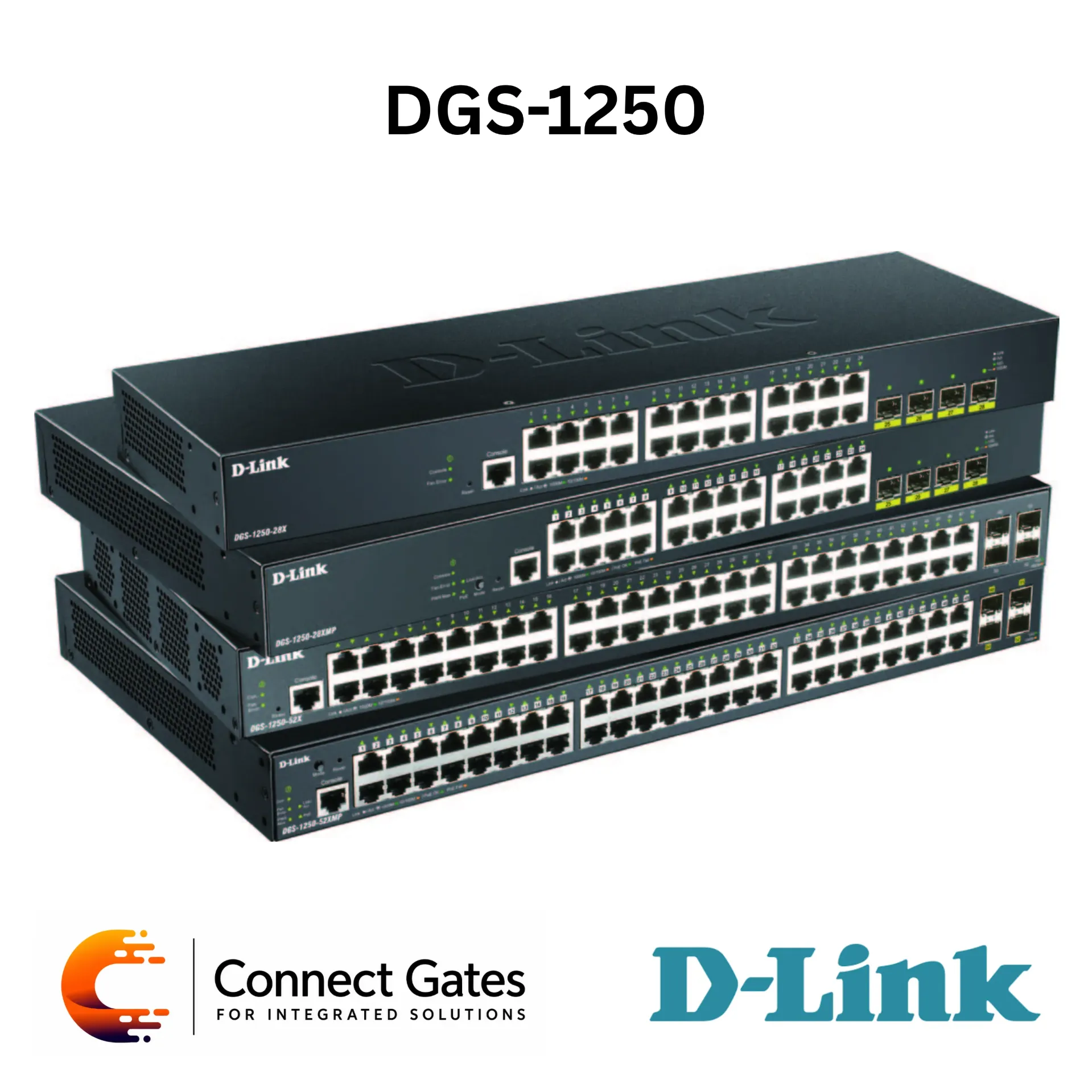

D-Link DGS-1250 Series – Smart Managed Gigabit Switches with 4 × 10G SFP+ Uplink Ports, Layer 2 Features, Static Routing, Surveillance Mode & PoE Options
Overview:
• The D-Link DGS-1250 Series is a Smart Managed Switch series designed for business networks, CCTV networks, SMB infrastructure, and high-speed network expansion.
• All models in the series include 4 × 10G SFP+ uplink ports, providing high-speed backbone connectivity for servers, core switches, or fiber uplinks.
• The series includes both non-PoE and PoE models, with PoE models supporting IEEE 802.3af/at and up to 370W PoE power budget.
• It supports advanced network features such as VLAN, QoS, IGMP Snooping, STP/RSTP/MSTP, LACP, Static Routing, Surveillance Mode, and Auto Voice VLAN.
• The series also provides strong management and security features including Web GUI, Full CLI, D-Link Network Assistant, SNMP, ACL, 802.1X, ARP Spoofing Prevention, DHCP Snooping, and D-Link Safeguard Engine.
Key Features:
• Smart Managed Gigabit Switch Series
• 24-Port and 48-Port Models Available
• PoE and Non-PoE Models Available
• 4 × 10G SFP+ Uplink Ports on All Models
• IEEE 802.3af/at PoE Support on PoE Models
• Up to 370W PoE Power Budget
• Advanced Layer 2 Features
• Static Routing Support
• Surveillance Mode
• Auto Voice VLAN
• VLAN and QoS Support
• IGMP Snooping Support
• STP, RSTP and MSTP Support
• Link Aggregation Support
• ACL Security Support
• D-Link Safeguard Engine
• ARP Spoofing Prevention
• Web GUI, Full CLI and SNMP Management
• Dual Software Images
• Dual Configuration Files
• Green Technology Power Saving
Technical Specifications:
General:
• Brand: D-Link
• Series: DGS-1250 Series
• Product Type: Smart Managed Gigabit Switches
• Hardware Version: A1
• Management: Web GUI, D-Link Network Assistant, Full CLI, SNMP
• Uplink Ports: 4 × 10G SFP+ Ports on All Models
• Power Input: 100 to 240VAC, 50/60Hz Internal Universal Power Supply
Available Models:
• DGS-1250-28X: 24 × 10/100/1000BASE-T + 4 × 10G SFP+ Smart Managed Switch
• DGS-1250-28XMP: 24 × 10/100/1000BASE-T PoE + 4 × 10G SFP+ Smart Managed Switch
• DGS-1250-52X: 48 × 10/100/1000BASE-T + 4 × 10G SFP+ Smart Managed Switch
• DGS-1250-52XMP: 48 × 10/100/1000BASE-T PoE + 4 × 10G SFP+ Smart Managed Switch
Performance:
• Switching Capacity: 128Gbps for 28-Port Models / 176Gbps for 52-Port Models
• Forwarding Rate: 95.24Mpps for 28-Port Models / 130.95Mpps for 52-Port Models
• MAC Address Table: 16K for 28-Port Models / 32K for 52-Port Models
• Static MAC Addresses: 256 Entries
• Packet Buffer Memory: 12Mbits for 28-Port Models / 16Mbits for 52-Port Models
• Flash Memory: 32MB
• DRAM: 256MB DDR3
• Transmission Method: Store-and-Forward
PoE Specifications:
• PoE Standard: IEEE 802.3af/at on PoE Models
• PoE Models: DGS-1250-28XMP and DGS-1250-52XMP
• PoE Capable Ports: 24 Ports on DGS-1250-28XMP / 48 Ports on DGS-1250-52XMP
• PoE Power Budget: 370W
• Maximum PoE Power Per Port: 30W
• Time-Based PoE: Supported on PoE Models
Network Features:
• VLAN: 802.1Q
• VLAN Groups: Up to 4094 Static VLAN Groups
• Voice VLAN: Auto Voice VLAN
• Surveillance VLAN: Auto Surveillance VLAN
• QoS: 802.1p, DSCP, MAC, IP, Protocol Type, TCP/UDP Port-Based QoS
• Link Aggregation: 802.3ad, up to 8 Groups per Device and 8 Ports per Group
• Spanning Tree: 802.1D STP, 802.1W RSTP, 802.1s MSTP
• Jumbo Frame: Up to 12,000 Bytes
• IGMP Snooping: IGMP v1/v2/v3, up to 256 Groups
• Static Routing: Supported
• IPv4 Static Routes: 124 Entries
• IPv6 Static Routes: 50 Entries
Security Features:
• ACL: Up to 50 Access Lists and 768 Rules
• Port Security: Up to 64 MAC Addresses per Port
• 802.1X: Port-Based and Host-Based Access Control
• ARP Spoofing Prevention: Supported
• DHCP Snooping: Supported
• IP-MAC-Port Binding: Supported
• D-Link Safeguard Engine: Supported
• DoS Attack Prevention: Supported
• Traffic Segmentation: Supported
• SSH: SSH v2
• TLS: TLS v1.2
Management Features:
• Web-Based GUI: Supported
• D-Link Network Assistant: Supported
• Full CLI: Supported
• SNMP: v1/v2c/v3
• Telnet Server: Supported
• Firmware Backup / Upgrade: Supported
• Configuration Upload / Download: Supported
• Dual Image: Supported
• Dual Configuration: Supported
• System Log: Up to 500 Entries
• Cable Diagnostics: Supported
• Factory Reset: Supported
Applications:
• Business network expansion
• SMB network infrastructure
• IP CCTV network switching
• PoE camera deployment
• Wireless access point networks
• VoIP phone networks
• VLAN-based network segmentation
• Surveillance and data network integration
• High-speed 10G uplink aggregation
• Core, distribution, or access layer switching
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1250 Series for projects that need Smart Managed Gigabit switches with 10G SFP+ uplinks and advanced network control.
• For CCTV projects, the PoE models are suitable for powering IP cameras, access points, and VoIP phones while using Surveillance Mode to organize camera traffic.
• For structured cabling or data-only projects, the non-PoE models are suitable when devices are powered separately and high port density is required.
• For proper design, Connect Gates recommends selecting the model based on number of ports, PoE requirement, PoE power budget, uplink design, VLAN plan, and network management requirements.
