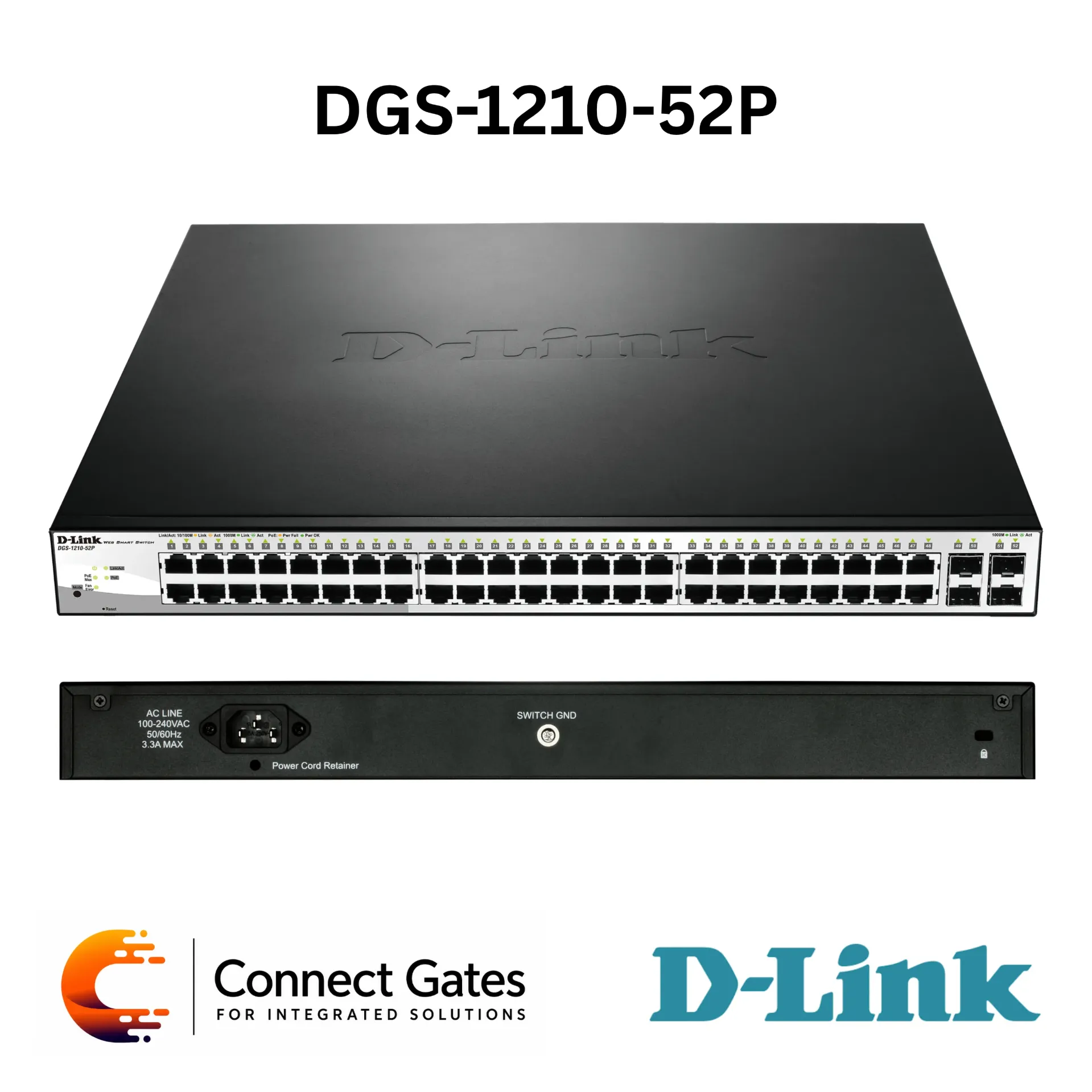

D-Link DGS-1210-52P – 48-Port Gigabit PoE Smart Managed Switch with 24 PoE Ports & 4 × SFP Uplink Ports
Overview:
• The D-Link DGS-1210-52P is a Smart Managed Gigabit PoE Switch designed for business networks that need high port density, PoE support, and fiber uplink connectivity.
• It provides 48 × 10/100/1000Mbps Gigabit Ethernet ports, with 24 ports supporting PoE for IP cameras, wireless access points, VoIP phones, and other PoE devices.
• The switch includes 4 × SFP ports for fiber uplink connections between cabinets, floors, server rooms, or backbone switches.
• Ports 1 to 8 support IEEE 802.3at PoE+, while ports 9 to 24 support IEEE 802.3af PoE.
• It offers a total PoE power budget of 193W, making it suitable for medium-size PoE deployments.
• The switch supports advanced Smart Managed features including VLAN, QoS, Auto Surveillance VLAN, Auto Voice VLAN, IGMP Snooping, Link Aggregation, Spanning Tree, Loopback Detection, Cable Diagnostics, ACL, Smart Binding, ARP Spoofing Prevention, SNMP, Web Interface, D-Link Network Assistant, and Compact CLI.
Key Features:
• 48 Gigabit Ethernet Ports: Provides high-density wired connectivity for business networks.
• 24 PoE Ports: Supports powering PoE devices directly from the switch.
• PoE / PoE+ Support: Ports 1 to 8 support 802.3at, while ports 9 to 24 support 802.3af.
• 193W PoE Budget: Suitable for powering multiple cameras, access points, and IP phones.
• 4 SFP Uplink Ports: Supports fiber uplink connectivity.
• 104Gbps Switching Capacity: Provides high switching performance for Gigabit traffic.
• 77.4Mpps Forwarding Rate: Supports fast packet forwarding.
• Auto Surveillance VLAN: Prioritizes CCTV traffic for better video transmission.
• Auto Voice VLAN: Prioritizes VoIP traffic for better call quality.
• Advanced Layer 2 Features: Includes IGMP Snooping, Spanning Tree, Link Aggregation, Port Mirroring, Loopback Detection, and Cable Diagnostics.
• Security Features: Includes ACL, D-Link Safeguard Engine, Port Security, DHCP Server Screening, ARP Spoofing Prevention, Smart Binding, and 802.1X.
• Smart Management: Supports Web Interface, D-Link Network Assistant, SNMP, RMON, and Compact CLI.
Technical Specifications:
• Product Type: Gigabit PoE Smart Managed Switch
• Model: DGS-1210-52P
• Ethernet Ports: 48 × 10/100/1000Mbps RJ45 Ports
• PoE Ports: 24 PoE Ports
• SFP Ports: 4 × SFP Ports
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE+ Ports: Ports 1 to 8 support IEEE 802.3at
• PoE Ports 9 to 24: IEEE 802.3af compliant
• PoE Power Budget: 193W
• Switching Capacity: 104Gbps
• Forwarding Rate: 77.4Mpps
• MAC Address Table: 16K Entries
• Static MAC Entries: Up to 256
• Packet Buffer: 3MB
• RAM: 128MB
• Flash Memory: 16MB
• Network Cables: UTP Cat.5 / Cat.5e up to 100m
• Duplex Mode: Full / Half Duplex for 10/100Mbps, Full Duplex for Gigabit Speed
• Auto-Negotiation: Supported
• Auto MDI/MDIX: Supported
• VLAN: 802.1Q VLAN, up to 256 Static VLAN Groups, Auto Voice VLAN, Auto Surveillance VLAN, Asymmetric VLAN
• QoS: 802.1p, 8 Queues per Port, Strict, WRR, Bandwidth Control, DSCP, ToS, IPv6 Traffic Class
• Layer 2 Features: IGMP Snooping, MLD Snooping, Loopback Detection, Link Aggregation, LLDP, LLDP-MED, Jumbo Frame up to 9216 Bytes, STP, RSTP, Flow Control, Port Mirroring, Multicast Filtering
• L3 Features: IP Interface, IPv6 Neighbor Discovery
• ACL: Up to 50 Access Lists, up to 768 Rules
• Security: Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP-MAC-Port Binding, ARP Inspection, DHCP Snooping, 802.1X, ARP Spoofing Prevention, Traffic Segmentation, SSH v2, SSL, Port Security
• Management: Web Interface, D-Link Network Assistant, Compact CLI, Telnet Server, TFTP Client, SNMP v1/v2c/v3, SNMP Trap, Smart Wizard, Configuration Upload / Download, System Log, BootP / DHCP Client, SNTP, ICMPv6, IPv4 / IPv6 Dual Stack, RMONv1, Trusted Host
• Green Technology: Link Status, Scheduled PoE, LED Shut-Off, System Hibernation, Port Shut-Off
• Power Input: 100 to 240V AC, 50/60Hz Internal Universal Power Supply
• Maximum Power Consumption: 270.2W PoE Enabled, 46.5W PoE Disabled
• Standby Power Consumption: 29.6W at 100V, 28.2W at 240V
• Heat Dissipation: 912.96 BTU/hr
• Acoustics: Low Speed 37.8dB, High Speed 47.3dB
• Dimensions: 440 × 430 × 44 mm
• Weight: 5.66kg
• MTBF: 220,722 Hours
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• Category: D-Link PoE Switches
Applications:
• Medium and large CCTV systems.
• IP camera networks requiring PoE and VLAN separation.
• VoIP phone deployments using Auto Voice VLAN.
• Wireless access point deployment using PoE / PoE+.
• Business networks requiring 48 Gigabit access ports.
• Fiber uplink between network racks, floors, or control rooms.
• Networks requiring VLAN, QoS, smart security, monitoring, and managed switching.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1210-52P for projects that need 48 Gigabit ports with PoE available on 24 ports.
• It is suitable for CCTV, VoIP, access point, and business network installations where not all 48 ports need PoE.
• The 193W PoE budget is suitable for medium PoE loads, but the power consumption of all connected cameras and access points should be calculated before installation.
• The 4 SFP uplink ports make it practical for fiber backbone connections.
• If the project requires PoE on all 48 ports or higher PoE capacity, the DGS-1210-52MP is the stronger alternative with 48 PoE ports and 370W PoE budget.
