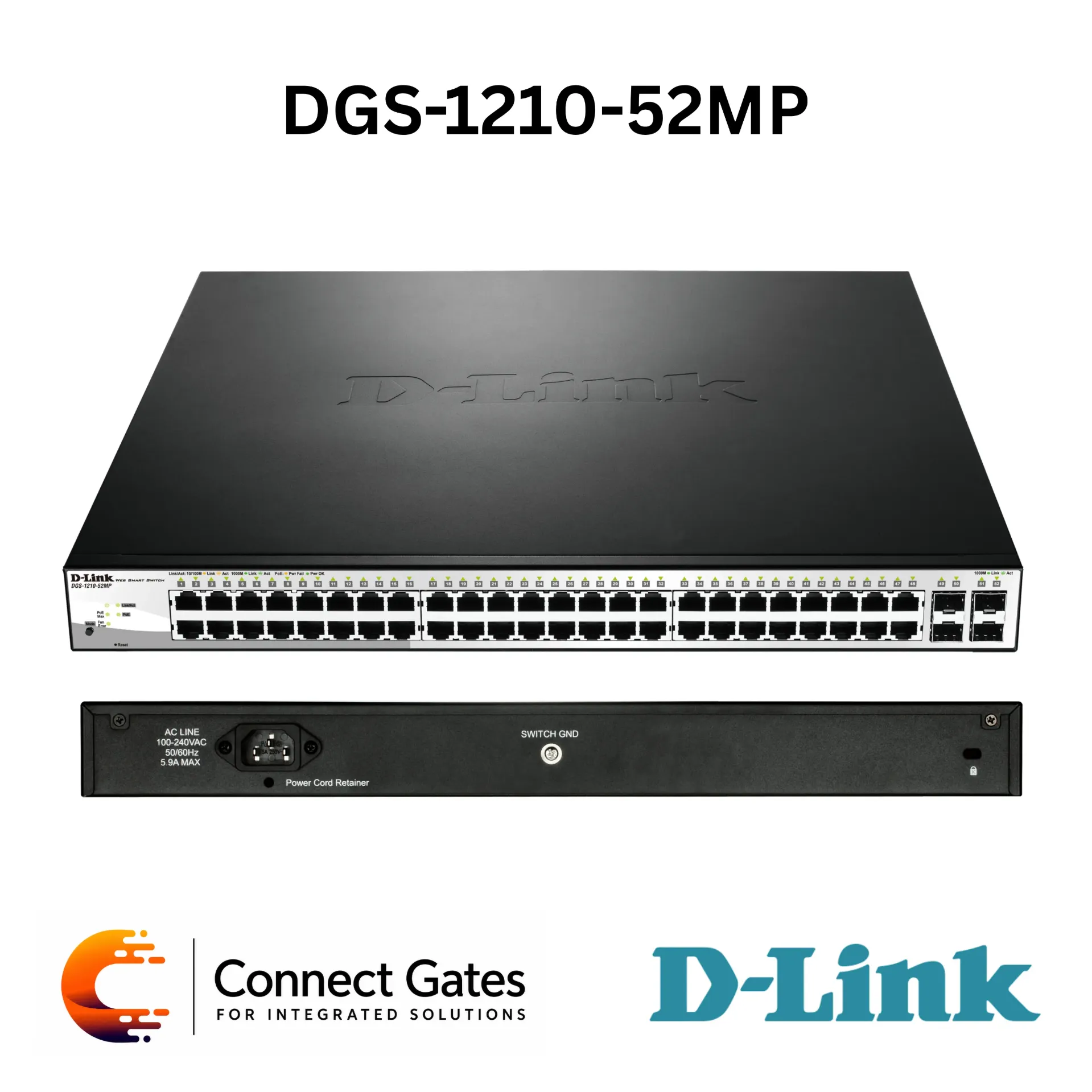

D-Link DGS-1210-52MP – 48-Port Gigabit PoE Smart Managed Switch with 4 × Combo SFP Uplink Ports
Overview:
• The D-Link DGS-1210-52MP is a Smart Managed Gigabit PoE Switch designed for business networks that require high port density, PoE power, and flexible uplink connectivity.
• It provides 48 × 10/100/1000BASE-T PoE ports for connecting and powering IP cameras, wireless access points, VoIP phones, and other PoE network devices.
• The switch includes 4 × 100/1000Mbps combo ports, allowing flexible copper or SFP fiber uplink connectivity according to the project design.
• It supports IEEE 802.3af/at PoE with a total PoE power budget of 370W, making it suitable for medium and large PoE deployments.
• The DGS-1210 Series supports advanced Layer 2 features including VLAN, IGMP Snooping, Port Mirroring, STP, LACP, LLDP, LLDP-MED, Loopback Detection, Cable Diagnostics, Jumbo Frame, and Static Routing.
• Security and management features include Web-Based GUI, D-Link Network Assistant, Compact CLI, SNMP, D-View 7.0 support, ACL, D-Link Safeguard Engine, Port Security, ARP Spoofing Prevention, Smart Binding, DHCP Snooping, Dual Image, and Dual Configuration.
Key Features:
• 48 Gigabit PoE Ports: Provides 48 × 10/100/1000BASE-T PoE ports for data and power.
• 4 Combo Uplink Ports: Supports 4 × 100/1000Mbps combo ports for copper or fiber uplink flexibility.
• 370W PoE Budget: Suitable for powering many IP cameras, access points, and VoIP phones.
• IEEE 802.3af/at PoE: Supports standard PoE and PoE+ powered devices.
• 104Gbps Switching Capacity: Provides high switching performance for large Gigabit networks.
• 77.4Mpps Forwarding Rate: Supports fast packet forwarding for business traffic.
• Surveillance Mode: Detects compatible ONVIF cameras and places them in a surveillance VLAN.
• Auto Voice VLAN: Automatically separates and prioritizes VoIP traffic.
• Static Routing: Helps improve traffic efficiency between VLANs.
• Advanced L2 Features: Supports IGMP Snooping, STP, RSTP, MSTP, LACP, LLDP, LLDP-MED, Jumbo Frame, and Port Mirroring.
• Security Features: Supports ACL, Port Security, Safeguard Engine, ARP Spoofing Prevention, DHCP Server Screening, DHCP Snooping, and Smart Binding.
• Dual Image / Dual Configuration: Improves firmware and configuration reliability.
• D-Link Green V3.0: Supports link status detection, Time-Based PoE, system hibernation, port shut-off, and cable length detection.
Technical Specifications:
• Product Type: Gigabit PoE Smart Managed Switch
• Model: DGS-1210-52MP
• Series: DGS-1210 Series
• Hardware Version: F1
• Ethernet Ports: 48 × 10/100/1000BASE-T PoE Ports
• Combo Ports: 4 × 100/1000Mbps Combo Ports
• PoE Standard: IEEE 802.3af/at
• PoE Capable Ports: Ports 1 to 48
• PoE Power Budget: 370W
• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3u 100BASE-FX, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3af/at
• Network Cables: UTP Cat.5 / Cat.5e / Cat.6 up to 100m
• Duplex Mode: Full / Half Duplex for 10/100Mbps, Full Duplex for 1000Mbps
• Media Interface Exchange: Auto MDI/MDIX for all twisted-pair ports
• Switching Capacity: 104Gbps
• Forwarding Rate: 77.4Mpps
• Transmission Method: Store-and-Forward
• MAC Address Table: 8K Entries
• Static MAC Addresses: 256 Entries
• Packet Buffer Memory: 12Mbits
• CPU Memory: DDR3 128MB
• Flash Memory: 32MB
• LED Indicators: Power, Console, Link / Active / Speed, PWR Max, Fan Error
• Power Input: 100 to 240V AC, 50/60Hz Internal Universal Power Supply
• Maximum Power Consumption PoE Enabled: 478.9W at 100V / 454.1W at 240V
• Maximum Power Consumption PoE Disabled: 54W at 100V / 54.4W at 240V
• Standby Power Consumption: 32W at 100V / 31.6W at 240V
• Acoustics: High Speed 52.4dB(A), Low Speed 47.6dB(A)
• Heat Dissipation: 1634.01 BTU/hr at 100V / 1549.29 BTU/hr at 240V
• Fans: 3
• Dimensions: 440 × 430 × 44 mm
• Weight: 6.26kg
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Relative Humidity
• Storage Humidity: 0% to 95% Relative Humidity
• MTBF: 236,406 Hours
• Certifications: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
• Safety: CB, UL, BSMI, CCC
• VLAN: 802.1Q VLAN, up to 256 Static VLAN Groups, Asymmetric VLAN, Auto Voice VLAN, Auto Surveillance VLAN
• L2 Features: IGMP Snooping, MLD Snooping, STP, RSTP, MSTP, LACP, LLDP, LLDP-MED, Jumbo Frame up to 10,000 Bytes, Loopback Detection, Port Mirroring, Multicast Filtering
• L3 Features: 4 IP Interfaces, IPv6 Neighbor Discovery, Static Routing, 124 IPv4 Static Routes, 50 IPv6 Static Routes
• QoS: 802.1p, 8 Queues per Port, Strict, WRR, Bandwidth Control, DSCP, MAC Address, EtherType, IP Address, ToS, IPv6 Traffic Class, TCP/UDP Port
• ACL: Up to 50 Access Lists, up to 768 Rules
• Security: Storm Control, Safeguard Engine, Traffic Segmentation, SSH v2, TLS v1.0, DoS Attack Prevention, 802.1X, Port Security, ARP Spoofing Prevention, DHCP Server Screening, IP-MAC-Port Binding, ARP Inspection, IPv4 / IPv6 Inspection, DHCP Snooping
• AAA: 802.1X Authentication, Local / RADIUS Database, EAP, OTP, TLS, TTLS, PEAP, IPv6 RADIUS Server
• Management: Web-Based GUI, D-Link Network Assistant Utility, Compact CLI, Telnet Server, TFTP Client, SNMP v1/v2c/v3, SNMP Trap, Firmware Backup / Upgrade, Smart Wizard, Configuration Upload / Download, BootP / DHCP Client, System Log, SNTP, ICMPv6, IPv4/IPv6 Dual Stack, DHCP Auto Configuration, RMONv1, Trusted Host, Dual Image, Dual Configuration
• Green Technology: Link Status, Time-Based PoE, System Hibernation, Port Shut-Off, Cable Length Detection
• Category: D-Link PoE Switches
Applications:
• Large IP surveillance and CCTV systems.
• Business and enterprise PoE network deployments.
• Powering IP cameras, wireless access points, VoIP phones, and PoE devices.
• Schools, factories, offices, warehouses, hospitals, and commercial buildings.
• Network cabinets requiring 48 PoE access ports with uplink flexibility.
• Managed networks requiring VLAN, QoS, ACL, Static Routing, monitoring, and IPv6 support.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1210-52MP for projects that need a high-density managed PoE switch with strong power budget.
• It is suitable for large CCTV systems, access point deployments, VoIP systems, and business networks with many PoE devices.
• The 48 PoE ports and 370W PoE budget make it practical for medium to large low-current installations.
• The 4 combo uplink ports provide flexibility for copper or fiber backbone connections.
• This model is recommended when the customer needs 48 Gigabit PoE ports, smart management, Surveillance Mode, Auto Voice VLAN, Static Routing, and advanced security features.
