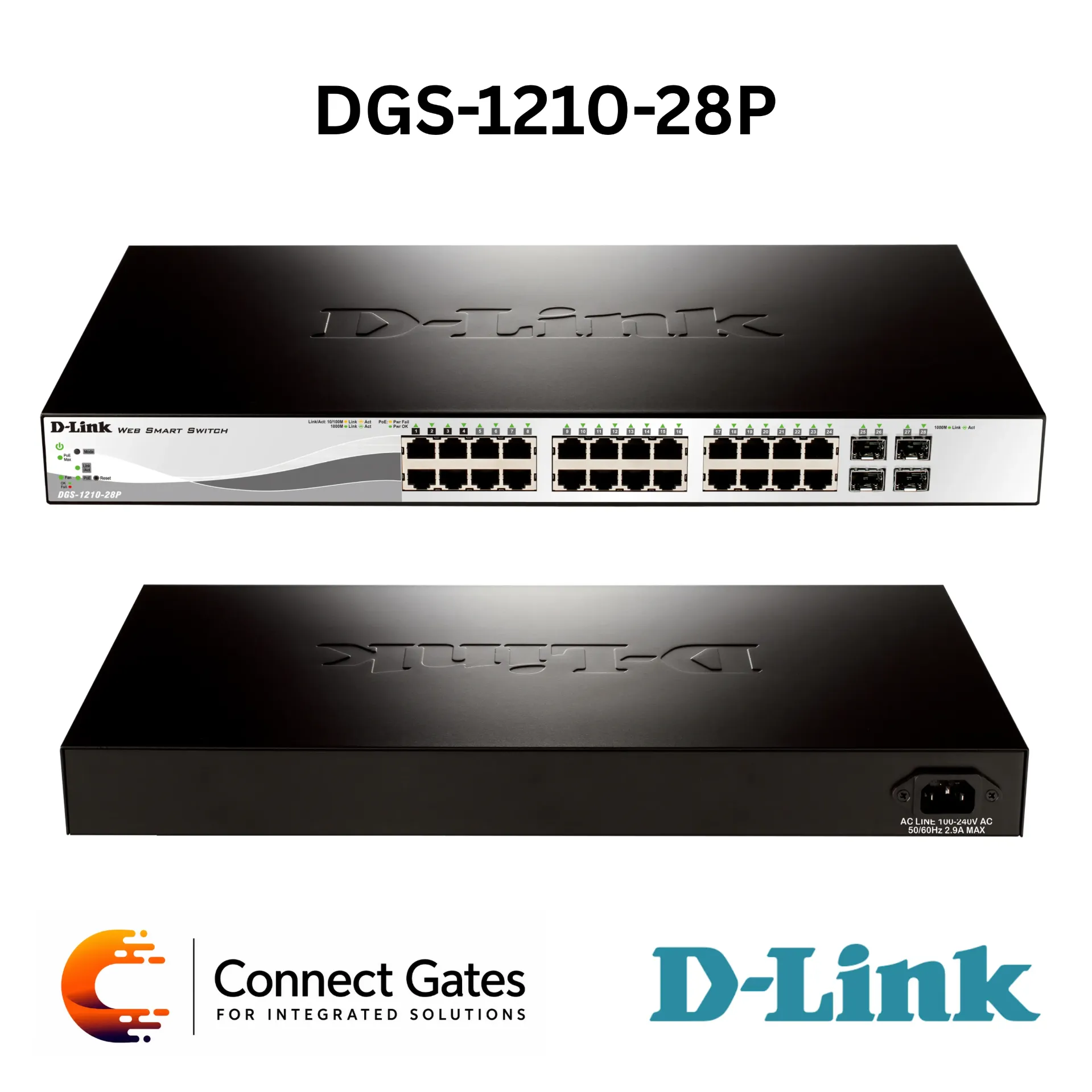

D-Link DGS-1210-28P – 24-Port Gigabit Smart Managed PoE Switch with 4 × Gigabit SFP Ports
Overview:
• The D-Link DGS-1210-28P is a Gigabit Smart Managed PoE Switch designed for SMB networks, CCTV/IP surveillance, VoIP, wireless access points, office networks, and professional access layer deployments.
• It provides 24 × 10/100/1000BASE-T PoE ports and 4 × Gigabit SFP ports for flexible copper access and fiber uplink connectivity.
• The switch supports IEEE 802.3af and IEEE 802.3at PoE, with ports 1–4 providing up to 30W per port and ports 5–24 providing up to 15.4W per port.
• The DGS-1210-28P provides a maximum PoE power budget of 185W, making it suitable for IP cameras, wireless access points, VoIP phones, and other PoE-powered devices.
• It delivers 56Gbps switching capacity, 41.7Mpps forwarding rate, 16K MAC address table, 1MB packet buffer memory, and store-and-forward transmission.
• It includes D-Link Green 3.0 technology, Auto Surveillance VLAN, Auto Voice VLAN, VLAN, QoS, ACL, Port Security, Smart Binding, DHCP Snooping, ARP Spoofing Prevention, Web GUI, SmartConsole Utility, SNMP, Telnet, RMON, and Time-Based PoE.
Key Features:
• 24-Port Gigabit Smart Managed PoE Switch
• 24 × 10/100/1000Mbps PoE Ports
• 4 × Gigabit SFP Ports
• IEEE 802.3af PoE Support
• IEEE 802.3at PoE+ Support
• Ports 1–4: up to 30W per Port
• Ports 5–24: up to 15.4W per Port
• Max. 185W PoE Power Budget
• 56Gbps Switching Capacity
• 41.7Mpps Packet Forwarding Rate
• 16K MAC Address Table
• 256 Static MAC Entries
• 1MB Packet Buffer Memory
• Store-and-Forward Transmission
• Auto Surveillance VLAN
• Auto Voice VLAN
• IPv4/IPv6 Dual Stack
• IGMP Snooping
• STP and RSTP Support
• 802.3ad Link Aggregation
• VLAN, Management VLAN, Asymmetric VLAN, and 802.1Q Support
• QoS with 4 Queues per Port
• Bandwidth Control
• ACL with up to 50 Profiles and 240 Rules
• D-Link Safeguard Engine
• Port Security up to 64 MAC Addresses per Port
• ARP Spoofing Prevention
• DHCP Server Screening
• Smart Binding / IP-MAC-Port Binding
• DHCP Snooping
• 802.1X Port-Based Authentication
• SSL Support
• Web GUI, SmartConsole Utility, Simplified CLI, Telnet, SNMP, and RMON
• Time-Based PoE
• D-Link Green 3.0 Technology
• 19-Inch Rack-Mount, 1U Design
• Three Smart Fans
Technical Specifications:
• Product Type: Gigabit Smart Managed PoE Switch with SFP Uplinks
• Brand: D-Link
• Model: DGS-1210-28P
• Series: DGS-1210 Series
• Port Configuration: 24 × 10/100/1000Mbps PoE + 4 × Gigabit SFP
• Gigabit PoE Ports: 24 Ports
• SFP Ports: 4 Ports
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE+ Ports: Ports 1–4 up to 30W per Port
• PoE Ports: Ports 5–24 up to 15.4W per Port
• PoE Power Budget: Max. 185W
• Port Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, Auto-Negotiation, IEEE 802.3x Flow Control, IEEE 802.3af, IEEE 802.3at
• Network Cables: UTP Cat.5 / Cat.5e up to 100m, EIA/TIA-568 100-ohm STP up to 100m
• Duplex Mode: Full/Half Duplex for 10/100Mbps, Full Duplex for Gigabit Speed
• MDI/MDIX: Auto MDI/MDI-X for all Twisted-Pair Ports
• Switching Capacity: 56Gbps
• Transmission Method: Store-and-Forward
• Packet Forwarding Rate: 41.7Mpps
• MAC Address Table: 16,000 Entries
• Static MAC Entries: Up to 256 Entries
• Packet Buffer Memory: 1MB
• Power Input: 100 to 240V AC, 50/60Hz Internal Universal Power Supply
• Maximum Power Consumption: 238.4W with PoE On / 27.4W with PoE Off
• Standby Power Consumption: 16W at 110V / 14W at 240V
• Fan Quantity: Three Smart Fans
• Acoustics: 52.2dB(A)
• Heat Dissipation: 813.42BTU/hr
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• Dimensions: 440 × 250 × 44mm
• Rack Mount Size: 19-Inch Standard Rack-Mount Width, 1U Height
• Weight: 3.7kg
• Diagnostic LEDs: Power, Link/Activity/Speed, Link/Activity for SFP, Fan, PoE Max, PoE/Link Activity Mode Button
• MTBF: 224,530 Hours
• Certifications: FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI
• Safety Standards: cUL, CE LVD
• Layer 2 Features: 16K MAC Address Table, 802.3x Flow Control, HOL Blocking Prevention, IGMP Snooping v1/v2, 256 IGMP Groups, 64 Static Multicast Addresses, IGMP per VLAN, IGMP Snooping Querier, STP, RSTP, 802.3ad Link Aggregation, Port Mirroring, Multicast Filtering, LLDP, and LLDP-MED
• Link Aggregation: Max. 14 Groups per Device, 8 Ports per Group
• Port Mirroring: One-to-One, Many-to-One, Tx/Rx/Both
• VLAN Features: 802.1Q, Max. 256 Static VLAN Groups, Max. 4094 VIDs, Management VLAN, Asymmetric VLAN, Auto Voice VLAN, Auto Surveillance VLAN
• QoS Features: 802.1p Quality of Service, 4 Queues per Port, Strict, Weighted Round Robin WRR, CoS Based on 802.1p Priority Queues, DSCP, ToS, and Bandwidth Control
• Bandwidth Control: Port-Based Ingress/Egress with 64Kb/s Minimum Granularity
• ACL Features: Max. 50 Profiles, Max. 240 Rules Shared by Profiles, Single or Multiple Ports per Rule, ACL Based on MAC Address, IPv4 Address, ICMP, IGMP, TCP, UDP, 802.1p Priority, DSCP, and EtherType
• ACL Actions: Permit and Deny
• Security Features: Port Security up to 64 MAC Addresses per Port, Broadcast/Multicast/Unicast Storm Control, Static MAC, D-Link Safeguard Engine, DHCP Server Screening, Trusted Host, ARP Spoofing Prevention, SSL v1/v2/v3, Traffic Segmentation, Smart Binding, IP-MAC-Port Binding, ARP/IP Packet Inspection, and DHCP Snooping
• ARP Spoofing Prevention: Max. 64 Entries
• Smart Binding: Supports 512 Entries of IP-MAC-Port Binding
• AAA Features: 802.1X Port-Based Authentication, RADIUS Server Support, EAP, OTP, TLS, TTLS, and PEAP
• OAM Features: Cable Diagnostics and Factory Reset
• Management Features: Multi-Language Web-Based GUI, SmartConsole Utility, Simplified CLI, Telnet Server, TFTP Client, Configurable MDI/MDIX, SNMP v1/v2c/v3, SNMP Trap, System Log up to 500 Entries, BootP/DHCP Client, SNTP, ICMPv6, IPv4/IPv6 Dual Stack, DHCP Auto Configuration, RMON v1, and Time-Based PoE
• Green Features: Link Status Power Saving, Cable Length Detection, LED or Port Shutoff, Port Standby Mode, System Hibernation Mode, and Time-Based PoE
• Optional SFP Transceivers: DGS-712, DEM-310GT, DEM-311GT
• Optional Management Software: DV-600S D-View 6.0 Standard Edition, DV-600P D-View 6.0 Professional Edition
Applications:
• SMB and business networks
• CCTV and IP surveillance PoE systems
• IP camera deployments
• Wireless access point networks
• VoIP phone networks
• Office access layer switching
• Distribution cabinets and network racks
• Fiber uplink connectivity using SFP ports
• Networks requiring Auto Surveillance VLAN and Auto Voice VLAN
• Managed Gigabit PoE deployments requiring VLAN, QoS, ACL, PoE, and secure management
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1210-28P for CCTV, VoIP, wireless, and SMB projects that require a reliable Gigabit PoE smart managed switch with fiber uplink capability.
• It is suitable for IP cameras, wireless access points, VoIP phones, small-to-medium offices, schools, factories, and professional access cabinets.
• The 24 Gigabit PoE ports, 4 SFP ports, 185W PoE budget, PoE+ support on ports 1–4, Auto Surveillance VLAN, Auto Voice VLAN, Smart Binding, and D-Link Green 3.0 features make it a practical option for structured PoE deployments.
• For best performance, Connect Gates recommends calculating the total PoE load before installation and reserving the SFP ports for uplinks, fiber backbone, NVR/server connectivity, or inter-cabinet connections.
