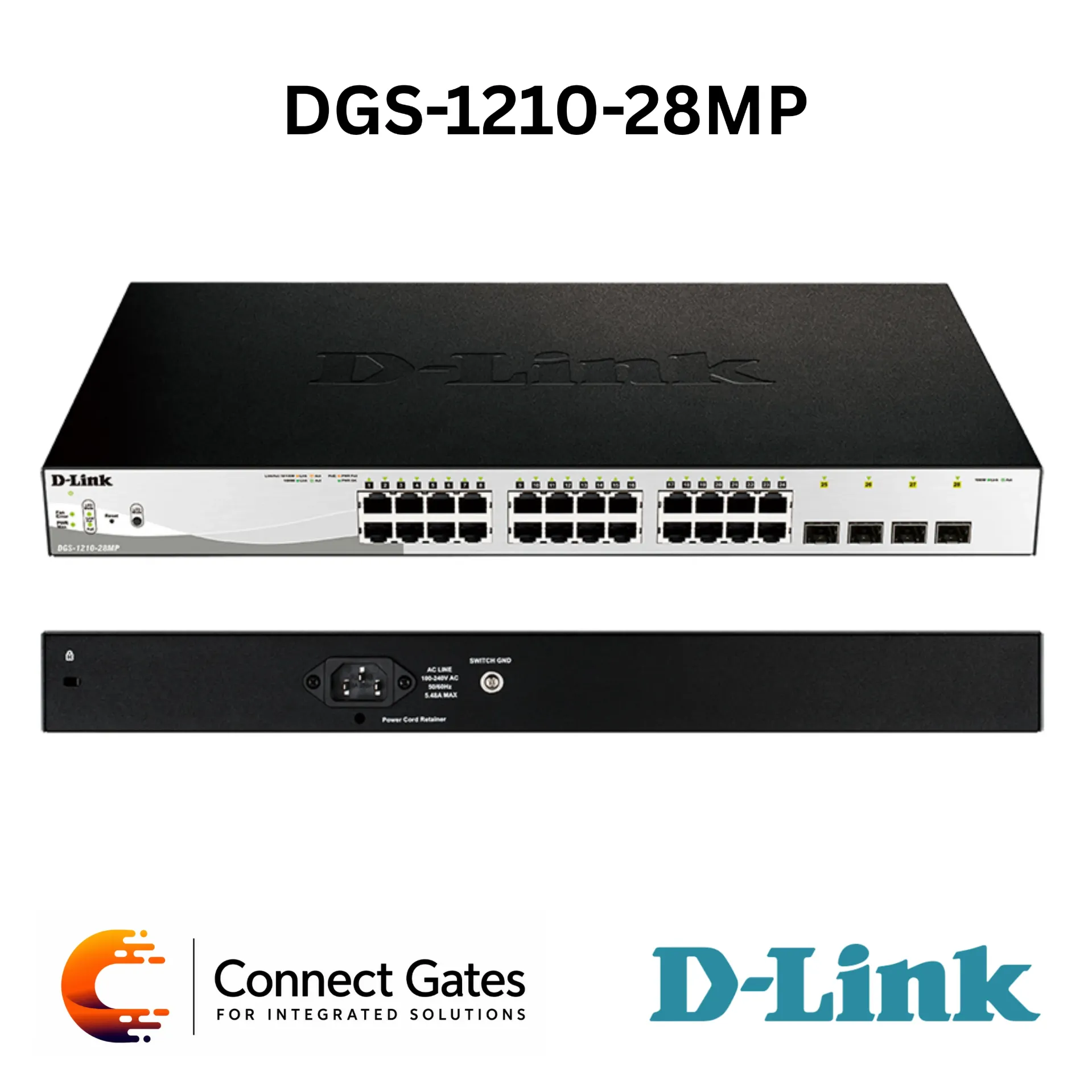

D-Link DGS-1210-28MP – 24-Port Gigabit PoE Smart Managed Switch with 4 × SFP Ports, 370W PoE Budget, VLAN, Surveillance VLAN & Static Routing
Overview:
• The D-Link DGS-1210-28MP is a 24-Port Gigabit PoE Smart Managed Switch designed for business networks, IP surveillance systems, wireless access points, VoIP phones, and managed PoE network deployments.
• It provides 24 × 10/100/1000 Mbps PoE ports and 4 × SFP ports, allowing flexible copper access connectivity with fiber uplink support.
• The switch supports IEEE 802.3at PoE on ports 1 to 24 with a total 370W PoE power budget, making it suitable for powering IP cameras, access points, and other PoE devices.
• It includes advanced features such as Auto Surveillance VLAN, Auto Voice VLAN, VLAN, QoS, IGMP Snooping, Spanning Tree Protocol, Link Aggregation, Static Routing, ACL, ARP Spoofing Prevention, D-Link Safeguard Engine, and Smart Binding.
• Management is available through Web-Based GUI, D-Link Network Assistant, Compact CLI, SNMP, with Dual Image, IPv4/IPv6 Dual Stack, and Time-Based PoE support.
Key Features:
• 24 Gigabit PoE ports
• 4 × SFP ports
• Smart managed switch
• IEEE 802.3at PoE support on all 24 ports
• 370W PoE power budget
• Auto Surveillance VLAN
• Auto Voice VLAN
• Static routing support
• VLAN and QoS support
• IGMP Snooping support
• Spanning Tree Protocol support
• MSTP support
• Link Aggregation support
• Loopback Detection
• Cable Diagnostics
• Access Control Lists
• D-Link Safeguard Engine
• ARP Spoofing Prevention
• Smart Binding
• DHCP Snooping
• Web GUI management
• D-Link Network Assistant utility
• Compact CLI through Telnet
• SNMP support
• Dual image support
• Time-Based PoE
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-1210-28MP
• Product Type: Smart Managed Gigabit PoE Switch
• Series: DGS-1210 Series
• Interfaces: 24 × 10/100/1000 Mbps PoE Ports + 4 × SFP Ports
• PoE Support: Yes
• Application: CCTV Networks, Business LAN, Access Points, VoIP Phones, PoE Devices, Fiber Uplink Networks
Port Standards and Functions:
• PoE Compliance: Ports 1 to 24 Compliant with IEEE 802.3at
• Ethernet Standard: IEEE 802.3 10BASE-T Ethernet
• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX Fast Ethernet
• Gigabit Ethernet Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• Energy Efficient Ethernet: IEEE 802.3az Compliance
• Flow Control: IEEE 802.3x Flow Control
• Fiber Standard: IEEE 802.3z
• Auto-Negotiation: Supported
• Network Cables: UTP Cat.5 / Cat.5e up to 100m
• Duplex Mode: Full/Half-Duplex for 10/100 Mbps, Full-Duplex for 1000 Mbps
• Auto MDI/MDIX: Supported
Performance:
• Switching Capacity: 56Gbps
• Maximum Forwarding Rate: 41.7Mpps
• Transmission Method: Store-and-Forward
• MAC Address Table: 16,000 Entries per Device
• Static MAC Entries: Up to 256
• Packet Buffer Memory: 1.5MB
• CPU Memory: 256MB DDR3
• Flash Memory: 32MB
PoE Specifications:
• PoE Standard: IEEE 802.3at
• PoE Capable Ports: Ports 1 to 24
• Maximum PoE Budget: 370W
• Time-Based PoE: Supported
• PoE Use Cases: IP Cameras, Wireless Access Points, VoIP Phones, PoE Network Devices
Physical and Environmental:
• Power Input: 100 to 240VAC, 50/60Hz Internal Universal Power Supply
• Maximum Power Consumption PoE On: 454.4W
• Maximum Power Consumption PoE Off: 33.1W
• Standby Power Consumption: 23.4W @100V / 21.8W @240V
• Acoustics: Low Speed 47.94dBA / High Speed 52.41dBA
• Heat Dissipation: 1,552.32BTU/hr
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• Dimensions: 440 × 250 × 44mm
• Weight: 3.86kg
• MTBF: 271,281 Hours
• Diagnostic LEDs: Link / Activity / Speed per 10/100/1000 Mbps Port, Power Fail / Power OK per PoE Port
• Certifications: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC, C-Tick, cUL, CE LVD
Layer 2 Features:
• MAC Address Table: 16K Entries
• IGMP Snooping: IGMP v1/v2 Snooping
• IGMP Groups: Supports 256 IGMP Groups
• Static Multicast Addresses: At Least 64
• IGMP Per VLAN: Supported
• IGMP Snooping Querier: Supported
• Loopback Detection: Supported
• Link Aggregation: Maximum 14 Groups, 8 Ports per Group
• LLDP / LLDP-MED: Supported
• Jumbo Frame: Up to 9,216 Bytes
• Spanning Tree Protocol: STP, RSTP, MSTP
• Flow Control: 802.3x Flow Control
• HOL Blocking Prevention: Supported
• Port Mirroring: One-to-One, Many-to-One, Tx/Rx/Both
• Multicast Filtering: Supported
• Configurable MDI/MDIX: Supported
• MLD Snooping: v1/v2, 256 Groups
VLAN and QoS:
• VLAN: 802.1Q
• VLAN Groups: Max. 256 Static VLAN Groups
• Configurable VID: 1 to 4094
• Asymmetric VLAN: Supported
• Auto Voice VLAN: Supported
• Auto Surveillance VLAN: Supported
• QoS: 802.1p Quality of Service
• Queues: 8 Queues per Port
• Queue Handling: Strict, Weighted Round Robin
• Bandwidth Control: Port-Based Ingress / Egress
• QoS Classification: 802.1p Priority Queues, DSCP, ToS, IPv6 Traffic Class, TCP/UDP Port
Layer 3 Features:
• IP Interface: Supported
• IPv6 Neighbor Discovery: Supported
• Static Routing: Supported
• IPv4 Static Routes: 64 Entries
• IPv4 Static Routes: 32 Entries
Security Features:
• ACL: Max. 50 Access Lists
• ACL Rules: Max. 768 Rules Shared by IPv4, MAC and IPv6
• Storm Control: Broadcast / Multicast / Unicast Storm Control
• D-Link Safeguard Engine: Supported
• DHCP Server Screening: Supported
• IP-MAC-Port Binding: Smart Binding Supported
• Address Binding Entries: Supports 512 Entries
• ARP Inspection: Supported
• ARP + IP Inspection: Supported
• DHCP Snooping: Supported
• 802.1X Port-Based Access Control: Supported
• ARP Spoofing Prevention: Max. 64 Entries
• Traffic Segmentation: Supported
• SSH v2: Supported
• SSL: Supports v1 / v2 / v3
• Port Security: Up to 64 MAC Addresses per Port
• Duplicate Address Detection: Supported
AAA Features:
• 802.1X Authentication: Supported
• Local / RADIUS Database: Supported
• Port-Based Access Control: Supported
• Authentication Methods: EAP, OTP, TLS, TTLS, PEAP
• IPv6 RADIUS Server: Supported
• MD5 Authentication: Supported
Management Features:
• Web-Based GUI: Supported
• D-Link Network Assistant Utility: Supported
• Compact CLI: Supported
• Telnet Server: Supported
• TFTP Client: Supported
• Configurable MDI/MDIX: Supported
• SNMP: v1 / v2c / v3
• SNMP Trap: Supported
• Firmware Backup / Upgrade: Supported
• Smart Wizard: Supported
• Configuration Upload / Download: Supported
• System Log: Max. 500 Entries
• BootP / DHCP Client: Supported
• SNTP: Supported
• ICMPv6: Supported
• IPv4 / IPv6 Dual Stack: Supported
• DHCP Auto Configuration: Supported
• RMONv1: Supported
• Trusted Host: Supported
• Dual Image: Supported
Green Technology:
• Link Status Power Saving: Supported
• Time-Based PoE: Supported
• LED Shutoff: Supported
• System Hibernation: Supported
• Port Shutoff: Supported
Applications:
• IP CCTV surveillance networks
• Medium business PoE networks
• Wireless access point deployment
• VoIP phone systems
• Fiber uplink installations
• VLAN-based network segmentation
• Surveillance and data network integration
• Managed PoE access layer switching
• Office and enterprise LAN expansion
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1210-28MP for CCTV and business network projects that require 24 Gigabit PoE ports with a high 370W PoE budget.
• It is suitable for powering multiple IP cameras, wireless access points, and VoIP phones, while maintaining traffic control through VLAN, QoS, and Auto Surveillance VLAN.
• The 4 SFP uplink ports make it suitable for fiber backbone connections between racks, buildings, or network rooms.
• For proper installation, Connect Gates recommends checking the total PoE load, camera/access point power requirements, SFP module compatibility, fiber uplink design, VLAN plan, and rack ventilation before deployment.
