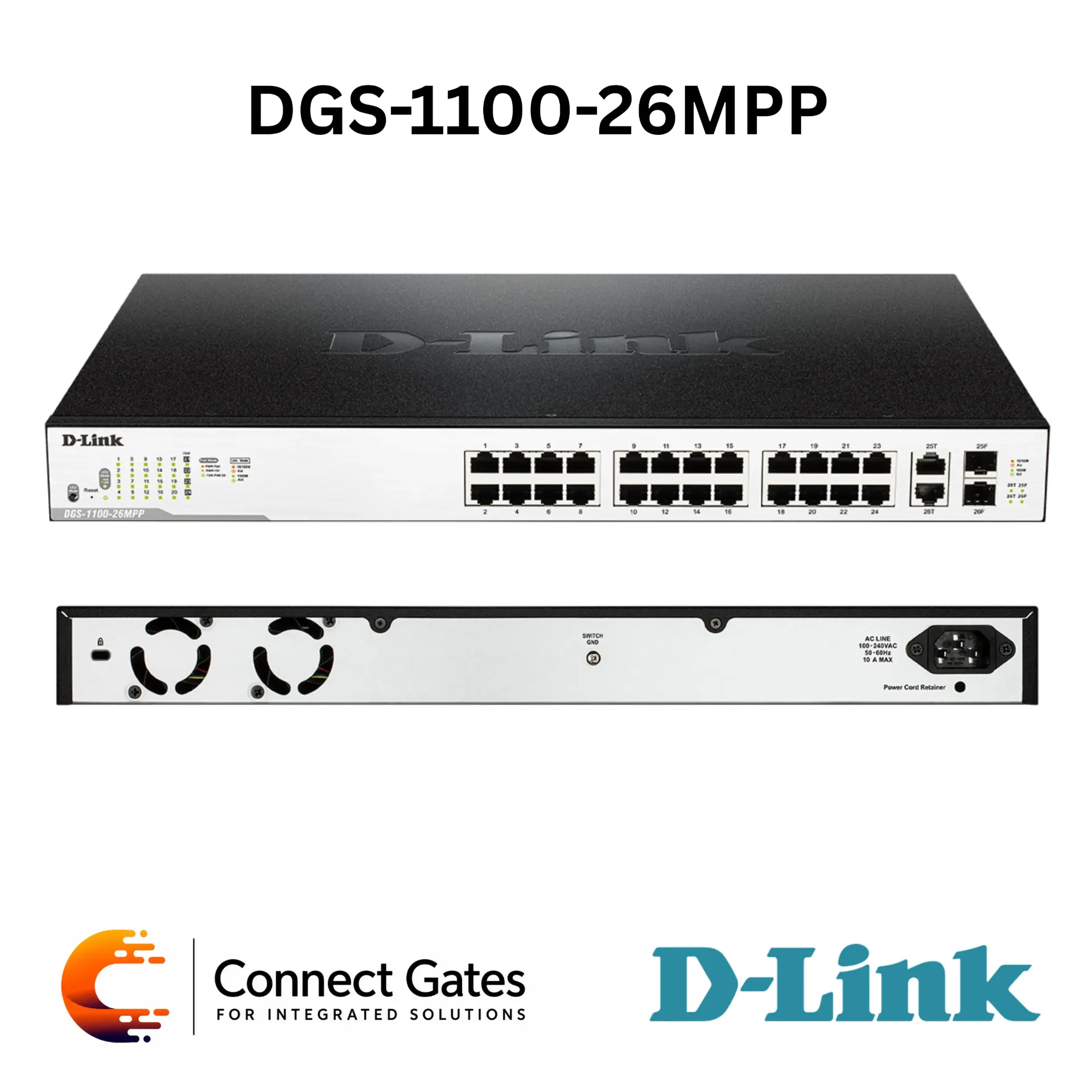

D-Link DGS-1100-26MPP – 24-Port Gigabit PoE Smart Managed Surveillance Switch with 2 Combo SFP Ports, 518W PoE Budget, IEEE 802.3bt / UPoE & 6kV Surge Protection
Overview:
• The D-Link DGS-1100-26MPP is a Gigabit Ethernet PoE Smart Managed Switch designed mainly for IP surveillance networks, PTZ cameras, NVR/CMS connections, and business security infrastructure.
• It provides 24 × 10/100/1000 Mbps PoE ports and 2 × Combo 1000 Mbps ports, giving flexibility for copper or fiber uplink connections.
• The switch supports IEEE 802.3af / 802.3at / 802.3bt draft / UPoE, with a high 518W PoE power budget for powering IP cameras, access points, VoIP phones, and high-powered PTZ cameras.
• It supports up to 30W per PoE port on ports 1 to 24, and up to 75W per port on ports 21 to 24 for high-power devices.
• The switch includes Surveillance VLAN, ONVIF device auto-detection, 6kV surge protection on PoE ports, Loopback Detection, Cable Diagnostics, VLAN, QoS, IGMP Snooping, and Web GUI management.
Key Features:
• 24 Gigabit PoE ports
• 2 Combo 1000 Mbps uplink ports
• Smart managed surveillance switch
• 518W PoE power budget
• IEEE 802.3af / 802.3at / 802.3bt draft / UPoE support
• Up to 30W per PoE port
• Up to 75W on ports 21 to 24
• 6kV surge protection on PoE ports
• Auto Surveillance VLAN
• ONVIF device auto-detection
• Standard Mode and Surveillance Mode
• Web-based GUI management
• D-Link Network Assistant utility
• Loopback Detection
• Cable Diagnostics
• IGMP Snooping
• VLAN and QoS support
• Voice VLAN support
• G.8032 ERPS support
• D-Link Safeguard
• Energy Efficient Ethernet support
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-1100-26MPP
• Product Type: Gigabit Ethernet PoE Smart Managed Switch
• Series: DGS-1100 MP/MPP Series
• Hardware Version: B1
• Size: 19-Inch Rackmount Size, 1U Height
• Number of Ports: 24 × 10/100/1000 Mbps PoE Ports, 2 × Combo 1000 Mbps Ports
• Application: IP Surveillance, CCTV Networks, PTZ Cameras, NVR/CMS Uplink, Business PoE Networks
Port Functions:
• Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• PoE Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt draft / UPoE
• Flow Control: IEEE 802.3x Full-Duplex Flow Control
• MDI/MDIX: Manual / Auto MDI/MDIX
• Auto-Negotiation: Supported
• Duplex Mode: Half / Full-Duplex Operation
• Energy Efficient Ethernet: IEEE 802.3az
• Surge Protection: Up to 6kV Surge Protection per PoE Port
Performance:
• Switching Capacity: 52Gbps
• Maximum Forwarding Rate: 38.69Mpps
• MAC Address Table: 16K Entries
• Packet Buffer: 1.5MB
• Flash Memory: 16MB
PoE Specifications:
• PoE Capable Ports: Ports 1 to 24
• PoE Power Budget: 518W
• Maximum PoE Per Port: 30W Max. per PoE Port on Ports 1 to 24
• High-Power PoE: 75W Max. per Port on Ports 21 to 24
• PoE Use Cases: IP Cameras, PTZ Cameras, Access Points, VoIP Phones
Power Consumption:
• Standby Mode: 15.19W
• Maximum Power Consumption: 539W PoE On
• Maximum Power Consumption PoE Off: 23.2W
• Power Input: 100 to 240VAC, 50 to 60Hz Internal Power Supply
Physical Specifications:
• MTBF: 268,289 Hours
• Acoustics: 56dB(A)
• Heat Dissipation: 2079.35BTU/hr
• Weight: 3.9kg
• Dimensions: 440 × 290 × 44mm
• Ventilation: 2 × Fans
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
Software Features:
VLAN:
• Port-Based VLAN: Supported
• 802.1Q Tagged VLAN: Supported
• Auto Surveillance VLAN: Supported
• Voice VLAN: Supported
• Management VLAN: Supported
• Asymmetric VLAN: Supported
• VLAN Groups: 128 Static VLAN Groups
• Max VID: 4094
Layer 2 Features:
• Flow Control: Supported
• 802.3x Flow Control: Supported
• HOL Blocking Prevention: Supported
• Jumbo Frames: Up to 9216 Bytes
• IGMP Snooping: IGMP v1/v2/v3 Awareness
• IGMP Groups: 64 Groups
• IGMP Snooping Querier: Supported
• Link Aggregation: 13 Groups per Device, 8 Ports per Group
• Ethernet Ring Protection Switching: G.8032 ERPS
• Loopback Detection: Supported
• Cable Diagnostics: Supported
• LLDP: Supported
• Port Mirroring: One-to-One, Many-to-One
• Statistics: Tx OK, Tx Error, Rx OK, Rx Error
• Spanning Tree Protocol: 802.1D STP, 802.1w RSTP
• L2 Multicast: MLD Snooping
Quality of Service:
• QoS Standard: IEEE 802.1p
• Queues: 4 Queues per Port
• Queue Handling: Strict, Weighted Round Robin
• Bandwidth Control: Port-Based Rate Limiting
• Ingress Rate: 8Kbps
• Egress Rate: 64Kbps
Security:
• D-Link Safeguard: Supported
• Traffic Segmentation: Supported
• Storm Control: Broadcast / Multicast / Unknown Unicast
• DoS Attack Prevention: Supported
• SSL: Supported
Management:
• Web-Based GUI: Supports IPv4 / IPv6
• Client-Based Utility: D-Link Network Assistant Utility
• Status Dashboard: Supported
• Surveillance Interface: Supported
• ONVIF Device Detection: Supported
Green Technology:
• Power Saving by Link Status: Supported
• LED Shut-Off: Supported
• Port Shut-Off: Supported
• System Hibernation: Supported
• IEEE 802.3az Energy Efficient Ethernet: Supported
Certifications:
• EMI: FCC / IC, CE, VCCI, BSMI, CCC
• Safety: cUL, UL, LVD, CB, CCC, BSMI
Applications:
• IP CCTV surveillance networks
• High-powered PTZ camera systems
• NVR and CMS uplink connections
• Parking area surveillance
• Outdoor and indoor camera networks
• Business PoE network infrastructure
• Access point deployment
• VoIP phone systems
• Surveillance and data network integration
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1100-26MPP for CCTV projects that require a high PoE budget, high-power PTZ support, and reliable surveillance traffic management.
• It is especially suitable for projects with multiple IP cameras, PTZ cameras, outdoor cameras, and systems that need fiber uplink to NVR or CMS center.
• The 518W PoE budget, 75W high-power PoE ports, and 6kV surge protection make it a strong option for professional surveillance deployments.
• For proper installation, Connect Gates recommends checking the camera power requirements, PoE budget calculation, fiber uplink design, NVR/CMS location, VLAN plan, and surge protection requirements before deployment.
