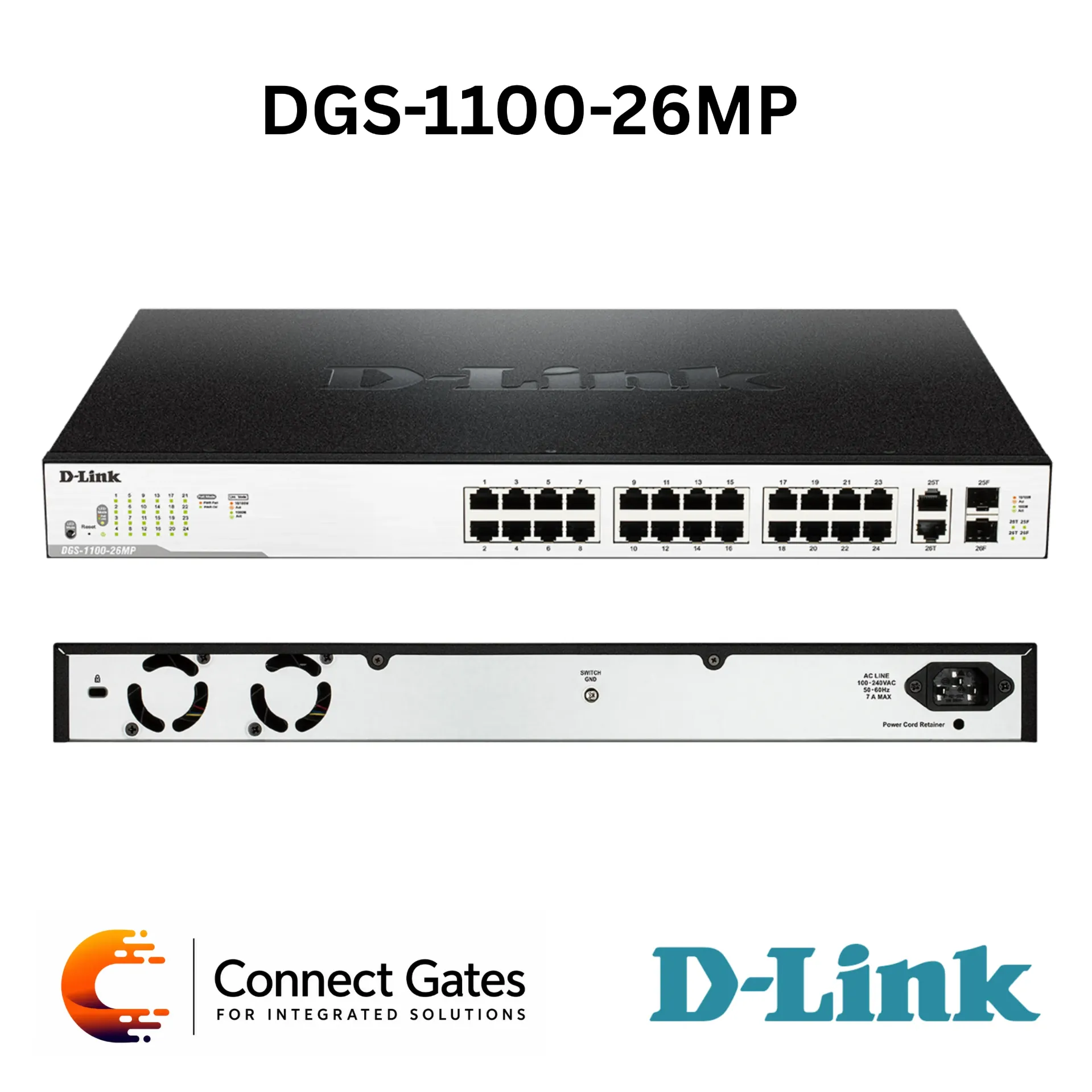

D-Link DGS-1100-26MP – 24-Port Gigabit PoE Smart Managed Switch with 2 × Combo SFP Uplink Ports
Overview:
• The D-Link DGS-1100-26MP is a Gigabit PoE Smart Managed Switch designed for IP surveillance, VoIP, wireless access point, and business network deployments.
• It provides 24 × 10/100/1000Mbps Gigabit PoE ports for connecting and powering IP cameras, access points, VoIP phones, and other PoE devices.
• The switch includes 2 × 1000BASE-T / SFP combo ports, giving flexible copper or fiber uplink connectivity.
• It supports IEEE 802.3af/802.3at PoE with a total PoE power budget of 370W and up to 30W per PoE port.
• The DGS-1100 MP/MPP Series is designed for surveillance projects, with automatic Surveillance VLAN, ONVIF device detection, intuitive surveillance interface, and 6kV surge protection on PoE ports.
• Smart features include VLAN, Voice VLAN, IGMP Snooping, Link Aggregation, ERPS, Loopback Detection, Cable Diagnostics, QoS, Bandwidth Control, D-Link Safeguard, DoS Attack Prevention, SSL, Web GUI, and D-Link Network Assistant Utility.
Key Features:
• 24 Gigabit PoE Ports: Provides 24 × 10/100/1000Mbps PoE ports for data and power.
• 2 Combo Uplink Ports: Supports 2 × 1000BASE-T / SFP combo ports for copper or fiber uplinks.
• 370W PoE Budget: Suitable for powering multiple IP cameras, access points, and VoIP phones.
• IEEE 802.3af/at PoE: Supports standard PoE and PoE+ devices.
• Up to 30W per PoE Port: Supports higher-power PoE+ devices within the total power budget.
• 6kV Surge Protection: Protects PoE ports against power surges and lightning-related events.
• Surveillance Mode: Provides a dedicated interface for monitoring and managing surveillance networks.
• ONVIF Device Detection: Automatically detects compatible surveillance devices.
• Auto Surveillance VLAN: Separates and prioritizes CCTV traffic for better video performance.
• Voice VLAN: Helps prioritize VoIP traffic.
• ERPS Support: Supports G.8032 Ethernet Ring Protection Switching.
• Link Aggregation: Supports up to 13 groups per device and 8 ports per group.
• Loopback Detection: Detects loops and helps protect network stability.
• Cable Diagnostics: Helps identify copper cable faults and connection issues.
Technical Specifications:
• Product Type: Gigabit PoE Smart Managed Switch
• Model: DGS-1100-26MP
• Series: DGS-1100 MP/MPP Series
• Hardware Version: B1
• Form Factor: 19-Inch Rackmount, 1U Height
• Ethernet Ports: 24 × 10/100/1000Mbps PoE Ports
• Combo Ports: 2 × 1000BASE-T / SFP Combo Ports
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE Capable Ports: Ports 1 to 24
• PoE Output: Up to 30W Maximum per PoE Port
• PoE Power Budget: 370W
• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af/at, IEEE 802.3x, IEEE 802.3az
• Surge Protection: Up to 6kV Surge Protection per Port
• Auto-Negotiation: Supported
• Manual / Auto MDI/MDIX: Supported
• Duplex Mode: Half / Full Duplex Operation
• Switching Capacity: 52Gbps
• Maximum Forwarding Rate: 38.69Mpps
• MAC Address Table: 16K Entries
• Packet Buffer: 1.5MBytes
• Flash Memory: 16MBytes
• Standby Power Consumption: 15.12W
• Maximum Power Consumption: 387W PoE On, 20.8W PoE Off
• Power Input: 100 to 240V AC, 50 to 60Hz Internal Power Supply
• MTBF: 269,291 Hours
• Acoustics: 56dB(A)
• Heat Dissipation: 1470.46 BTU/hr
• Weight: 3.81kg
• Dimensions: 440 × 290 × 44 mm
• Ventilation: 2 × Fans
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• EMI: FCC / IC, CE, VCCI, BSMI, CCC
• Safety: cUL, UL, LVD, CB, CCC, BSMI
• VLAN: Port-Based VLAN, 802.1Q Tagged VLAN, Auto Surveillance VLAN, Voice VLAN, Management VLAN, Asymmetric VLAN, 128 Static VLAN Groups, up to 4094 VIDs
• L2 Features: Flow Control, HOL Blocking Prevention, Jumbo Frames up to 9216 Bytes, IGMP Snooping v1/v2/v3 Awareness, 64 IGMP Groups, IGMP Snooping Querier, 802.3ad Link Aggregation, G.8032 ERPS, Loopback Detection, Cable Diagnostics, LLDP, Port Mirroring, STP, RSTP, L2 Multicast, MLD Snooping
• QoS: 802.1p Quality of Service, 4 Queues per Port, Strict Priority, Weighted Round Robin, Port-Based Bandwidth Control, Ingress 8Kbps, Egress 64Kbps
• Security: D-Link Safeguard, Traffic Segmentation, Broadcast / Multicast / Unknown Unicast Storm Control, DoS Attack Prevention, SSL
• Management: Web-Based GUI with IPv4 / IPv6 Support, D-Link Network Assistant Utility
• Green Technology: Link Status, LED Shut-Off, Port Shut-Off, System Hibernation, IEEE 802.3az Energy Efficient Ethernet
• Category: D-Link PoE Switches
Applications:
• Medium and large CCTV systems using PoE IP cameras.
• Surveillance projects requiring ONVIF detection and Surveillance VLAN.
• Wireless access point installations.
• VoIP phone deployments using PoE.
• Business network cabinets requiring 24 PoE access ports.
• Fiber or copper uplink between cabinets, floors, or server rooms.
• Managed PoE switching where VLAN, QoS, ERPS, surge protection, and monitoring are required.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1100-26MP for CCTV and low-current projects that require 24 PoE ports with strong power budget and uplink flexibility.
• It is suitable for factories, schools, offices, warehouses, clinics, hotels, and commercial buildings.
• The 370W PoE budget makes it a strong choice for multiple IP cameras or access points.
• The 2 combo uplink ports give flexibility for copper or fiber backbone connection.
• This model is recommended when the customer needs smart managed PoE switching, surveillance optimization, 6kV surge protection, VLAN, QoS, and reliable business network performance.
