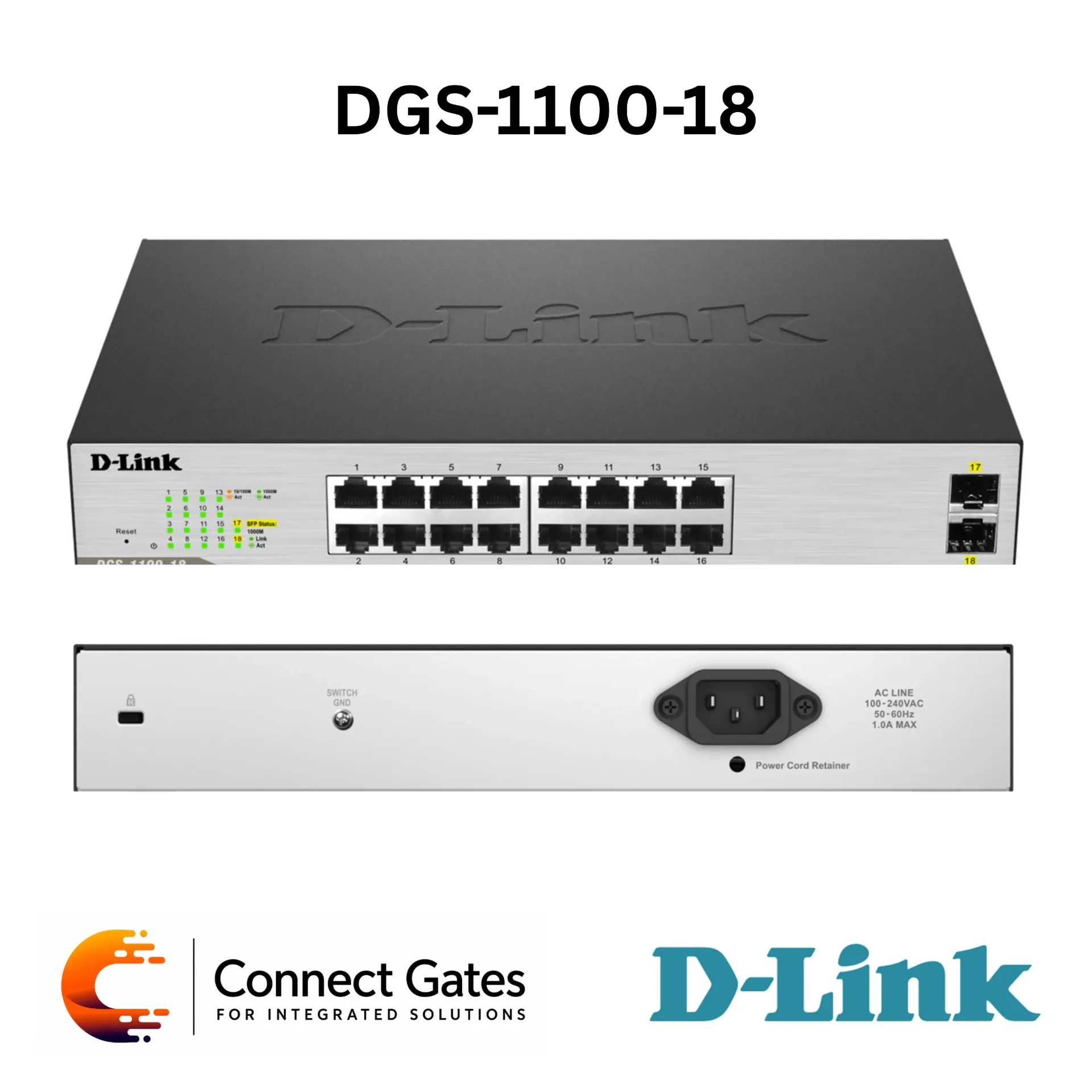

D-Link DGS-1100-18 – 16-Port Gigabit EasySmart Switch with 2 × Gigabit SFP Uplink Ports
Overview:
• The D-Link DGS-1100-18 is a Gigabit EasySmart Switch designed for small and medium business networks that need simple smart management with fiber uplink support.
• It provides 16 × 10/100/1000Mbps Gigabit Ethernet ports for connecting PCs, printers, access points, IP phones, cameras, and network devices.
• The switch includes 2 × 1000Mbps SFP ports for fiber uplink connections between racks, floors, cabinets, or network rooms.
• It supports Web-Based GUI and SmartConsole Utility for easy switch configuration and management.
• The DGS-1100 Series supports key smart features such as VLAN, QoS, Surveillance VLAN, Voice VLAN, IGMP Snooping, Bandwidth Control, Loopback Detection, Cable Diagnostics, Static MAC, and Storm Control.
• D-Link Green Technology helps reduce power consumption through link status detection, cable length detection, and IEEE 802.3az Energy Efficient Ethernet support.
Key Features:
• 16 Gigabit Ethernet Ports: Provides 16 × 10/100/1000Mbps ports for wired network devices.
• 2 Gigabit SFP Uplink Ports: Supports fiber uplink connectivity for network expansion.
• EasySmart Management: Supports Web-Based GUI and SmartConsole Utility.
• VLAN Support: Supports 802.1Q VLAN and Port-Based VLAN for traffic separation.
• Surveillance VLAN: Gives CCTV traffic higher priority.
• Voice VLAN: Helps prioritize VoIP traffic.
• QoS 802.1p: Supports traffic prioritization.
• IGMP Snooping: Helps reduce multicast traffic and improve bandwidth usage.
• Loopback Detection: Detects loops and disables affected ports automatically.
• Cable Diagnostics: Helps identify cable faults and cable quality issues.
• Static MAC: Helps restrict network access to authorized devices.
• D-Link Green: Saves energy using link status, cable length, and IEEE 802.3az.
Technical Specifications:
• Product Type: Gigabit EasySmart Switch
• Model: DGS-1100-18
• Series: DGS-1100 Series
• Ethernet Ports: 16 × 10/100/1000Mbps Gigabit Ports
• SFP Ports: 2 × 1000Mbps SFP Ports
• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
• Duplex Mode: Half / Full Duplex for 10/100Mbps, Full Duplex for 1000Mbps
• Auto-Negotiation: Supported
• Auto MDI/MDIX: Supported
• Switching Capacity: 36Gbps
• Forwarding Rate: 26.78Mpps
• MAC Address Table: 8K Entries
• VLAN: Port-Based VLAN, 802.1Q Tagged VLAN, Surveillance VLAN, Voice VLAN, Management VLAN
• QoS: 802.1p, 4 Queues per Port, Strict, Weighted Round Robin, Bandwidth Control
• L2 Features: IGMP Snooping, Static Trunk, Loopback Detection, Cable Diagnostics, Port Mirroring, Statistics
• Security: Static MAC, Broadcast / Multicast / Unknown Unicast Storm Control
• Management: Web-Based GUI, SmartConsole Utility
• D-Link Green: Link Status Power Saving, Cable Length Power Saving, IEEE 802.3az Energy Efficient Ethernet
• Power Input: AC Power Cord / Internal Power Supply
• Installation: Desktop or Rackmount
• Reset Button: Supported
• Category: D-Link Managed Switches
Applications:
• Small and medium business network switching.
• Office and branch network expansion.
• Fiber uplink between cabinets, floors, or network rooms.
• CCTV networks using Surveillance VLAN.
• VoIP networks using Voice VLAN.
• Basic managed networks requiring VLAN, QoS, monitoring, and cable diagnostics.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1100-18 for customers who need a simple managed Gigabit switch with fiber uplink support.
• It is suitable for offices, shops, clinics, schools, small companies, and network cabinets where 16 Gigabit ports are enough.
• The 2 SFP ports make it better than standard 16-port switches when fiber uplink is required.
• This model is recommended for data, CCTV, and VoIP networks that need basic smart management without PoE.
