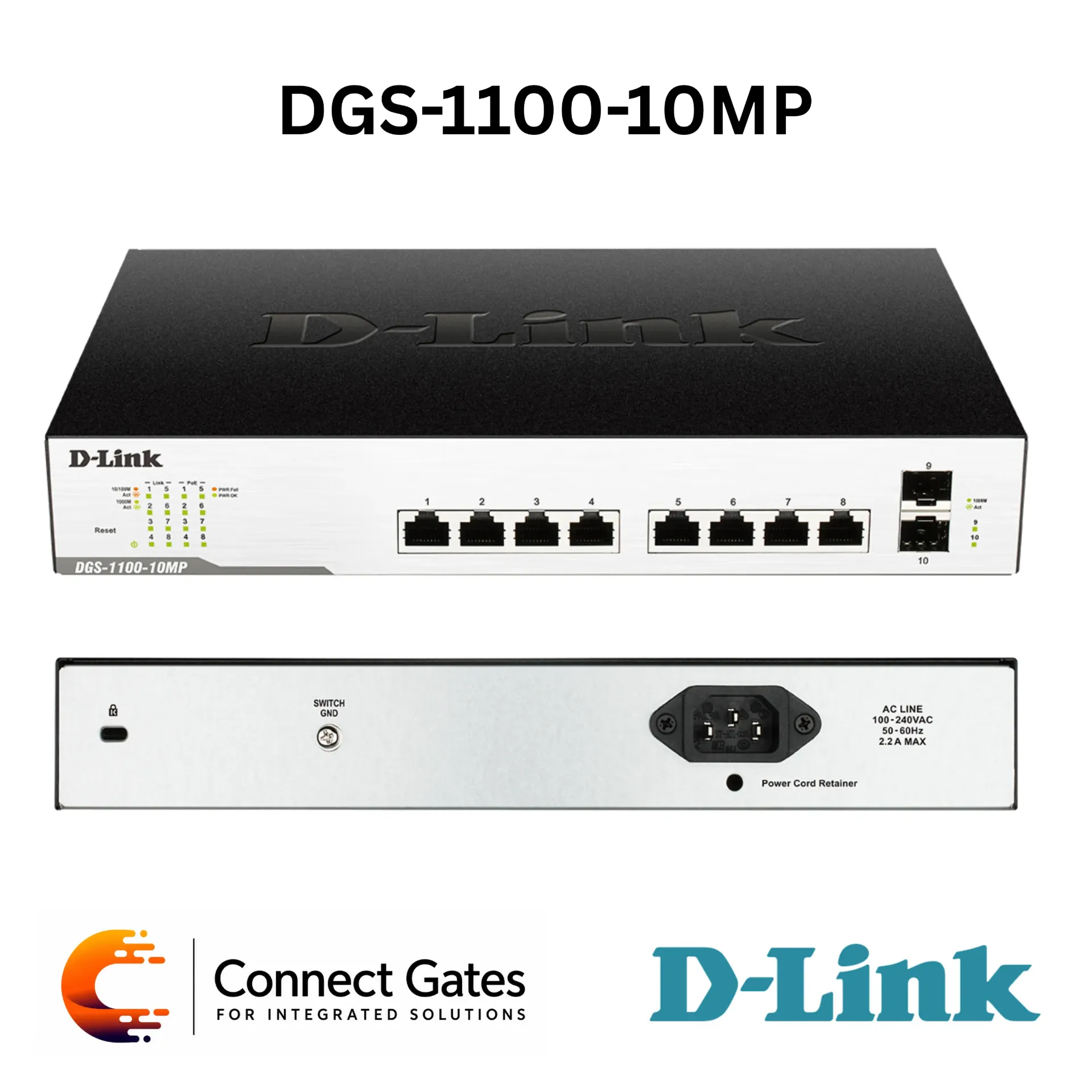

D-Link DGS-1100-10MP – 8-Port Gigabit PoE Smart Managed Switch with 2 × SFP Uplink Ports
Overview:
• The D-Link DGS-1100-10MP is a Gigabit PoE Smart Managed Switch designed for SMB, CCTV, VoIP, wireless access point, and business network deployments.
• It provides 8 × 10/100/1000Mbps Gigabit PoE ports for connecting and powering IP cameras, access points, VoIP phones, and other PoE devices.
• The switch includes 2 × 1000Mbps SFP ports for fiber uplink connectivity between cabinets, floors, server rooms, or backbone networks.
• It supports IEEE 802.3af/802.3at PoE with a total PoE power budget of 130W and up to 30W per PoE port.
• The DGS-1100 Series supports Web-Based GUI and D-Link Network Assistant Utility for easy setup, monitoring, and management.
• Smart features include Auto Surveillance VLAN, Voice VLAN, 802.1Q VLAN, IGMP Snooping, Link Aggregation, ERPS, Loopback Detection, Cable Diagnostics, QoS, Bandwidth Control, D-Link Safeguard, DoS Attack Prevention, SSL, and D-Link Green energy-saving technology.
Key Features:
• 8 Gigabit PoE Ports: Provides 8 × 10/100/1000Mbps PoE ports for data and power.
• 2 SFP Uplink Ports: Supports 2 × 1000Mbps SFP ports for fiber uplink connectivity.
• 130W PoE Budget: Suitable for powering multiple IP cameras, access points, and VoIP phones.
• IEEE 802.3af/at PoE: Supports standard PoE and PoE+ devices.
• Up to 30W per PoE Port: Supports higher-power PoE+ devices within the total power budget.
• 6kV Surge Protection: Supports up to 6kV surge protection per port.
• Auto Surveillance VLAN: Gives CCTV traffic higher priority and separates video traffic.
• Voice VLAN: Helps prioritize VoIP traffic for better voice quality.
• ERPS Support: Supports Ethernet Ring Protection Switching for improved network resilience.
• Link Aggregation: Supports up to 5 groups per device and 8 ports per group.
• Loopback Detection: Detects loops and helps maintain network stability.
• Cable Diagnostics: Helps identify copper cable faults and connection issues.
• D-Link Green Technology: Supports link status, LED shut-off, port shut-off, system hibernation, and IEEE 802.3az energy saving.
Technical Specifications:
• Product Type: Gigabit PoE Smart Managed Switch
• Model: DGS-1100-10MP
• Series: DGS-1100 Series
• Hardware Version: B1
• Form Factor: 11-Inch Desktop / Rackmount, 1U Height
• Ethernet Ports: 8 × 10/100/1000Mbps PoE Ports
• SFP Ports: 2 × 1000Mbps SFP Ports
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE Capable Ports: Ports 1 to 8
• PoE Output: Up to 30W Maximum per PoE Port
• PoE Power Budget: 130W
• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af/at, IEEE 802.3x, IEEE 802.3az
• Surge Protection: Up to 6kV Surge Protection per Port
• Auto-Negotiation: Supported
• Manual / Auto MDI/MDIX: Supported
• Duplex Mode: Half / Full Duplex Operation
• Switching Capacity: 20Gbps
• Maximum Forwarding Rate: 14.88Mpps
• MAC Address Table: 16K Entries
• Packet Buffer: 1.5MBytes
• Flash Memory: 16MBytes
• Standby Power Consumption: 10.4W
• Maximum Power Consumption: 141.4W PoE On, 11.8W PoE Off
• Power Input: 100 to 240V AC, 50 to 60Hz Internal Power Supply
• MTBF: 291,575 Hours
• Acoustics: 45.4dB(A)
• Heat Dissipation: 570.51 BTU/hr
• Weight: 1.83kg
• Dimensions: 280 × 180 × 44 mm
• Ventilation: 1 × Fan
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• EMI: FCC / IC, CE, VCCI, BSMI, CCC
• Safety: cUL, UL, LVD, CB, CCC, BSMI
• VLAN: Port-Based VLAN, 802.1Q Tagged VLAN, Auto Surveillance VLAN, Voice VLAN, Management VLAN, Asymmetric VLAN, 128 Static VLAN Groups, up to 4094 VIDs
• L2 Features: Flow Control, HOL Blocking Prevention, Jumbo Frames up to 9216 Bytes, IGMP Snooping v1/v2/v3 Awareness, 64 IGMP Groups, IGMP Snooping Querier, 802.3ad Link Aggregation, ERPS, Loopback Detection, Cable Diagnostics, LLDP, Port Mirroring, STP, RSTP, L2 Multicast, MLD Snooping
• QoS: 802.1p Quality of Service, 4 Queues per Port, Strict Priority, Weighted Round Robin, Port-Based Bandwidth Control, Ingress 8Kbps, Egress 64Kbps
• Security: D-Link Safeguard, Traffic Segmentation, Broadcast / Multicast / Unknown Unicast Storm Control, DoS Attack Prevention, SSL
• Management: Web-Based GUI with IPv4 / IPv6 Support, D-Link Network Assistant Utility
• Green Technology: Link Status, LED Shut-Off, Port Shut-Off, System Hibernation, IEEE 802.3az Energy Efficient Ethernet
• Category: D-Link PoE Switches
Applications:
• CCTV systems using PoE IP cameras.
• Wireless access point installations.
• VoIP phone deployments using PoE.
• Small and medium business network cabinets.
• Fiber uplink between cabinets, floors, or server rooms.
• Managed edge switching requiring VLAN, QoS, Surveillance VLAN, Voice VLAN, and basic security.
• Projects requiring compact PoE switch with SFP uplink support.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1100-10MP for small and medium PoE projects that need Gigabit PoE ports with fiber uplink support.
• It is suitable for CCTV, VoIP, wireless access point, office, villa, clinic, shop, and small business network installations.
• The 130W PoE budget is stronger than standard 8-Port PoE switches, making it more suitable for multiple IP cameras or access points.
• The 2 SFP uplink ports make it practical for fiber backbone connection in professional low-current projects.
• This model is recommended when the customer needs affordable smart management, PoE+, fiber uplinks, VLAN, QoS, Surveillance VLAN, and energy-saving features.
