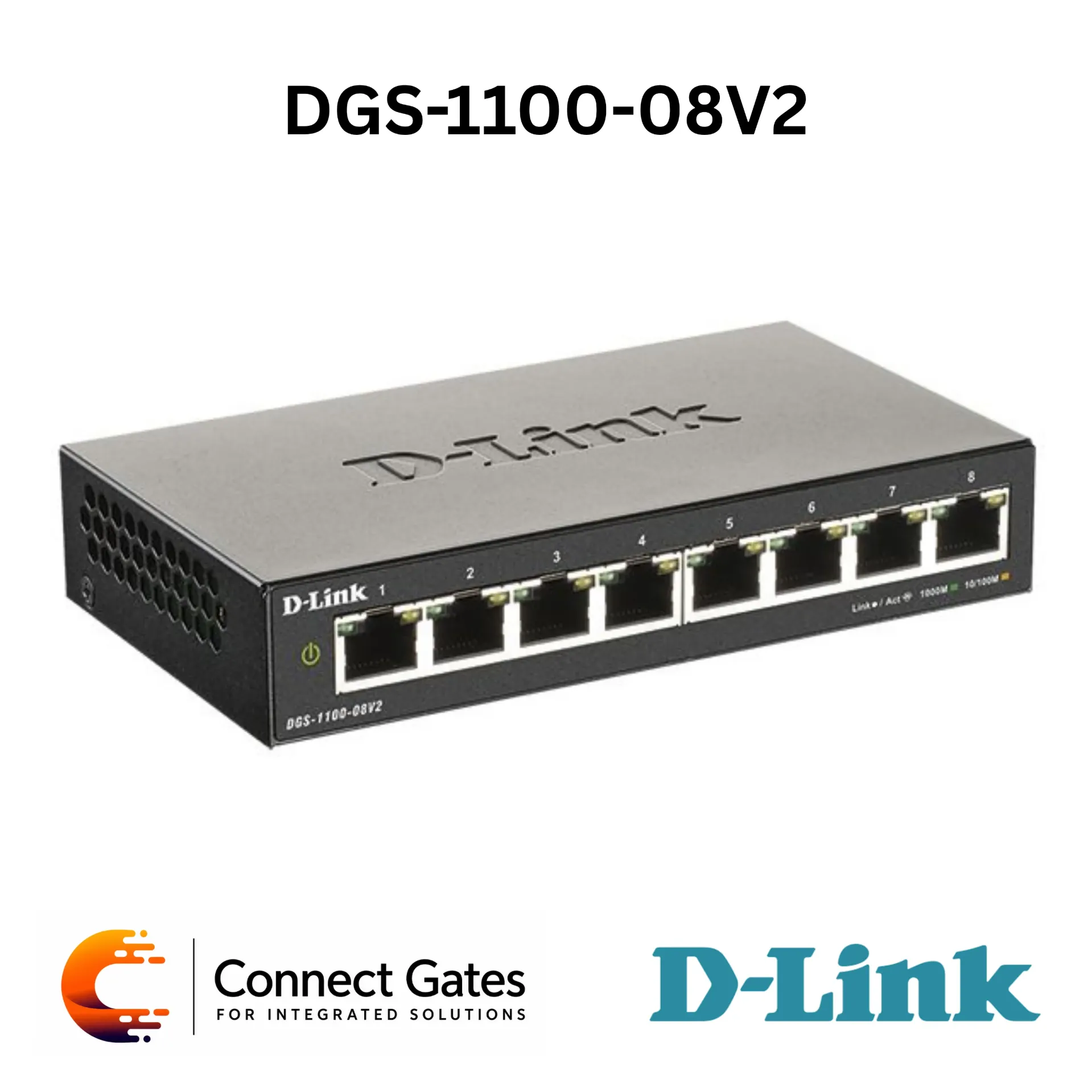

D-Link DGS-1100-08V2 – 8-Port Gigabit Smart Managed Switch with Web GUI, VLAN, Surveillance VLAN, QoS, Loopback Detection & Fanless Desktop Design
Overview:
• The D-Link DGS-1100-08V2 is an 8-Port Gigabit Smart Managed Switch designed for small offices, SMB networks, edge network expansion, and basic managed LAN applications.
• It provides 8 × 10/100/1000 Mbps Gigabit ports, offering reliable high-speed connectivity for computers, printers, network devices, CCTV systems, and office infrastructure.
• The switch supports smart management features including Web-Based GUI, D-Link Network Assistant, Port-Based VLAN, 802.1Q VLAN, Surveillance VLAN, Voice VLAN, QoS, IGMP Snooping, Loopback Detection, Cable Diagnostics, and Port Mirroring.
• It includes IEEE 802.3az Energy Efficient Ethernet, link status power saving, and fanless 0dB operation, making it suitable for quiet office environments and desktop installations.
• The compact desktop design makes it practical for small network cabinets, reception areas, workstations, and branch offices that need basic smart management without PoE.
Key Features:
• 8 Gigabit RJ-45 ports
• Smart managed switch
• Web-Based GUI management
• D-Link Network Assistant support
• Port-Based VLAN
• 802.1Q Tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• QoS support
• IGMP Snooping
• Loopback Detection
• Cable Diagnostics
• Port Mirroring
• Static Trunk support
• Storm Control
• Port Security
• Fanless silent operation
• IEEE 802.3az Energy Efficient Ethernet
• Compact desktop design
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-1100-08V2
• Product Type: 8-Port Gigabit Smart Managed Switch
• Series: DGS-1100 Series
• Hardware Version: A1
• Size: Desktop
• Number of Ports: 8 × 10/100/1000 Mbps
• PoE Support: Not Supported
• Application: Small Office Networks, SMB LAN, Edge Network Expansion, Surveillance VLAN Networks
Port Functions:
• Ethernet Standard: IEEE 802.3 Ethernet
• Fast Ethernet Standard: IEEE 802.3u Fast Ethernet
• Gigabit Ethernet Standard: IEEE 802.3ab Gigabit Ethernet
• Auto-Negotiation: Supported
• Duplex Mode: Half / Full-Duplex Operation, Half at 10/100 Mbps and Full at 1000 Mbps
• Auto MDI/MDIX: Supported
• Flow Control: IEEE 802.3x Flow Control for Full-Duplex Mode
• Energy Efficient Ethernet: IEEE 802.3az Compliant
Performance:
• Switching Capacity: 16Gbps
• Maximum Forwarding Rate: 11.9Mpps
• MAC Address Table Size: 4K Entries
• Packet Buffer: 1.5Mbits
• Flash Memory: 2MB
Power Consumption:
• Power Input: 100 to 240VAC, 50 to 60Hz External Power Adapter
• Standby Mode: 1.93W
• Maximum Power Consumption: 4.94W
Physical Specifications:
• MTBF: 1,456,992 Hours
• Acoustics: 0dB(A)
• Heat Dissipation: 16.85BTU/hr
• Weight: 0.34kg
• Dimensions: 145 × 82 × 28mm
• Ventilation: Fanless
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 0% to 90% RH, Non-Condensing
• Storage Humidity: 0% to 95% RH, Non-Condensing
• EMI: FCC Class B, CE Class B, VCCI Class B, BSMI
• Safety: cUL, CE LVD, CB, BSMI
VLAN Features:
• Port-Based VLAN: Supported
• 802.1Q Tagged VLAN: Supported
• Surveillance VLAN: Supported
• Voice VLAN: Supported
• Management VLAN: Supported
• VLAN Groups: Supports 32 Static VLAN Groups
• Max VLAN IDs: 4094
• Asymmetric VLAN: Supported
Layer 2 Features:
• Flow Control: Supported
• 802.3x Flow Control: Supported
• HOL Blocking Prevention: Supported
• Jumbo Frames: Up to 9216 Bytes
• IGMP Snooping: IGMP v1/v2 Snooping
• IGMP Groups: Supports 128 Groups
• Static Trunk: 2 Groups
• Loopback Detection: Supported
• Cable Diagnostics: Supported
• Port Mirroring: One-to-One, Many-to-One
• Statistics: Tx OK, Tx Error, Rx OK, Rx Error
Quality of Service:
• QoS Standard: IEEE 802.1p Quality of Service
• Queues: 4 Queues per Port
• Queue Handling: Strict, Weighted Round Robin
• Bandwidth Control: Port-Based Ingress / Egress
• Minimum Granularity: 8Kbps
• DSCP: Supported
Security Features:
• Static MAC Addresses: Up to 32 Entries
• Traffic Segmentation: Supported
• Storm Control: Broadcast / Multicast / Unknown Unicast
• Port Security: Supported
Management Features:
• Web-Based GUI: Supports IPv4
• D-Link Network Assistant: Supported
• Smart Managed Configuration: Supported
• Remote Discovery and Basic Setup: Supported
Green Technology:
• RoHS 10 Compliance: Supported
• IEEE 802.3az Energy Efficient Ethernet: Supported
• Power Saving by Link Status: Supported
Applications:
• Small office network expansion
• SMB LAN switching
• Desktop network expansion
• CCTV network segmentation
• Voice and data separation
• Reception area networks
• Small cabinet installations
• Edge switch deployment
• VLAN-based small network management
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1100-08V2 for small office and SMB projects that need a compact 8-port Gigabit smart managed switch without PoE.
• It is suitable for simple managed LAN setups that require VLAN, Surveillance VLAN, QoS, and basic traffic control.
• The fanless 0dB design makes it ideal for offices, reception areas, desks, and quiet indoor installations.
• For proper installation, Connect Gates recommends checking the required port count, VLAN plan, network management requirements, power location, and cable distances before deployment.
