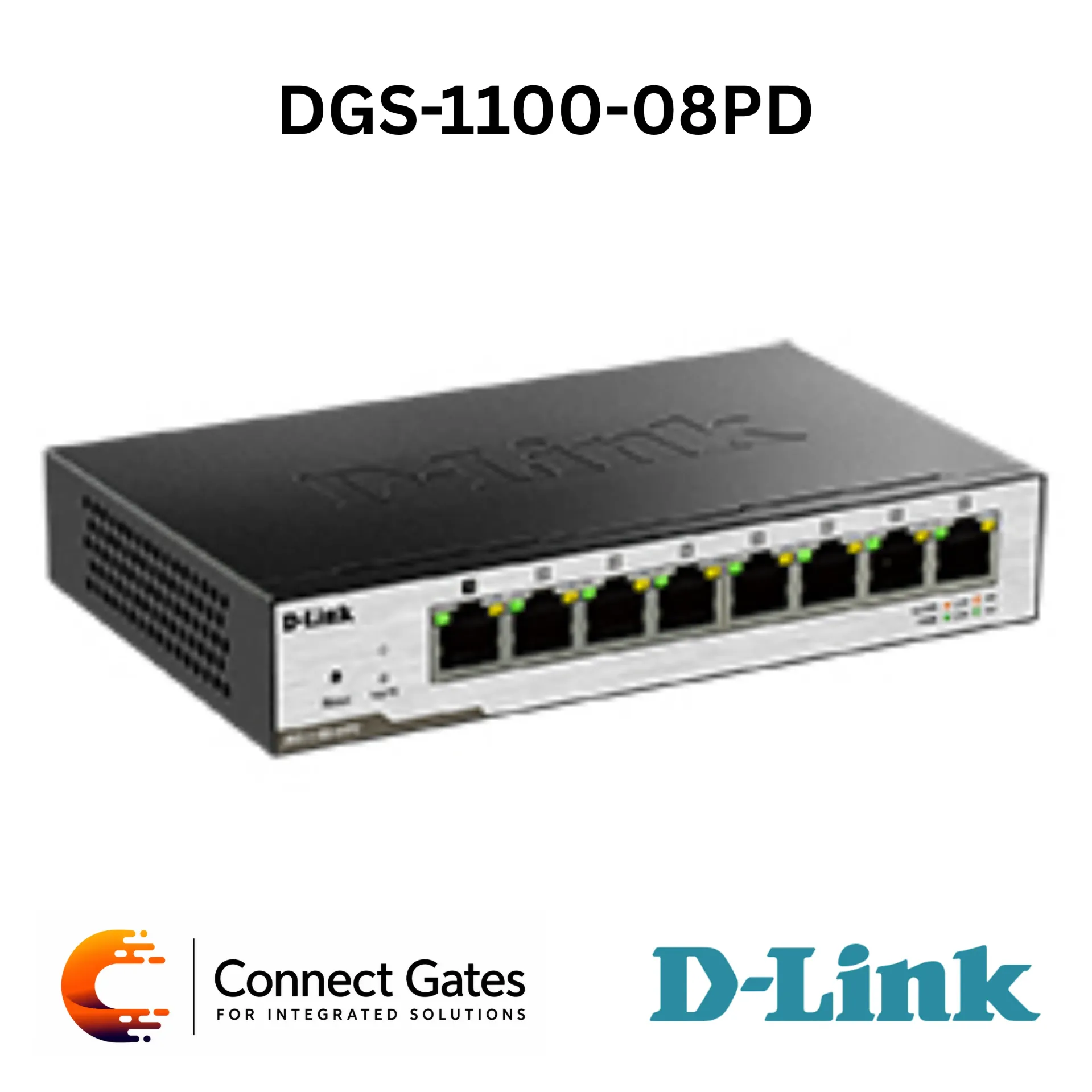

D-Link DGS-1100-08PD – 8-Port Gigabit Smart Managed Switch with PoE-Powered PD Port, Web GUI, VLAN, Surveillance VLAN & Fanless Desktop Design
Overview:
• The D-Link DGS-1100-08PD is an 8-Port Gigabit Smart Managed Switch designed for small business networks, remote installations, office networks, and flexible Ethernet expansion.
• It provides 8 × 10/100/1000 Mbps Gigabit ports, with port 1 working as a PD port, allowing the switch to be powered through IEEE 802.3af PoE input from another PoE switch or injector.
• This design makes it suitable for locations where a direct power outlet is not available, helping simplify installation in remote areas.
• The switch supports smart management features including Web-Based GUI, D-Link Network Assistant, VLAN, Surveillance VLAN, Voice VLAN, QoS, IGMP Snooping, Loopback Detection, Cable Diagnostics, and Port Mirroring.
• It also features fanless silent operation, IEEE 802.3az Energy Efficient Ethernet, and compact desktop design for easy deployment in offices, cabinets, and small network areas.
Key Features:
• 8 Gigabit RJ-45 ports
• Smart managed switch
• Port 1 as PD port
• Powered by IEEE 802.3af PoE input
• No external power supply required when powered by PoE
• Web-Based GUI management
• D-Link Network Assistant support
• VLAN support
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• QoS support
• IGMP Snooping support
• Loopback Detection
• Cable Diagnostics
• Port Mirroring
• Static Trunk support
• Storm Control
• Port Security
• Fanless silent operation
• IEEE 802.3az Energy Efficient Ethernet
• Compact desktop design
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-1100-08PD
• Product Type: 8-Port Gigabit Smart Managed Switch
• Series: DGS-1100 Series
• Hardware Version: B1
• Size: Desktop
• Number of Ports: 8 × 10/100/1000 Mbps
• PD Port: Port 1 as PD Port
• Power Input: IEEE 802.3af PoE Power via PD Port 1
• Application: Small Business Networks, Remote Network Expansion, Office LAN, Surveillance VLAN Networks
Port Functions:
• Ethernet Standard: IEEE 802.3 Ethernet
• Fast Ethernet Standard: IEEE 802.3u Fast Ethernet
• Gigabit Ethernet Standard: IEEE 802.3ab Gigabit Ethernet
• PoE Input Standard: IEEE 802.3af via PD Port 1
• Auto-Negotiation: Supported
• Duplex Mode: Half / Full-Duplex Operation, Half at 10/100 Mbps and Full at 1000 Mbps
• Auto MDI/MDIX: Supported
• Flow Control: IEEE 802.3x Flow Control for Full-Duplex Mode
• Energy Efficient Ethernet: IEEE 802.3az Compliant
Performance:
• Switching Capacity: 16Gbps
• Maximum Forwarding Rate: 11.9Mpps
• MAC Address Table: 8K Entries
• Packet Buffer: 4.1Mbits
• Flash Memory: 32MB
Power and PoE Input:
• PoE Standard: PD Power Input via IEEE 802.3af
• PoE Capable Output Ports: Not Supported
• Power Supply: Powered via PoE on Port 1
• Maximum Power Consumption: 4.72W
• Standby Power Consumption: 1.97W
Physical Specifications:
• MTBF: 648,153 Hours
• Acoustics: 0dB(A)
• Heat Dissipation: 52BTU/hr
• Weight: 0.45kg
• Dimensions: 171 × 98 × 27.5mm
• Ventilation: Fanless
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 0% to 90% RH Non-Condensing
• Storage Humidity: 0% to 95% RH Non-Condensing
VLAN Features:
• Port-Based VLAN: Supported
• 802.1Q Tagged VLAN: Supported
• Surveillance VLAN: Supported
• Voice VLAN: Supported
• Management VLAN: Supported
• VLAN Groups: 32 Static VLAN Groups
• Max VID: 4094
• Asymmetric VLAN: Supported
Layer 2 Features:
• Flow Control: Supported
• 802.3x Flow Control: Supported
• HOL Blocking Prevention: Supported
• Jumbo Frames: Up to 9216 Bytes
• IGMP Snooping: IGMP v1/v2 Snooping
• IGMP Groups: 128 Groups
• Static Trunk: 2 Groups
• Loopback Detection: Supported
• Cable Diagnostics: Supported
• Port Mirroring: One-to-One, Many-to-One
• Statistics: Tx OK, Tx Error, Rx OK, Rx Error
Quality of Service:
• QoS Standard: IEEE 802.1p
• Queues: 4 Queues per Port
• Queue Handling: Strict, Weighted Round Robin
• Bandwidth Control: Port-Based Ingress / Egress
• Minimum Granularity: 16Kbps for DGS-1100-08PD
• DSCP: Supported
Security Features:
• Static MAC Addresses: Up to 32 Entries
• Traffic Segmentation: Supported
• Storm Control: Broadcast / Multicast / Unknown Unicast
• Port Security: Supported
Management Features:
• Web-Based GUI: Supports IPv4
• D-Link Network Assistant: Supported
• Smart Managed Configuration: Supported
• Remote Discovery and Basic Setup: Supported
Green Technology:
• RoHS 6 Compliance: Supported
• IEEE 802.3az Energy Efficient Ethernet: Supported
• Power Saving by Link Status: Supported
Certifications:
• EMI: FCC Class B, CE Class B, VCCI Class B, BSMI, CCC
• Safety: cUL, CE LVD, CB, BSMI, CCC
Applications:
• Small office network expansion
• Remote Ethernet deployment
• Powered switch installation without local power outlet
• IP surveillance network segmentation
• Voice and data network separation
• Desktop network expansion
• Quiet office network environments
• Edge switch installation
• VLAN-based small network management
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1100-08PD for small network projects that need a compact smart managed switch that can be powered through PoE input.
• It is suitable for remote locations where power outlets are limited, while still providing Gigabit ports, VLAN, Surveillance VLAN, and basic smart management features.
• The fanless 0dB design makes it suitable for offices, reception areas, small cabinets, and quiet working environments.
• For proper installation, Connect Gates recommends checking the PoE source compatibility, power availability from the upstream switch/injector, VLAN plan, cable distance, and required port count before deployment.
