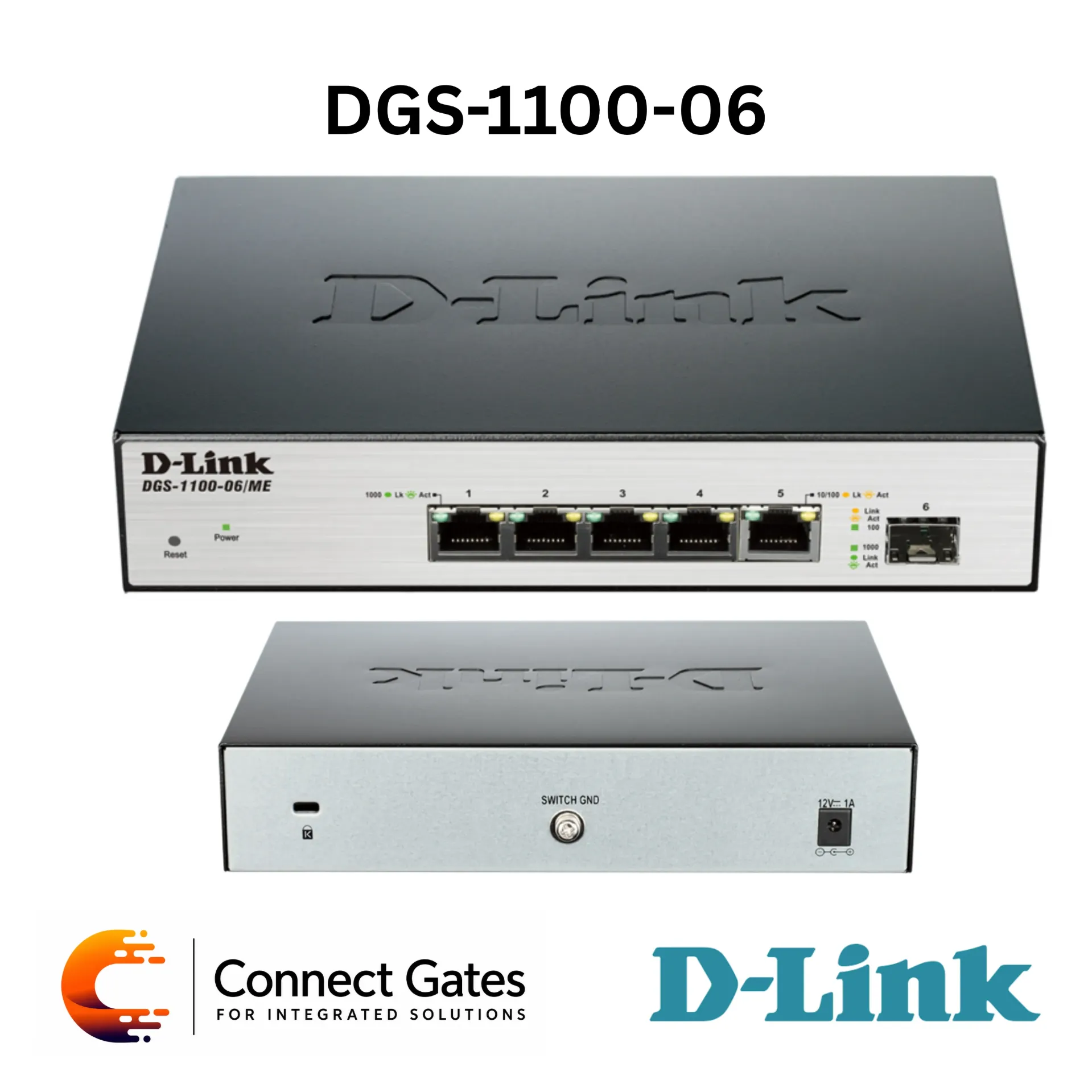

D-Link DGS-1100-06/ME – 5-Port Gigabit Managed L2 Metro Ethernet Switch with 1 × SFP Uplink Port
Overview:
• The D-Link DGS-1100-06/ME is a Managed L2 Metro Ethernet Switch designed for high-end residential networks, access layer networks, and Metro Ethernet applications.
• It provides 5 × 10/100/1000BASE-T Gigabit Ethernet ports for access connectivity.
• The switch includes 1 × 100/1000 SFP port for fiber uplink, making it suitable for FTTx and Metro Ethernet installations.
• The 5 Gigabit copper ports support 6kV surge protection, helping protect the switch from voltage surges caused by lightning or outdoor wiring conditions.
• It is targeted at IPTV applications and supports multicast features such as IGMP Snooping, MLD Snooping, IGMP Authentication, Limited IP Multicast, ISM VLAN, and Multicast VLAN.
• Management and troubleshooting features include Web GUI, CLI, Telnet, SNMP v1/v2c/v3, RMON, LLDP, DHCP Auto-Configuration, Cable Diagnostics, and IEEE 802.3ah OAM.
Key Features:
• 5 Gigabit Ethernet Ports: Provides 5 × 10/100/1000BASE-T ports for access connections.
• 1 SFP Uplink Port: Supports 100/1000 SFP fiber uplink for FTTx and Metro Ethernet applications.
• 6kV Surge Protection: Copper ports are designed to withstand 6kV voltage surges.
• Managed L2 Metro Switch: Suitable for access layer and service provider environments.
• IPTV Multicast Support: Supports IGMP Snooping, MLD Snooping, IGMP Authentication, Limited IP Multicast, ISM VLAN, and Multicast VLAN.
• QoS Support: Supports traffic prioritization with 4 queues per port.
• Bandwidth Control: Supports port-based ingress and egress bandwidth control.
• Loopback Detection: Helps prevent network loops and improves network stability.
• Cable Diagnostics: Helps detect cable length and cable status.
• 802.3ah OAM: Supports Ethernet link monitoring and fault detection.
• Security Features: Includes Port Security, Static MAC, Traffic Segmentation, Storm Control, and D-Link Safeguard Engine.
• Fanless Design: Silent operation with 0dB acoustics.
Technical Specifications:
• Product Type: Managed L2 Metro Ethernet Switch
• Model: DGS-1100-06/ME
• Hardware Version: A1
• Ethernet Ports: 5 × 10/100/1000BASE-TX
• SFP Port: 1 × 100/1000 SFP
• Surge Protection: 6kV surge protection on 10/100/1000Mbps copper ports
• Switching Capacity: 12Gbps
• Forwarding Rate: 8.9Mpps
• MAC Address Table: 4K Entries
• SDRAM for CPU: 128MB
• Packet Buffer: 128KB
• Flash Memory: 16MB
• Jumbo Frame: 9216 Bytes
• LED Indicators: Power, Link / Activity / Speed per port
• Power Input: External Power Adapter, 100 to 240V AC, 50 to 60Hz
• Power Output: 12V / 1A
• Standby Power Consumption: 3.62W
• Maximum Power Consumption: 7.08W
• MTBF: 459,420 Hours
• Acoustics: 0dB
• Heat Dissipation: 24.16 BTU/hr
• Dimensions: 190 × 120 × 38 mm
• Weight: 0.42kg
• Ventilation: Fanless
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90%
• EMI: CE Class A
• Safety: CE LVD, UL / cUL
• L2 Features: MAC Address Table 4K, 802.3x Flow Control, HOL Blocking Prevention, Loopback Detection, Port Mirroring, One-to-One and Many-to-One Mirroring
• L2 Multicasting: IGMP Snooping v1/v2, IGMP v3 Awareness, 32 Groups, Port-Based IGMP Snooping Fast Leave, IGMP Authentication, Limited IP Multicast, MLD Snooping v1/v2, 32 MLD Snooping Groups, Port-Based MLD Snooping Fast Leave
• VLAN: 802.1Q Tagged VLAN, 32 Static VLAN Groups, Management VLAN, Port-Based VLAN, ISM VLAN, Double VLAN Q-in-Q, Port-Based Q-in-Q
• QoS: 4 Queues per Port, Strict Priority, Weighted Round Robin, Bandwidth Control, 802.1p, DSCP, IPv6 Traffic Class
• Security: Port Security, Up to 64 MAC Addresses per Port, Traffic Segmentation, Broadcast / Multicast / Unknown Unicast Storm Control, D-Link Safeguard Engine
• AAA: 802.1X, Port-Based Access Control, Host-Based Access Control, Guest VLAN, Local / RADIUS Server Support, RADIUS Accounting, 4 Levels of User Accounts
• OAM: Cable Diagnostics, IEEE 802.3ah
• Management: Web-Based GUI, CLI, Telnet Server, TFTP Client, SNMP v1/v2c/v3, SNMP Traps, System Log, RMON v1, LLDP, BootP / DHCP Client, DHCP Auto-Configuration, DHCP Relay IPv4/IPv6, DHCP Relay Option 82, DHCP Relay Option 37, PPPoE Circuit-ID Tag Insertion, SNTP, CPU Monitoring, Password Encryption
• Category: D-Link Managed Switches
Applications:
• Metro Ethernet access networks.
• IPTV service provider applications.
• FTTx / FTTH / FTTB access installations.
• High-end residential network access switching.
• Fiber uplink from access switch to aggregation switch.
• Managed access networks requiring multicast, VLAN, QoS, OAM, and authentication features.
• Small access-layer locations requiring 6kV surge protection and fanless operation.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1100-06/ME for access layer and Metro Ethernet projects that require compact Gigabit switching with fiber uplink.
• It is suitable for IPTV, FTTx, residential compound access, and small managed network points.
• The 6kV surge protection makes it practical for access environments where copper cabling may be exposed to outdoor surge risks.
• The SFP uplink provides good flexibility for fiber backbone connection.
• This model is recommended when the project needs multicast control, VLAN, QoS, 802.1X, OAM, and reliable L2 management in a compact fanless switch.
