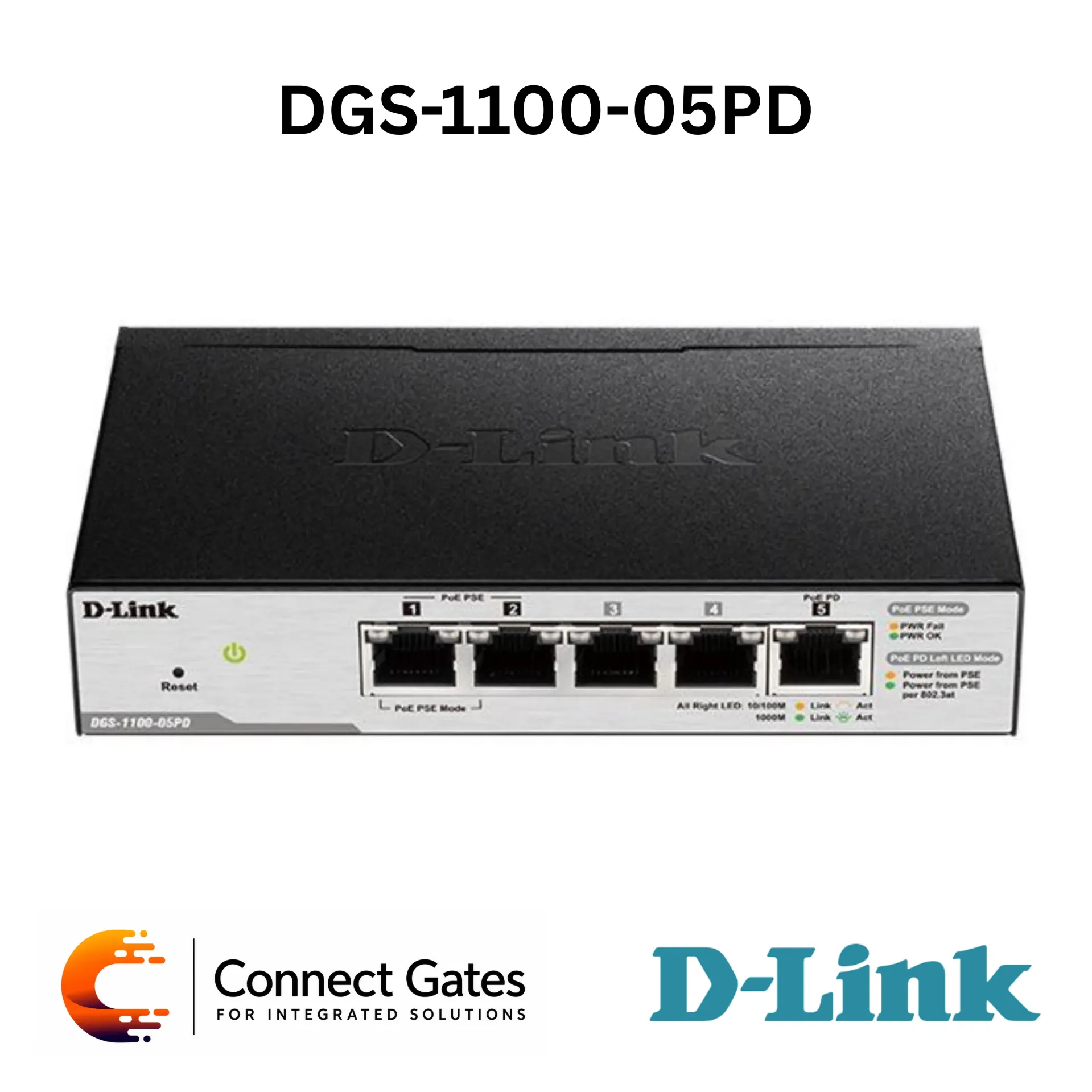

D-Link DGS-1100-05PD – 5-Port Gigabit Smart Managed PoE Passthrough Switch with 2 PoE Output Ports, 1 PD Input Port, VLAN, Surveillance VLAN & Fanless Design
Overview:
• The D-Link DGS-1100-05PD is a 5-Port Gigabit Smart Managed Switch designed for small networks, remote installations, IP surveillance extensions, and locations where a direct power outlet is not available.
• It provides 2 × 10/100/1000 Mbps PoE ports and 3 × 10/100/1000 Mbps Gigabit ports, with 1 PD port allowing the switch to be powered through IEEE 802.3af/at PoE input.
• The switch supports PoE passthrough, providing up to 18W PoE budget with 802.3at input or 8W PoE budget with 802.3af input, making it suitable for powering small PoE devices such as IP cameras or access points.
• It includes smart management features such as Web-Based GUI, D-Link Network Assistant, Port-Based VLAN, 802.1Q VLAN, Surveillance VLAN, Voice VLAN, QoS, IGMP Snooping, Loopback Detection, Cable Diagnostics, Port Mirroring, and Storm Control.
• The fanless 0dB design, compact desktop size, and PoE-powered operation make it suitable for quiet offices, edge network points, and remote installation areas.
Key Features:
• 5-port Gigabit smart managed switch
• 2 × Gigabit PoE output ports
• 3 × Gigabit Ethernet ports
• 1 × PD input port
• Powered by IEEE 802.3af/at PoE
• PoE passthrough support
• 18W PoE budget with 802.3at input
• 8W PoE budget with 802.3af input
• Web-Based GUI management
• D-Link Network Assistant support
• Port-Based VLAN
• 802.1Q Tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• QoS support
• IGMP Snooping
• Loopback Detection
• Cable Diagnostics
• Port Mirroring
• Static Trunk support
• Storm Control
• Port Security
• Fanless silent operation
• IEEE 802.3az Energy Efficient Ethernet
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-1100-05PD
• Product Type: Gigabit Smart Managed PoE Passthrough Switch
• Series: DGS-1100 Series
• Hardware Version: B1
• Size: Desktop
• Number of Ports: 2 × 10/100/1000 Mbps PoE Ports + 3 × 10/100/1000 Mbps Ports
• PD Port: 1 × PD Input Port
• Application: Remote Network Expansion, Small Office Networks, IP Surveillance, Edge Network Deployment, PoE Passthrough Installations
Port Functions:
• Ethernet Standard: IEEE 802.3 Ethernet
• Fast Ethernet Standard: IEEE 802.3u Fast Ethernet
• Gigabit Ethernet Standard: IEEE 802.3ab Gigabit Ethernet
• PoE Standard: IEEE 802.3af
• PoE Input: IEEE 802.3af / IEEE 802.3at PoE Power
• Auto-Negotiation: Supported
• Duplex Mode: Half / Full-Duplex Operation, Half at 10/100 Mbps and Full at 1000 Mbps
• Auto MDI/MDIX: Supported
• Flow Control: IEEE 802.3x Flow Control for Full-Duplex Mode
• Energy Efficient Ethernet: IEEE 802.3az Compliant
Performance:
• Switching Capacity: 10Gbps
• Maximum Forwarding Rate: 7.44Mpps
• MAC Address Table Size: 2K Entries
• Packet Buffer: 1Mbit
• Flash Memory: 2MB
PoE Specifications:
• PoE Standard: IEEE 802.3af
• PoE Capable Ports: Ports 1 to 2
• PoE Passthrough Budget: 18W with 802.3at Input
• PoE Passthrough Budget: 8W with 802.3af Input
• PoE Use Cases: IP Cameras, Access Points, Small PoE Devices
Power Consumption:
• Standby Mode: 1.46W
• Maximum Power Consumption PoE On: 23.92W
• Maximum Power Consumption PoE Off: 2.32W
Physical Specifications:
• Power Input: 802.3af/at PoE Power Only
• External Power Supply: Not Required
• MTBF: 2,346,941 Hours
• Acoustics: 0dB(A)
• Heat Dissipation: N/A
• Weight: 0.38kg
• Dimensions: 150 × 97 × 28mm
• Ventilation: Fanless
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 0% to 90% RH, Non-Condensing
• Storage Humidity: 0% to 95% RH, Non-Condensing
• EMI: FCC Class B, CE Class B, VCCI Class B, BSMI, CCC
• Safety: cUL, CE LVD, CB, BSMI, CCC
VLAN Features:
• Port-Based VLAN: Supported
• 802.1Q Tagged VLAN: Supported
• Surveillance VLAN: Supported
• Voice VLAN: Supported
• Management VLAN: Supported
• VLAN Groups: Supports 32 Static VLAN Groups
• Max VLAN IDs: 4094
• Asymmetric VLAN: Supported
Layer 2 Features:
• Flow Control: Supported
• 802.3x Flow Control: Supported
• HOL Blocking Prevention: Supported
• Jumbo Frames: Up to 9216 Bytes
• IGMP Snooping: IGMP v1/v2 Snooping
• IGMP Groups: Supports 128 Groups
• Static Trunk: 1 Group
• Loopback Detection: Supported
• Cable Diagnostics: Supported
• Port Mirroring: One-to-One, Many-to-One
• Statistics: Tx OK, Tx Error, Rx OK, Rx Error
Quality of Service:
• QoS Standard: IEEE 802.1p Quality of Service
• Queues: 4 Queues per Port
• Queue Handling: Strict, Weighted Round Robin
• Bandwidth Control: Port-Based Ingress / Egress
• Minimum Granularity: 8Kbps
• DSCP: Supported
Security Features:
• Static MAC Addresses: Up to 32 Entries
• Traffic Segmentation: Supported
• Storm Control: Broadcast / Multicast / Unknown Unicast
• Port Security: Supported
Management Features:
• Web-Based GUI: Supports IPv4
• D-Link Network Assistant: Supported
• Smart Managed Configuration: Supported
• Remote Discovery and Basic Setup: Supported
Green Technology:
• RoHS 6 Compliance: Supported
• IEEE 802.3az Energy Efficient Ethernet: Supported
• Power Saving by Link Status: Supported
Applications:
• Small office network expansion
• Remote Ethernet deployment
• PoE-powered edge switch installation
• IP camera extension points
• Small access point installations
• Surveillance VLAN network segmentation
• Voice and data separation
• Quiet office environments
• Locations without nearby power outlets
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1100-05PD for small network points that need a compact PoE-powered smart managed switch with PoE passthrough capability.
• It is suitable for remote installation areas where power outlets are limited, while still offering Gigabit ports, VLAN, Surveillance VLAN, QoS, and smart management.
• The fanless 0dB operation makes it suitable for offices, reception areas, small cabinets, and quiet indoor environments.
• For proper installation, Connect Gates recommends checking the PoE source standard, available PoE input power, PoE passthrough load, connected device power requirements, VLAN plan, and cable distance before deployment.
