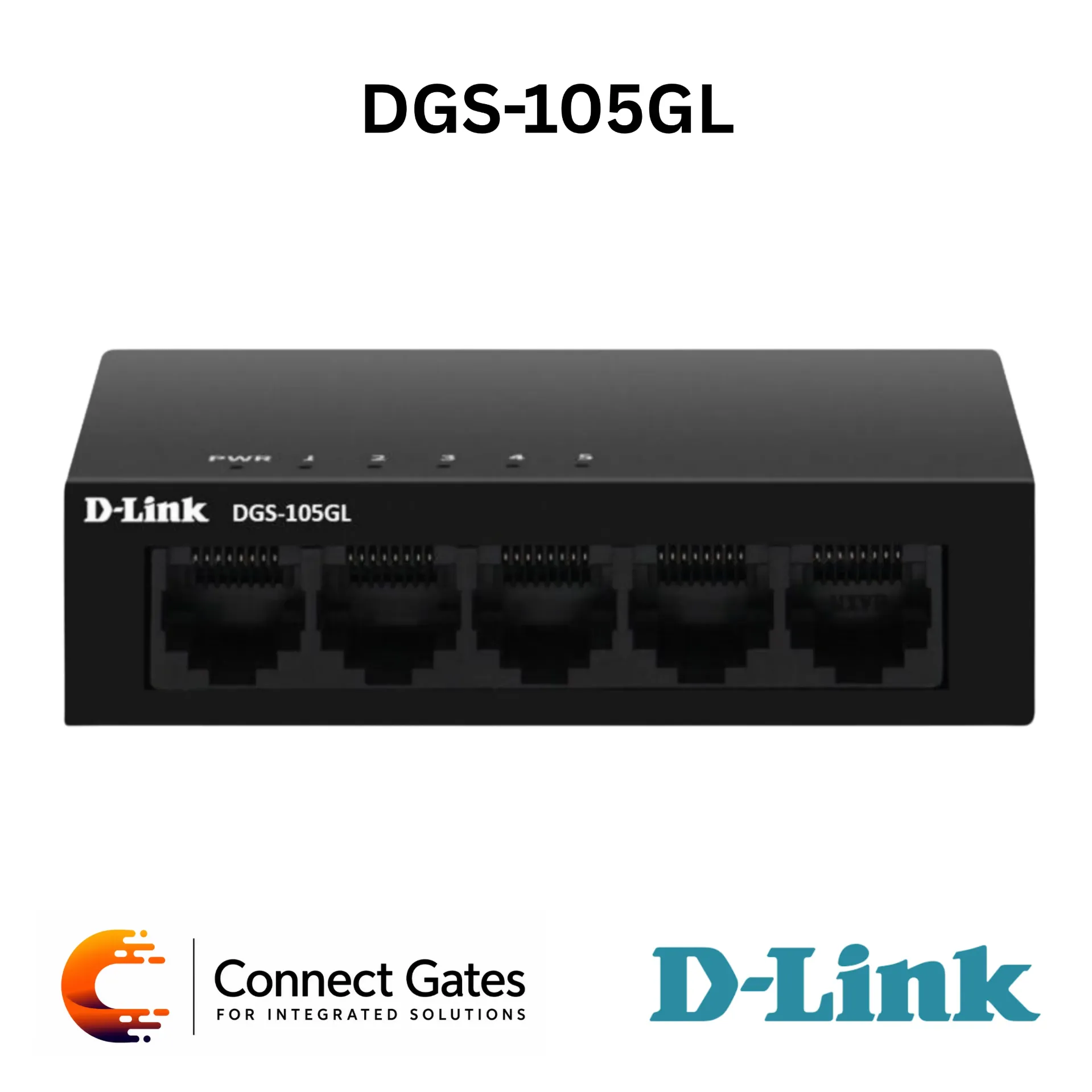

D-Link DGS-105GL – 5-Port Gigabit Desktop Switch with 10/100/1000Mbps Ports, Metal Housing, Plug-and-Play, Flow Control & Energy-Efficient Ethernet
Overview:
• The D-Link DGS-105GL is a 5-Port Gigabit Desktop Switch designed for SOHO, home users, and small to medium business networks.
• It provides five 10/100/1000Mbps Gigabit Ethernet LAN ports for expanding wired networks and upgrading connectivity.
• The switch supports plug-and-play installation with no configuration required, making it easy to connect computers, routers, servers, gaming devices, and other wired network devices.
• IEEE 802.3x Flow Control helps improve network efficiency and reduce congestion for more reliable data transmission.
• Auto MDI/MDIX support on all ports removes the need for crossover cables or uplink ports.
• The compact metal case provides durability, while the energy-efficient design helps reduce power consumption, heat generation, and allows silent operation.
Key Features:
• 5 Gigabit Ethernet Ports: Provides five 10/100/1000Mbps LAN ports for high-speed wired connectivity.
• Plug-and-Play Installation: No configuration required for quick and simple deployment.
• Auto MDI/MDIX: Automatically detects cable type on all ports.
• IEEE 802.3x Flow Control: Helps enhance network efficiency and reduce congestion.
• Store-and-Forward Switching: Helps improve data transmission reliability.
• 10Gbps Switching Fabric: Provides suitable switching capacity for 5-port Gigabit network traffic.
• Energy-Efficient Ethernet: Supports IEEE 802.3az EEE to reduce power consumption.
• Power Saving Function: Reduces power to ports when no link is detected.
• Compact Metal Housing: Durable desktop design suitable for office and home environments.
• Silent Operation: Energy-efficient design reduces heat and allows quiet operation.
Technical Specifications:
• Product Type: Gigabit Desktop Switch
• Model: DGS-105GL
• Switch Type: Unmanaged Desktop Switch
• Device Interfaces: 5 × 10/100/1000Mbps LAN Ports
• Network Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3az Energy-Efficient Ethernet
• Switching Capacity: 10Gbps
• Transmission Method: Store-and-Forward
• MAC Address Table Size: 2K
• Packet Filtering / Forwarding Rates: Ethernet 14,880pps per port, Fast Ethernet 148,800pps per port, Gigabit Ethernet 1,488,000pps per port
• MAC Address Learning: Self-Learning, Auto-Aging
• LED Indicators: Network Link / Activity, Power
• Power Input: DC 5V / 1A
• Power Consumption: Maximum 5W
• Dimensions: 87 × 54 × 23 mm
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -10°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
• MTBF: 785,576 Hours
• Maximum Heat Dissipation: 7.01 BTU/h
• Certifications: CE
• Order Information: DGS-105GL – 5-Port Gigabit Metal Unmanaged Switch
Applications:
• Expanding wired networks in homes and small offices.
• Connecting desktop PCs, laptops, printers, routers, and network devices.
• Upgrading from Fast Ethernet to Gigabit wired connectivity.
• Small business workstations and office network expansion.
• Gaming devices, smart TVs, media players, and streaming devices.
• Suitable for SOHO users who need a simple unmanaged 5-port Gigabit switch.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-105GL for customers who need a compact and cost-effective 5-port Gigabit switch for small network expansion.
• It is a suitable choice for homes, offices, shops, and workstations that need stable wired connectivity without complicated configuration.
• The metal housing gives it better durability than basic plastic switches, while the compact size makes it easy to install on desks, shelves, or inside small network cabinets.
• With 10Gbps switching capacity, Flow Control, Auto MDI/MDIX, and Energy-Efficient Ethernet, the DGS-105GL is practical for daily wired network use.
• This switch is recommended for non-PoE Gigabit network expansion where the customer needs simple plug-and-play performance, not camera powering or managed network control.
