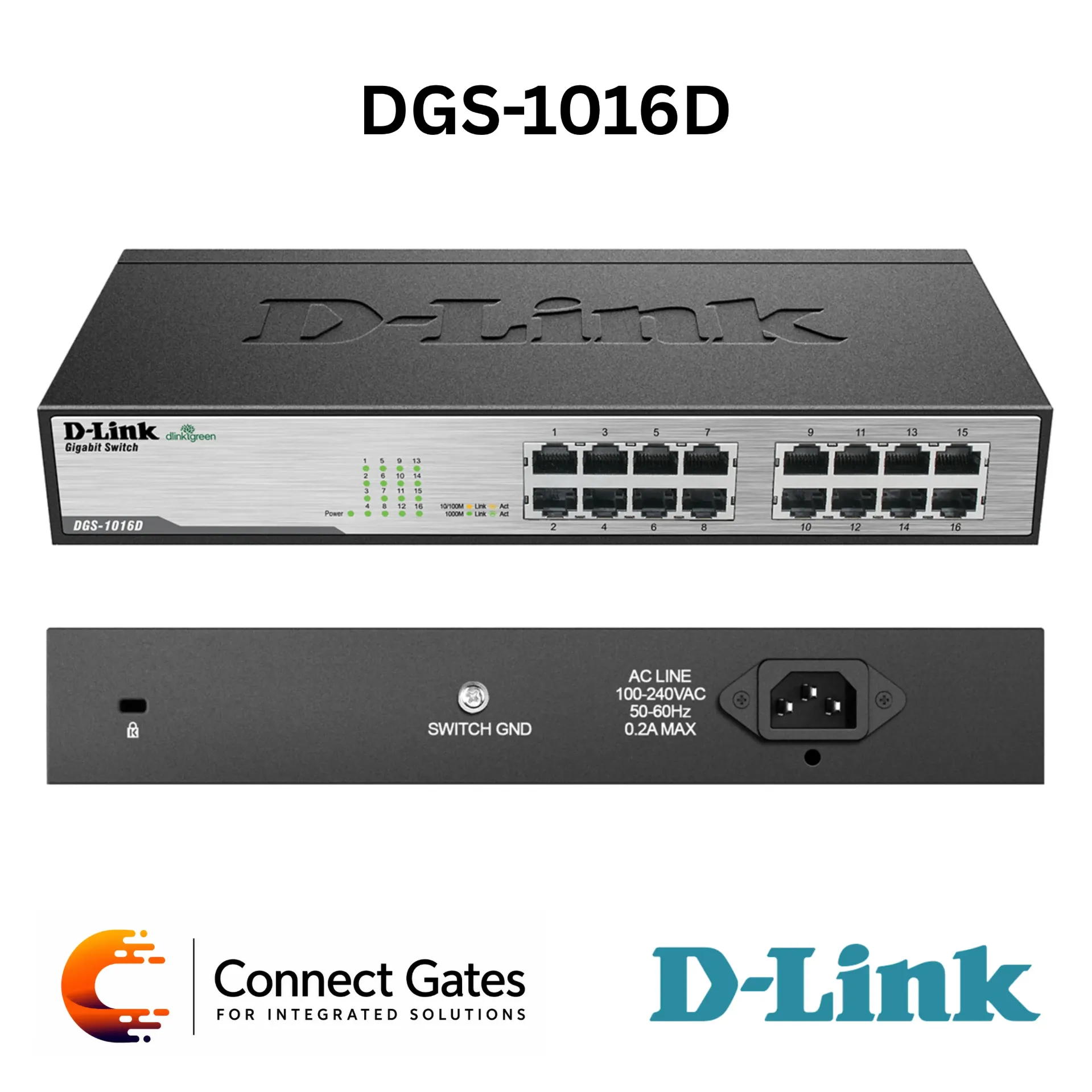

D-Link DGS-1016D – 16-Port Gigabit Desktop/Rackmountable Switch with 32Gbps Switching Capacity, QoS, Jumbo Frames, Cable Diagnostics & D-Link Green Technology
Overview:
• The D-Link DGS-1016D is a 16-Port Gigabit Desktop/Rackmountable Switch designed for office networks, workgroups, small businesses, creative production environments, and Gigabit network expansion.
• It provides 16 × 10/100/1000 Mbps Gigabit RJ45 ports, allowing users to connect desktops, servers, storage devices, IP cameras, routers, and other network devices with Gigabit performance.
• The switch supports non-blocking wire-speed switching architecture, delivering 32Gbps switching capacity for fast data transfer and stable network performance.
• It includes 8K MAC address table, 802.3x Flow Control, back pressure flow control, Auto MDI/MDI-X, auto-negotiation, cable diagnostic function, 802.1p QoS, and jumbo frame support up to 9600 bytes.
• The desktop/rackmountable 1RU design, internal universal power supply, 0dB acoustics, and D-Link Green Technology make it suitable for professional and energy-efficient network installations.
Key Features:
• 16 Gigabit RJ45 ports
• 10/100/1000 Mbps support
• Unmanaged Gigabit switch
• Desktop or rackmountable design
• 1RU height
• 32Gbps switching capacity
• Non-blocking switching architecture
• 8K MAC address table
• Store-and-forward transmission
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS support
• 4 priority queues
• Jumbo frame support up to 9600 bytes
• Auto MDI/MDI-X support
• Auto-negotiation on all ports
• Cable diagnostic function
• Diagnostic LED indicators
• 512KB packet buffer memory
• 0dB acoustics
• D-Link Green Technology
• Internal universal power supply
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-1016D
• Product Type: 16-Port Gigabit Desktop/Rackmountable Switch
• Management: Unmanaged
• Installation: Desktop / Rackmount
• Rack Height: 1RU
• Hardware Version: D1
• Application: Office Networks, Workgroups, SMB Networks, Gigabit Desktop Expansion, Server and Backbone Connections
Device Interfaces:
• RJ45 Ports: 16 × 10BASE-T / 100BASE-TX / 1000BASE-T
• Port Type: Gigabit Ethernet RJ45
• Auto MDI/MDI-X: Supported on All Ports
• Auto-Negotiation: Supported on All Ports
Standards and Protocols:
• Ethernet Standard: IEEE 802.3 Ethernet
• Fast Ethernet Standard: IEEE 802.3u Fast Ethernet
• Gigabit Ethernet Standard: IEEE 802.3ab Gigabit Ethernet
• Flow Control: IEEE 802.3x Flow Control
• QoS Standard: IEEE 802.1p QoS
Performance:
• Switch Fabric: 32Gbps Forwarding Capacity
• Architecture: Non-Blocking Switching Architecture
• Transmission Method: Store-and-Forward
• MAC Address Table Size: 8K
• Packet Buffer Memory: 512KBytes per Device
• QoS: 802.1p, 4 Queues
• Jumbo Frame: Up to 9600 Bytes in Gigabit Mode
• MTBF: 859,898 Hours
LED Indicators:
• Per Unit: Power
• Per Port: Activity / Link
• Per Port: Speed
Power Specifications:
• Power Supply: 100–240VAC, 50/60Hz Internal Universal Power
• Maximum Power Consumption: 13.4W
Physical Specifications:
• Acoustics: 0dB
• Dimensions: 279.4 × 180.3 × 44.45mm
• Weight: 1.65kg
Environmental Specifications:
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 55°C
• Operating Humidity: 5% to 95% RH Non-Condensing
• Environmental Compliance: RoHS Compliant
Certifications:
• Emissions: FCC Class A, CE Class A
• Safety: CSA, NRTL/C
Applications:
• Office LAN expansion
• Workgroup network connectivity
• SMB Gigabit network upgrade
• Server and backbone connections
• Desktop Gigabit connectivity
• Storage and NAS connection
• IP camera network connection
• VoIP and video streaming traffic
• Multimedia, CAD, CGI and large file transfer networks
• Rack cabinet network installation
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1016D for offices and SMB networks that need a reliable 16-port Gigabit unmanaged switch with desktop or rackmount installation.
• It is suitable for upgrading workgroups from Fast Ethernet to Gigabit connectivity, especially where large files, NAS, IP cameras, VoIP, or multimedia data are used.
• The 32Gbps switching capacity, 8K MAC address table, QoS, jumbo frame support, and cable diagnostics make it practical for stable daily business network performance.
• For proper installation, Connect Gates recommends checking the required port count, rack or desktop location, cable quality, connected device bandwidth, and whether unmanaged switching is suitable for the project.
