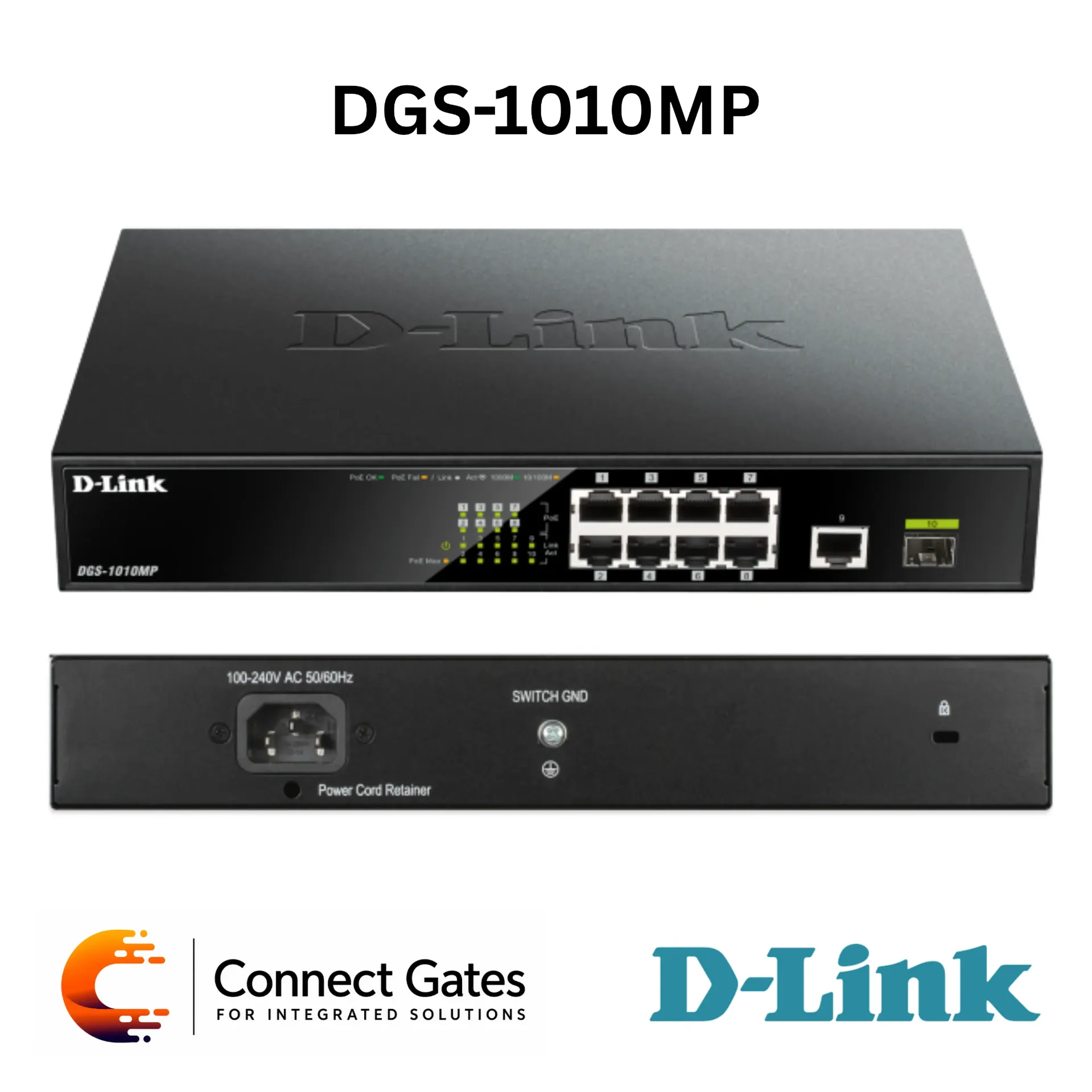

D-Link DGS-1010MP – 10-Port Gigabit PoE Switch with 8 PoE Ports, 1 Gigabit Uplink, 1 SFP Uplink, 125W PoE Budget & Fanless Rackmount Design
Overview:
• The D-Link DGS-1010MP is a 10-Port Gigabit PoE Switch designed for small offices, business networks, IP cameras, wireless access points, and IP phones.
• It provides 8 × 10/100/1000 Mbps PoE ports, 1 × Gigabit Ethernet uplink port, and 1 × 100/1000 Mbps SFP uplink port for flexible copper or fiber uplink connections.
• The switch supports IEEE 802.3at PoE, delivering up to 30W per PoE port with a total 125W PoE power budget.
• It is a plug-and-play unmanaged switch, requiring no configuration, with Auto MDI/MDI-X, Auto-Negotiation, and store-and-forward switching for easy installation and reliable performance.
• The fanless 11-inch metal rackmount design makes it suitable for quiet working environments, offices, cabinets, and small network rooms.
Key Features:
• 10-Port Gigabit PoE Switch
• 8 × 10/100/1000 Mbps PoE Ports
• 1 × Gigabit Ethernet Uplink Port
• 1 × 100/1000 Mbps SFP Uplink Port
• IEEE 802.3at PoE Support
• Up to 30W Per PoE Port
• 125W Total PoE Power Budget
• Plug and Play Installation
• Auto MDI/MDI-X on All Ports
• Auto-Negotiation Support
• Store-and-Forward Switching
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy Efficient Ethernet
• Fanless Quiet Design
• 11-Inch Desktop / Rackmount Metal Casing
• 1U Rackmount Design
• Suitable for IP Cameras, Access Points and VoIP Phones
Technical Specifications:
General:
• Brand: D-Link
• Model: DGS-1010MP
• Product Type: 10-Port Gigabit PoE Switch
• Switch Type: Unmanaged PoE Switch
• Size: 11-Inch Desktop / Rackmount Size, 1U Height
• Installation: Desktop or Rackmount
• Design: Fanless Metal Casing
Ports:
• PoE Ports: 8 × 10/100/1000 Mbps PoE Ports
• Ethernet Uplink Port: 1 × 10/100/1000 Mbps Ethernet Uplink Port
• SFP Uplink Port: 1 × 100/1000 Mbps SFP Uplink Port
• Total Ports: 10 Ports
Port Standards and Functions:
• Ethernet Standard: IEEE 802.3i 10BASE-T Ethernet
• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX Fast Ethernet
• Gigabit Ethernet Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• Fiber Standard: IEEE 802.3z Gigabit Fiber
• PoE Standard: IEEE 802.3at Power over Ethernet
• Energy Efficient Ethernet: IEEE 802.3az
• Flow Control: IEEE 802.3x Flow Control
• Auto-Negotiation: ANSI / IEEE 802.3 NWay Auto-Negotiation
• Auto MDI/MDI-X: Supported
Performance:
• Switching Capacity: 20Gbps
• Transmission Method: Store-and-Forward
• MAC Address Table: 4K Entries
• Packet Buffer Memory: 192KB
Packet Filtering / Forwarding Rates:
• Ethernet: 14,880pps Per Port
• Fast Ethernet: 148,800pps Per Port
• Gigabit Ethernet: 1,488,000pps Per Port
Data Transfer Rates:
• Ethernet: 10Mbps Half-Duplex / 20Mbps Full-Duplex
• Fast Ethernet: 100Mbps Half-Duplex / 200Mbps Full-Duplex
• Gigabit Ethernet: 2000Mbps Full-Duplex
PoE Specifications:
• PoE Standard: IEEE 802.3at
• PoE Budget: 125W
• Maximum PoE Per Port: Up to 30W
• PoE Use Cases: IP Cameras, Wireless Access Points, VoIP Phones
Network Cables:
• 10BASE-T: UTP Cat 3/4/5/5e up to 100m
• 100BASE-TX: UTP Cat 5/5e up to 100m
• 1000BASE-T: UTP Cat 5/5e up to 100m
• STP Support: EIA/TIA-568 100-ohm STP up to 100m
Physical Specifications:
• LED Indicators Per Port: Activity / Link and Speed
• LED Indicators Per Port: Power / Status
• LED Indicator Per Device: PoE Max
• Dimensions: 280 × 180 × 44mm
• Power Input: 100 to 240VAC, 50/60Hz
• Power Consumption PoE Off: 7.32W
• Power Consumption PoE On: 133.8W
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 70°C
• Operating Humidity: 0% to 95% RH Non-Condensing
• Storage Humidity: 0% to 95% RH Non-Condensing
Certifications:
• EMI: CE Class A, FCC Class A, VCCI Class A, CCC Class A
• Safety: cUL, CB, CCC, LVD
Applications:
• Small office network expansion
• IP camera systems
• Wireless access point deployment
• VoIP phone networks
• Small CCTV installations
• Fiber uplink connection
• Network storage uplink
• Quiet office network environments
• Desktop or rack cabinet installations
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1010MP for small CCTV and office network projects that need a simple plug-and-play PoE switch.
• It is suitable for powering IP cameras, wireless access points, and VoIP phones using standard Ethernet cables.
• The 125W PoE budget, 8 PoE ports, and SFP uplink port make it practical for small surveillance systems with fiber or long-distance uplink requirements.
• For proper installation, Connect Gates recommends checking the total PoE load, camera power requirements, uplink type, rack location, and cable distance before deployment.
