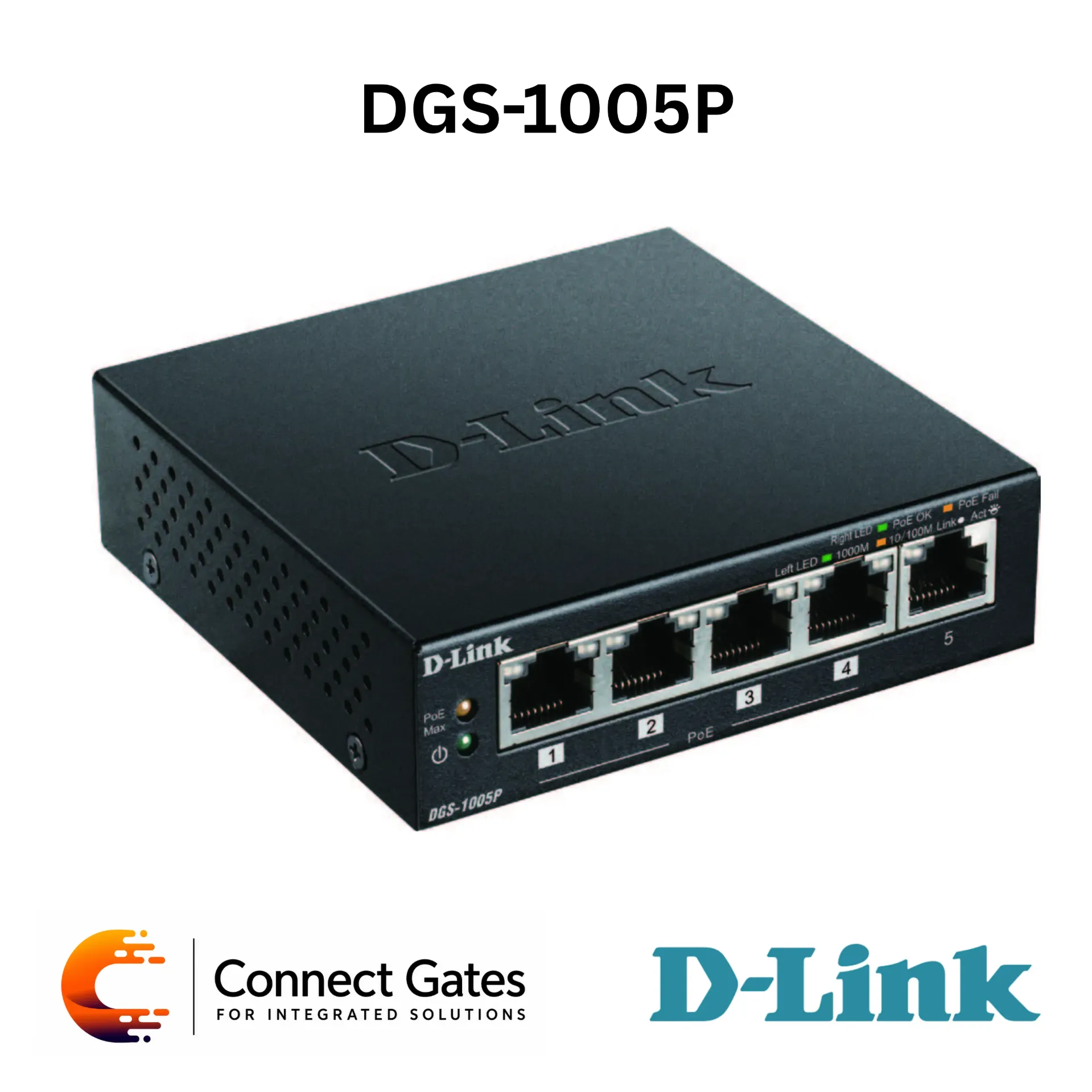

D-Link DGS-1005P – 5-Port Gigabit Switch with 4 PoE Ports, 60W PoE Budget, IEEE 802.3af/at, Plug-and-Play & Fanless Desktop Design
Overview:
• The D-Link DGS-1005P is a 5-Port Gigabit Switch with 4 PoE ports, designed for home users and small business networks.
• It enables users to connect Power over Ethernet devices such as wireless access points, IP cameras, and IP phones directly to the network.
• Ports 1 to 4 support IEEE 802.3af and IEEE 802.3at PoE standards, supplying up to 30W per PoE port with a total PoE power budget of 60W.
• The switch allows compatible PoE devices to receive both power and data through the same Ethernet cable, reducing the need for separate power adapters.
• Plug-and-play installation requires no configuration, making deployment simple and fast.
• The compact fanless design provides silent operation, making it suitable for offices, meeting rooms, workstations, shops, and small network cabinets.
Key Features:
• 5-Port Gigabit Switch: Includes five 10/100/1000Mbps Gigabit Ethernet ports.
• 4 PoE Ports: Ports 1 to 4 support PoE for powering compatible network devices.
• 60W PoE Budget: Provides total PoE power budget of 60W.
• Up to 30W Per PoE Port: Supports higher power PoE devices using IEEE 802.3af/at.
• Plug-and-Play Installation: No configuration required.
• Auto MDI/MDI-X: Supports automatic cable detection on all ports.
• Auto-Negotiation: Automatically adjusts port speed according to the connected device.
• Store-and-Forward Switching: Helps improve network performance and reduce bad packet transmission.
• IEEE 802.3x Flow Control: Helps improve reliability and reduce congestion.
• Green Technology: Supports IEEE 802.3az Energy-Efficient Ethernet, link status detection, and cable length detection.
• Fanless Silent Operation: Suitable for noise-sensitive environments.
Technical Specifications:
• Product Type: Gigabit PoE Switch
• Model: DGS-1005P
• Switch Type: Unmanaged Desktop Switch
• Ports: 5 × 10/100/1000BASE-T Ports
• PoE Ports: Ports 1 to 4
• PoE Standards: IEEE 802.3af, IEEE 802.3at
• PoE Power Budget: 60W
• Maximum PoE Power Per Port: 30W
• Switching Fabric: 10Gbps
• Transmission Method: Store-and-Forward
• Data Transfer Rates: Gigabit Ethernet 2000Mbps Full-Duplex, Fast Ethernet 100Mbps Half-Duplex / 200Mbps Full-Duplex, Ethernet 10Mbps Half-Duplex / 20Mbps Full-Duplex
• Packet Filtering / Forwarding Rate: 7.44Mpps
• MAC Address Table: 2K Entries
• RAM Buffer: 64KB
• Media Interface Exchange: Auto MDI/MDI-X on all ports
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x Flow Control, IEEE 802.1p QoS, ANSI/IEEE 802.3 NWay Auto-Negotiation
• LED Indicators: Power / PoE Max per unit, Power / Status per port, Activity / Link and Speed per port
• DC Input: External 53.5V / 1.2A Power Adapter
• Power Consumption: 64.5W Maximum PoE On, 3.08W Maximum PoE Off, 0.54W Standby
• Dimensions: 100 × 98 × 28 mm
• Weight: 0.26kg
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 70°C
• Operating Humidity: 0% to 95% RH non-condensing
• Storage Humidity: 0% to 95% RH non-condensing
• Safety Certifications: cUL, CB, LVD, BSMI
• EMI/EMC Certifications: CE, BSMI, FCC, VCCI, RCM
• Order Information: DGS-1005P – 5-Port Gigabit Switch with 4 PoE Ports
Applications:
• Small CCTV systems using PoE IP cameras.
• Connecting and powering wireless access points.
• Connecting and powering IP phones.
• Small office and home office network expansion.
• Shops, reception areas, meeting rooms, and compact network cabinets.
• Simple Gigabit PoE network installations where silent operation and easy setup are required.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1005P for small PoE installations that need Gigabit connectivity with simple unmanaged operation.
• It is a suitable choice for powering a small number of IP cameras, wireless access points, or IP phones without using separate power adapters.
• Compared with Fast Ethernet PoE switches, the DGS-1005P is better when the customer needs Gigabit speed for uplink and connected devices.
• The 60W PoE budget and 30W per PoE port make it practical for small CCTV, access point, and IP phone deployments.
• This switch is recommended when the customer needs a compact, silent, plug-and-play Gigabit PoE solution for small networks, not for large managed or high-density PoE projects.
