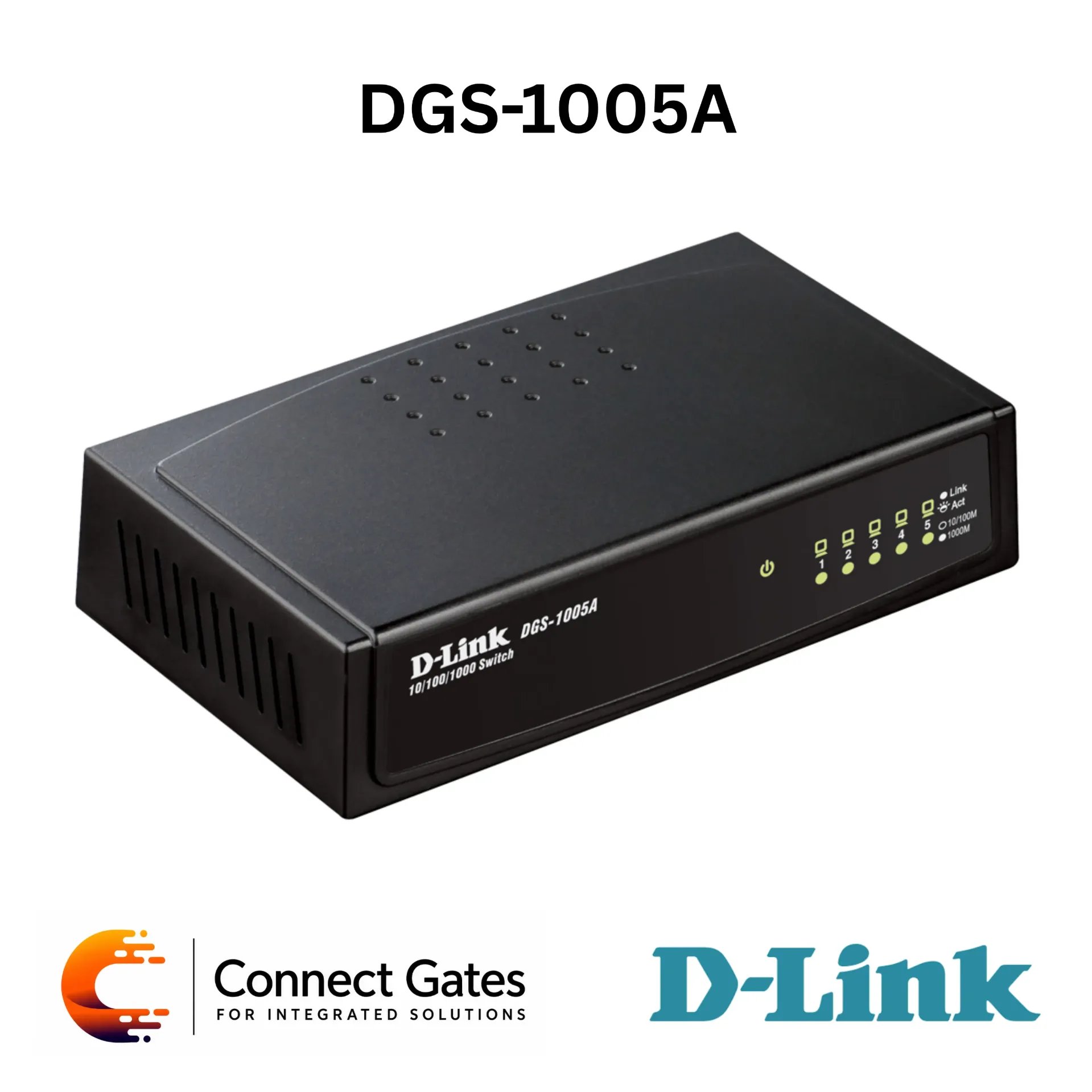

D-Link DGS-1005A – 5-Port Gigabit Switch with 10/100/1000Mbps Ports, Green Technology, Jumbo Frames, Flow Control & Plug-and-Play Design
Overview:
• The D-Link DGS-1005A is a 5-Port Gigabit Switch designed as an economical Gigabit solution for Home and SOHO networks.
• It provides five 10/100/1000Mbps Gigabit ports for expanding wired networks and upgrading connectivity.
• The switch supports plug-and-play installation, making it easy to connect computers, routers, printers, storage devices, and other wired network equipment.
• Built-in D-Link Green Technology helps reduce power consumption by powering down ports with no active link.
• The switch also adjusts power usage based on connected cable length, helping reduce energy cost and heat generation.
• It supports 9,216 Byte Jumbo Frames, Flow Control, Auto MDI/MDIX, and store-and-forward switching for reliable daily network performance.
Key Features:
• 5 Gigabit Ethernet Ports: Provides five 10/100/1000Mbps ports for high-speed wired connectivity.
• Plug-and-Play Installation: No configuration required for quick deployment.
• D-Link Green Technology: Helps reduce power consumption and heat generation.
• Energy Saving: Automatically powers down ports when no link is detected.
• Auto MDI/MDIX: Automatically adjusts cable connection type on all ports.
• Store-and-Forward Switching: Helps improve network reliability and packet handling.
• IEEE 802.3x Flow Control: Helps reduce congestion and improve data transmission stability.
• Jumbo Frame Support: Supports 9,216 Byte Jumbo Frames for improved large data transfer performance.
• 10Gbps Switching Fabric: Provides suitable switching capacity for 5-port Gigabit networking.
• RoHS Compliant: Designed with reduced hazardous materials and environmentally friendly packaging.
Technical Specifications:
• Product Type: Gigabit Switch
• Model: DGS-1005A
• Switch Type: Unmanaged Desktop Switch
• Device Interfaces: 5 × 10/100/1000Mbps Gigabit Ports
• Network Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, ANSI/IEEE 802.3 NWay Auto-Negotiation, IEEE 802.3x Flow Control, IEEE 802.3az Energy-Efficient Ethernet
• Switching Fabric: 10Gbps
• Protocol: CSMA/CD
• Topology: Star
• Transmission Method: Store-and-Forward
• Data Transfer Rates: Ethernet 10Mbps Half-Duplex / 20Mbps Full-Duplex, Fast Ethernet 100Mbps Half-Duplex / 200Mbps Full-Duplex, Gigabit Ethernet 2000Mbps Full-Duplex
• MAC Address Table: 8K Entries
• MAC Address Learning: Automatic Update
• Packet Filtering / Forwarding Rates: Ethernet 14,880pps per port, Fast Ethernet 148,800pps per port, Gigabit Ethernet 1,488,000pps per port
• RAM Buffer: 128KB per device
• Jumbo Frames: 9,216 Bytes
• Media Interface Exchange: Auto MDI/MDIX on all ports
• LED Indicators: Link / Activity / Speed per port, Power per device
• Network Cables: 10BASE-T Cat3/4/5/5e up to 100m, 100BASE-TX / 1000BASE-T Cat5/5e up to 100m
• Power Adapter: Switching 5V / 1A Level V Power Adapter
• Power Consumption: Power On Standby 1.0W AC Input, Maximum 3.0W AC Input
• Compliance: RoHS Compliant
• Category: D-Link Non-PoE Switches
Applications:
• Expanding wired networks in homes and small offices.
• Connecting desktop PCs, laptops, printers, routers, and storage devices.
• Upgrading small networks from Fast Ethernet to Gigabit connectivity.
• File sharing, media streaming, and daily office networking.
• Small workgroups that need simple unmanaged Gigabit switching.
• Suitable for users who need low-power, plug-and-play non-PoE network expansion.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DGS-1005A for customers who need a compact, economical 5-port Gigabit switch for basic network expansion.
• It is suitable for homes, small offices, shops, and workstations that need stable wired connectivity without configuration.
• Green Technology makes it a practical choice for users who want low power consumption and quiet daily operation.
• Jumbo Frames, Flow Control, Auto MDI/MDIX, and 10Gbps switching fabric make it suitable for reliable file sharing and media streaming.
• This switch is recommended for non-PoE Gigabit network expansion where the customer needs simple plug-and-play performance, not camera powering or managed switch features.
