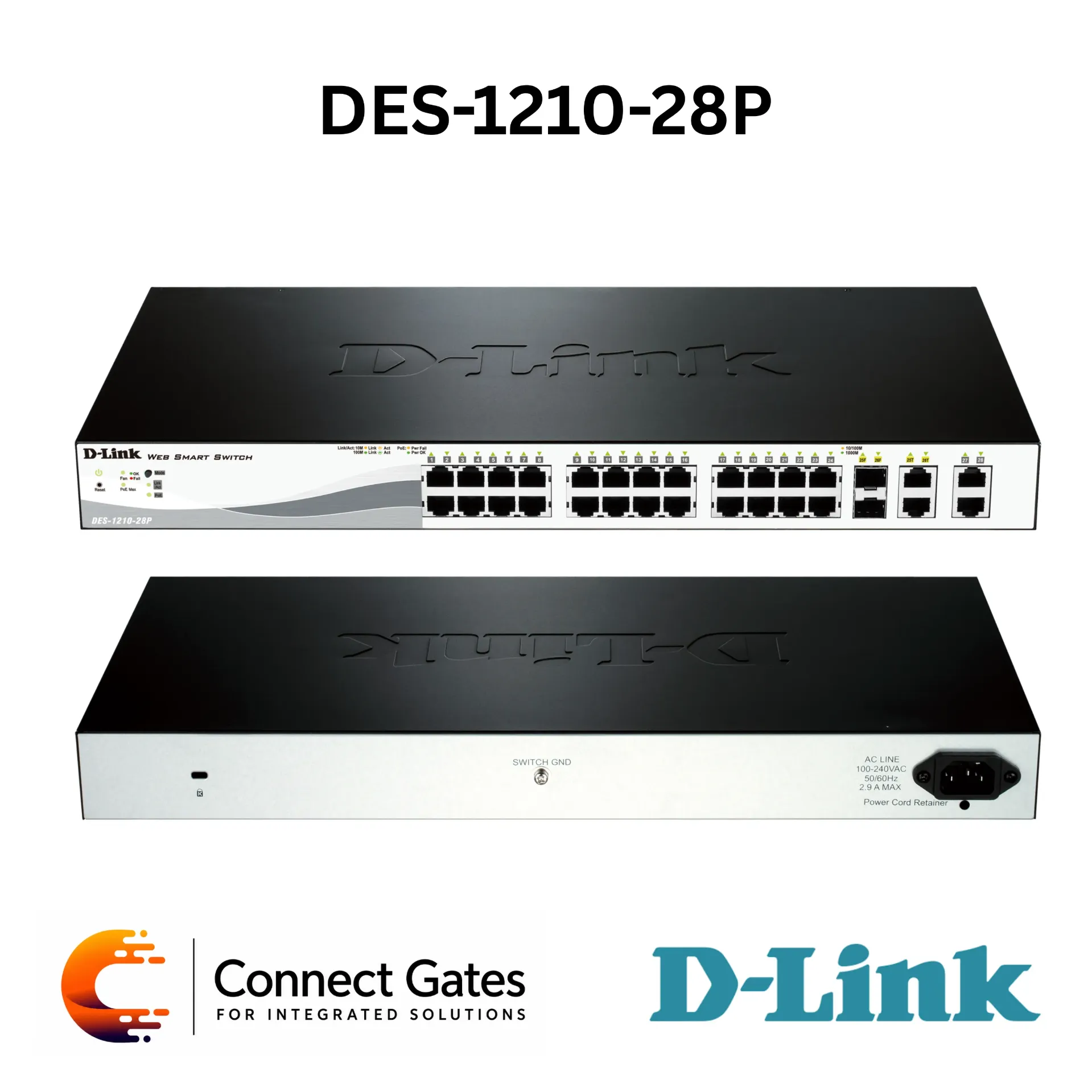

D-Link DES-1210-28P – 24-Port 10/100BASE-TX PoE Web Smart Switch with 2 Gigabit Ports & 2 Combo SFP Ports
Overview:
• The D-Link DES-1210-28P is a Web Smart Fast Ethernet PoE switch designed for SMB networks, enterprise edge, CCTV/IP surveillance, VoIP, wireless access points, and professional access layer deployments.
• It provides 24 × 10/100BASE-TX PoE ports, 2 × 10/100/1000BASE-T Gigabit ports, and 2 × combo 10/100/1000BASE-T / 100/1000 SFP ports for flexible copper and fiber uplink connectivity.
• The switch supports IEEE 802.3af and IEEE 802.3at PoE, with PoE available on all 24 Fast Ethernet ports and PoE+ support on ports 1–4.
• The DES-1210-28P provides a total PoE power budget of 193W, making it suitable for powering IP cameras, VoIP phones, wireless access points, and other PoE network devices.
• It delivers 12.8Gbps switching capacity, 9.5Mpps forwarding rate, 8K MAC address table, 4.1Mbits packet buffer memory, and 16MB flash memory.
• It includes Web-based management, D-Link Network Assistant Utility, SNMP, Compact CLI through Telnet, Auto Surveillance VLAN, Auto Voice VLAN, ACL, D-Link Safeguard Engine, Smart IP-MAC-Port Binding, DHCP Server Screening, ARP Spoofing Prevention, LLDP/LLDP-MED, loopback detection, and cable diagnostics.
Key Features:
• 24-Port Fast Ethernet Web Smart PoE Switch
• 24 × 10/100BASE-TX PoE Ports
• 2 × 10/100/1000BASE-T Gigabit RJ45 Ports
• 2 × Combo 10/100/1000BASE-T / 100/1000 SFP Ports
• IEEE 802.3af PoE Support
• IEEE 802.3at PoE+ Support
• PoE+ Support on Ports 1–4
• PoE Support on Ports 5–24
• 193W PoE Power Budget
• 12.8Gbps Switching Capacity
• 9.5Mpps Forwarding Rate
• 8K MAC Address Table
• 4.1Mbits Packet Buffer Memory
• 16MB Flash Memory
• Store-and-Forward Transmission
• Auto Surveillance VLAN
• Auto Voice VLAN
• IGMP Snooping and MLD Snooping
• STP and RSTP Support
• 802.3ad Link Aggregation
• VLAN, Management VLAN, Asymmetric VLAN, and 802.1Q Tagged VLAN
• QoS with up to 8 Queues per Port
• Bandwidth Control
• ACL with up to 50 Ingress ACL Profiles and 1280 Ingress ACL Rules
• 802.1X Authentication
• D-Link Safeguard Engine
• Port Security
• ARP Spoofing Prevention
• DHCP Server Screening
• Smart IP-MAC-Port Binding
• Duplicate Address Detection
• SSL and SSHv2 Support
• Web GUI, Compact CLI, SmartConsole Utility, SNMP, and Telnet
• LLDP and LLDP-MED
• Loopback Detection and Cable Diagnostics
• 19-Inch Metal Case
• 3 Smart Fans
Technical Specifications:
• Product Type: Web Smart Fast Ethernet PoE Switch with Gigabit & SFP Uplinks
• Brand: D-Link
• Model: DES-1210-28P
• Series: DES-1210 Series
• Port Configuration: 24 × 10/100BASE-TX PoE + 2 × 10/100/1000BASE-T + 2 × Combo 10/100/1000BASE-T / 100/1000 SFP
• Fast Ethernet PoE Ports: 24 Ports
• Gigabit RJ45 Ports: 2 Ports
• Combo RJ45/SFP Ports: 2 Ports
• Case Size: 19-Inch Metal Case
• Port Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z Gigabit Ethernet Fiber, Auto-Negotiation, IEEE 802.3x Flow Control
• PoE Standard: IEEE 802.3af and IEEE 802.3at
• PoE Capable Ports: Ports 1–24
• PoE+ Ports: Ports 1–4 up to 30W per port
• PoE Ports: Ports 5–24 up to 15.4W per port
• PoE Power Budget: 193W
• Switching Capacity: 12.8Gbps
• 64-Byte Maximum Forwarding Rate: 9.5Mpps
• Packet Buffer Memory: 4.1Mbits
• MAC Address Table: 8K Entries
• Flash Memory: 16MB
• Forwarding Method: Store-and-Forward
• LED Indicators: Power per Device, Link/Active/Speed per Port
• MTBF: 244,140 Hours
• Acoustic Level: 49.7dB
• Heat Dissipation: 818.95BTU/h
• Power Input: 100 to 240V AC, 50 to 60Hz Internal Universal Power Supply
• Maximum Power Consumption: 240W with PoE On / 17.9W with PoE Off
• Dimensions: 440 × 210 × 44mm
• Cooling Fans: 3 Smart Fans
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 5% to 95% Non-Condensing
• EMI Standards: FCC Class A, CE Class A, VCCI Class A, IC, C-Tick
• Safety Standards: cUL, CE LVD
• Layer 2 Features: 8K MAC Address Table, 802.3x Flow Control, HOL Blocking Prevention, Port Mirroring, STP, RSTP, Root Restriction, 802.3ad Link Aggregation, IGMP Snooping, MLD Snooping, and Static Multicast Support
• Link Aggregation: Up to 8 Groups per Device, 8 Ports per Group
• Port Mirroring: One-to-One, Many-to-One, Tx, Rx, and Both
• L2 Multicasting: IGMP Snooping v1/v2 with v3 Awareness, up to 256 IGMP Snooping Groups, 64 Static Multicast Addresses, MLD Snooping v1/v2, and 256 MLD Snooping Groups
• VLAN Features: 802.1Q Tagged VLAN, up to 256 Static VLAN Groups, up to 4094 VIDs, Management VLAN, Asymmetric VLAN, Auto Voice VLAN, and Auto Surveillance VLAN
• QoS Features: 802.1p, up to 8 Queues per Port, Strict, Weighted Round Robin WRR, Bandwidth Control, DSCP, ToS, TCP/UDP Port Number, and IPv6 Traffic Class
• ACL Features: ACL Based on 802.1p Priority, VLAN, MAC Address, Ethernet Type, IPv4/IPv6 Address, LLC Mask, DSCP, Protocol Type, TCP/UDP Port Number, IPv6 Traffic Class, up to 50 Ingress ACL Profiles, and up to 1280 Ingress ACL Rules
• Security Features: 802.1X, IPv4/IPv6 RADIUS Server Support, Port-Based Access Control, EAP, OTP, TLS, TTLS, PEAP, MD5 Authentication, 802.1X Session Timeout, D-Link Safeguard Engine, DHCP Server Screening, ARP Spoofing Prevention, Storm Control, Traffic Segmentation, Port Security, DoS Attack Prevention, SSLv1/v2/v3, Smart Binding IP-MAC-Port Binding, and Duplicate Address Detection
• Management Features: Web-Based GUI, Compact CLI through Telnet, Telnet Server IPv4/IPv6, SmartConsole Utility, SNMP v1/v2c/v3 over IPv4/IPv6, SNMP Trap, System Log up to 500 Entries, IPv4/IPv6 Log Server, SSHv2, TFTP Client, BootP/DHCP Client, LLDP, LLDP-MED, SNTP, DHCP Auto Configuration, RMON v1, IPv4/IPv6 Dual Stack, and DDP D-Link Discover Protocol
• MIB Support: RFC1213 MIB II, RFC1493 Bridge MIB, RFC1907 SNMPv2 MIB, RFC1757/RFC2819 RMON MIB, RFC1215 MIB Traps Convention, RFC2233 Interface Group MIB, RFC1398/1643/1650/2358/2665 Ether-like MIB, RFC2674/4363 802.1p MIB, IEEE 802.1AB-2005 LLDP-MIB, ZoneDefense MIB, and DDP MIB
• Optional Management Software: DV-600S D-View 6.0 Standard Edition, DV-600P D-View 6.0 Professional Edition
• Optional SFP Transceivers: DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, DEM-210, DEM-211, DGS-712
• Optional WDM SFP Transceivers: DEM-330T, DEM-330R, DEM-331T, DEM-331R, DEM-220T, DEM-220R
Applications:
• SMB and enterprise edge networks
• CCTV and IP surveillance PoE systems
• IP camera deployments
• VoIP phone networks
• Wireless access point networks
• Office access layer switching
• Fast Ethernet PoE access networks
• Distribution cabinets and network racks
• Fiber uplink connectivity using SFP modules
• Networks requiring Auto Surveillance VLAN and Auto Voice VLAN
• Web Smart managed deployments requiring VLAN, QoS, ACL, PoE, and secure management
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DES-1210-28P for CCTV, VoIP, and small-to-medium business projects that require managed PoE access with Gigabit and SFP uplink flexibility.
• It is suitable for IP cameras, VoIP phones, wireless access points, office access networks, and enterprise edge cabinets where PoE, VLAN, QoS, ACL, and secure management are required.
• The 24 Fast Ethernet PoE ports, 193W PoE budget, PoE+ support on ports 1–4, 2 Gigabit uplinks, 2 combo SFP ports, Auto Surveillance VLAN, Auto Voice VLAN, and Smart IP-MAC-Port Binding make it a practical option for structured PoE deployments.
• For best performance, Connect Gates recommends calculating the total PoE load before installation and reserving the Gigabit RJ45/SFP combo ports for uplinks, fiber backbone, NVR/server connectivity, or inter-cabinet connections.
