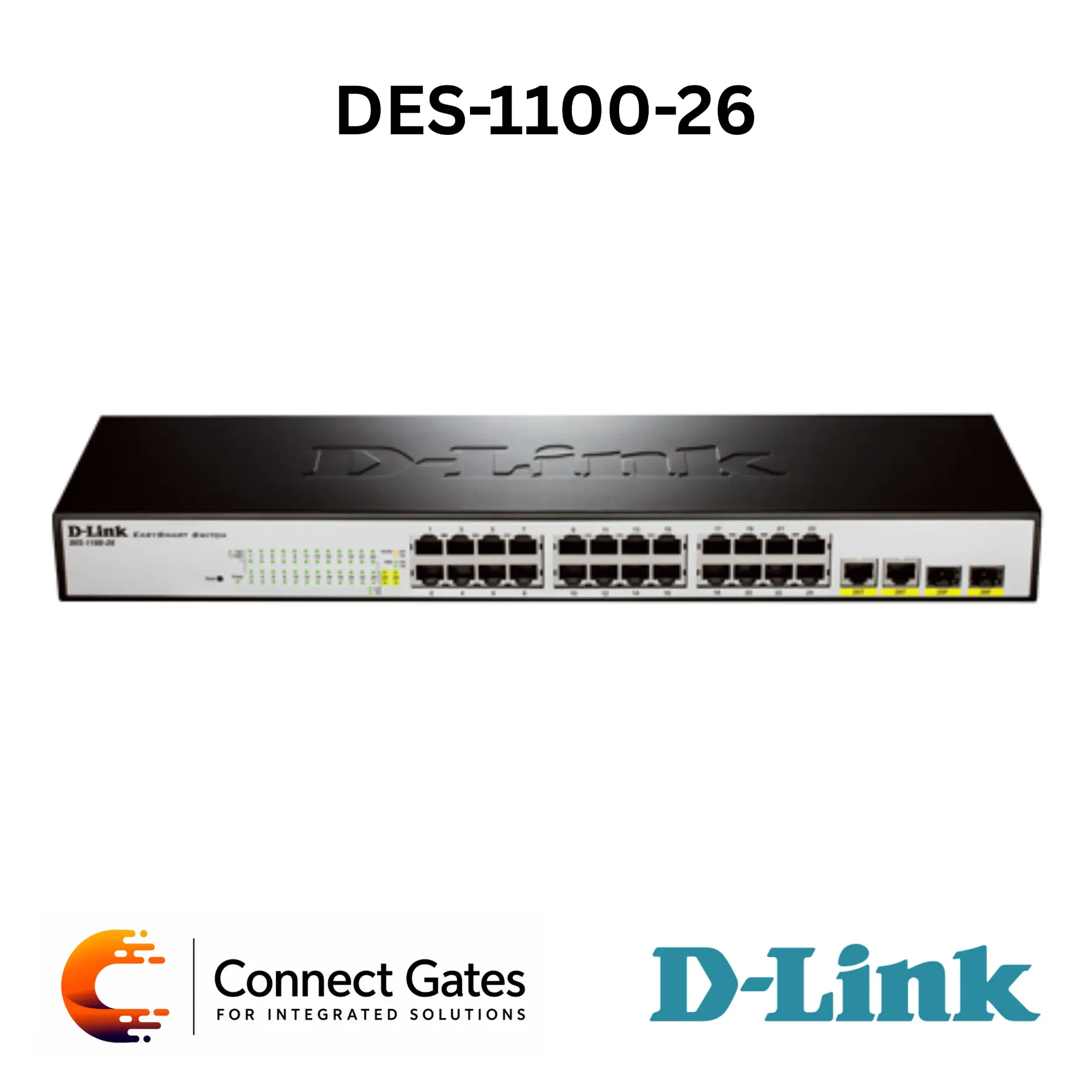

D-Link DES-1100-26 – 24-Port 10/100BASE-T EasySmart Switch with 2 Combo Gigabit RJ45/SFP Ports
Overview:
• The D-Link DES-1100-26 is an EasySmart Switch designed for small and medium business networks, branch offices, meeting rooms, access layer networks, CCTV networks, and simple managed network deployments.
• It provides 24 × 10/100BASE-TX Fast Ethernet ports and 2 × combo 10/100/1000BASE-T/SFP ports for Gigabit copper or fiber uplink connectivity.
• The DES-1100 Series combines simple Web-based management, SmartConsole utility support, Layer 2 features, VLAN, QoS, port mirroring, bandwidth control, storm control, and loopback detection in a compact metal housing.
• The DES-1100-26 delivers 8.8Gbps switching capacity, 6.54Mpps maximum packet forwarding rate, 4K MAC address table, 2.75Mbit packet buffer, and 1MB flash memory.
• It supports 802.1Q VLAN, port-based VLAN, management VLAN, IGMP Snooping, static aggregation, port mirroring, traffic statistics, 802.1p QoS, and bandwidth control.
• The switch is suitable for basic business networks that require simple management, Gigabit uplinks, fiber uplink option, quiet operation, and reliable Fast Ethernet access.
Key Features:
• 24-Port 10/100BASE-T EasySmart Switch
• 24 × 10/100BASE-TX Fast Ethernet Ports
• 2 × Combo 10/100/1000BASE-T/SFP Ports
• 8.8Gbps Switching Capacity
• 6.54Mpps Maximum Packet Forwarding Rate
• 4K MAC Address Table
• 2.75Mbit Packet Buffer
• 1MB Flash Memory
• Web-Based Management Interface
• SmartConsole Utility Support
• Layer 2 Management Features
• IGMP Snooping Support
• Loopback Detection
• Port Mirroring: One-to-One and Many-to-One
• Static Link Aggregation
• 802.1Q Tagged VLAN
• Port-Based VLAN
• Management VLAN
• 802.1p QoS Support
• 2 Queues per Port
• Strict Priority and WRR Queue Handling
• Bandwidth Control
• Storm Control Support
• Port Statistics
• Auto-Negotiation
• Auto MDI/MDI-X
• Full/Half Duplex Support
• 19-Inch Rack-Mount, 1U Design
• Passive Cooling System
• 0dB Quiet Operation
• Compact Metal Housing
Technical Specifications:
• Product Type: EasySmart Fast Ethernet Switch with Gigabit Combo Uplinks
• Brand: D-Link
• Model: DES-1100-26
• Series: DES-1100 EasySmart Series
• Product Status: Discontinued
• Port Configuration: 24 × 10/100BASE-TX + 2 × Combo 10/100/1000BASE-T/SFP
• Fast Ethernet Ports: 24 Ports
• Combo Gigabit RJ45/SFP Ports: 2 Ports
• Rack Mount Size: 19-Inch, 1U
• Switching Capacity: 8.8Gbps
• Maximum Packet Forwarding Rate: 6.54Mpps
• MAC Address Table: 4K Entries
• Packet Buffer: 2.75Mbit
• Flash Memory: 1MB
• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Duplex Mode: Full/Half Duplex Support
• Auto-Negotiation: Supported
• Auto MDI/MDI-X: Supported
• Flow Control: IEEE 802.3x Flow Control in Full Duplex Mode, Back Pressure in Half Duplex Mode
• Head-of-Line Blocking Prevention: Supported on Gigabit Combo Ports
• LED Indicators: Power, Link/Activity/Speed per Port
• Management: Web-Based Interface and SmartConsole Utility
• Layer 2 Features: IGMP Snooping, Static Aggregation, Flow Control, Loopback Detection, Port Mirroring, and Statistics
• Link Aggregation: Static Aggregation Support
• Port Mirroring: One-to-One, Many-to-One, Tx, Rx, and Both
• Statistics Groups: Sent Packets and Collisions, Received and Sent Packets, Received and Dropped Packets, Received Packets and CRC Errors
• VLAN Features: 802.1Q Tagged VLAN, Port-Based VLAN, Management VLAN, VID 1–4094
• Static VLAN Groups: Up to 26 Static VLAN Groups
• QoS Features: 802.1p QoS, 2 Queues per Port, Strict Priority, Weighted Round Robin WRR, and Bandwidth Control
• Bandwidth Control: Inbound/Outbound Port-Based Bandwidth Control
• Bandwidth Control Granularity: 512Kbps / 1024Kbps / 2048Kbps / 4096Kbps / 8192Kbps / 16384Kbps / 32768Kbps / 65536Kbps
• Security Features: Static MAC, Broadcast Storm Control, Web-Based Access Control, and Password-Based Access Control
• Maximum Static MAC Entries: 128 Entries
• Port Configuration: Speed, Duplex Mode, and Flow Control Settings
• Configuration Backup/Restore: Supported via HTTP
• Power Input: 100 to 240V AC, 50/60Hz Internal Universal Power Supply
• Maximum Power Consumption: 15.96W
• Standby Power Consumption: 4.17W
• Heat Dissipation: 54.46BTU/hr
• Noise Level: 0dB
• Cooling System: Passive Cooling System
• Dimensions: 440 × 140 × 44mm
• Weight: 1.9kg
• MTBF: 490,797 Hours
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 70°C
• Operating Humidity: 10% to 95% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
• EMI Standards: FCC Class A, CE Class A, VCCI Class A, CCC, IC, C-Tick
• Safety Standards: UL / cUL, LVD
• Recommended Use: SMB networks, branch offices, meeting rooms, CCTV access networks, office access layer, Fast Ethernet endpoints, and simple managed networks requiring Gigabit copper/fiber uplinks.
Applications:
• Small and medium business networks
• Branch offices and meeting rooms
• Office access layer switching
• CCTV and IP surveillance access networks
• Data network expansion
• Fast Ethernet endpoint connectivity
• Fiber uplink connectivity using SFP modules
• Simple managed networks requiring VLAN and QoS
• Networks requiring quiet fanless operation
• Basic managed deployments using Web UI or SmartConsole Utility
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DES-1100-26 for small business and basic CCTV/network projects that need simple management with Fast Ethernet access ports and Gigabit uplink flexibility.
• It is suitable for offices, small branches, meeting rooms, small surveillance networks, and access cabinets where VLAN, QoS, port mirroring, loopback detection, and simple Web-based management are required.
• The 24 Fast Ethernet ports, 2 combo Gigabit RJ45/SFP ports, 8.8Gbps switching capacity, 0dB passive cooling, VLAN, QoS, and SmartConsole support make it a practical option for cost-efficient managed access networks.
• Since this model is marked as discontinued, Connect Gates recommends checking availability first or considering newer D-Link Smart Managed alternatives for new projects when long-term availability and support are important.
