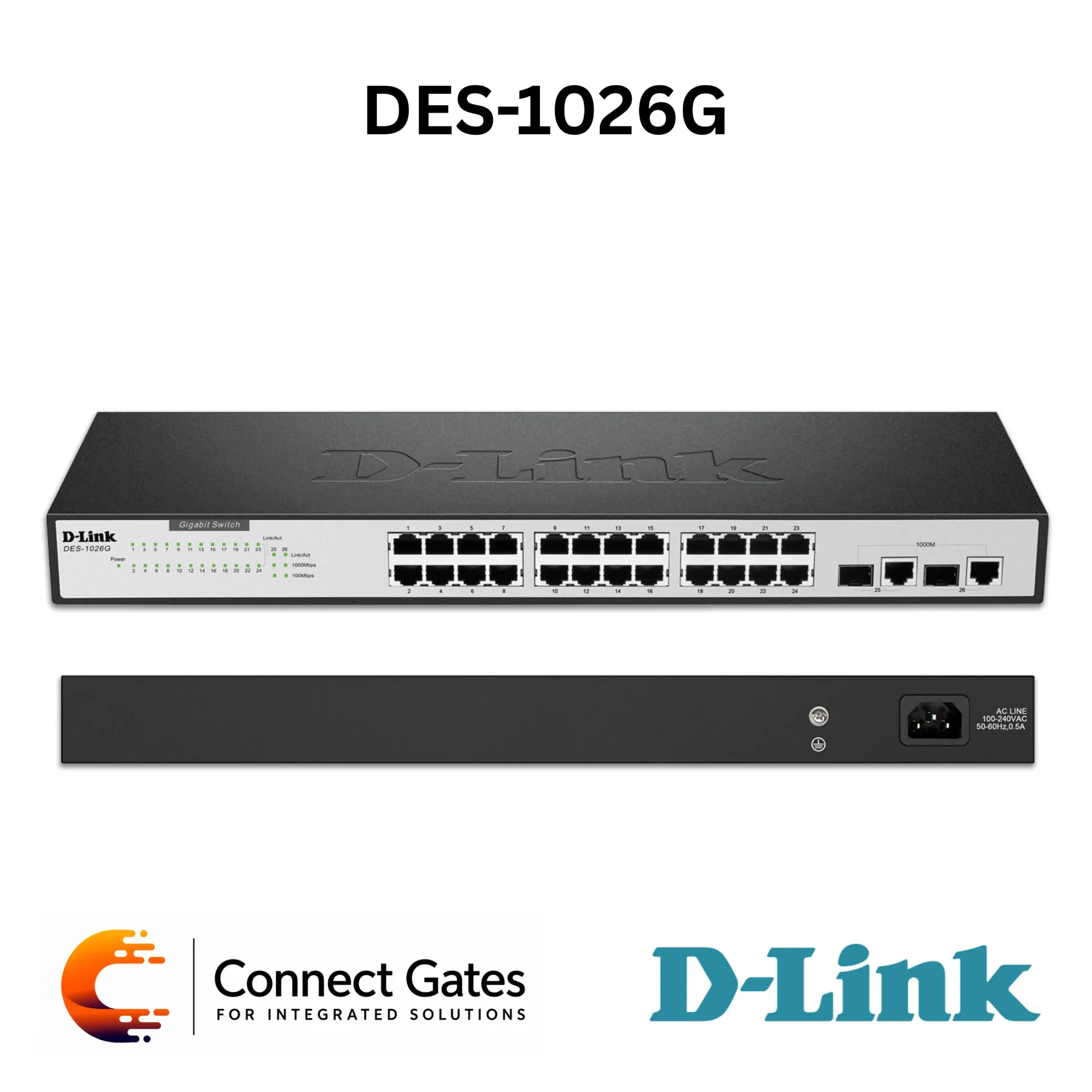

D-Link DES-1026G – 24-Port Fast Ethernet Unmanaged Switch with 2 × Gigabit Uplink Ports, 8.8Gbps Switching Capacity & 19-Inch Rackmount Design
Overview:
• The D-Link DES-1026G is a 24-Port Fast Ethernet Unmanaged Switch designed for small and medium business networks, office LAN, access network expansion, and high-stability wired network applications.
• It provides 24 × 10/100BASE-TX Fast Ethernet ports and 2 × 10/100/1000BASE-T Gigabit uplink ports, offering flexible network connectivity for business access networks.
• The switch supports full wire-speed non-blocking switching performance, helping provide stable data transmission across connected devices.
• It supports Auto-MDI/MDIX on each port, making installation easier without the need for crossover cables.
• The 19-inch rackmount housing makes it suitable for network cabinets, IT rooms, office racks, and structured cabling installations.
Key Features:
• 24 Fast Ethernet ports
• 2 Gigabit uplink ports
• Unmanaged switch
• 19-inch rackmount design
• 8.8Gbps switching capacity
• 6.55Mpps packet forwarding rate
• 8K MAC address table
• 1.25Mbits buffer
• Auto-MDI/MDIX support
• Full wire-speed non-blocking switching
• Per-port Speed LED
• Per-port Link/Act LED
• 100–240V AC power input
• Low maximum power consumption
• Suitable for SMB access networks
Technical Specifications:
General:
• Brand: D-Link
• Model: DES-1026G
• Product Type: 24-Port Fast Ethernet Unmanaged Switch
• Management: Unmanaged
• Installation: 19-Inch Rackmount
• Application: SMB Networks, Office LAN, Access Network Expansion, Structured Cabling Networks
Device Interfaces:
• Fast Ethernet Ports: 24 × 10/100BASE-TX
• Gigabit Uplink Ports: 2 × 10/100/1000BASE-T
• Port Negotiation: Auto-Negotiating Ports
Standards:
• Ethernet Standard: IEEE 802.3
• Fast Ethernet Standard: IEEE 802.3u
• Flow Control: IEEE 802.3x
Performance:
• Chipset: BCM5312KQMG + BCM5248UA × 3 + B5011A2 × 2
• Switching Capacity: 8.8Gbps
• Packet Forwarding Rate: 6.55Mpps
• MAC Address Table: 8K
• Buffer: 1.25Mbits
• Switching Performance: Full Wire-Speed Non-Blocking
Cable Type:
• 10/100BASE-TX: Cat 3/4/5 Twisted Pair, up to 100m
• 1000BASE-T: Cat 5 Twisted Pair, up to 100m
LED Indicators:
• Per-Port Speed LED: Supported
• Per-Port Link/Act LED: Supported
Power Specifications:
• Power Supply: 100–240V AC
• Maximum Power Consumption: 9W
Physical Specifications:
• Dimensions: 283 × 178 × 44mm
• Heat Emission: Natural Heat Dissipation
Environmental Specifications:
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 70°C
• Operating Humidity: 10% to 85%
• Storage Humidity: 10% to 90%
Applications:
• Office LAN expansion
• SMB access networks
• Structured cabling installations
• Network cabinet deployment
• Computer and printer connectivity
• Router and server uplink connection
• Fast Ethernet access switching
• Gigabit uplink network connection
• Small and medium business wired networks
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DES-1026G for projects that need a reliable 24-port Fast Ethernet unmanaged switch with 2 Gigabit uplink ports.
• It is suitable for offices, schools, small and medium businesses, and access-layer networks where 10/100 Mbps access ports are sufficient.
• The 2 Gigabit uplink ports provide better uplink flexibility for connecting to the main switch, router, or server side.
• For proper installation, Connect Gates recommends checking the required port count, uplink bandwidth, rack space, cable quality, and whether the project requires unmanaged or smart managed features before deployment.
