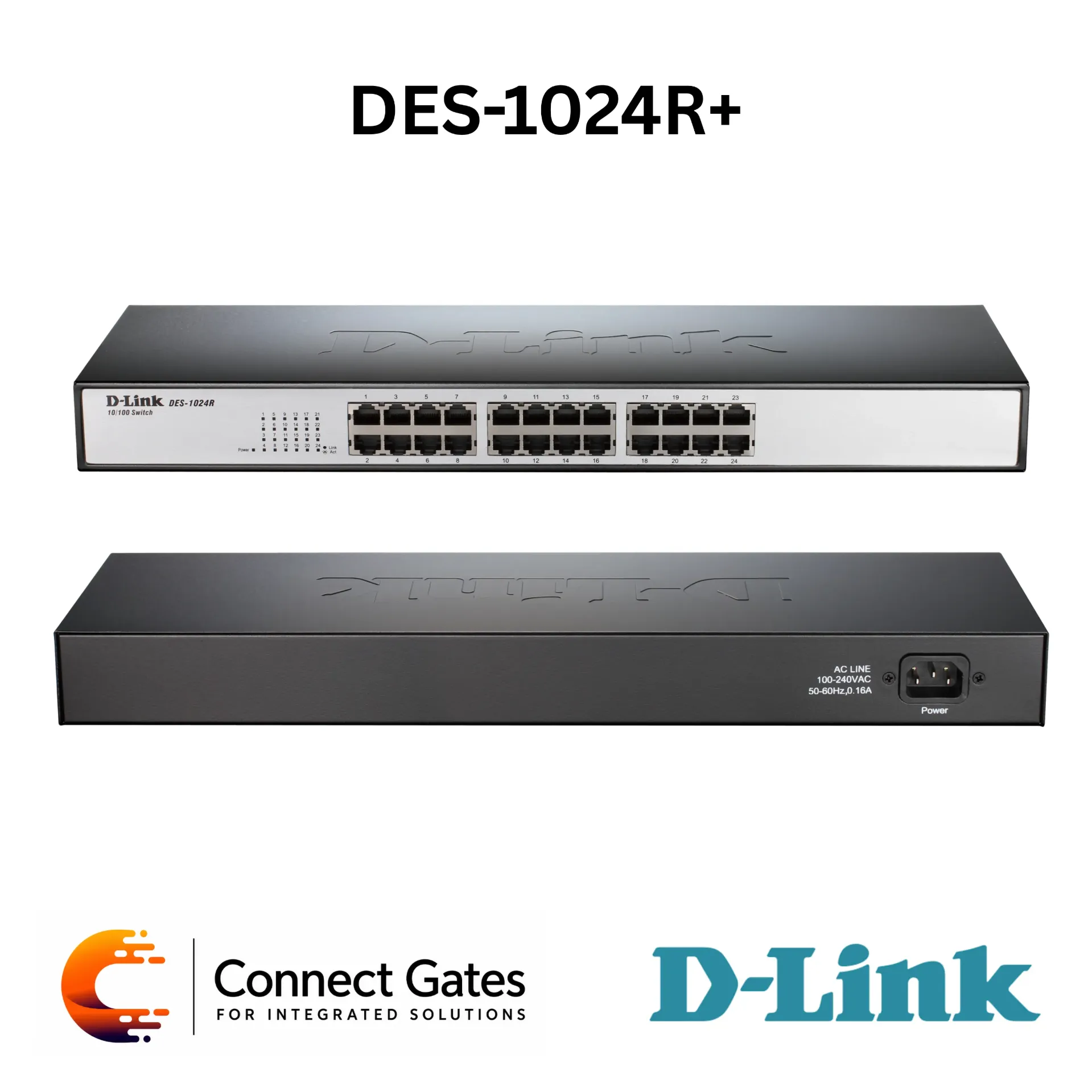

D-Link DES-1024R+ – 24-Port 10/100Mbps Unmanaged Rackmount Switch with Optional 2-Port 100Mbps Fiber Module, Flow Control & Auto MDI/MDIX

• The D-Link DES-1024R+ is a 24-Port 10/100Mbps Unmanaged Switch designed for workgroups, office LAN, small business networks, and access-layer Fast Ethernet expansion.

• It provides 24 × 10/100Mbps auto-sensing ports, allowing users to connect workstations, servers, hubs, routers, printers, and other Ethernet devices easily.

• The switch supports auto-negotiation between 10Mbps and 100Mbps, as well as full-duplex and half-duplex operation for flexible network connectivity.

• It includes Auto MDI/MDIX on all 10/100Mbps ports, eliminating the need for crossover cables or uplink buttons.

• The DES-1024R+ includes 1 expansion slot for the optional DES-102F 2-Port 100Mbps Fast Ethernet Fiber Module, supporting switch-to-switch cascading or server connections over fiber cables up to 2km.

• It also supports IEEE 802.3x Flow Control, back pressure, store-and-forward switching, 4K MAC address table, and 19-inch rackmount installation for professional network cabinets.

• 24 × 10/100Mbps ports

• Unmanaged Fast Ethernet switch

• 19-inch rackmount design

• 1U height

• Optional 2-port 100Mbps fiber module support

• DES-102F optional fiber module

• Auto MDI/MDIX on all 10/100Mbps ports

• Full / half-duplex support

• IEEE 802.3x Flow Control in full-duplex mode

• Back pressure in half-duplex mode

• Store-and-forward switching

• 4K MAC address table

• 256KB RAM buffer per 8 ports

• Auto-correction of twisted-pair polarity reverse

• Automatic network configuration learning

• Internal universal power supply

• 1 built-in DC fan

• Suitable for workgroup and office LAN networks

• Brand: D-Link

• Model: DES-1024R+

• Product Type: 24-Port 10/100Mbps Unmanaged Switch

• Management: Unmanaged

• Installation: 19-Inch Rackmount

• Rack Height: 1U

• Application: Workgroups, Office LAN, Small Business Networks, Fast Ethernet Access Networks

• Built-In Ports: 24 × 10/100Mbps Ports

• Expansion Slot: 1 Slot for Optional Fiber Module

• Optional Module: DES-102F

• Optional Fiber Ports: 2 × 100BASE-FX Ports with SC Connectors

• Ethernet Standard: IEEE 802.3 10BASE-T

• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX

• Fiber Standard: IEEE 802.3u 100BASE-FX

• Auto-Negotiation: ANSI / IEEE 802.3 NWay

• Flow Control: IEEE 802.3x Flow Control

• Protocol: CSMA/CD

• Topology: Star

• Ethernet Half-Duplex: 10Mbps

• Ethernet Full-Duplex: 20Mbps

• Fast Ethernet Half-Duplex: 100Mbps

• Fast Ethernet Full-Duplex: 200Mbps

• 10BASE-T: 2-Pair UTP Cat. 3 / 4 / 5 up to 100m

• 10BASE-T STP: EIA/TIA-568 100-ohm STP up to 100m

• 100BASE-TX: 2-Pair UTP Cat. 5 up to 100m

• 100BASE-TX STP: EIA/TIA-568 100-ohm STP up to 100m

• 100BASE-FX: Multi-Mode 62.5/125µm or 50/125µm Fiber with SC Connector

• Transmission Method: Store-and-Forward

• MAC Address Table: 4K Entries per Device

• Packet Filtering Rate - Ethernet: 14,880pps per Port

• Packet Filtering Rate - Fast Ethernet: 148,800pps per Port

• Packet Forwarding Rate - Ethernet: 14,880pps per Port

• Packet Forwarding Rate - Fast Ethernet: 148,800pps per Port

• RAM Buffer: 256KB per 8 Ports

• Flow Control: IEEE 802.3x Flow Control per 10/100Mbps Port in Full-Duplex

• Back Pressure: Per 10/100Mbps Port in Half-Duplex

• Media Interface Exchange: Auto-Negotiation of MDI-II / MDI-X for All 10/100Mbps Ports

• Twisted-Pair Reverse Polarity: Auto-Correction

• Easy Expansion: Switch-to-Switch Cascading Supported

• Fiber Expansion: Optional 2 × 100Mbps Fiber Ports up to 2km

• Per Device: Power

• Per 10/100Mbps Port: 100Mbps Speed

• Per 10/100Mbps Port: Link / Activity

• AC Input: 100–240VAC, 50/60Hz

• Power Type: Internal Universal Power Supply

• Maximum Power Consumption: 39W

• Ventilation: 12V / 0.09A DC Fan × 1

• Dimensions: 441 × 207 × 44mm

• Rack Size: 19-Inch Rackmount Width, 1U Height

• Weight: 2.65kg

• Weight with DES-102F Module: 2.7kg

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -30°C to 60°C

• Humidity: 5% to 95% Non-Condensing

• EMI: FCC Class A, CE Class A, C-Tick, VCCI Class A, BSMI Class A

• Safety: UL, CSA, TUV/GS

• DES-102F: 2 × 100Mbps Fast Ethernet Fiber Ports with SC Connectors

• Workgroup LAN expansion

• Office Fast Ethernet networks

• Small business access switching

• Computer and workstation connectivity

• Server and hub connection

• Switch-to-switch cascading

• Optional fiber uplink connection

• Rack cabinet network deployment

• Departmental network expansion

• Connect Gates recommends the D-Link DES-1024R+ for workgroup and office networks that require a reliable 24-port Fast Ethernet unmanaged switch with rackmount installation.

• It is suitable for basic LAN expansion where 10/100Mbps connectivity is sufficient for workstations, printers, routers, and office devices.

• The optional DES-102F fiber module is useful when fiber uplink or switch-to-switch cascading over longer distance is required.

• For proper installation, Connect Gates recommends checking the required port count, rack space, fiber module requirement, cable quality, uplink design, and whether the project requires Fast Ethernet or Gigabit performance before deployment.
