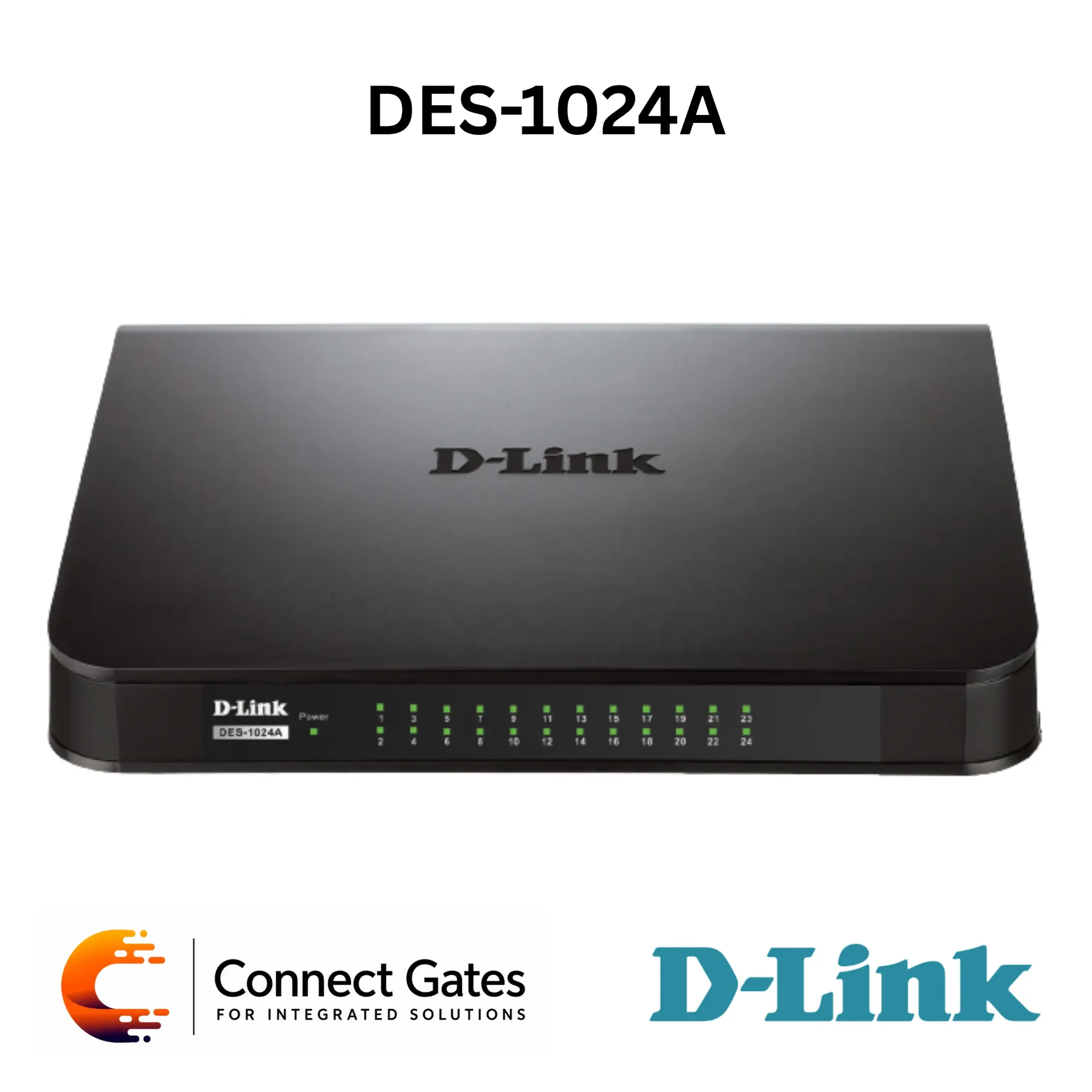

D-Link DES-1024A – 24-Port 10/100 Mbps Unmanaged Switch with Energy-Efficient Ethernet, Flow Control & Plug-and-Play Installation

• The D-Link DES-1024A is a 24-Port 10/100 Mbps Unmanaged Switch designed for SOHO networks, small offices, SMB networks, and simple Fast Ethernet network expansion.

• It provides 24 × 10/100BASE-TX ports, allowing users to connect computers, printers, routers, storage devices, IP cameras, and other Ethernet devices easily.

• The switch supports plug-and-play installation, requiring no configuration, making it suitable for quick and simple deployment.

• It supports IEEE 802.3x Flow Control, full/half-duplex operation, auto-negotiation, and Fast Ethernet data transfer up to 200 Mbps full-duplex.

• The DES-1024A uses IEEE 802.3az Energy-Efficient Ethernet, helping reduce power usage, heat, and operating cost while maintaining reliable network performance.

• 24 Fast Ethernet ports

• 10/100 Mbps support

• Unmanaged switch

• Plug-and-play installation

• IEEE 802.3az Energy-Efficient Ethernet

• EnergyStar Level V certified

• RoHS compliant

• IEEE 802.3x Flow Control

• Full / half-duplex support

• Auto-negotiation support

• 148,800pps forwarding rate for 100M

• 14,880pps forwarding rate for 10M

• Low power consumption

• Quiet and cool operation

• Suitable for SOHO and SMB networks

• Brand: D-Link

• Model: DES-1024A

• Product Type: 24-Port 10/100 Mbps Unmanaged Switch

• Management: Unmanaged

• Installation: Plug and Play

• Device Interfaces: 24 × 10/100BASE-TX Ports

• Application: SOHO Networks, Small Offices, SMB Networks, Fast Ethernet Network Expansion

• Ethernet Standard: IEEE 802.3 10BASE-T

• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX

• Flow Control: IEEE 802.3x Flow Control

• Energy Efficient Ethernet: IEEE 802.3az EEE

• Auto-Negotiation: ANSI / IEEE 802.3 NWay

• Ethernet Half-Duplex: 10 Mbps

• Ethernet Full-Duplex: 20 Mbps

• Fast Ethernet Half-Duplex: 100 Mbps

• Fast Ethernet Full-Duplex: 200 Mbps

• Port Packet Filtering / Forwarding Rate 100M: 148,800pps

• Port Packet Filtering / Forwarding Rate 10M: 14,880pps

• Power On Standby DC Input: 1.43W

• Power On Standby AC Input: 2.01W

• Maximum DC Input: 6.42W

• Maximum AC Input: 7.80W

• Heat Dissipation Standby AC Input: 6.86BTU/h

• Maximum Heat Dissipation AC Input: 26.61BTU/h

• Dimensions: 231 × 158 × 46mm

• Weight: 523g

• MTBF: 517,151 Hours

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -10°C to 70°C

• Operating Humidity: 10% to 90% Non-Condensing

• Storage Humidity: 5% to 90% Non-Condensing

• Certifications: CE, FCC, ICES-003, C-Tick, cUL, LVD

• SOHO network expansion

• Small office LAN switching

• SMB Fast Ethernet network setup

• Computer and printer connectivity

• Router and storage device connection

• Basic IP camera connection

• File sharing and media streaming

• Simple plug-and-play wired network deployment

• Connect Gates recommends the D-Link DES-1024A for homes, small offices, and SMB networks that need a simple 24-port Fast Ethernet unmanaged switch with low power consumption.

• It is suitable for basic wired networks where 10/100 Mbps connectivity is enough for daily internet, printers, computers, and light network devices.

• The 24-port capacity, Flow Control, plug-and-play installation, and Energy-Efficient Ethernet make it practical for simple and economical network expansion.

• For proper installation, Connect Gates recommends checking the required port count, internet speed, device bandwidth requirements, cable quality, and whether the project needs Fast Ethernet or Gigabit performance before deployment.
