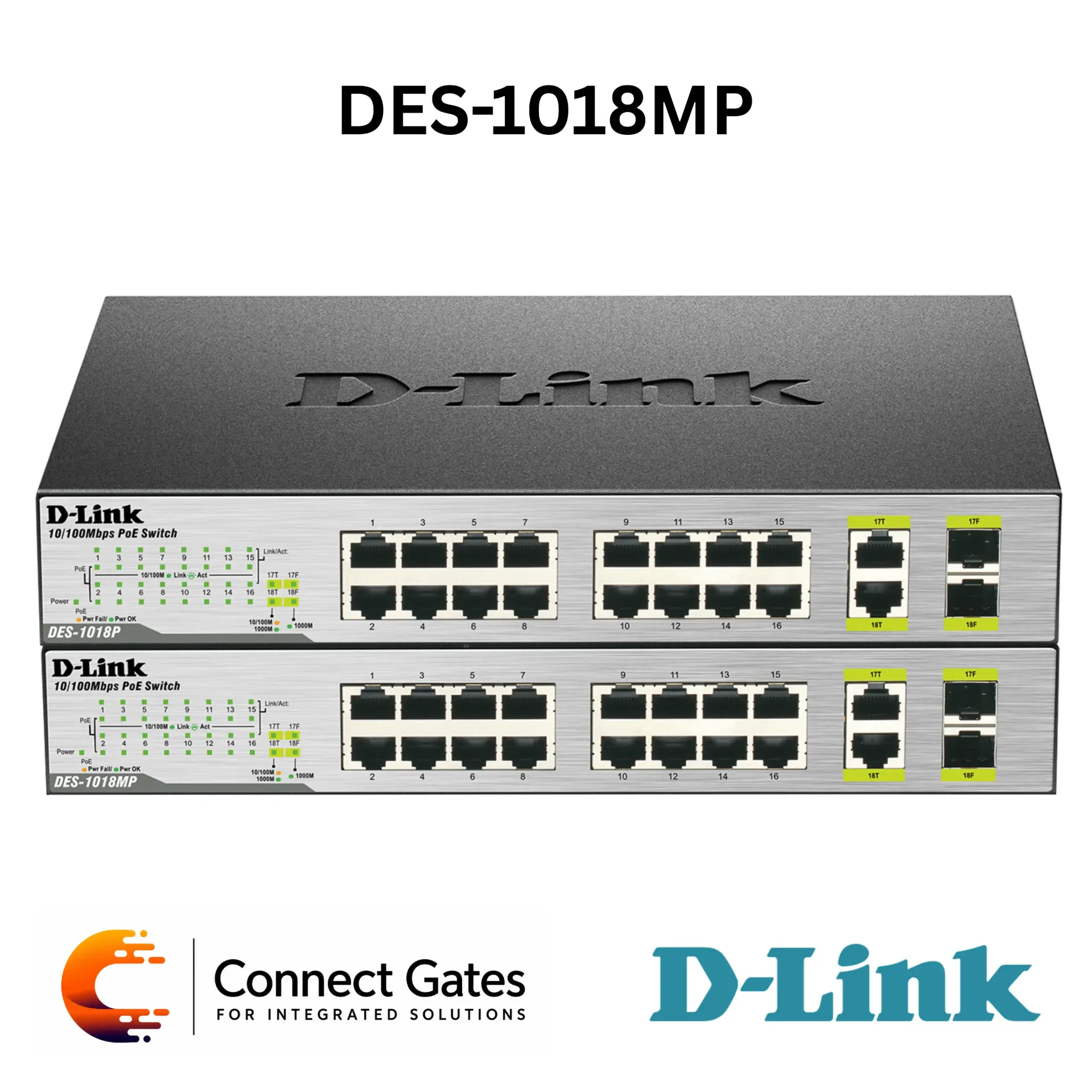

D-Link DES-1018MP – 18-Port Unmanaged Desktop PoE Switch with 16 × 10/100 Mbps PoE Ports, 2 × Gigabit Combo Uplink Ports, 246.4W PoE Budget & 2kV Surge Protection
Overview:
• The D-Link DES-1018MP is an 18-Port Unmanaged Desktop PoE Switch designed for IP cameras, wireless access points, IP phones, NVR connections, and small business network applications.
• It provides 16 × 10/100 Mbps PoE ports and 2 × 10/100/1000BASE-T / SFP combo uplink ports, giving users PoE access ports with flexible copper or fiber uplink options.
• The switch supports IEEE 802.3af PoE, with up to 15.4W per PoE port and a total 246.4W PoE power budget, allowing PoE devices to receive both power and data through Ethernet cables.
• It includes 2kV surge protection on PoE ports, IEEE 802.3x Flow Control, Auto MDI/MDIX, store-and-forward switching, and plug-and-play installation.
• It also supports IEEE 802.3az Energy Efficient Ethernet, and the DES-1018MP includes 1 smart fan to help reduce power consumption and noise when possible.
Key Features:
• 18-port unmanaged desktop PoE switch
• 16 × 10/100 Mbps PoE ports
• 2 × Gigabit combo uplink ports
• 10/100/1000BASE-T / SFP combo uplink support
• IEEE 802.3af PoE support
• Up to 15.4W per PoE port
• 246.4W total PoE power budget
• 2kV surge protection on PoE ports
• 7.2Gbps switching fabric
• 5.36Mpps maximum forwarding rate
• 8K MAC address table
• Store-and-forward transmission
• Auto MDI/MDIX on all ports
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy Efficient Ethernet
• Plug-and-play installation
• 1 smart fan
• Suitable for IP cameras, APs and IP phones
Technical Specifications:
General:
• Brand: D-Link
• Model: DES-1018MP
• Product Type: 18-Port Unmanaged Desktop PoE Switch
• Management: Unmanaged
• Installation: Plug and Play
• Application: CCTV Networks, IP Cameras, Wireless Access Points, IP Phones, NVR Connections, Small Business Networks
Device Interfaces:
• PoE Ports: 16 × 10/100 Mbps PoE Ports
• Combo Uplink Ports: 2 × 10/100/1000BASE-T / SFP Combo Ports
• Total Ports: 18 Ports
Standards:
• Ethernet Standard: IEEE 802.3 10BASE-T Ethernet
• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX Fast Ethernet
• Fiber Standard: IEEE 802.3z
• Flow Control: IEEE 802.3x Flow Control
• Energy Efficient Ethernet: IEEE 802.3az EEE
• PoE Standard: IEEE 802.3af
Performance:
• Switching Fabric: 7.2Gbps
• 64 Byte Max. Forwarding Rate: 5.36Mpps
• Transmission Method: Store-and-Forward
• MAC Address Table: 8K
• Packet Buffer: 384KB
• Media Interface Exchange: Auto MDI/MDIX Adjustment for All Ports
PoE Specifications:
• PoE Standard: IEEE 802.3af
• PoE Ports: Ports 1 to 16
• Maximum PoE Per Port: Up to 15.4W
• PoE Power Budget: 246.4W
• Surge Protection: Ports 1 to 16 up to 2kV
LED Indicators:
• Per Unit: Power
• Per Port: Activity / Link and Speed
• Per PoE Port: Power Fail, Power OK
Physical Specifications:
• Fan: 1 Smart Fan
• Dimensions: 280 × 210 × 44mm
• Weight: 2.15kg
• Power Input: Internal AC Input 100–240VAC, 50–60Hz
Power Consumption:
• Maximum Power Consumption PoE On: 301.6W
• Maximum Power Consumption PoE Off: 15.6W
• Standby Power Consumption: 9.3W @100V / 10.5W @240V
Environmental Specifications:
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 0% to 95% RH Non-Condensing
• Storage Humidity: 0% to 95% RH Non-Condensing
• MTBF: 361,802 Hours
• Heat Dissipation: 1029.5BTU/h
Certifications:
• Certifications: FCC Class A, CE, CCC, RoHS, VCCI, BSMI, C-Tick
• Safety: CB, cUL, LVD, CCC, BSMI
Optional SFP Transceivers:
• DEM-310GT: 1000BASE-LX, Single-Mode, 10km
• DEM-311GT: 1000BASE-SX, Multi-Mode, 550m
• DEM-312GT2: 1000BASE-SX, Multi-Mode, 2km
• DEM-314GT: 1000BASE-LHX, Single-Mode, 50km
• DEM-315GT: 1000BASE-ZX, Single-Mode, 80km
• DEM-330T / R: Gigabit WDM Transceiver, Single-Mode, 10km
• DEM-331T / R: Gigabit WDM Transceiver, Single-Mode, 40km
• DEM-302S-LX: 1000BASE-LX, Single-Mode, 2km
• DEM-302S-BXD / BXU: Gigabit WDM Transceiver, Single-Mode, 2km
Applications:
• IP CCTV camera systems
• Wireless access point deployment
• IP phone networks
• NVR uplink connections
• Outdoor PoE camera installations
• Small business PoE networks
• Fiber uplink network expansion
• Plug-and-play PoE deployment
• NAS, desktop and laptop network connectivity
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DES-1018MP for CCTV and small business projects that require 16 PoE ports with a high 246.4W PoE budget.
• It is suitable for powering multiple IP cameras, wireless access points, and IP phones, while using the Gigabit combo uplink ports for copper or fiber backbone connection.
• The 2kV surge protection makes it useful for PoE installations where cameras or APs may be exposed to outdoor cabling risks.
• For proper installation, Connect Gates recommends checking the total PoE load, camera/AP power requirements, SFP module type, uplink distance, cabinet ventilation, and cable quality before deployment.
