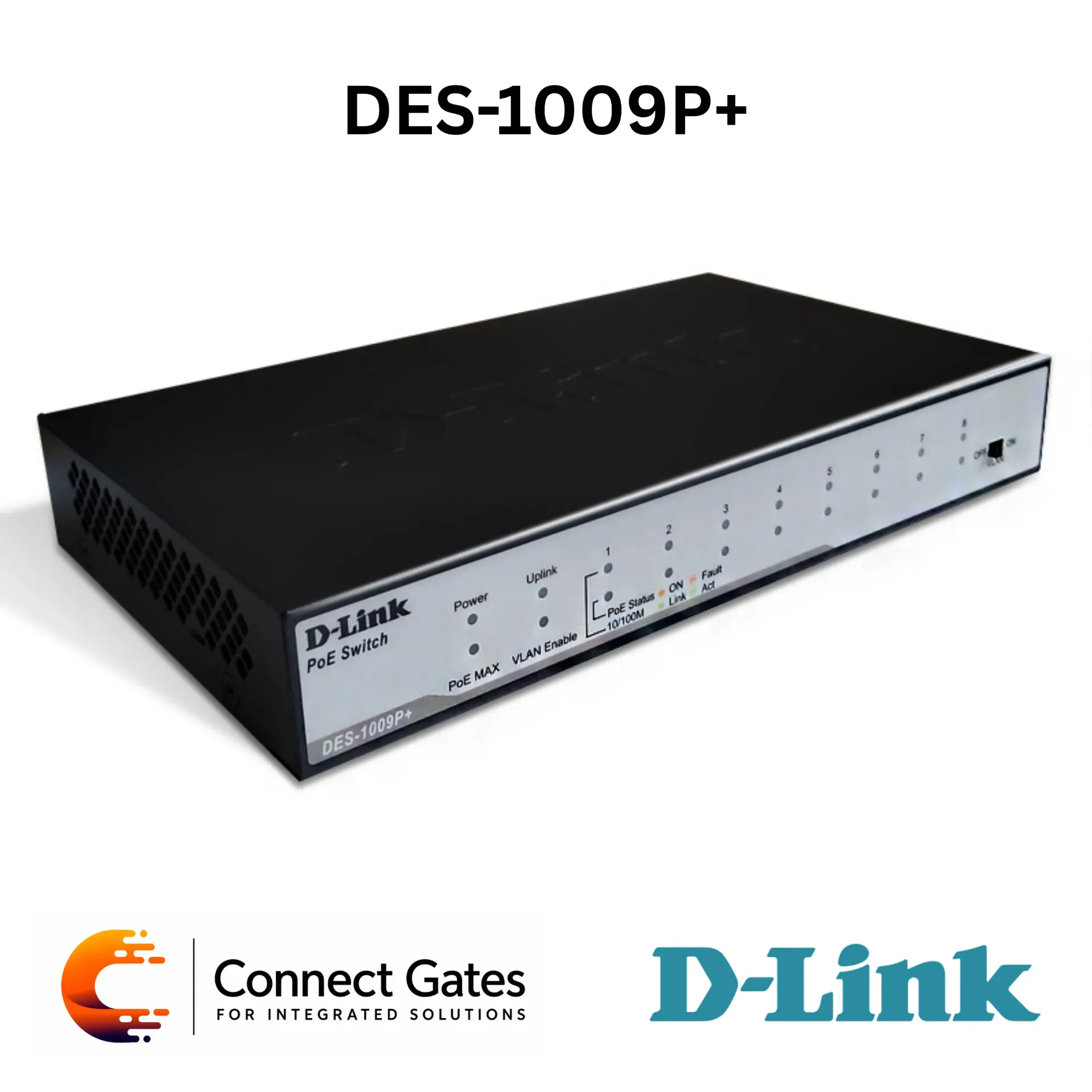

D-Link DES-1009P+ – 8-Port Fast Ethernet PoE Desktop Switch with 1 × Gigabit Uplink Port, 96W PoE Budget, VLAN Switch & Fanless Silent Design
Overview:
• The D-Link DES-1009P+ is an 8-Port Fast Ethernet PoE Desktop Switch designed for small offices, home networks, IP cameras, wireless access points, IP phones, and simple PoE network expansion.
• It provides 8 × 10/100 Mbps PoE ports and 1 × Gigabit uplink port, allowing users to connect and power PoE devices while keeping a high-speed uplink connection to the main network.
• The switch supports IEEE 802.3af/at PoE, with each PoE port supporting up to 30W and a total 96W PoE budget.
• It is a plug-and-play unmanaged switch, requiring no configuration, with Auto MDI/MDIX, auto-negotiation, and store-and-forward switching for easy and reliable deployment.
• The device features a compact fanless silent design, rear port layout for neat cabling, diagnostic LED indicators, and a function switch for VLAN ON/OFF port isolation.
Key Features:
• 8 Fast Ethernet PoE ports
• 1 Gigabit uplink port
• IEEE 802.3af PoE support
• IEEE 802.3at PoE support
• Up to 30W per PoE port
• 96W total PoE budget
• Plug-and-play installation
• Auto MDI/MDIX on all ports
• Auto-negotiation support
• Store-and-forward switching
• 3.6Gbps switching fabric
• 2.68Mpps forwarding rate
• 4.1M cache
• VLAN ON/OFF function switch
• Port isolation by sliding switch
• Compact lightweight chassis
• Rear port design for neat cabling
• Fanless silent operation
• Suitable for IP cameras, APs and IP phones
Technical Specifications:
General:
• Brand: D-Link
• Model: DES-1009P+
• Product Type: 8-Port Fast Ethernet PoE Desktop Switch
• Management: Unmanaged
• Installation: Plug and Play
• Device Interfaces: 8 × 10/100 Mbps PoE Ports + 1 × Gigabit Uplink Port
• Application: Small Office Networks, Home Networks, IP Cameras, Wireless Access Points, IP Phones, PoE Network Expansion
Standards:
• Ethernet Standard: IEEE 802.3 10BASE-T
• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX
• Gigabit Ethernet Standard: IEEE 802.3ab 1000BASE-T
• Auto-Negotiation: ANSI / IEEE 802.3 NWay
• PoE Standard: IEEE 802.3af
• PoE+ Standard: IEEE 802.3at
Performance:
• Switching Fabric: 3.6Gbps
• Packet Filtering / Forwarding Rate: 2.68Mpps
• Transmission Method: Store-and-Forward
• Cache: 4.1M
• Media Interface Exchange: Auto MDI/MDIX Adjustment for All Ports
Data Transfer Rates:
• Ethernet: 10Mbps Half-Duplex / 20Mbps Full-Duplex
• Fast Ethernet: 100Mbps Half-Duplex / 200Mbps Full-Duplex
PoE Specifications:
• PoE Ports: 8 Ports
• Maximum PoE Per Port: Up to 30W
• PoE Power Budget: 96W
• PoE Use Cases: Wireless Access Points, IP Cameras, IP Phones
Network Cables:
• 10BASE-T: UTP Cat 3/4/5/5e up to 100m
• 10BASE-T STP: EIA/TIA-568 100-ohm STP up to 100m
• 100BASE-TX: UTP Cat 5/5e up to 100m
• 100BASE-TX STP: EIA/TIA-568 100-ohm STP up to 100m
Function Switch:
• VLAN ON/OFF: Supported
• Port Isolation: Opened or closed by sliding switch
LED Indicators:
• Per Unit: Power / PoE Max
• Per Port: Activity / Link and Speed
• Per Port: Power / Status
• VLAN: ON/OFF Status
Physical Specifications:
• Design: Compact Fanless Desktop Design
• Ports Location: Rear Side for Neat Cabling
• Dimensions: 175 × 105 × 27mm
• DC Input: External 54V DC Power Adapter
• Maximum Power of Equipment: 96W
Environmental Specifications:
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 5% to 90% RH Non-Condensing
Certifications:
• Certifications: FCC Class B, CE, RoHS
Applications:
• IP CCTV camera systems
• Wireless access point deployment
• IP phone networks
• Small office PoE networks
• Home PoE network expansion
• NAS, printer and computer connectivity
• Plug-and-play PoE installation
• Quiet desktop network environments
• VLAN-isolated small network setups
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DES-1009P+ for small PoE projects that need a compact and silent 8-port PoE switch with a Gigabit uplink port.
• It is suitable for powering IP cameras, wireless access points, and IP phones in small offices, shops, homes, and simple CCTV installations.
• The 96W PoE budget, VLAN ON/OFF function switch, and fanless silent design make it practical for simple indoor PoE deployments.
• For proper installation, Connect Gates recommends checking the total PoE load, device power requirements, uplink connection, cable quality, and whether VLAN port isolation is required before deployment.
