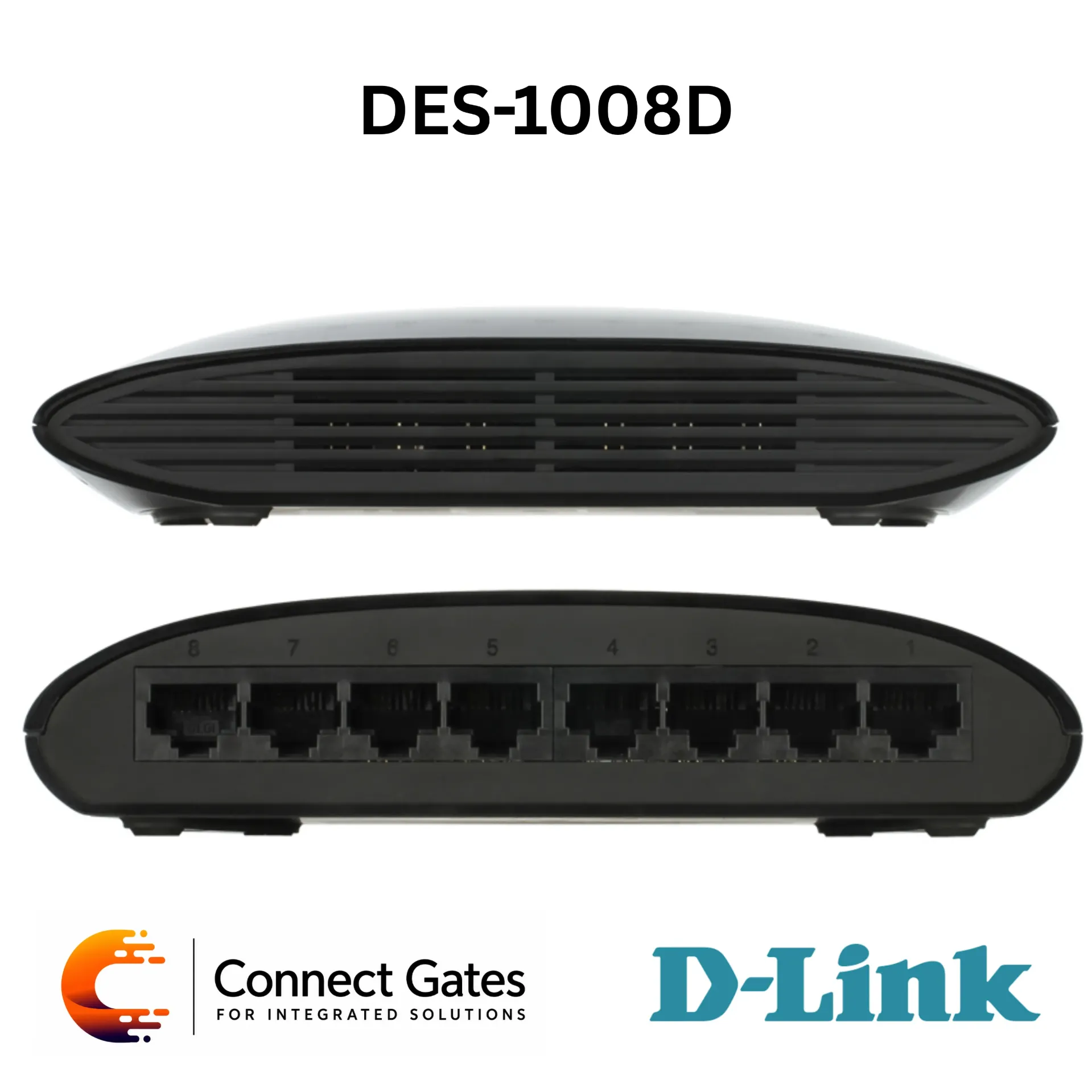

D-Link DES-1008D – 8-Port 10/100 Fast Ethernet Switch with Auto-Sensing Ports, Auto MDI/MDIX, Flow Control, Plug-and-Play & Fanless Compact Design
Overview:
• The D-Link DES-1008D is an 8-Port 10/100 Fast Ethernet Switch designed for basic networking tasks in home and SOHO environments.
• It allows users to quickly set up a wired network and connect multiple computers together to share files, folders, and network resources.
• The switch can also be connected to a router to share an internet connection across multiple wired devices.
• Auto-sensing 10/100Mbps ports automatically detect the network speed and negotiate between 10BASE-T and 100BASE-TX.
• Auto MDI/MDIX support on all ports eliminates the need for crossover cables or uplink ports.
• The fanless compact design provides silent operation and makes the switch suitable for desks, small offices, shops, and simple network setups.
Key Features:
• 8 Fast Ethernet Ports: Provides eight 10/100Mbps ports for basic wired network expansion.
• Auto-Sensing Ports: Automatically detects 10Mbps or 100Mbps network speed.
• Auto-Negotiation: Supports automatic full-duplex and half-duplex operation.
• Auto MDI/MDIX: Allows direct connection to servers, routers, hubs, switches, and network devices without crossover cables.
• IEEE 802.3x Flow Control: Helps minimize dropped packets and improve connection reliability.
• Store-and-Forward Switching: Provides reliable packet handling and stable data transmission.
• Plug-and-Play Installation: No configuration required.
• Fanless Silent Operation: Noise-free operation for home and office use.
• Compact Design: Easy to place on desks, shelves, or small network areas.
• RoHS Compliant: Designed with reduced hazardous materials.
Technical Specifications:
• Product Type: Fast Ethernet Switch
• Model: DES-1008D
• Switch Type: Unmanaged Desktop Switch
• Device Interfaces: 8 × RJ-45 10/100BASE-TX Ports
• Network Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, ANSI/IEEE 802.3 NWay Auto-Negotiation, IEEE 802.3x Flow Control
• Switching Fabric: 1.6Gbps
• Topology: Star
• Protocol: CSMA/CD
• Transmission Method: Store-and-Forward
• Data Transfer Rates: Ethernet 10Mbps Half-Duplex / 20Mbps Full-Duplex, Fast Ethernet 100Mbps Half-Duplex / 200Mbps Full-Duplex
• Media Interface Exchange: Auto MDI/MDIX Adjustment for All Ports
• Network Cables: 10BASE-T UTP Cat 3/4/5/5e up to 100m, 100BASE-TX UTP Cat 5/5e up to 100m
• LED Indicators: Link / Activity per Port, Power per Device
• MAC Address Table: 2K Entries
• MAC Address Learning: Automatic Update
• Packet Filtering / Forwarding Rates: Ethernet 14,880pps per port, Fast Ethernet 148,800pps per port
• RAM Buffer: 57KB per Device
• DC Input: External 5V / 1.2A Power Adapter
• Power Consumption: Power On Standby DC Input 0.6W / AC Input 1.4W, Maximum DC Input 3.3W / AC Input 5.2W
• Heat Dissipation: Standby 4.774BTU/h, Maximum 17.732BTU/h
• Dimensions: 164.5 × 111.5 × 36.0 mm
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• Certifications: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Applications:
• Expanding basic wired networks in homes and small offices.
• Connecting desktop PCs, printers, routers, and simple network devices.
• Sharing files and folders between multiple computers.
• Sharing an internet connection through a router.
• Small workgroups that need 10/100Mbps Ethernet connectivity.
• Low-cost network expansion where Gigabit speed is not required.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DES-1008D for customers who need a simple and economical 8-port Fast Ethernet switch for basic network expansion.
• It is suitable for homes, small offices, shops, and light-duty workgroups where 10/100Mbps connectivity is enough.
• Auto MDI/MDIX, Flow Control, and store-and-forward switching make it practical for stable daily network use.
• The fanless compact design makes it suitable for quiet environments and small installation spaces.
• This switch is recommended when the customer needs basic plug-and-play connectivity, not Gigabit speed, PoE camera powering, or managed network control.
