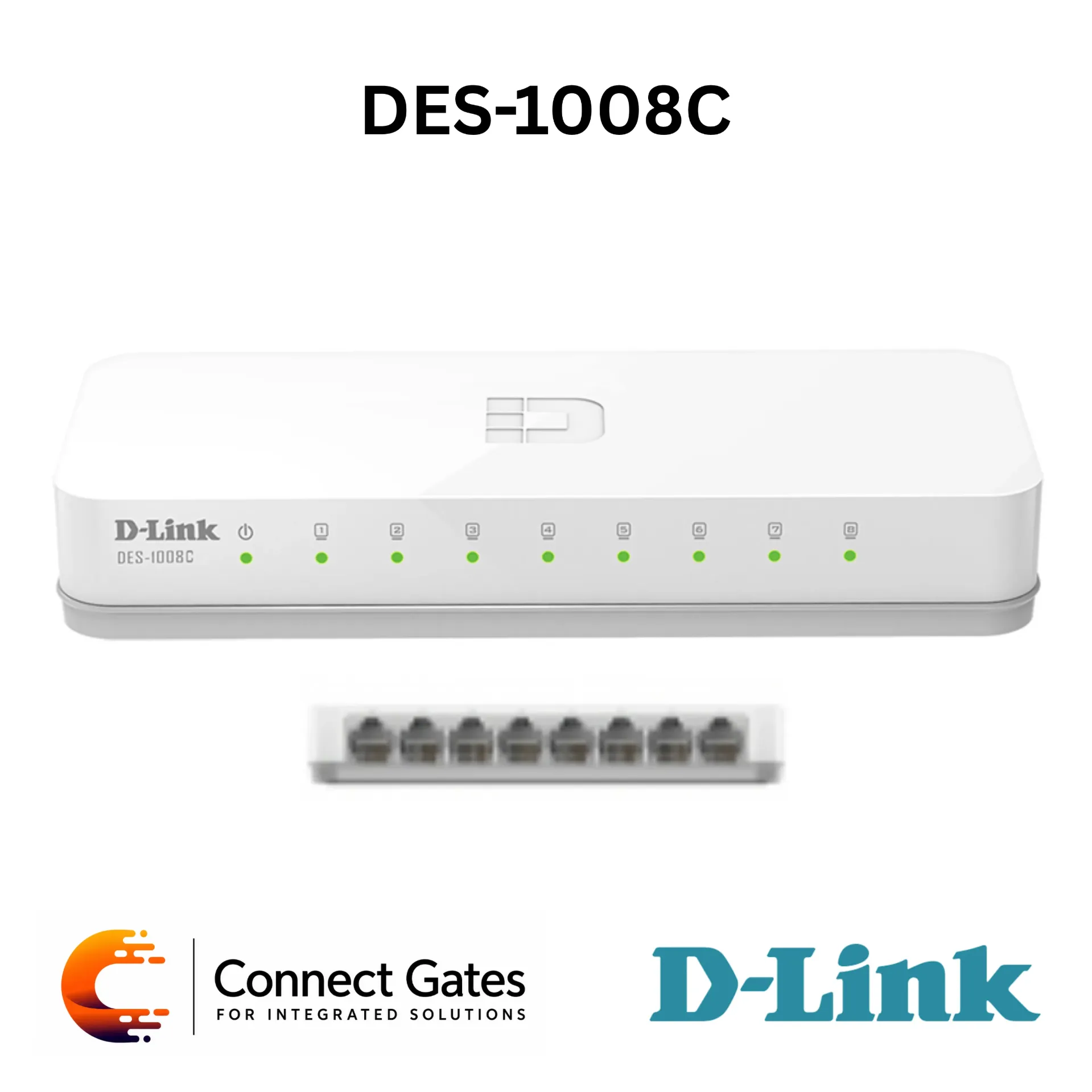

D-Link DES-1008C – 8-Port 10/100 Mbps Unmanaged Switch with Plug-and-Play Installation, 1.6Gbps Switching Capacity & Energy-Efficient Ethernet

• The D-Link DES-1008C is an 8-Port 10/100 Mbps Unmanaged Switch designed for SOHO networks, home users, small offices, and simple wired network expansion.

• It provides 8 × 10/100 Mbps LAN ports, allowing users to connect computers, printers, routers, IP cameras, NAS devices, and other Ethernet devices.

• The switch supports plug-and-play installation, requiring no configuration, making it suitable for quick and hassle-free network setup.

• It delivers 1.6Gbps switching fabric, supports store-and-forward switching, Auto MDI/MDIX, auto-negotiation, IEEE 802.3x Flow Control, and 2,048-byte jumbo frames.

• It also supports IEEE 802.3az Energy-Efficient Ethernet, helping reduce power usage automatically when there is no traffic or when connected devices are inactive.

• 8 Fast Ethernet LAN ports

• 10/100 Mbps Ethernet support

• Unmanaged switch

• Plug-and-play installation

• 1.6Gbps switching fabric

• Auto MDI/MDIX on all ports

• Auto-negotiation for each port

• Store-and-forward switching

• IEEE 802.3x Flow Control

• IEEE 802.3az Energy-Efficient Ethernet

• Jumbo frame up to 2,048 bytes

• Wire-speed reception and transmission

• Compact desktop design

• Low power consumption

• Suitable for SOHO and small office networks

• Brand: D-Link

• Model: DES-1008C

• Product Type: 8-Port 10/100 Mbps Unmanaged Switch

• Management: Unmanaged

• Installation: Plug and Play

• Device Interfaces: 8 × 10/100 Mbps LAN Ports

• Application: Home Networks, SOHO Networks, Small Offices, Desktop Network Expansion

• Ethernet Standard: IEEE 802.3 10BASE-T

• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX

• Flow Control: IEEE 802.3x Flow Control

• Energy Efficient Ethernet: IEEE 802.3az EEE

• Switching Fabric: 1.6Gbps

• Transmission Method: Store-and-Forward

• MAC Address Table Size: 2,000 Entries

• RAM Buffer: 96KB per Device

• Jumbo Frame: Up to 2,048 Bytes

• Packet Filtering / Forwarding Rate - Ethernet: 14,880pps per Port

• Packet Filtering / Forwarding Rate - Fast Ethernet: 148,800pps per Port

• Auto MDI/MDIX: Supported on All Ports

• Auto-Negotiation: Supported for Each Port

• Switching Scheme: Secure Store-and-Forward

• Duplex Mode: Full / Half-Duplex for Ethernet and Fast Ethernet Speeds

• Back Pressure: Supported at Half-Duplex Operation

• Wire-Speed Transmission: Supported

• EEE Compliance: Supported

• Ethernet: 10Mbps Half-Duplex / 20Mbps Full-Duplex

• Fast Ethernet: 100Mbps Half-Duplex / 200Mbps Full-Duplex

• LED Indicators Per Port: Link / Activity / Speed

• LED Indicator Per Device: Power

• Media Interface Exchange: Auto-MDI/MDIX Adjustment for All Ports

• Dimensions: 131 × 54 × 21mm

• Weight: 74.8g

• Power Input: DC 5V / 0.55A

• DC Jack Location: Side

• Standby Power Consumption: 0.55W

• Maximum Power Consumption: 1.55W

• MTBF: 1,579,582 Hours

• Maximum Heat Dissipation: 0.691BTU/h

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% Non-Condensing

• Storage Humidity: 5% to 95% Non-Condensing

• Certifications: CE Class B, CE LVD 2006/95/EC

• Home network expansion

• Small office LAN switching

• SOHO wired network setup

• Computer and printer connectivity

• Router and access device connection

• NAS and file sharing networks

• Basic IP camera connection

• Fast Ethernet desktop network expansion

• Simple plug-and-play wired network deployment

• Connect Gates recommends the D-Link DES-1008C for small networks that need a compact and economical 8-port Fast Ethernet unmanaged switch.

• It is suitable for homes, small offices, shops, and simple network points where 10/100 Mbps connectivity is enough.

• The plug-and-play installation, Auto MDI/MDIX, and Energy-Efficient Ethernet make it practical for easy daily network use.

• For proper installation, Connect Gates recommends checking the required port count, internet speed, device bandwidth requirements, cable quality, and whether the project needs Fast Ethernet or Gigabit performance before deployment.
