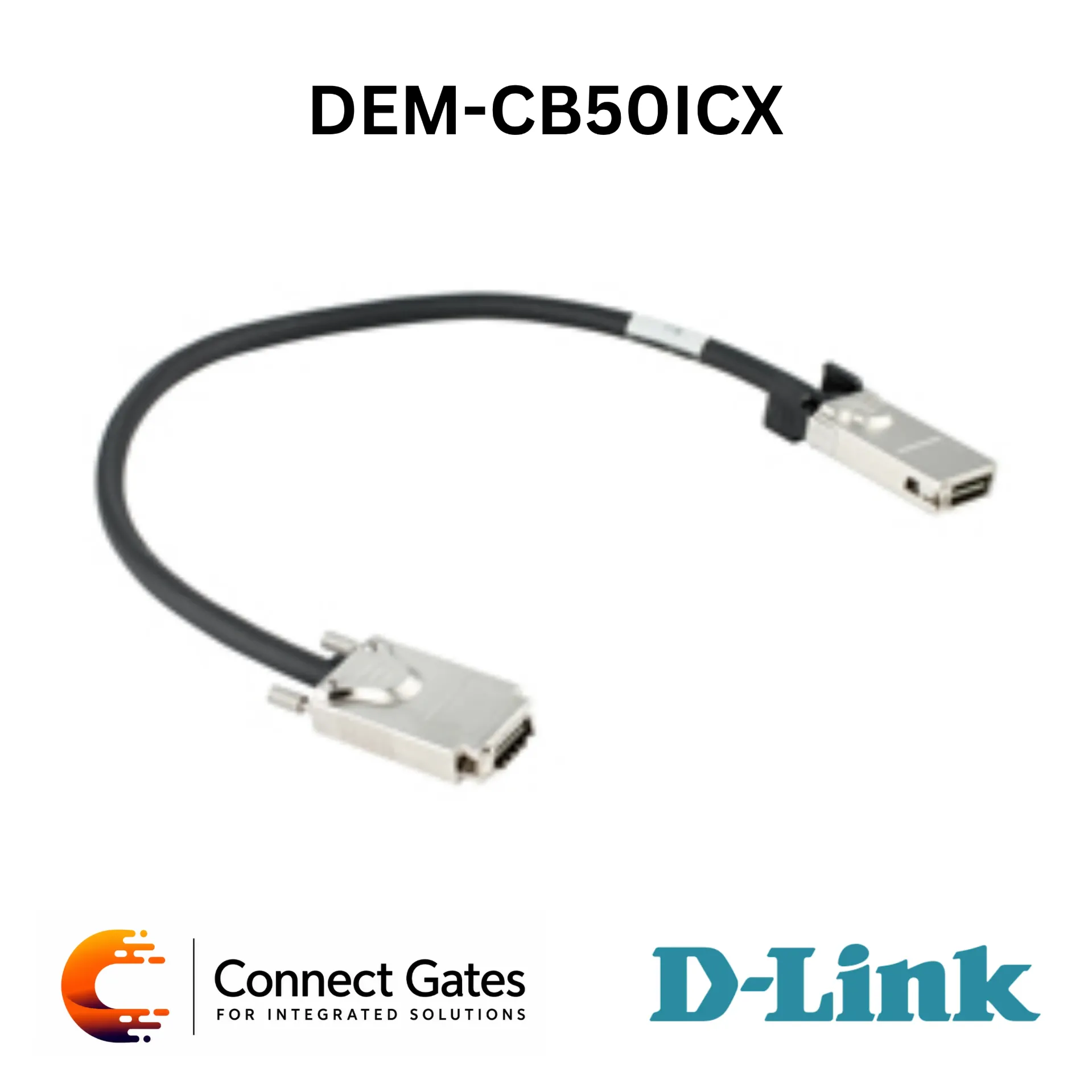

D-Link DEM-CB50ICX – 50cm 10G InfiniBand Twinaxial Cable for Connecting DGS-3120 Series to DMC-805X Media Converter
Overview:
• The D-Link DEM-CB50ICX is a 50cm 10G InfiniBand Twinaxial Cable designed for high-speed short-distance connectivity between compatible D-Link devices.
• It is recommended for connecting the DGS-3120 Series switches to the DMC-805X Media Converter.
• The cable supports 10Gbps Ethernet connections over short distances, making it suitable for rack-level or adjacent-device connections.
• It uses a mixed connector design with screw-type and latch-type connectors, allowing compatibility with the required D-Link switch and media converter connection setup.
• The cable is suitable for cost-effective high-bandwidth 10G connectivity without using separate fiber transceivers.
Key Features:
• 50cm 10G InfiniBand Twinaxial Cable
• Designed for DGS-3120 Series connection to DMC-805X
• Supports high-speed 10Gbps Ethernet connections
• Screw-type connector on one side
• Latch-type connector on the other side
• 28AWG cable construction
• Suitable for short-distance rack connections
• Cost-effective copper 10G connectivity
• Supports low-latency high-bandwidth transmission
• Designed for compatible D-Link products
Technical Specifications:
General:
• Brand: D-Link
• Model: DEM-CB50ICX
• Product Type: 10G InfiniBand Twinaxial Cable
• Cable Length: 50cm
• Application: 10G Short-Distance Connectivity, DGS-3120 to DMC-805X Connection, Rack-Level Network Interconnection
• Recommended Connectivity: DGS-3120 Series to DMC-805X Media Converter
Cable and Connector Specifications:
• Connector Type: Screw-Type and Latch-Type
• Cable Type: 10G InfiniBand Twinaxial Cable
• Wire Gauge: 28AWG
• Supported Speed: Up to 10Gbps
• Recommended Use: D-Link Products Only
Electrical Specifications:
• Voltage: 30VAC
• Current: 0.5A
Environmental Specifications:
• Operating Temperature: -40°C to 85°C
Standards and Certifications:
• Ethernet Standard: IEEE 802.3ak 10GBASE-CX4
• Interface Standard: SFF-8470
• Mechanical / Electrical Standard: EIA-364
• Flammability Rating: UL 94
Applications:
• DGS-3120 Series to DMC-805X connection
• Short-distance 10G copper connectivity
• Rack-level network interconnection
• High-bandwidth switch-to-media-converter links
• Data center and enterprise rack installations
• Cost-effective 10Gbps connection between compatible D-Link devices
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DEM-CB50ICX for projects that require a short 10Gbps CX4-style copper connection between DGS-3120 Series switches and the DMC-805X Media Converter.
• It is suitable for same-rack installations where a 50cm high-bandwidth cable is enough and separate fiber modules are not required.
• Before installation, Connect Gates recommends checking DGS-3120 compatibility, DMC-805X availability, connector direction, cable length, and rack layout.
