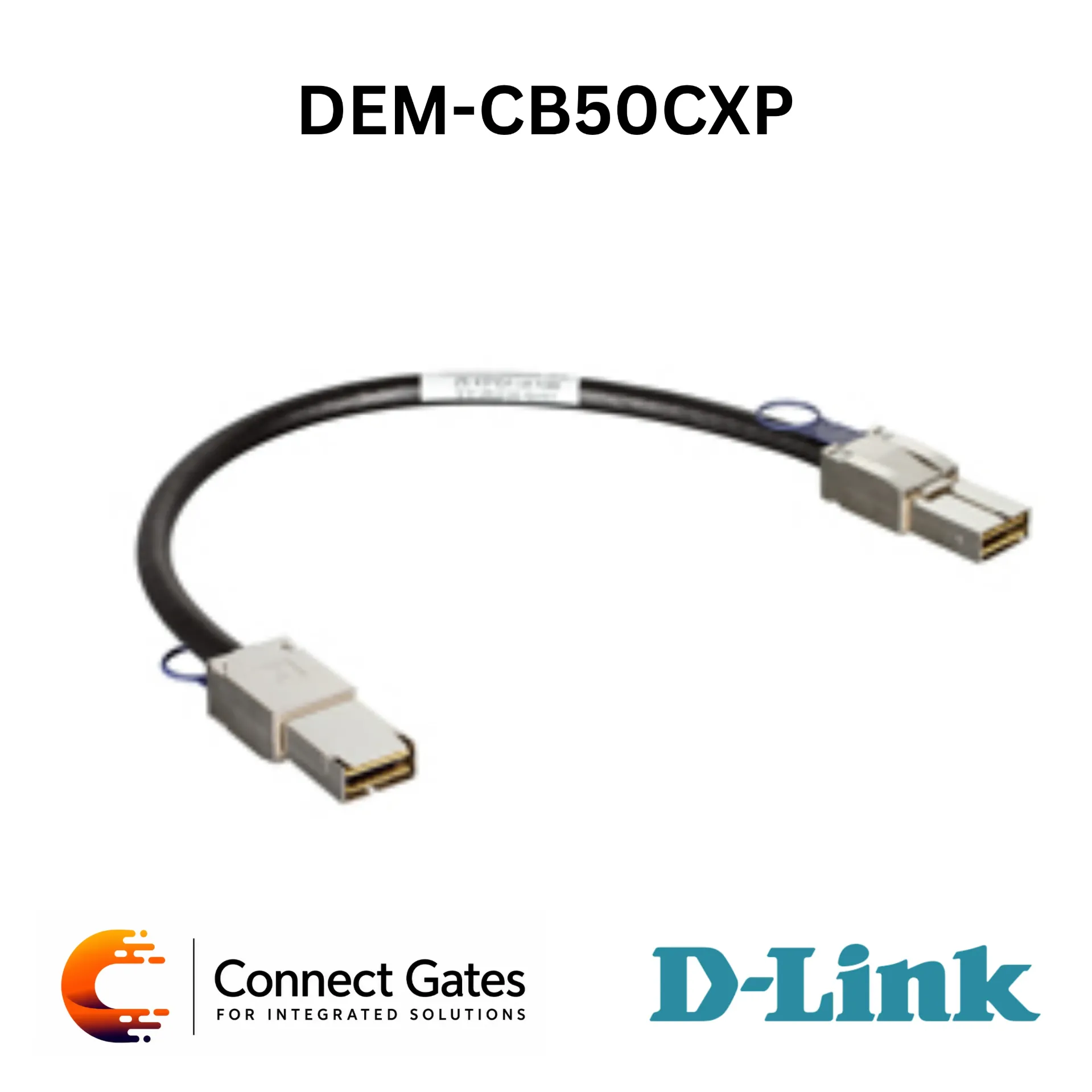

D-Link DEM-CB50CXP – 0.5m 120G Passive CXP Twinaxial Direct Attach Cable for DXS-3600-EM-Stack with 12 × 10Gbps Channels
Overview:
• The D-Link DEM-CB50CXP is a 0.5-meter 120G Passive CXP Twinaxial Direct Attach Cable designed for high-speed physical stacking applications.
• It carries 12 duplex channels of 10Gbps data, providing up to 120Gbps total bandwidth.
• The cable is designed for use with the D-Link DXS-3600-32S switch and the DXS-3600-EM-Stack module.
• It supports high-density interconnection and is suitable for demanding high-bandwidth environments where low latency and high efficiency are required.
• The DEM-CB50CXP features a CXP cable assembly, hot-pluggable design, latching mechanism, and supports high-speed InfiniBand-style serial links for physical stacking.
Key Features:
• 0.5m 120G Passive CXP Twinaxial Direct Attach Cable
• Designed for DXS-3600-EM-Stack module
• Supports DXS-3600-32S physical stacking
• 12 duplex channels
• 10Gbps per channel
• Up to 120Gbps total bandwidth
• CXP cable assembly
• 30AWG cable construction
• Hot-pluggable design
• Latching mechanism for easy removal
• Suitable for high-density connections
• Low-latency high-bandwidth interconnection
• Designed for physical stacking applications
Technical Specifications:
General:
• Brand: D-Link
• Model: DEM-CB50CXP
• Product Type: Passive CXP Twinaxial Direct Attach Cable
• Device Rate: 120Gbps Gigabit Ethernet
• Application: Physical Stacking, High-Bandwidth Interconnection, Data Center Switching, DXS-3600 Series Stack Connectivity
• Compatible Use: DXS-3600-32S with DXS-3600-EM-Stack Module
Cable and Connector Specifications:
• Connector Type: CXP Cable Assembly
• Cable Length: 0.5m
• Wire Gauge: 30AWG
• Minimum Cable Bend Radius: 49mm
• Cable Characteristic Impedance: 100 Ohms
• Channels: 12 Duplex Channels
• Speed Per Channel: 10Gbps
• Total Bandwidth: Up to 120Gbps
Electrical Specifications:
• Voltage: 30V AC
• Current: 0.5A
Environmental Specifications:
• Operating Temperature: -40°C to 85°C
Standards and Certifications:
• MSA Compliance: SFP MSA
• Testing Standard: EIA-364-1000.01
• Mechanical / Electrical Standard: EIA-364
• Flammability Rating: UL 94
Applications:
• DXS-3600-32S physical stacking
• High-bandwidth switch interconnection
• Data center rack connectivity
• High-density network deployments
• Low-latency switching environments
• Short-distance 120Gbps stacking links
• Enterprise core and aggregation switching
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DEM-CB50CXP for projects using D-Link DXS-3600 Series stacking where a short, high-speed 0.5m 120Gbps CXP direct attach cable is required.
• It is suitable for same-rack switch stacking where maximum bandwidth, low latency, and cable stability are important.
• Before installation, Connect Gates recommends checking DXS-3600-32S compatibility, DXS-3600-EM-Stack module availability, required stacking layout, cable length, and bend radius inside the rack.
