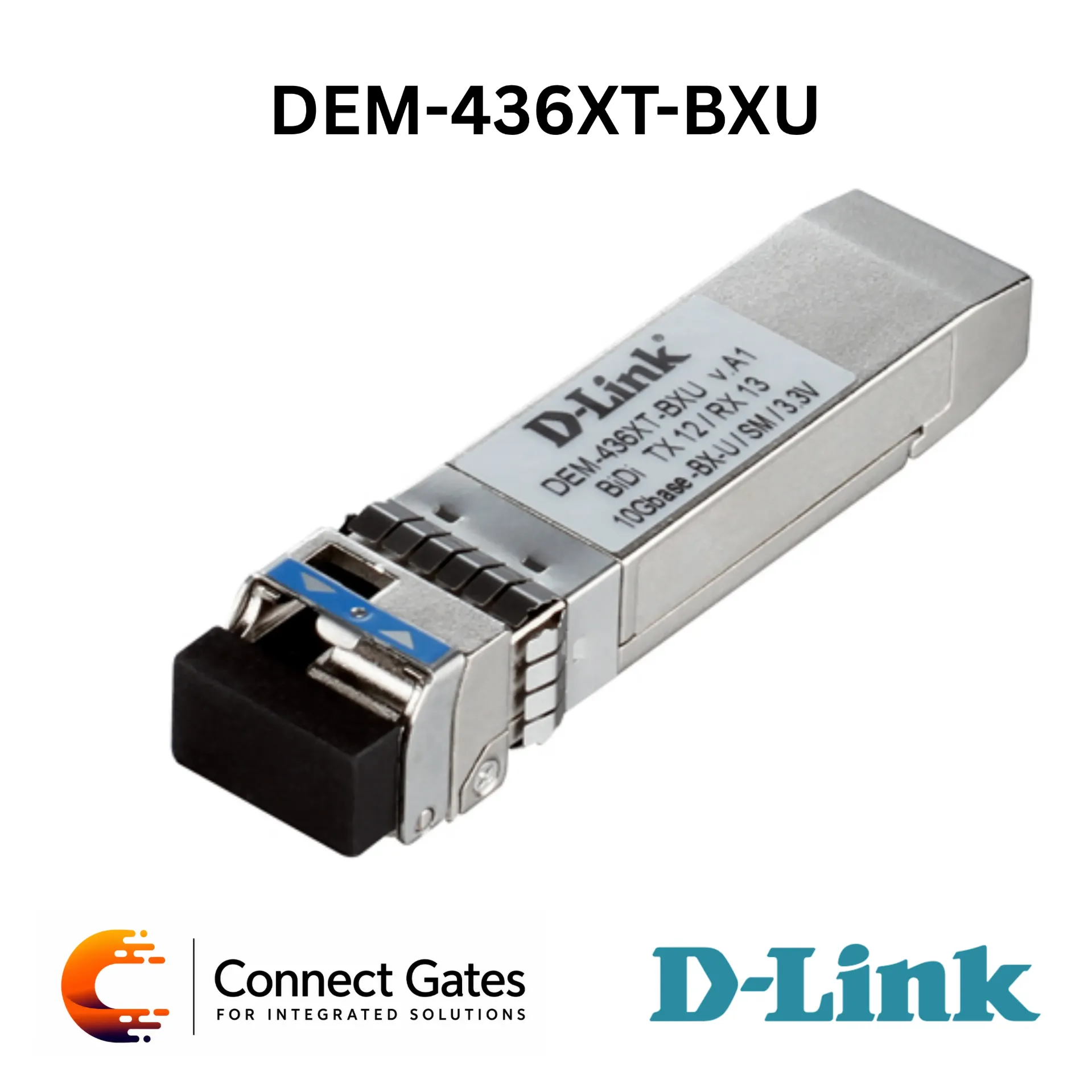

D-Link DEM-436XT-BXU – 10GBASE-LR Bi-Directional Single-Mode 20km SFP+ Transceiver with Simplex LC Connector, TX 1270nm / RX 1330nm
Overview:
• The D-Link DEM-436XT-BXU is a 10GBASE-LR Bi-Directional SFP+ Transceiver designed for compatible switches, network adapters, and devices with SFP+ slots.
• It supports 10Gbps Ethernet over single-mode fiber, using WDM bi-directional transmission to send and receive data over a single fiber core.
• The module uses a Simplex LC connector and operates with TX 1270nm / RX 1330nm wavelength direction.
• It supports transmission distance up to 20km, making it suitable for long-distance 10G fiber uplinks, backbone links, and inter-building connections.
• The DEM-436XT-BXU is hot-pluggable, MSA compliant, and RoHS compliant, and should be paired with the matching opposite-end DEM-436XT-BXD module for correct wavelength operation.
Key Features:
• 10GBASE-LR SFP+ transceiver
• Bi-directional WDM transmission
• Single-mode fiber support
• 10Gbps Ethernet speed
• Distance up to 20km
• Simplex LC connector
• TX 1270nm / RX 1330nm wavelength
• Uses one fiber core for transmit and receive
• Enhanced SFP+ form factor
• Hot-pluggable design
• MSA compliant
• RoHS compliant
• IEEE 802.3ae compliant
• Designed to pair with DEM-436XT-BXD
Technical Specifications:
General:
• Brand: D-Link
• Model: DEM-436XT-BXU
• Product Type: 10G Bi-Directional SFP+ Transceiver
• Standard: IEEE 802.3ae 10GBASE-LR
• Form Factor: SFP+
• Fiber Media Support: Single-Mode Fiber
• Speed: 10Gbps
• Application: 10G Fiber Uplink, Backbone Connectivity, Data Center Interconnection, Enterprise Fiber Link, Single-Fiber Network Extension
Interface and Fiber Specifications:
• Connector: Simplex LC Connector
• Fiber Type: Single-Mode 9/125µm Fiber
• Transmission Type: WDM Bi-Directional
• Wavelength: TX 1270nm / RX 1330nm
• Distance Capacity: 20km
• Matching Pair: DEM-436XT-BXD
Optical Performance:
• TX Optical Power: Max. 0.5dBm / Min. -5.2dBm
• RX Optical Power: Max. 0.5dBm / Min. -12.5dBm
• Sensitivity: -12.5dBm
• Minimum Power Budget: 7.3dB
• Maximum Power Budget: 13dB
Power and Reliability:
• Operating Power: 3.3V
• Maximum Input Current: 3.3V / 300mA
• Heat Generated: 3.6kJ/h
• MTBF: 1,920,000 Hours
• DDM: Not Supported
Physical and Environmental Specifications:
• Dimensions: 14.8 × 56.5 × 11.85mm
• Weight: 22g
• Bail Latch Color: Blue
• Operating Temperature: -40°C to 85°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity: 5% to 85%
• Storage Humidity: 5% to 95%
Compliance and Safety:
• Hot Pluggable: Supported
• MSA Compliant: Supported
• RoHS Compliant: Supported
• EMI: CE, FCC, VCCI
• Safety: UL, TUV, CDRH
Applications:
• 10G single-fiber uplinks
• Data center interconnection
• Enterprise backbone links
• Switch-to-switch 10G fiber connectivity
• Long-distance building-to-building links
• Service provider transport networks
• Fiber links where only one fiber core is available
• Professional network racks requiring 20km 10G connectivity
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DEM-436XT-BXU for projects that require 10Gbps single-fiber bi-directional connectivity up to 20km.
• It is ideal when only one single-mode fiber core is available and a 10G link is required.
• The module should be paired with DEM-436XT-BXD at the opposite end to match the TX/RX wavelengths correctly.
• For proper installation, Connect Gates recommends checking SFP+ slot compatibility, single-mode fiber availability, LC connector compatibility, required distance, and opposite-end module wavelength before deployment.
