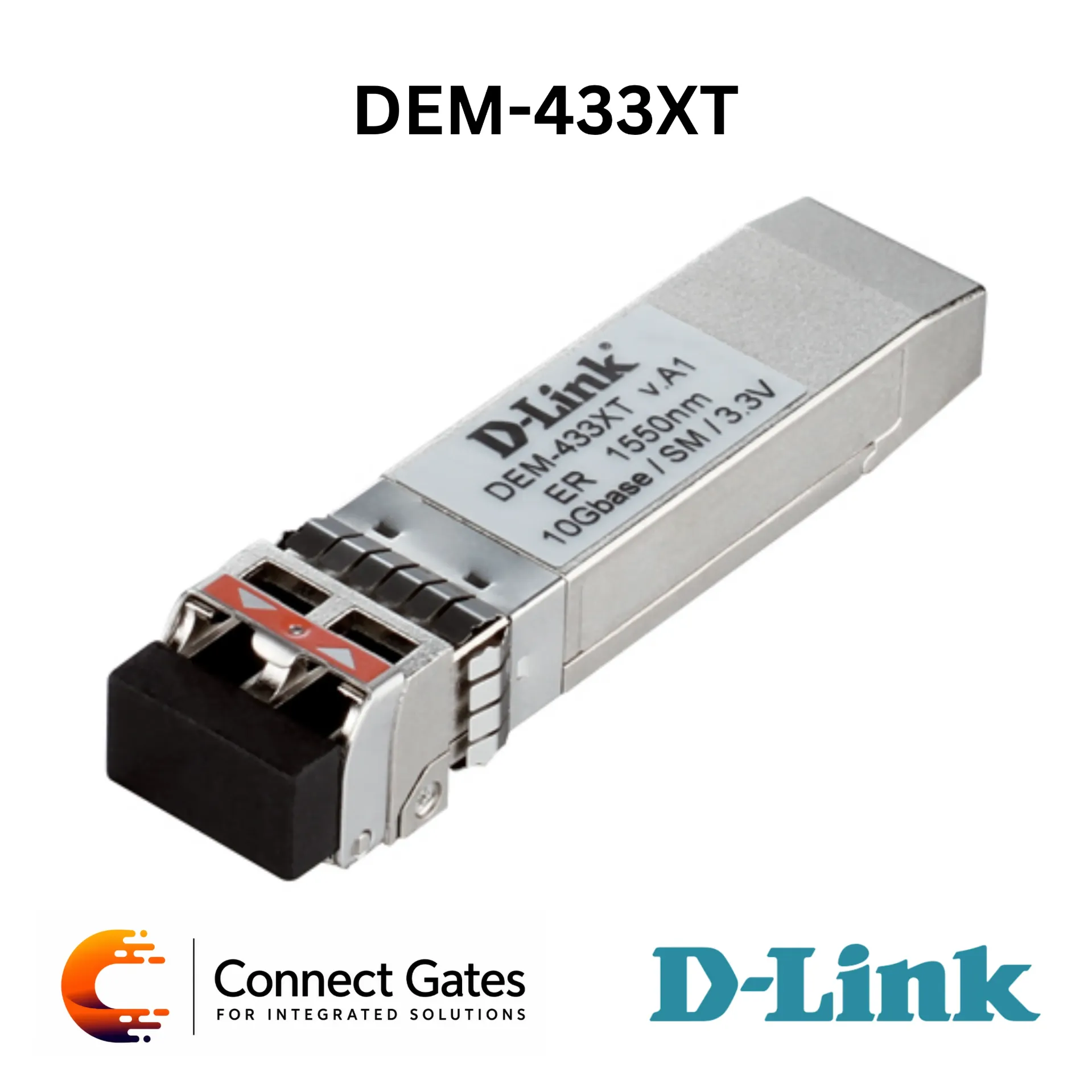

D-Link DEM-433XT – 10GBASE-ER Single-Mode 40km SFP+ Transceiver with Duplex LC Connector, 1550nm Wavelength & Hot-Pluggable Design

• The D-Link DEM-433XT is a 10GBASE-ER Single-Mode SFP+ Transceiver designed for compatible switches, network adapters, and devices with SFP+ slots.

• It supports 10Gbps Ethernet over single-mode fiber, making it suitable for long-distance 10G backbone links, enterprise networks, data centers, and service provider transport applications.

• The module uses a Duplex LC connector and operates at 1550nm wavelength.

• It supports transmission distance up to 40km, providing reliable high-speed connectivity for long-distance fiber infrastructure.

• The DEM-433XT is hot-pluggable, MSA compliant, and RoHS compliant, allowing installation and replacement without powering down the compatible device.

• 10GBASE-ER SFP+ transceiver

• Single-mode fiber support

• 10Gbps Ethernet speed

• Distance up to 40km

• Duplex LC connector

• 1550nm wavelength

• Enhanced SFP+ form factor

• Hot-pluggable design

• MSA compliant

• RoHS compliant

• IEEE 802.3ae compliant

• Suitable for long-distance 10G fiber uplinks

• Designed for enterprise backbone and service provider networks

• Brand: D-Link

• Model: DEM-433XT

• Product Type: 10G SFP+ Transceiver

• Standard: IEEE 802.3ae 10GBASE-ER

• Form Factor: SFP+

• Fiber Media Support: Single-Mode Fiber

• Speed: 10Gbps

• Application: 10G Fiber Uplink, Long-Distance Backbone, Data Center Connectivity, Enterprise Network, Service Provider Transport

• Connector: Duplex LC Connector

• Fiber Type: Single-Mode 9/125µm Fiber

• Wavelength: 1550nm

• Single / Bi-Directional: Single Direction

• Distance Capacity: 40km

• TX Optical Power: Max. 3dBm / Min. -3dBm

• RX Optical Power: Max. -1dBm / Min. -14.1dBm

• Sensitivity: -14.1dBm

• Minimum Power Budget: 11.1dB

• Maximum Power Budget: 17.1dB

• Operating Power: 3.3V

• Maximum Input Current: 3.3V / 500mA

• Heat Generated: 5.94kJ/h

• MTBF: 1,580,000 Hours

• DDM: Not Supported

• Dimensions: 14.8 × 56.5 × 11.85mm

• Weight: 20g

• Bail Latch Color: Red

• Operating Temperature: 0°C to 70°C

• Storage Temperature: -40°C to 85°C

• Operating Humidity: 5% to 85%

• Storage Humidity: 5% to 95%

• Hot Pluggable: Supported

• MSA Compliant: Supported

• RoHS Compliant: Supported

• EMI: CE, FCC, VCCI

• Safety: CSA, TUV, CDRH

• Long-distance 10G fiber uplinks

• Enterprise backbone connections

• Data center interconnection

• Service provider transport networks

• Switch-to-switch 10G fiber connectivity

• Campus network backbone

• High-speed storage and backup networks

• Professional network racks using single-mode fiber

• Long-distance fiber links up to 40km

• Connect Gates recommends the D-Link DEM-433XT for projects that require 10Gbps long-distance single-mode fiber connectivity up to 40km.

• It is suitable for backbone links, enterprise core networks, data center connections, and service provider fiber infrastructure.

• The 1550nm wavelength, Duplex LC connector, 40km distance, and hot-pluggable SFP+ design make it practical for professional high-speed network installations.

• For proper installation, Connect Gates recommends checking SFP+ slot compatibility, single-mode fiber availability, LC connector compatibility, required distance, and optical power budget before deployment.
