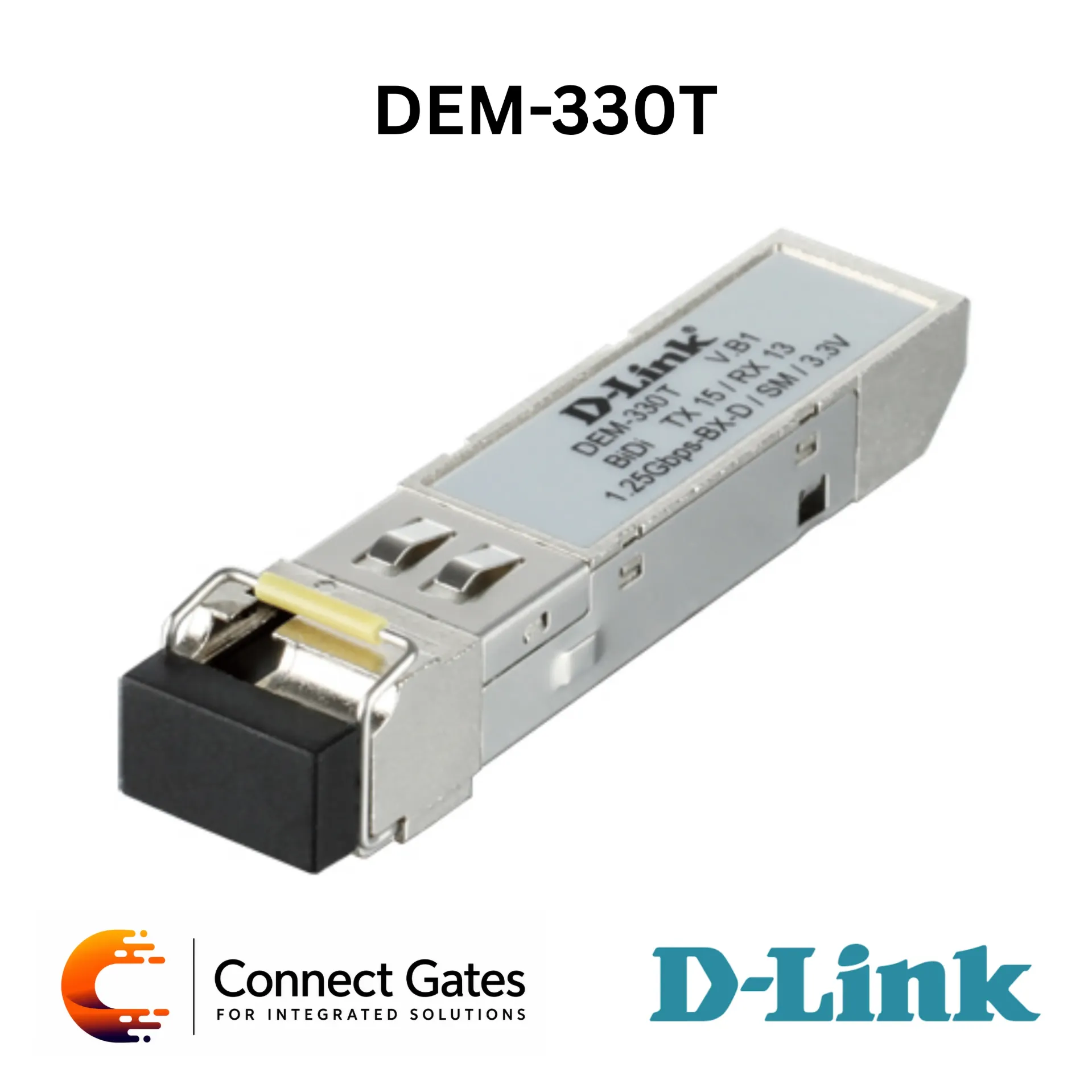

D-Link DEM-330T – 1000BASE-BX-D Single-Mode 10km Gigabit SFP Transceiver with Simplex LC Connector, TX 1550nm / RX 1310nm & Hot-Swappable Design
Overview:
• The D-Link DEM-330T is a Bidirectional Gigabit SFP Fiber Transceiver designed for insertion into compatible SFP slots of network devices.
• It supports Gigabit fiber transmission over single-mode fiber using a single fiber strand for both transmission and reception.
• The module supports bidirectional operation using separate transmit and receive wavelengths.
• The DEM-330T supports fiber cable distance up to 10km and should be used with the matching opposite wavelength module for correct link operation.
• It features a Simplex LC connector, standard SFP package, 3.3V power supply, hot-swappable installation, and a durable metal enclosure.
Key Features:
• 1000BASE-BX-D Gigabit SFP transceiver
• Single-mode fiber support
• Single-fiber bidirectional operation
• Distance up to 10km
• Simplex LC connector
• TX 1550nm / RX 1310nm wavelength
• IEEE 802.3z Gigabit compliant
• Hot-swappable SFP design
• Standard Small Form-Factor Pluggable package
• Single 3.3V power supply
• Durable metal enclosure
• Interoperable with compatible D-Link switches
• Suitable for long-distance Gigabit fiber uplinks
Technical Specifications:
General:
• Brand: D-Link
• Model: DEM-330T
• Product Type: Bidirectional Gigabit SFP Fiber Transceiver
• Transceiver Type: SFP
• Fiber Media Support: Single-Mode
• Network Standard: IEEE 802.3z Gigabit Standard
• Fiber Application: Long-Distance Single-Fiber Gigabit Link
• Maximum Distance: Up to 10km
• Application: Gigabit Fiber Uplink, Switch Interconnection, Backbone Link, Single-Fiber Network Extension
Interface and Fiber Specifications:
• Connector: Simplex LC Connector
• Fiber Type: Single-Mode Fiber
• Fiber Strand: Single Fiber Strand for Transmission and Reception
• Operation Type: Bidirectional Operation
• Transmit Wavelength: 1550nm
• Receive Wavelength: 1310nm
• Cable Distance: 10km
Power and Physical Specifications:
• Power Supply: 3.3V
• Hot Swappable: Supported
• Housing: Durable Metal Enclosure
• SFP Package: Standard Small Form-Factor Pluggable
Applications:
• Gigabit fiber uplink
• Single-fiber network extension
• Switch-to-switch fiber connectivity
• Backbone fiber links
• Building-to-building network links
• Campus network infrastructure
• Enterprise fiber networks
• Network expansion using compatible SFP ports
• Long-distance fiber connectivity up to 10km
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DEM-330T for projects that require Gigabit single-fiber bidirectional connectivity up to 10km.
• It is suitable when only one fiber core is available and Gigabit transmission is required.
• The Simplex LC connector, single-mode fiber support, hot-swappable design, and durable metal enclosure make it practical for professional network backbone installations.
• For proper installation, Connect Gates recommends checking switch SFP compatibility, single-mode fiber availability, LC connector compatibility, required distance, and the matching opposite-end transceiver wavelength before deployment.
