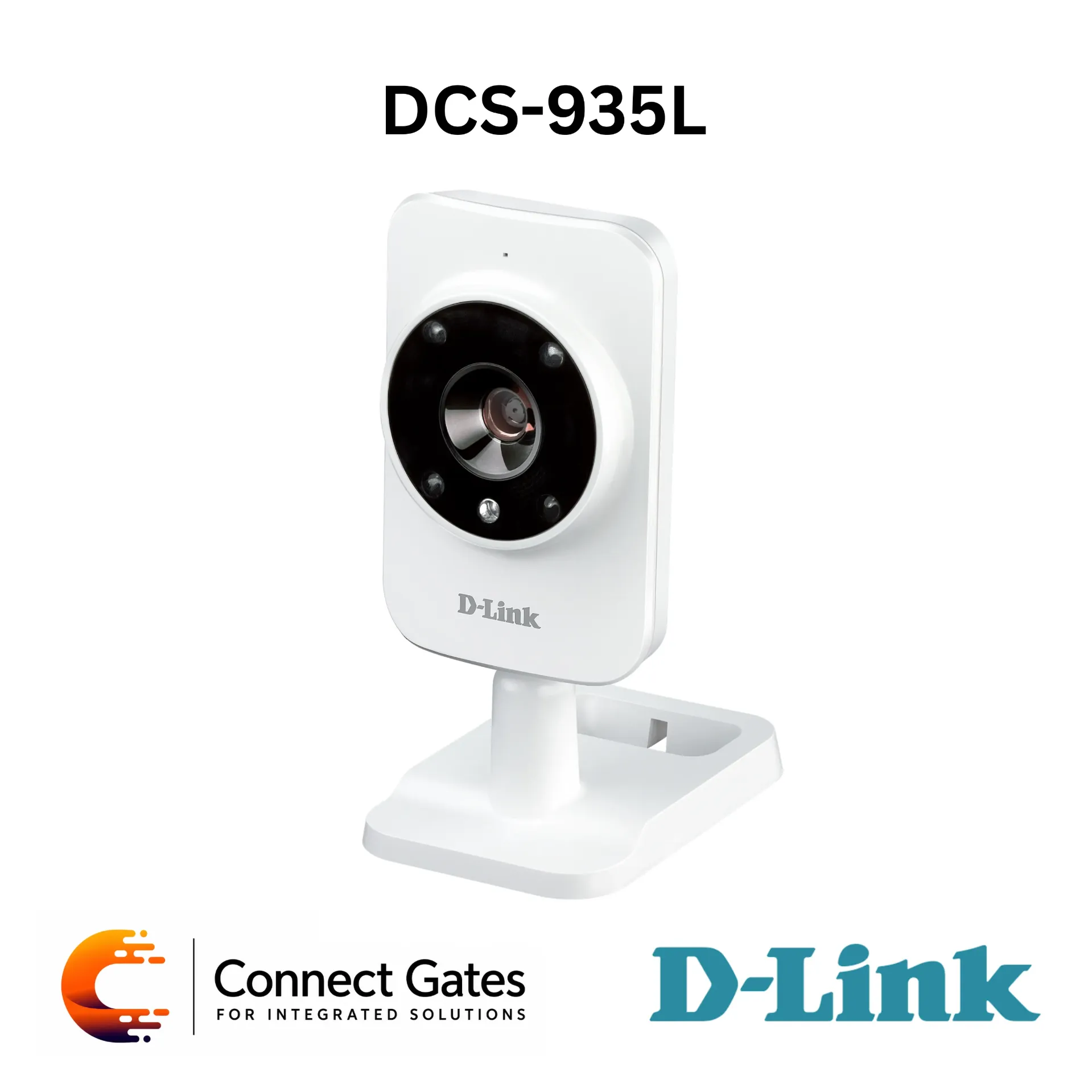

D-Link DCS-935L – HD Wi-Fi Camera with 720p Video, Wireless AC, Night Vision, Motion & Sound Detection
Overview:
• The D-Link DCS-935L is an HD Wi-Fi Camera designed for indoor home and small office monitoring.
• It provides 720p HD video with a high-quality megapixel CMOS sensor for clear live viewing and recording.
• The camera supports Wireless AC connectivity for faster and more reliable wireless video streaming, while remaining backward compatible with 802.11b/g/n networks.
• Built-in IR LEDs provide night vision up to 5 meters / 16 feet, enabling 24/7 monitoring in low-light or complete darkness.
• Motion detection and sound level detection can send email notifications with snapshots or video clips when activity is detected.
• mydlink Cloud support allows users to view and manage the camera remotely through the mydlink website or mydlink mobile apps.
• WPS, UPnP, DDNS support, and web-based configuration make installation and remote access easier for home and small office users.
Key Features:
• HD indoor Wi-Fi camera
• 720p HD video resolution
• High-quality 1/4” megapixel progressive CMOS sensor
• Wireless AC connectivity for smooth video streaming
• Backward compatible with 802.11b/g/n wireless networks
• Built-in IR LEDs for night vision up to 5 m / 16 ft
• Wide-angle lens for better coverage
• Motion detection with configurable detection windows
• Sound level detection
• Email notifications with snapshots or video clips
• Built-in microphone
• 4× digital zoom
• Simultaneous H.264 / MJPEG video compression
• JPEG still image support
• Configurable image size, quality, frame rate, and bit rate
• Configurable brightness, contrast, sharpness, saturation, and hue
• Time stamp and text overlay support
• WPS support for easy wireless connection
• UPnP and DDNS support
• mydlink Cloud-enabled remote viewing
• mydlink Lite and mydlink+ app support
• Web browser configuration
• Micro-USB power input
Technical Specifications:
• Brand: D-Link
• Model: DCS-935L
• Product Type: HD Wi-Fi Camera
• Image Sensor: 1/4” Megapixel Progressive CMOS Sensor
• Video Resolution: 1280 × 720 / 800 × 600 / 720 × 480 / 640 × 480 / 320 × 240 up to 30 fps
• Video Compression: Simultaneous H.264 / MJPEG
• Still Image Format: JPEG
• Lens Focal Length: 2.38 mm Fixed Lens
• Aperture: F2.4
• Digital Zoom: 4×
• Minimum Illumination: 0 lux with IR LED on
• IR Illumination Distance: Up to 5 m / 16 ft
• Minimum Object Distance: 434 mm
• Angle of View: 78.44° Horizontal / 47.9° Vertical / 85.98° Diagonal
• Exposure Time: 1/7.5 to 1/24,000 sec.
• ICR Filter: Built-in Infrared-Cut Removable Filter Module
• Audio: Built-in Microphone
• Audio Compression: AAC / G.711
• Wireless Connectivity: 802.11b/g/n/ac
• Wireless Frequency Range: 2.4GHz: 2.4–2.4835GHz / 5GHz: 5.15–5.35GHz, 5.47–5.725GHz
• Wireless Security: WEP / WPA / WPA2 Encryption
• Wireless Data Rate: Up to 433 Mbps PHY Rate
• EIRP: 17.66dBm on 2.4GHz / 23dBm on 5GHz
• Network Protocols: IPv4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client, HTTP Server, PPPoE, RTP, RTSP, RTCP, UPnP Port Forwarding, HTTPS, Bonjour
• Security Features: Administrator and User Group Protection, Password Authentication, HTTP and RTSP Digest Encryption
• Event Management: Motion Detection, Sound Level Detection, Snapshot/Video Clip Upload via SMTP or FTP
• Remote Management: Web Browser Configuration
• Mobile App Support: mydlink Lite and mydlink+ for iOS and Android
• Ports: Micro-USB Connector for Power Only
• Buttons: Direct Button, Reset Button, WPS Button
• LED: Power/Status LED
• Power Input: 5V DC / 1.2A
• Power Consumption: Maximum 3.5W ± 5%
• Dimensions: 66.8 × 84.5 × 124.85 mm
• Weight: 160 g ± 5%
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Storage Humidity: 20% to 80% Non-condensing
• Certifications: CE, CE LVD, FCC Class B, C-Tick
Applications:
• Indoor home monitoring
• Small office monitoring
• Baby room, living room, entrance, or office surveillance
• Day and night indoor monitoring
• Motion and sound alert monitoring
• Remote viewing through mydlink Cloud
• Email notification with snapshots or video clips
• Wireless HD monitoring without network cabling
• Basic standalone surveillance without PC or special hardware
Connect Gates Recommendation:
• Recommended for users who need an indoor HD Wi-Fi camera with Wireless AC, night vision, motion/sound alerts, and mydlink remote access.
• Suitable for homes, small offices, apartments, baby rooms, and indoor locations requiring simple standalone monitoring.
• Good choice when email alerts, web access, and mobile viewing are required without a full CCTV system.
• For professional CCTV systems, multi-camera recording, outdoor use, or long-term centralized storage, Connect Gates recommends using PoE IP cameras with NVR recording and structured network infrastructure.
