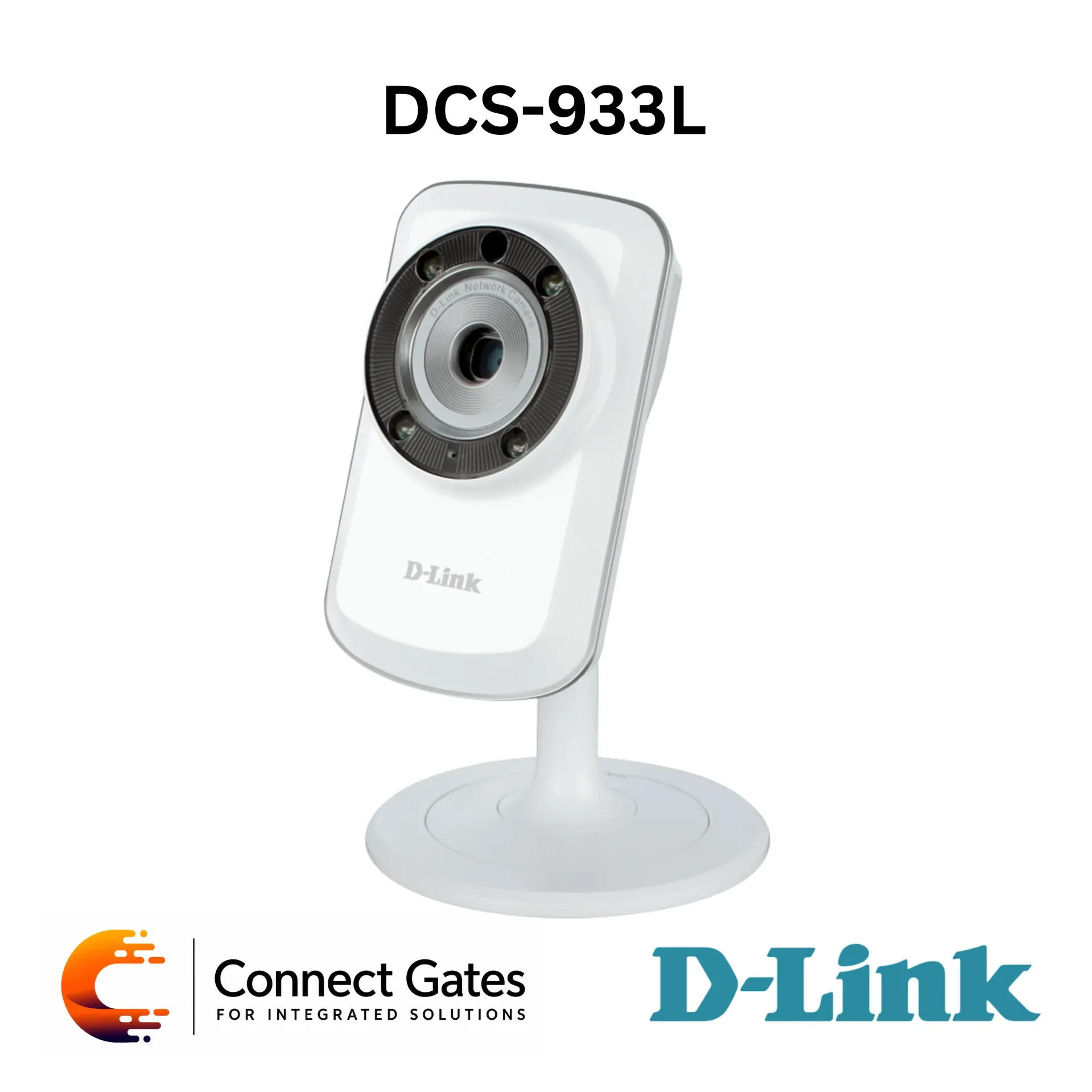

D-Link DCS-933L – Wireless N H.264 Day/Night Network Camera with Night Vision, Sound & Motion Detection, Extender Mode & mydlink
Overview:
• The D-Link DCS-933L is a Wireless N H.264 Day/Night Network Camera designed for home and small office monitoring.
• It is a standalone surveillance camera with built-in CPU and web server, allowing video monitoring without requiring a dedicated PC.
• Built-in IR LEDs provide night vision up to 5 meters / 16 feet, enabling monitoring in low-light or dark environments.
• Motion detection and sound level detection can trigger e-mail notifications with snapshots or video clips via SMTP or FTP.
• The camera supports real-time H.264 and MJPEG compression, providing flexible video streaming for remote viewing and recording.
• Wireless N connectivity and 10/100 Fast Ethernet allow easy integration into existing wired or wireless networks.
• Extender Mode helps expand wireless coverage and reduce Wi-Fi dead spots in home or office environments.
• mydlink support allows remote viewing through a web browser or mydlink Lite app over Wi-Fi, 3G, or 4G connections.
• D-ViewCam software support allows centralized management and viewing of up to 32 cameras.
Key Features:
• Wireless N H.264 Day/Night Network Camera
• Remote monitoring through mydlink cloud service
• Built-in IR LEDs for night vision up to 5 m / 16 ft
• VGA progressive CMOS sensor
• Real-time H.264 and MJPEG video compression
• JPEG still image support
• Motion detection support
• Sound level detection support
• E-mail and FTP event notifications
• Built-in microphone
• 4× digital zoom
• Built-in ICR filter module
• 10/100BASE-TX Ethernet port
• 802.11n wireless connectivity
• Extender Mode to expand Wi-Fi coverage
• UPnP and DDNS support
• WPS support for easy wireless setup
• Configurable image size, quality, frame rate, and bit rate
• Configurable motion detection windows
• Time stamp and text overlay support
• Configurable brightness, saturation, and contrast
• mydlink Lite app support for iOS and Android
• D-ViewCam software support up to 32 cameras
Technical Specifications:
• Brand: D-Link
• Model: DCS-933L
• Product Type: Wireless N H.264 Day/Night Network Camera
• Image Sensor: 1/5” VGA Progressive CMOS Sensor
• Video Resolution: 640 × 480 / 320 × 240 / 160 × 112 at up to 30 fps
• Video Compression: H.264 / MJPEG
• Still Image Format: JPEG
• Lens Focal Length: 3.15 mm Fixed Lens
• Aperture: F2.8
• Digital Zoom: 4×
• Minimum Illumination: 0 lux with IR LED on
• IR Illumination Distance: Up to 5 m / 16 ft
• Angle of View: 45.3° Horizontal / 34.5° Vertical / 54.9° Diagonal
• Exposure Time: 1/15 to 1/15,000 sec.
• ICR Filter: Built-in Infrared-Cut Removable Filter Module
• Audio: Built-in Microphone
• Audio Compression: PCM
• Network Interface: 10/100BASE-TX Ethernet Port
• Wireless Connectivity: 802.11n
• Extender Mode: Supported
• Network Protocols: IPv4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client, HTTP Server, PPPoE, UPnP Port Forwarding, LLTD
• Security: Password Authentication, HTTP Digest Encryption
• Event Management: Motion Detection, Sound Level Detection, Snapshot/Video Clip Upload via SMTP or FTP
• Remote Management: Web Browser Configuration
• Mobile App Support: mydlink Lite for iOS and Android
• Software Support: D-ViewCam Management Software
• D-ViewCam Capacity: Up to 32 Cameras
• Buttons: WPS Button, Reset Switch
• LEDs: Power and Link LED, WPS LED
• Power Input: 5V DC / 1A
• Power Consumption: 4W
• Dimensions with Base: 80 × 115 × 80 mm
• Weight: 96.2 g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Storage Humidity: 20% to 80% Non-condensing
• Certifications: CE, CE LVD, FCC, C-Tick
Applications:
• Home indoor monitoring
• Small office surveillance
• Baby room, living room, reception, or office monitoring
• Day and night indoor monitoring
• Motion and sound alert monitoring
• Remote viewing through mydlink
• Basic Wi-Fi camera installations
• Wi-Fi coverage extension using Extender Mode
• Multi-camera monitoring using D-ViewCam software
• Event-based recording and notification systems
Connect Gates Recommendation:
• Recommended for users who need an indoor Wi-Fi camera with night vision, H.264 video, motion/sound detection, and mydlink remote access.
• Suitable for homes, apartments, small offices, reception areas, and basic indoor surveillance applications.
• Good option when Extender Mode is required to improve Wi-Fi coverage in addition to camera monitoring.
• For higher resolution, wider viewing angle, outdoor use, or professional CCTV projects, Connect Gates recommends using newer Full HD IP cameras with NVR recording and structured network infrastructure.
