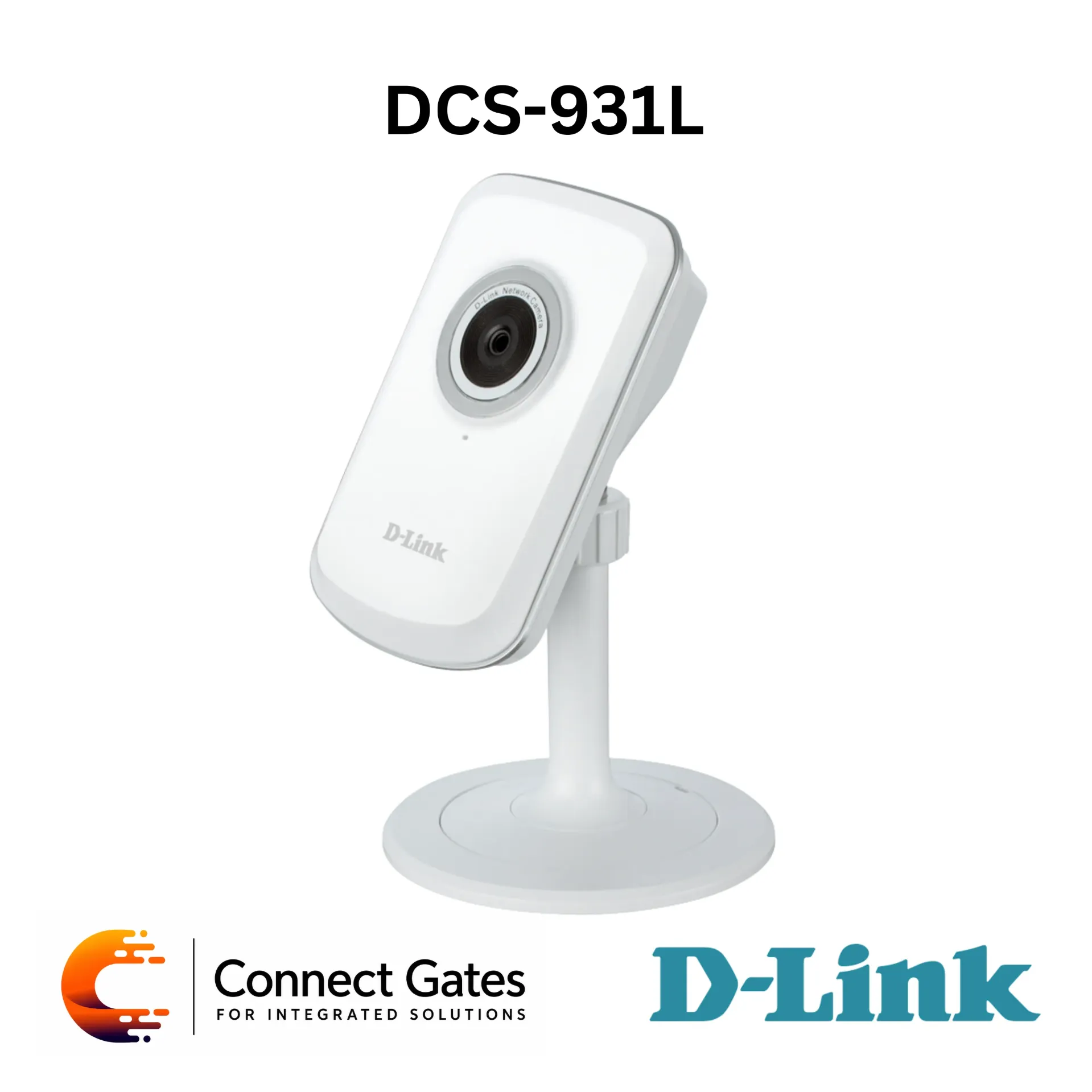

D-Link DCS-931L – Wireless N Network Cloud Camera with Wi-Fi Extender, H.264 Video, Motion & Sound Detection
Overview:
• The D-Link DCS-931L is a Wireless N Network Cloud Camera designed for home and small office monitoring.
• It connects easily to an existing home network for remote viewing through an Internet browser or the mydlink mobile app.
• The camera includes a built-in Wi-Fi Extender, allowing it to help expand wireless coverage and reduce Wi-Fi dead zones.
• H.264 and MJPEG video compression provide flexible video streaming options for remote monitoring and recording.
• Motion and sound detection can trigger event notifications and upload snapshots or video clips via e-mail or FTP.
• The DCS-931L supports 10/100 Fast Ethernet and IEEE 802.11n wireless connectivity, giving users flexible wired or wireless installation options.
• D-ViewCam software support allows centralized viewing and management of up to 32 cameras for basic multi-camera surveillance systems.
Key Features:
• Wireless N Network Cloud Camera
• Remote viewing through mydlink website or mobile app
• Built-in Wi-Fi Extender to expand wireless coverage
• Motion detection support
• Sound detection support
• E-mail and FTP event notification support
• H.264 / MJPEG video compression
• JPEG still image support
• VGA 1/5” CMOS image sensor
• 640 × 480 video resolution at up to 30 fps
• 4× digital zoom
• Built-in microphone
• 10/100BASE-T Fast Ethernet port
• IEEE 802.11n wireless connectivity
• WEP / WPA-PSK / WPA2-PSK wireless security
• Web browser configuration
• Snapshot and video clip saving to local drive or NAS
• D-ViewCam software support
• Supports up to 32 cameras through D-ViewCam
• Multiple recording methods for easy backup
• Compact indoor camera design
Technical Specifications:
• Brand: D-Link
• Model: DCS-931L
• Product Type: Wireless N Network Cloud Camera
• Image Sensor: VGA 1/5” CMOS Sensor
• Video Resolution: 640 × 480 / 320 × 240 / 160 × 120 at up to 30 fps
• Video Compression: H.264 / MJPEG
• Still Image Format: JPEG
• Lens Focal Length: 3.15 mm
• Minimum Illumination: 1 Lux at F2.8
• Digital Zoom: Up to 4×
• Field of View: 45.3° Horizontal / 34.5° Vertical / 54.9° Diagonal
• Image Features: Adjustable Image Size and Quality, Flip, Mirror, Time Stamp, Text Overlay
• Audio Support: PCM
• Audio: Built-in Microphone
• Network Interface: 10/100BASE-T Ethernet
• Wireless Connectivity: IEEE 802.11n
• Wireless Security: WEP / WPA-PSK / WPA2-PSK
• Wi-Fi Extender: Supported
• Network Protocols: IPv4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client, HTTP Server, PPPoE, UPnP Port Forwarding, LLTD
• Event Management: Sound Detection, Motion Detection, Snapshot/Video Clip Upload via E-mail or FTP
• Remote Management: Web Browser Configuration, Snapshot/Video Clip Saving to Local Hard Drive or NAS
• Mobile Support: mydlink Mobile App for iOS and Android
• Software Support: D-ViewCam Management Software up to 32 Cameras
• Power Adapter Input: 100–240V AC, 50/60Hz
• Power Output: 5V DC / 1A
• Maximum Power Consumption: 3.5W
• Dimensions: 27.2 × 60 × 96 mm
• Weight: 72 g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Storage Humidity: 5% to 95% Non-condensing
• Certifications: FCC, C-Tick, IC, CE
Applications:
• Home indoor monitoring
• Small office surveillance
• Apartment and room monitoring
• Remote viewing through mydlink
• Motion and sound alert monitoring
• Basic wireless surveillance installations
• Wi-Fi coverage extension in small areas
• Snapshot and video clip saving to local drive or NAS
• Multi-camera monitoring using D-ViewCam software
Connect Gates Recommendation:
• Recommended for users who need a simple indoor Wi-Fi camera with mydlink remote access, motion/sound detection, and Wi-Fi Extender functionality.
• Suitable for homes, apartments, small offices, reception areas, and basic indoor monitoring.
• Good option when compact camera design, remote mobile access, and basic event notifications are required.
• For higher resolution, night vision, outdoor use, or professional CCTV projects, Connect Gates recommends using newer Full HD IP cameras with NVR recording and structured network infrastructure.
